Wireless Portable USB2.0 ECG Monitoring System for Telemedicine

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	ECG

Send Inquiry

Product Description

ℹ

Basic Specifications

Model NO.TLC5000

CertificationCE, ISO13485

GroupAll

Record Time24-Hour

Screen1.8" OLED

Lead SystemStandard 12-lead

InterfaceUSB 2.0

WeightAbout 105g

OriginChina

HS Code90181100

📋

Product Description

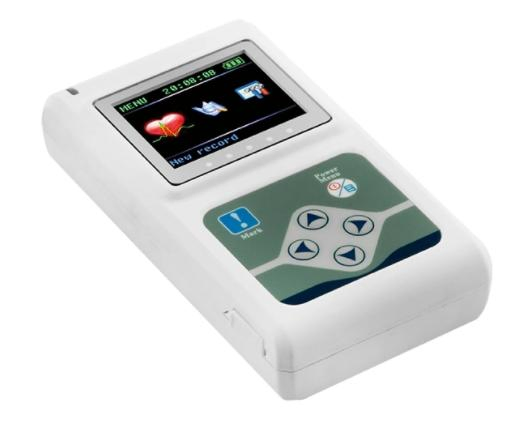

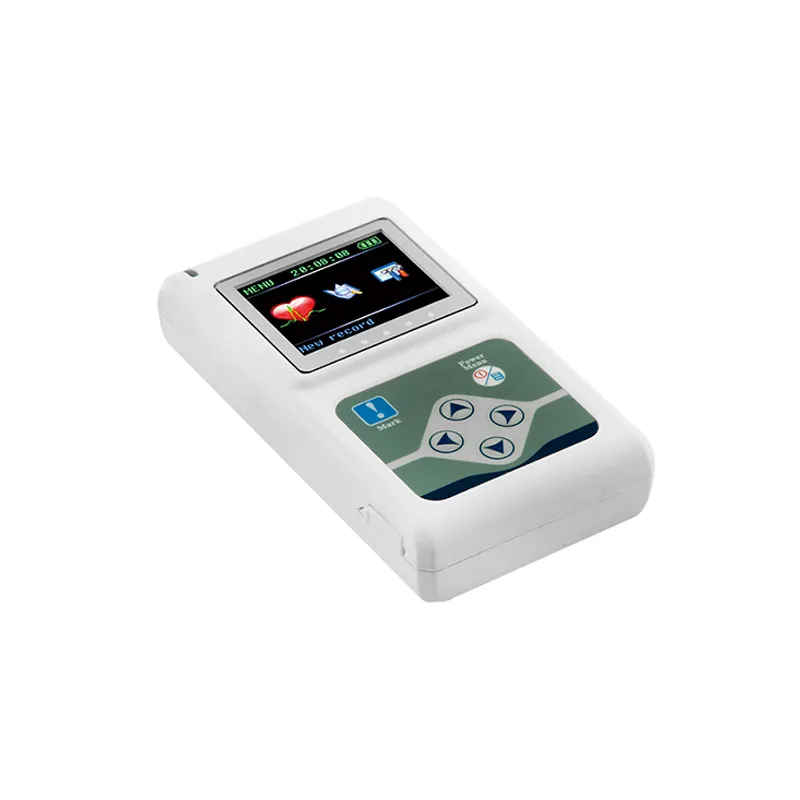

Model: TLC5000

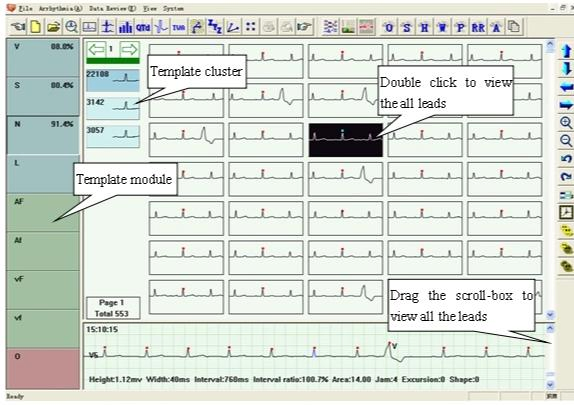

Wireless Portable USB2.0 Dynamic ECG/EKG System - Telemedicine adopts a 12-lead system of international standard, which can continuously record ECG waveform for 24 hours and analyze ECG waveform by the PC software. This system is applicable for use in medical institutions and communities.

Main Functions

Real-time storage of ECG data for 24 hours.
Arrhythmia analysis based on MCSSTM and TMCATM to reduce clinical workload.
Sync analysis for 12-lead ensures accurate QRS detection without distortion.
Over 10 templates (atrial premature beat, ventricular premature beat, long interval, atrial fibrillation, etc.).
Flexible analysis channel selection and atrial fibrillation analysis.
Powerful pacemaker analysis (AAI, VVI, DDD etc.).
Analysis functions for heart rate variability (5-minute, 1-hour, and 24-hour).
Advanced ST segment analysis for myocardial ischemia judgment.
"Sleep breath pause syndrome" and "HRT" analysis for risk prediction.
"T-Wave alternation" index for malignant arrhythmia prediction.
Includes QTD, VCG, VLP, and TVCG analysis modules.

📊

Technical Performance

Lead	Standard 12-lead
Record time	24-hour
Power supply	Two "AA" batteries
Interface	USB2.0
Calibration voltage	1mV±5%
Noise level	≤30μV
CMRR	≥60dB
Low-frequency	Time constant ≥3.2s
Scan speed	25mm/s±5%
Polarizing voltage	±300mV, sensitivity: ≤±10%
Minimum signal	50 µV p-p

📦

Accessories & Dimensions

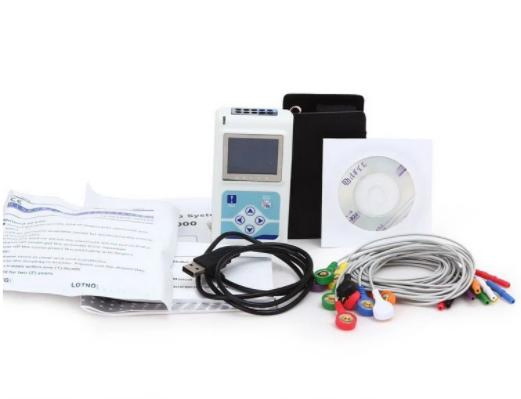

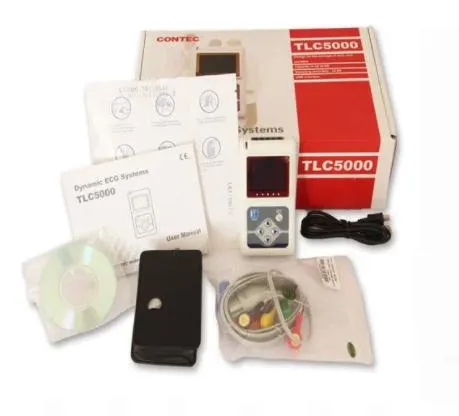

Accessories Included:

Lead cable (1 set)
ECG electrode (1 bag)
USB cable (1)
Disk (1)
Carrying Bag (1)
User manual (1)

Physical Characteristics:

Dimension: 111mm(L) × 60mm(W) × 25mm(H)
Weight: about 105g (without batteries)

Frequently Asked Questions

Q: How long can the TLC5000 record ECG data continuously? A: The system is designed to continuously record ECG waveforms for a full 24-hour period.

Q: What type of lead system does this Holter monitor use? A: It uses an international standard 12-lead system for comprehensive cardiac monitoring.

Q: Does the software support pacemaker analysis? A: Yes, it features a powerful pacemaker analysis function that can handle AAI, VVI, DDD, and other pacing modes.

Q: What is the power source for the portable device? A: The device is powered by two standard "AA" batteries, making it easy to replace and maintain during portable use.

Q: Can the system detect sleep apnea risks? A: Yes, it includes a unique "Sleep breath pause syndrome" analysis function to help predict the risk of sleep apnea.

Q: Is the ECG data transfer fast and reliable? A: The system utilizes a USB 2.0 interface for fast and stable data transmission to a PC for professional analysis.
