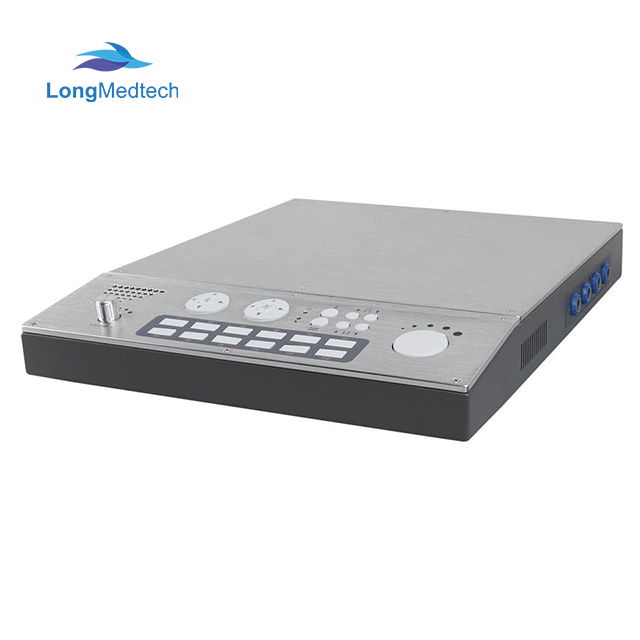

High Performance Cms6600b CE Medical Equipment Electromyography Ep System Emgmachine
High Performance Cms6600b CE Medical Equipment Electromyography Ep System Emgmachine
High Performance Cms6600b CE Medical Equipment Electromyography Ep System Emgmachine
High Performance Cms6600b CE Medical Equipment Electromyography Ep System Emgmachine
1 / 4
High Performance Cms6600b CE Medical Equipment Electromyography Ep System Emgmachine
High Performance Cms6600b CE Medical Equipment Electromyography Ep System Emgmachine
High Performance Cms6600b CE Medical Equipment Electromyography Ep System Emgmachine
High Performance Cms6600b CE Medical Equipment Electromyography Ep System Emgmachine

High Performance Cms6600b CE Medical Equipment Electromyography Ep System Emgmachine

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: ECG
Send Inquiry

Product Description

📋 Basic Information
Model NO.
CMS6600B
Certification
CE
Target Group
Middle-aged and Old
Sensitivity
0.05μV-20mv/Grid
Earth Noise Emg
<= 4μV(Vpp)
Weight
8kg
Application
Hospital / Clinic
Specification
438*354*56(mm)
🔍 Product Description

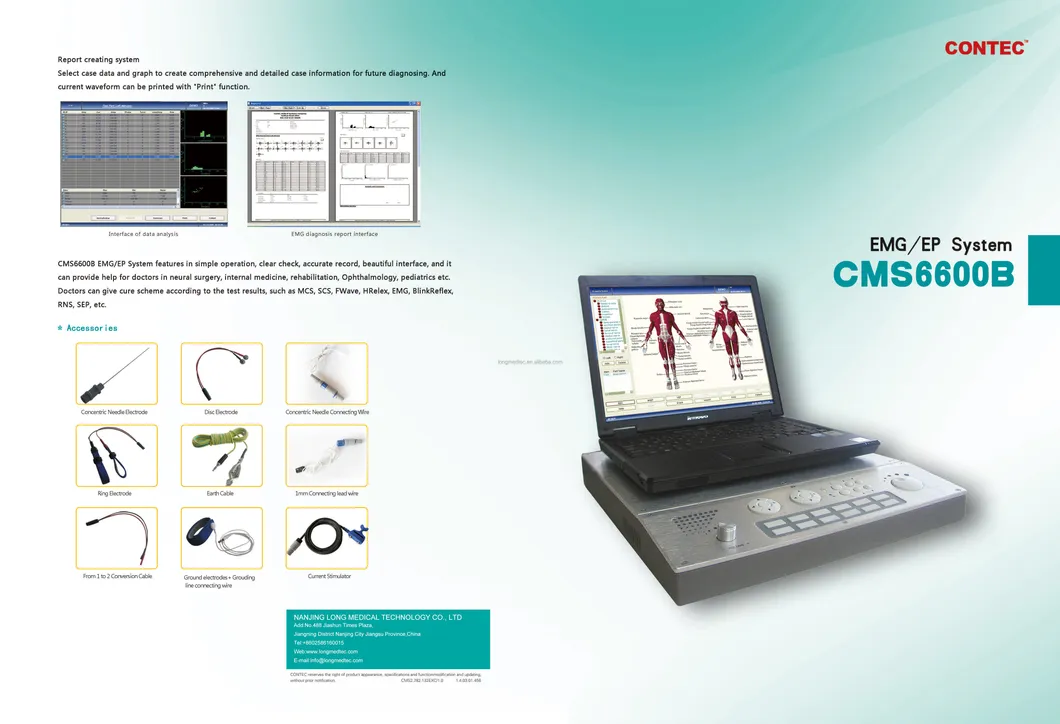

EMG System Overview

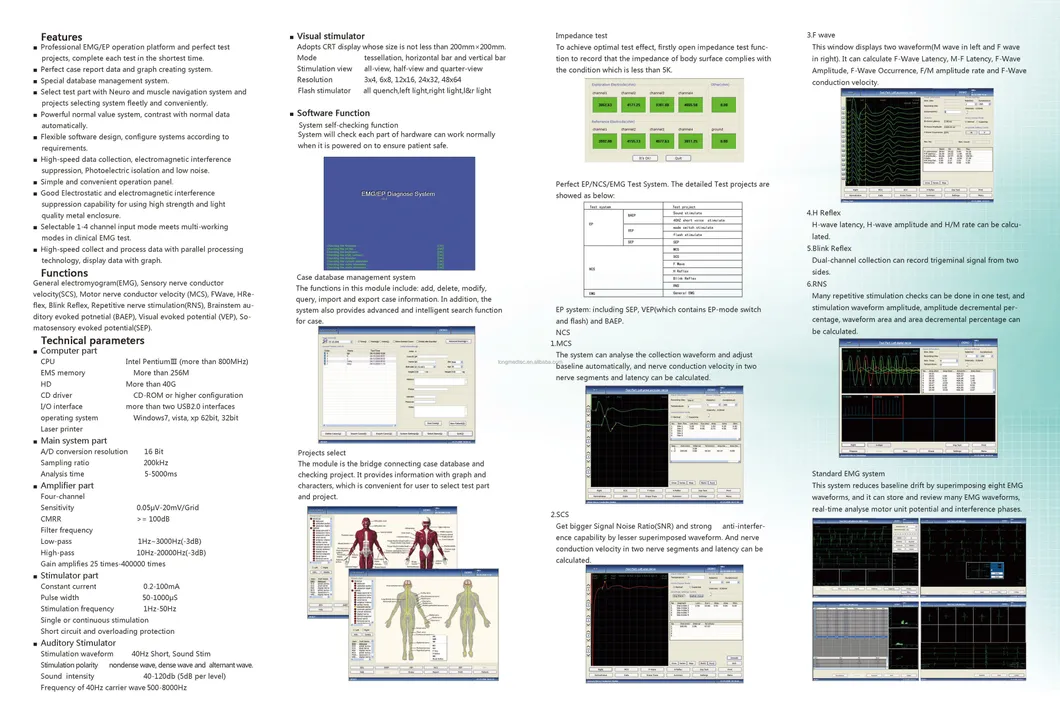

Medical Equipment Feature
Key Features
  • PC-based EMG/EP measuring system with credible and steady performance.
  • Multi-processing unit parallel technology for rapid data collection and graphics display.
  • 4 channels support, satisfying different clinical EMG examination modalities.
  • Low noise, high CMRR, and montage programmable electrode junction box.
  • Independently programmable stimulators for sophisticated examinations.
  • Professional electromyogram operation space, shortcut-oriented and steady.
  • Intraoperative monitor capability included.
  • High speed, self-motion data collection with electrical, voice, and light stimulus analysis.
⚙️ Technical Performance
Main System A/D conversion: 16 Bit | Sampling ratio: 200kHz | Analysis time: 5-5000ms | Stimulating frequency: 0.1-50Hz
Amplifier Part Four-channel | Sensitivity: 0.05μV-20mV/Grid | Earth noise EMG <= 4μV(Vpp) | CMRR >= 100dB
Stimulator Part Constant current: 0.2-100mA | Pulse width: 50-1000μS | Short circuit & overloading protection
Auditory Stimulator 40Hz Short, Sound Stim | Strength: 40-120db | Polarity: nondense, dense, alternant wave
Visual Stimulator Modes: tessellation, horizontal bar, vertical bar | Resolution: 3x4 to 48x64
🔥 Hot Seller & Production
Hot selling EMG
Professional Facility

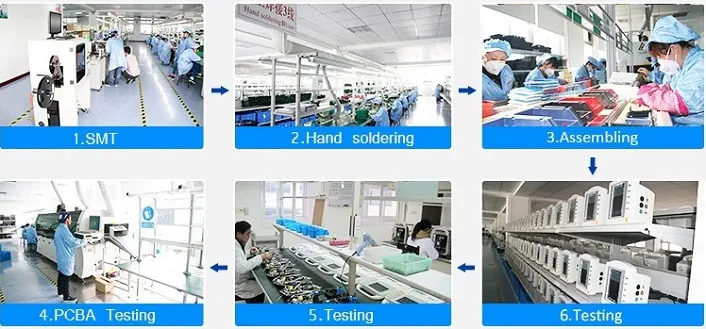

Production Process
📦 Packaging & Shipping
Packaging Details
Frequently Asked Questions
How many channels does the CMS6600B support?
The system is equipped with 4 channels, which satisfies various clinical EMG examination requirements.
What types of stimuli does this EMG system provide?
It includes electrical stimulus, auditory (voice) stimulus, and visual (light) stimulus for comprehensive analysis.
Is the system compatible with intraoperative monitoring?
Yes, the CMS6600B has professional intraoperative monitor capability built-in.
What is the sensitivity range of the amplifier?
The amplifier features a high sensitivity range of 0.05μV to 20mV per grid.
Does the device come with safety protection?
Yes, the stimulator part includes both short circuit and overloading protection for patient and operator safety.
What is the A/D conversion resolution?
The system uses a high-precision 16-bit A/D conversion resolution for accurate data sampling.
