3 or 12 Channel Analysis ECG Holter System

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	ECG

Send Inquiry

Product Description

Basic Information

Model NO.

PL-3L

Certification

ISO13485, F&S

Channel

3/12 Channel

Classification

Arrhythmia Analysis

ST Analysis

Myocardial Ischemia Evaluation

OSAS Analysis

Obstructive Sleep Apnea Syndrome

HRV Analysis

Time and Frequency Domain

Production Capacity

100 Sets Per Month

Product Description

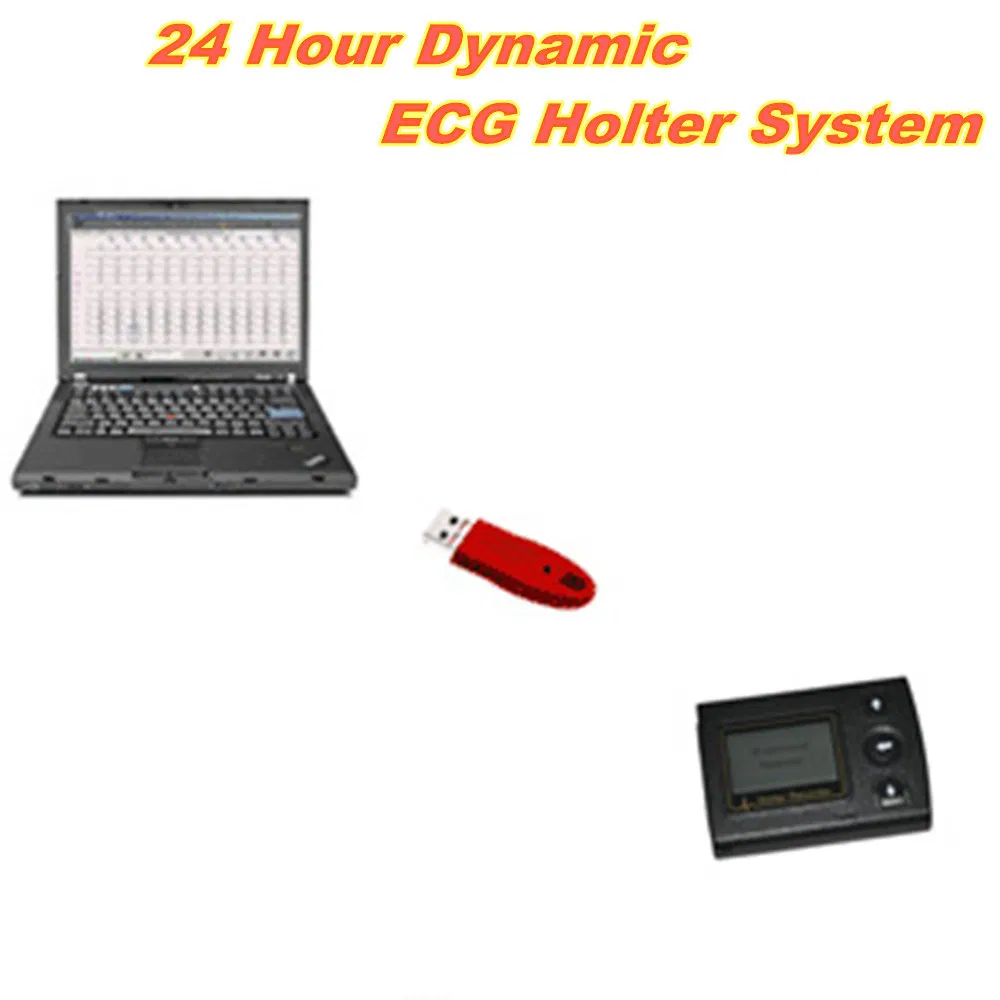

24 Hour Dynamic EKG Test

3/12 channel analysis
QRS template classification
Arrhythmia analysis
Analysis of ST segment changes
Evaluation of myocardial ischemia
Excellent pacemaker analysis
Obstructive Sleep Apnea Syndrome (OSAS) analysis
Atrial Fibrillation/Flutter analysis
Heart Rate Variability (HRV) analysis

Model: PL-3L (3-Channel)

Features	Compatible with Del Mar, DMS CardioScan, Century 3000; Mini LCD recorder; Compact & lightweight; High fidelity; Low power consumption; Pacemaker detection.
Recording Time	Up to 3 days recording
Specification	Sample rate: 128~1024Hz; Resolution: 8-16 bit; Storage: 2GB SD or 512Mb Solid state; Weight: 42g; Power: 1 AAA battery.

Model: PL-3L-2 (Long-term 3-Channel)

Features	Mini LCD Holter recorder; Research grade performance; Lightning data transfer; Pacemaker detection.
Recording Time	Up to 7 days recording (1-7 days full disclosure)
Specification	Dimensions: 68mmx53mmx16mm; Lead: 5 wire patient cable; Data transfer: SD reader or USB Cable.

Model: PL-4L (12-Channel)

Features	12-lead mini LCD; Two recording modes (12-lead/3-lead switchable); Fast data transfer; No data compression.
Recording Time	Up to 2 days recording (24-48 hours)
Specification	Channel: 2, 3 or 8 digital channels; Lead: 10 wire patient cable; Frequency response: 0.05-60Hz.

Frequently Asked Questions

Q1: How many channels does the system support? The system supports both 3-channel and 12-channel digital recording modes, depending on the specific model and patient cable used.

Q2: What is the maximum recording duration available? The recording time varies by model: the standard PL-3L supports up to 3 days, the PL-3L-2 supports up to 7 days, and the 12-channel PL-4L supports up to 48 hours.

Q3: Does the device provide pacemaker analysis? Yes, the system includes excellent pacemaker analysis and a dedicated pacemaker sample rate of 10000Hz for accurate detection.

Q4: How heavy is the Holter recorder? The recorder is designed for patient comfort, weighing only 42 grams (excluding the battery), with compact dimensions of 68mm x 53mm x 16mm.

Q5: What power source is required for the device? The recorder operates on a single AAA size battery, ensuring lower power consumption for long-term monitoring.

Q6: Is there any data compression during recording? No, the system provides full disclosure recording with no data compression to ensure the highest fidelity and clinical accuracy.
