Wired Type Treadmill Stress ECG Test System

1 / 5

Wired Type Treadmill Stress ECG Test System

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	ECG

Send Inquiry

Product Description

Basic Specifications

Model NO.

AJ-STR900

Certification

CE, ISO13485

Frequency Response

0.05-100Hz

Sampling Frequency

500Hz

Running Belt

330 Cm * 53 Cm

Maximum Load

160kg

Trademark

ANJUE

Origin

China

Product Description

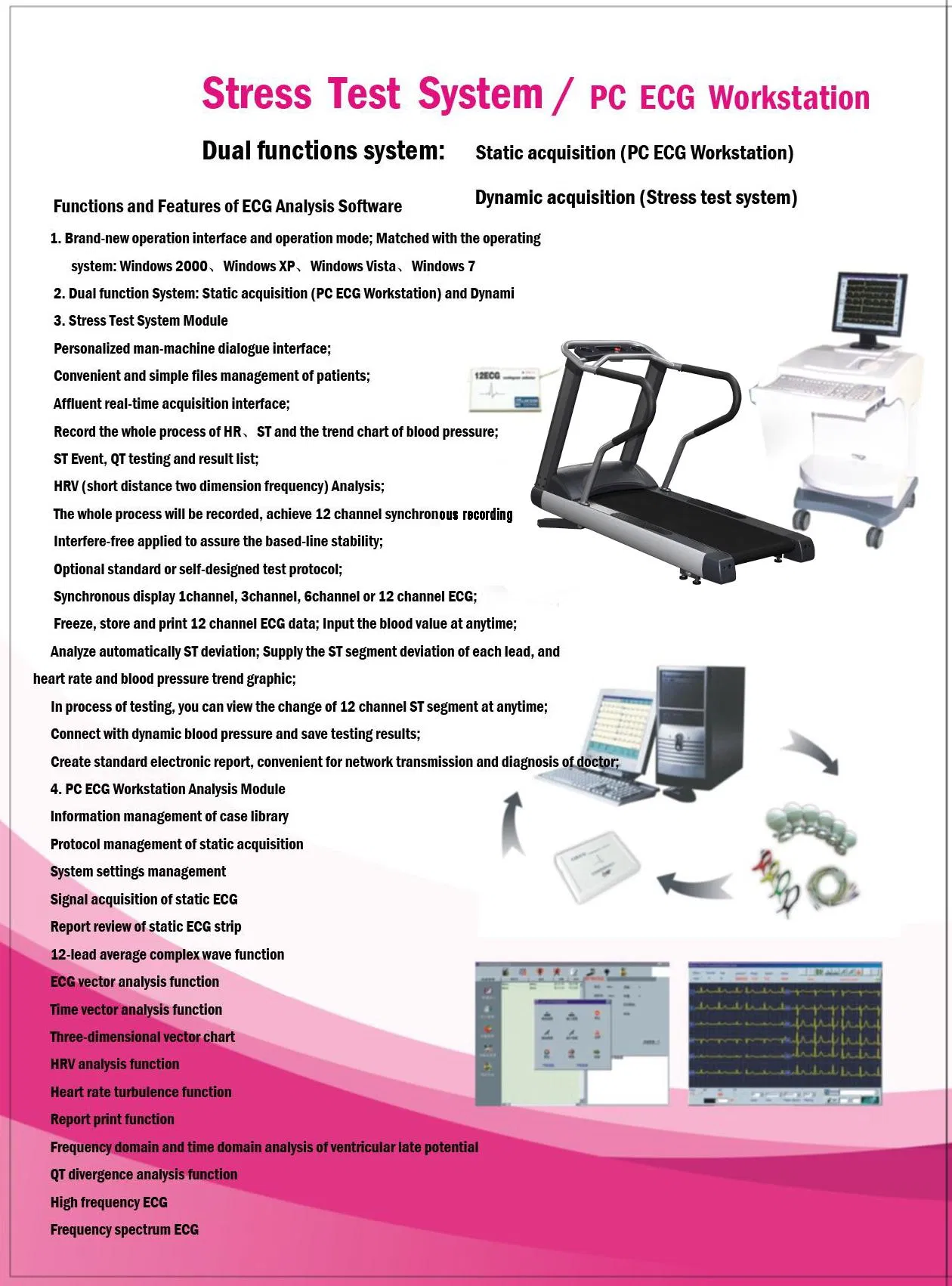

Dynamic Acquisition & Analysis Software

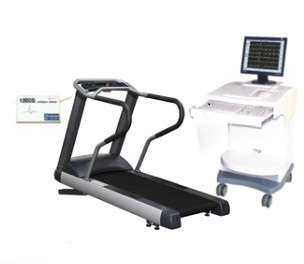

Dual function System: Static acquisition (PC ECG Workstation) and Dynamic acquisition (Stress test system).

Matched with Operating Systems: Windows 2000, XP, Vista, and Windows 7.

Personalized man-machine dialogue interface with convenient file management.

Record the whole process of HR, ST, and the trend chart of blood pressure.

12-channel synchronous recording with interfere-free technology for baseline stability.

Analyze automatically ST deviation and supply trend graphics for HR and BP.

Create standard electronic reports for easy network transmission and diagnosis.

PC ECG Workstation Module

Comprehensive ECG vector analysis and 3D vector charts.

Advanced HRV analysis and heart rate turbulence functions.

Frequency domain and time domain analysis of ventricular late potential.

High-frequency and frequency spectrum ECG capabilities.

Technical Specifications

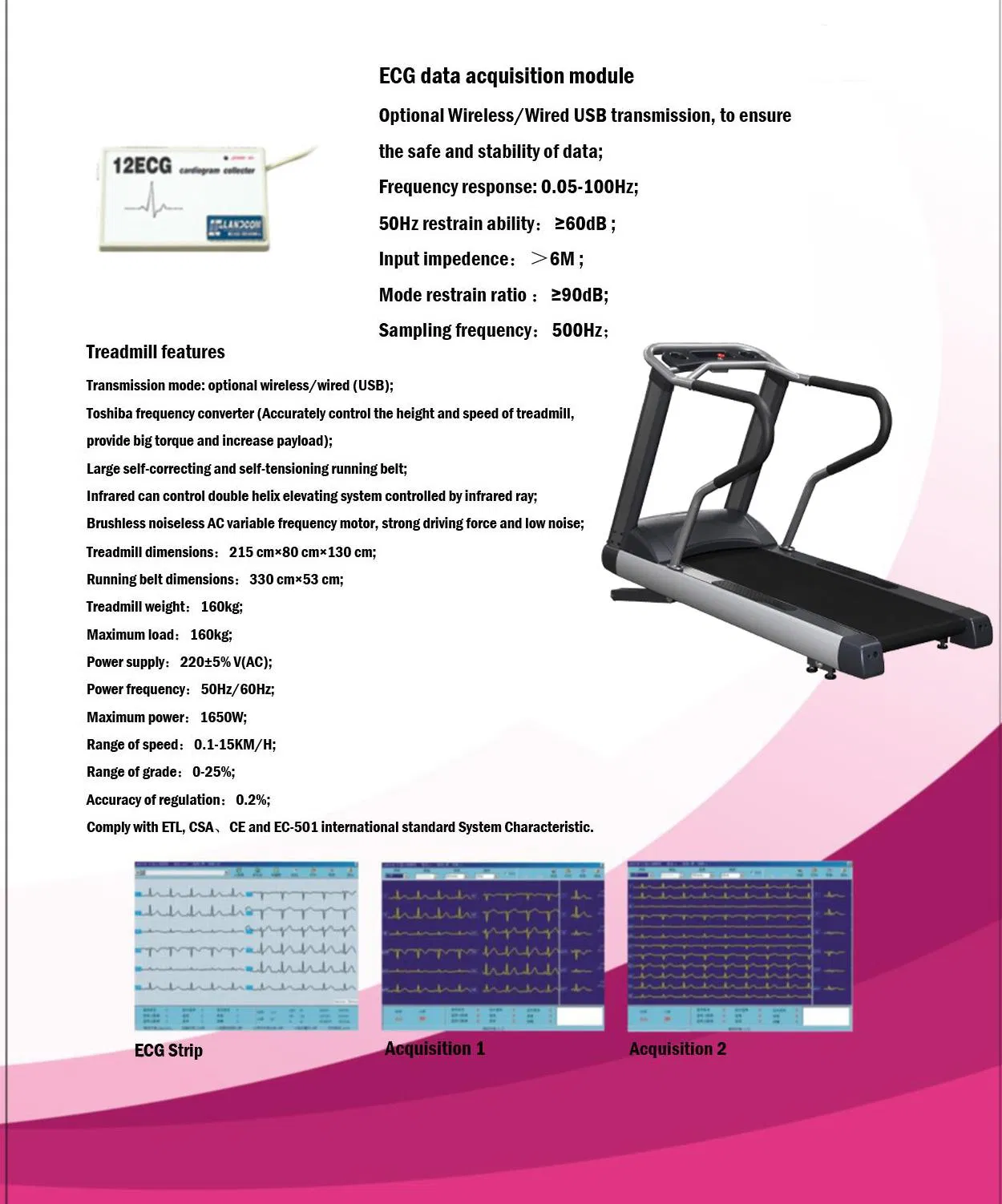

ECG Data Acquisition Module

Transmission: Optional Wireless/Wired USB for data stability.

50Hz restrain ability: ≥60dB.

Input impedance: >6MΩ.

Common mode rejection ratio: ≥90dB.

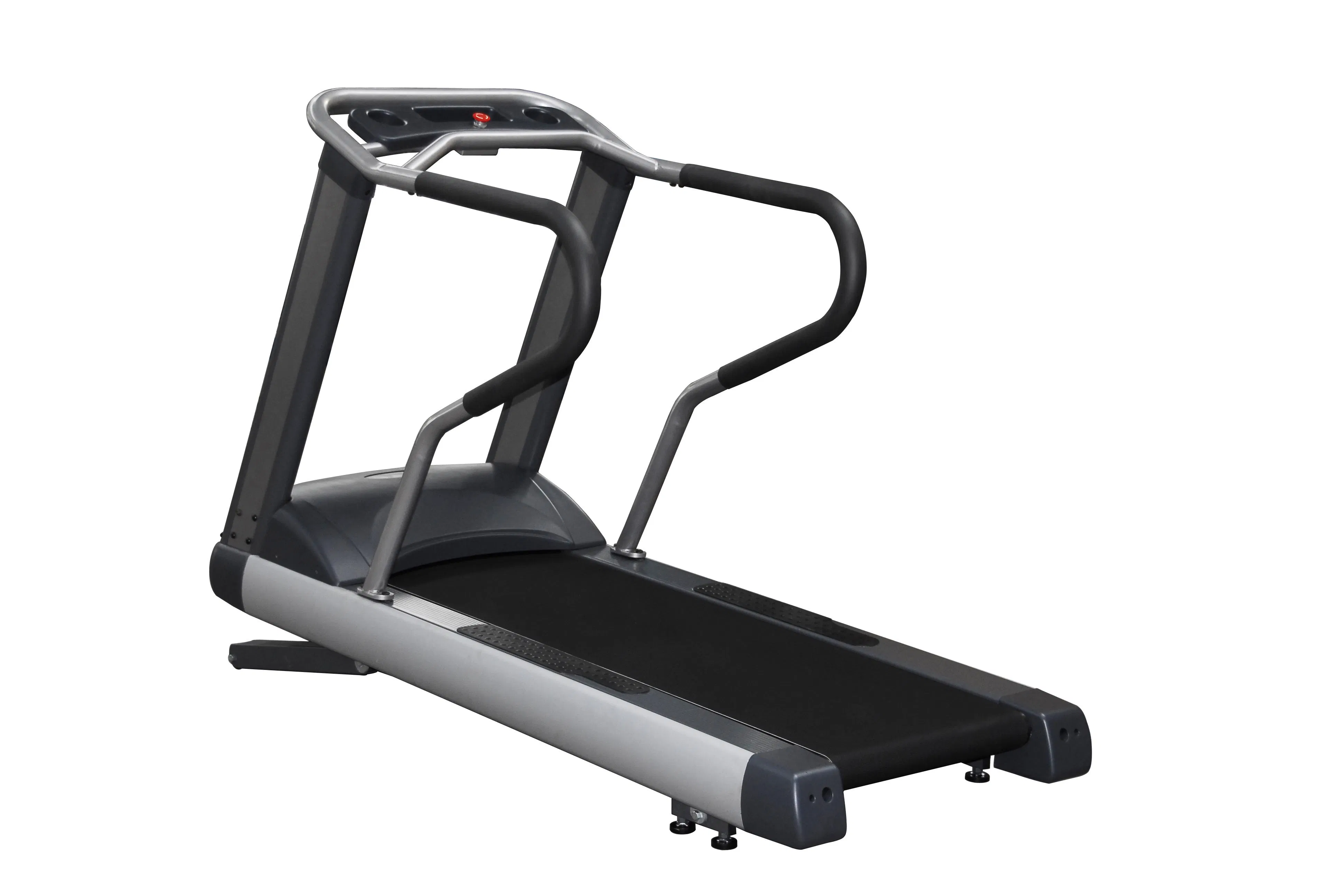

Treadmill Features

Motor: Brushless noiseless AC variable frequency motor with Toshiba converter.

Belt: Large self-correcting and self-tensioning running belt (330cm x 53cm).

Control: Double helix elevating system controlled by infrared ray.

Speed Range: 0.1-15 KM/H | Grade Range: 0-25%.

Standard Compliance: ETL, CSA, CE, and EC-501 international standards.

Frequently Asked Questions

Q1: Which operating systems is the AJ-STR900 software compatible with?

The system supports Windows 2000, Windows XP, Windows Vista, and Windows 7 operating systems.

Q2: Can the treadmill handle heavy patients?

Yes, the AJ-STR900 is designed for professional use with a maximum load capacity of 160kg.

Q3: Does the system provide both static and dynamic ECG acquisition?

Yes, it features a dual-function system that includes both a PC ECG Workstation (Static) and a Stress Test System (Dynamic).

Q4: What is the speed and incline range of the treadmill?

The treadmill offers a speed range of 0.1-15 KM/H and a grade/incline range of 0-25% with 0.2% regulation accuracy.

Q5: Is data transmission stable during high-intensity stress tests?

Absolutely. You can choose between Wired USB or Wireless transmission to ensure data safety and stability.

Q6: What certifications does this medical system hold?

The AJ-STR900 system complies with international standards including CE, ISO13485, ETL, and CSA.

Product Detail

Wired Type Treadmill Stress ECG Test System
