Portable 3G Wi-Fi Health Monitoring Device with Multi-Language Support

1 / 5

Portable 3G Wi-Fi Health Monitoring Device with Multi-Language Support

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Patient Monitor

Send Inquiry

Product Description

📊 Basic Information

Model NO.

CMS6500

Display

7'' Color TFT LCD

Classification

Class II

Material

Plastic

Parameters

ECG, SpO2, PR, NIBP

Warranty

1 Year

🔍 Product Introduction

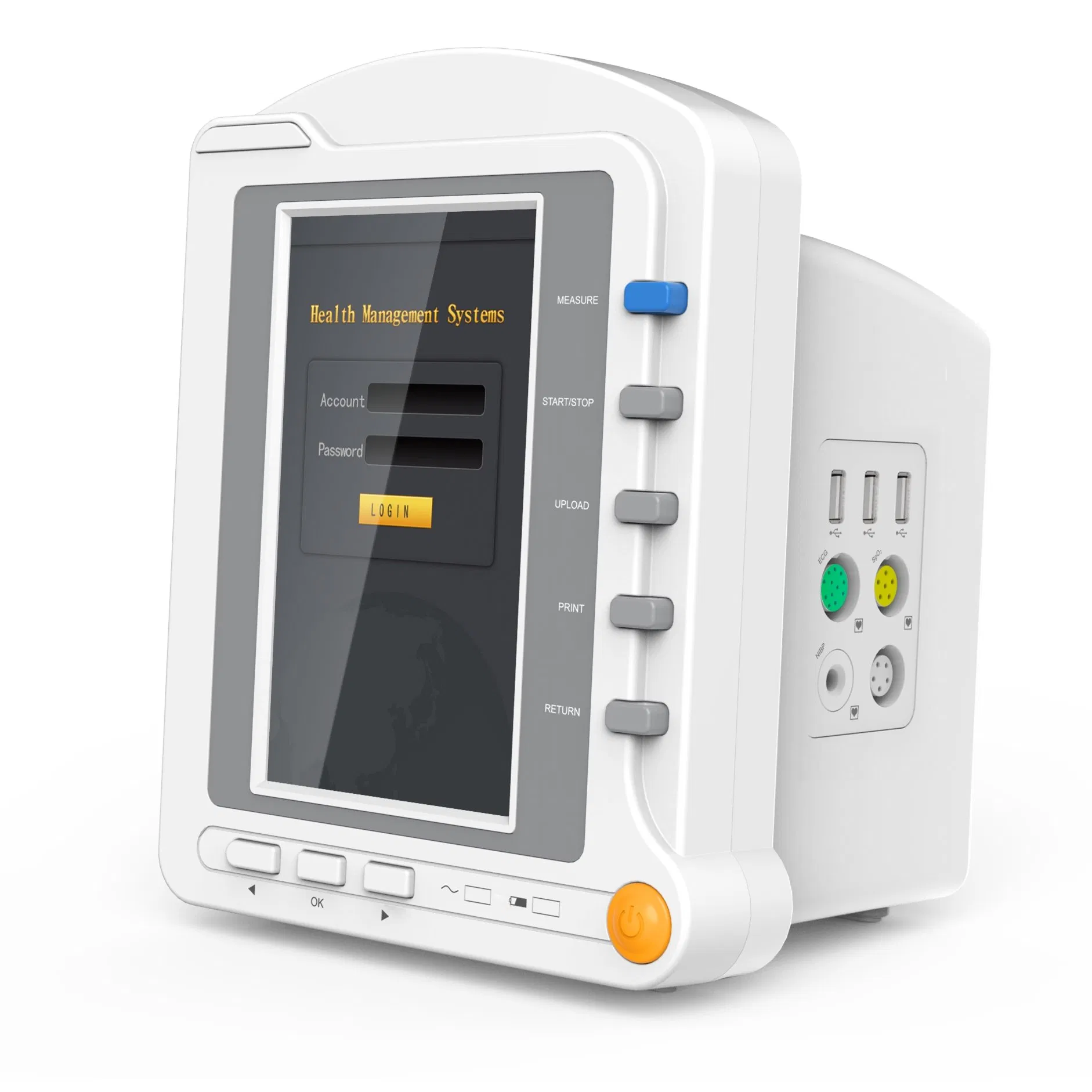

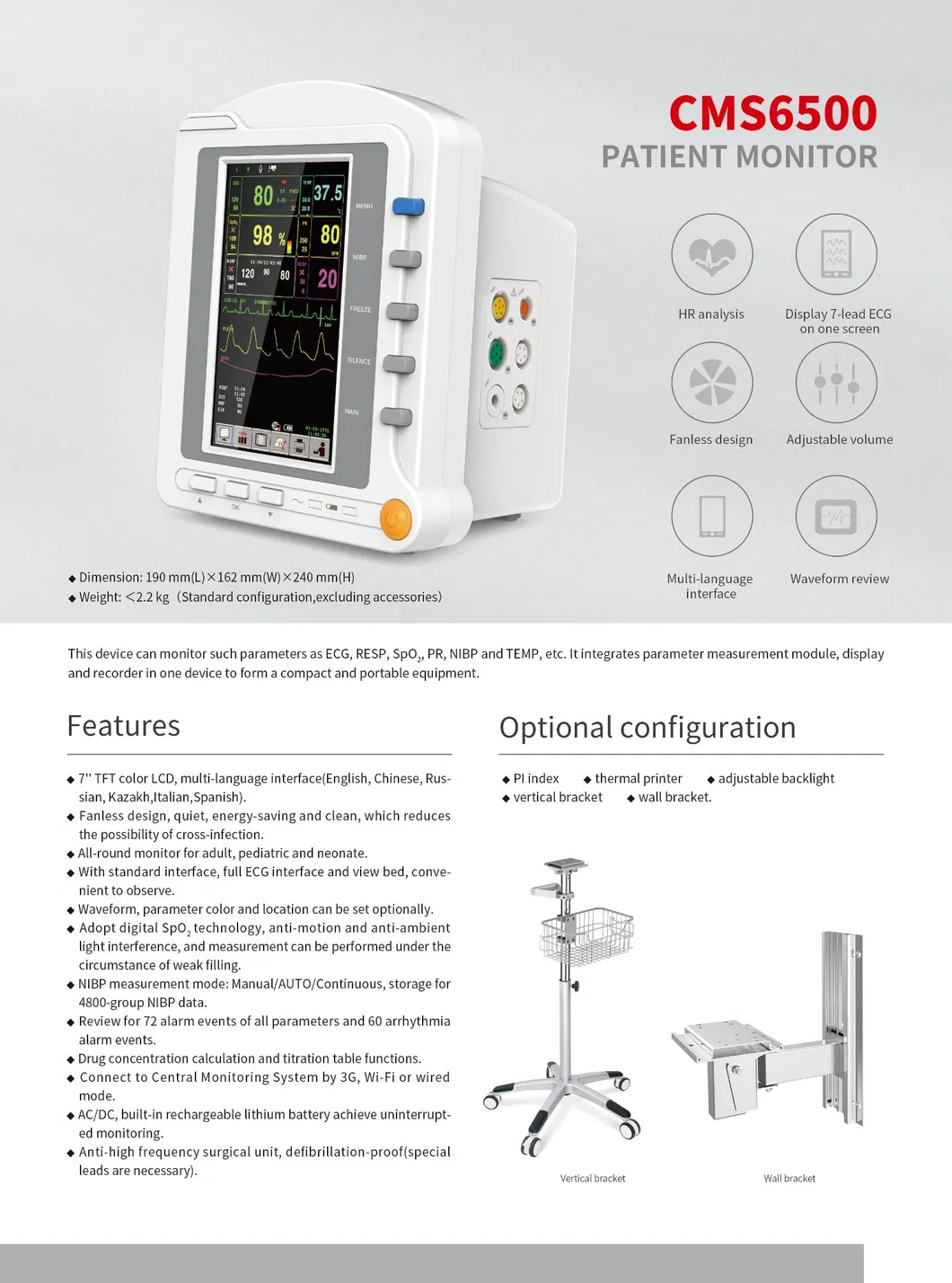

CMS6500 Portable Health Monitoring Device

The CMS6500 is a portable patient monitor featuring a responsive touch screen. Designed to ensure high-quality monitoring while reducing operational risks, it incorporates full-isolation technology, ECG defibrillation-proof protection, anti-high frequency surgical interference, and dual-overpressure protection for NIBP.

✨ Key Features

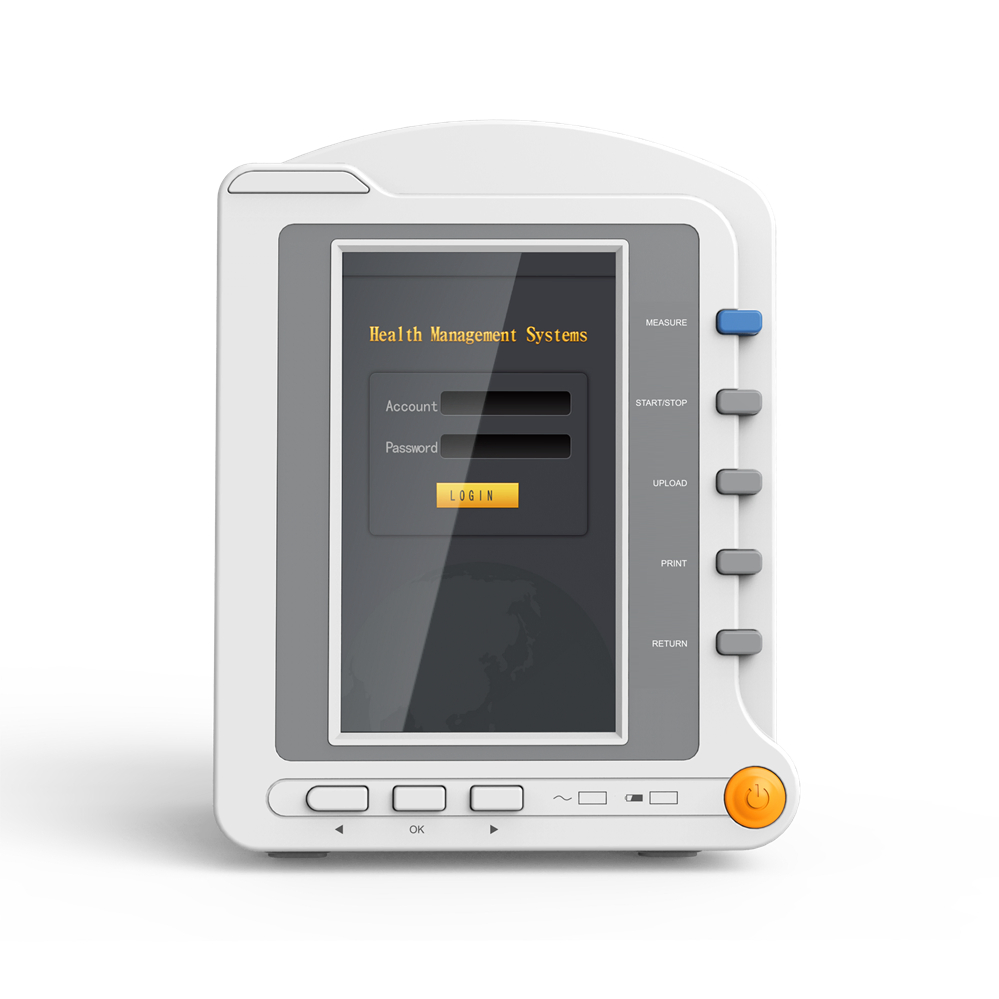

High-Resolution Display: 7'' color TFT LCD with clear visualization.
Touch Operation: Simple and intuitive interface for quick navigation.
Universal Application: Suitable for adult, pediatric, and neonatal patients.
Data Storage: 72-hour trend data storage and 40-second holographic waveform review.
Advanced SpO2: Digital technology with strong anti-interference capabilities.
Versatile Connectivity: Supports both wired and wireless networking for central station connection.
Internal Battery: Built-in rechargeable battery ensures uninterrupted monitoring.

📋 Technical Specifications

ECG	Lead mode: 3-lead or 5-lead; Gain: 2.5mm/mV to 20mm/mV; Scan speed: 12.5mm/s, 25mm/s, 50mm/s.
Heart Rate (HR)	Range: 15~350 bpm; Accuracy: ±1 % or ±1 bpm. ST-segment monitoring included.
RESP	Method: R-F Impedance; Range: 0~150 rpm; Apnea alarm: 10~40s.
NIBP	Method: Oscillometry; Modes: Manual/AUTO/Continuous. Adult, Pediatric, and Neonatal over-pressure protection.
SpO2	Measurement range: 0 ~ 100%; Accuracy: 70%~100% (±2%).
PR	Measurement range: 30 ~ 250 bpm; Accuracy: ±2 bpm or ±2%.

📦 Package Accessories

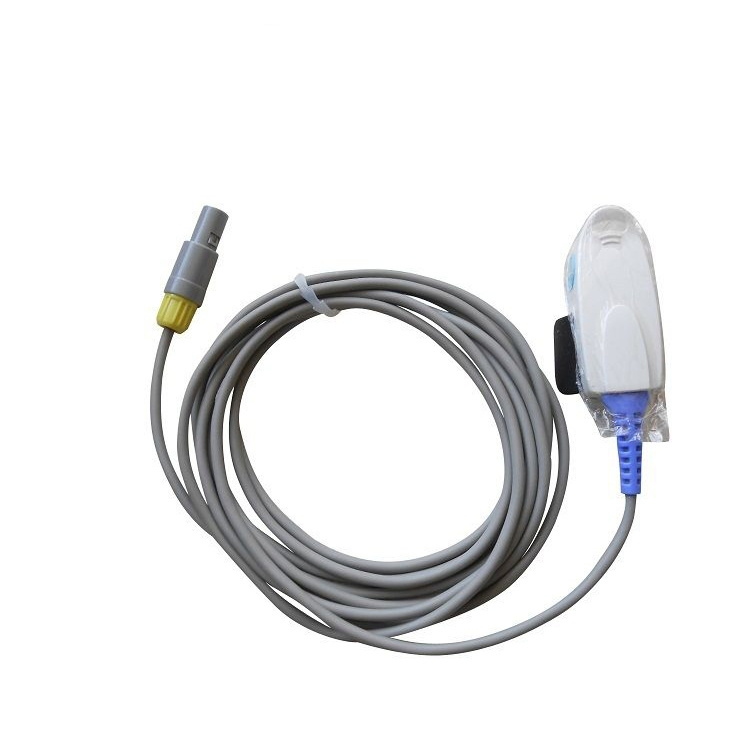

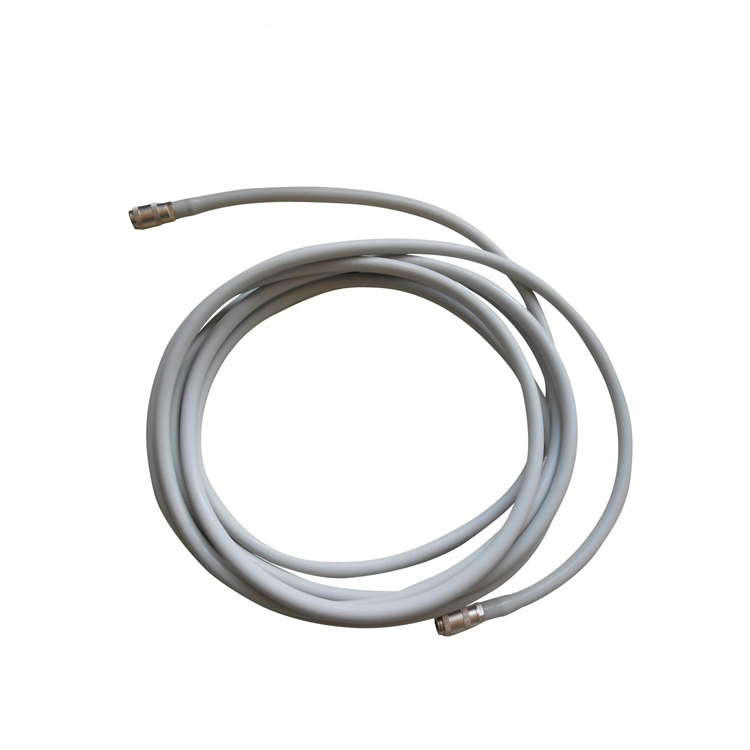

Standard Set: SpO2 probe (Adult), extension cable, NIBP cuff & tube, ECG lead cable & electrodes, temperature probe, power adapter, and user manual.

Optional: Pediatric/Neonatal accessories, Telemedicine modules.

📏 Physical Attributes

Dimensions

192 mm(L) × 162 mm(W) × 243 mm(H)

Weight

2.0 Kg

🖼️ Product Details Gallery

❓ Frequently Asked Questions

What is the screen size and type?

The device features a 7-inch high-resolution color TFT LCD with a touch screen for easy operation.

Can this monitor be used for infants?

Yes, the CMS6500 is designed for all-round monitoring and is applicable for adult, pediatric, and neonatal patients.

What vital signs does it monitor?

The standard parameters include ECG, Respiration (RESP), Non-Invasive Blood Pressure (NIBP), SpO2, Temperature (TEMP), and Pulse Rate (PR).

Does the device support data storage?

Yes, it can store up to 72 hours of trend data and allows for the review of 40-second holographic waveforms.

How can the monitor be connected to a network?

It supports both wired and wireless (Wi-Fi) network connections to interface with central stations or other bed observation units.

Does it have protection against surgical interference?

Yes, it includes anti-high frequency surgical unit protection and is defibrillation-proof to ensure safety during various medical procedures.
