Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
1 / 5
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device
Contec Cms6500 Patient Monitoring Remote Patient Monitor Device

Contec Cms6500 Patient Monitoring Remote Patient Monitor Device

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: Patient Monitor
Send Inquiry

Product Description

🔹 Overview - Basic Information
Model NO.:
CMS6500
Certification:
CE
Product Name:
Vital Signs Monitor Patient Monitor with Touch Screen
Display Mode:
7'' Color TFT LCD
Multi-Parameter:
ECG, SpO2, Pulse Rate, NIBP
ECG Lead Mode:
3-Lead or 5-Lead
HR Range:
15 ~ 300 Bpm
SpO2 Range:
0 ~ 100%
Measurement:
25 ~ 260mmhg
Production:
500/Week
📷 Detailed Photos

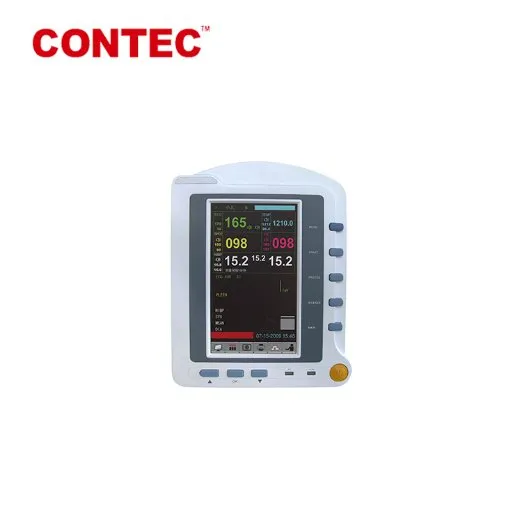

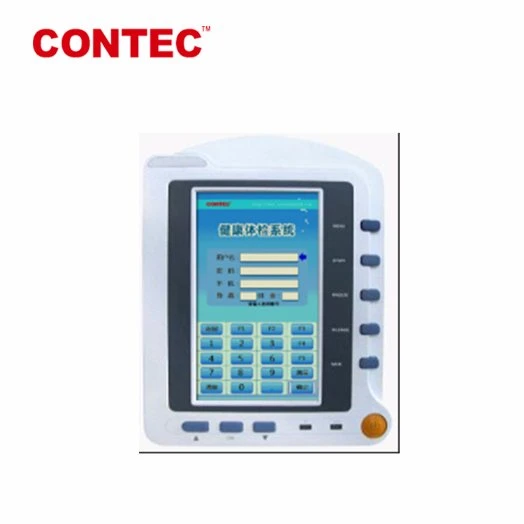

Patient Monitoring Device

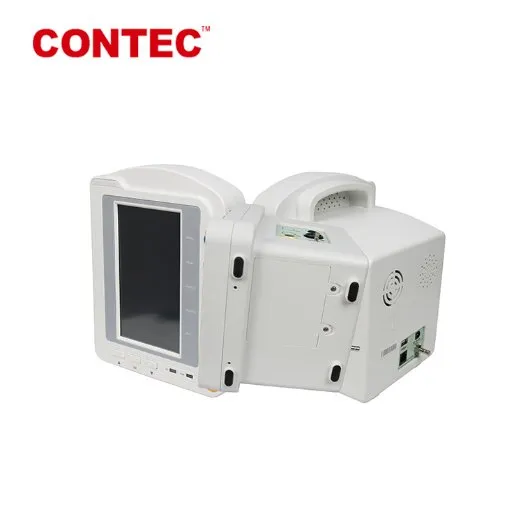

Remote Patient Monitor
📝 Product Description

Vital Signs Monitor Patient Monitor with Touch Screen CMS6500

CMS6500 is a portable monitor with a touch screen. To ensure monitoring quality and reduce operation risk, it adopts full-isolation (floating), ECG defibrillation-proof protection, ECG anti-high frequency surgical unit, and NIBP dual-overpressure protection.

Key Features:

  • 7'' color TFT LCD with high-resolution display.
  • Simple and shortcut operation with touch screen interface.
  • Applicable for adult, pediatric, and neonatal patients.
  • 72-hour trend data storage and 40-second holographic waveform review.
  • Digital SpO2 technology with strong anti-interference capability.
  • NIBP review and storage for up to 400 groups of data.
  • Networkable: Supports central station connection via wireless or wired modes.
  • Built-in rechargeable battery for uninterrupted monitoring.
Description Vital Signs Monitor Patient Monitor with Touch Screen
ECG Lead mode: 3-lead or 5-lead; Gain: 2.5mm/mV to 20mm/mV; Scan speed: 12.5mm/s to 50 mm/s
HR / RESP HR Range: 15~350 bpm; RESP Range: 0~150 rpm; Apnea alarm: 10~40s
NIBP Method: Oscillometry; Mode: Manual/AUTO/Continuous; Range: 10 ~ 270 mmHg
SpO2 / PR SpO2 Range: 0 ~ 100% (Accuracy ±2% for 70-100%); PR Range: 30 ~ 250 bpm
TEMP / Power TEMP Range: 0 ~ 50ºC; Power: AC 100 ~ 240 (V), 50/60 (Hz); Safety: Class I, type CF
📦 Accessories & Physical Characteristics

Standard Accessories:

1. Adult fingertip SpO2 probe | 2. SpO2 extension cable | 3. Adult NIBP cuff | 4. NIBP extension tube | 5. ECG lead cable | 6. ECG electrode | 7. Temperature probe | 8. Power cord | 9. Power adapter | 10. User Manual

Physical Characteristics:

Dimension: 192 mm(L) × 162 mm(W) × 243 mm(H)
Weight: 2.0 Kg
📋 Product Categories
  • Telemedicine products
  • Pulse oximeter
  • Patient Monitoring
  • ECG / Holter ECG
  • EEG
  • Ultrasound Imaging
  • Fetal doppler / monitor
  • Blood pressure Monitor
  • Spirometer
  • Infusion/Syringe Pump
  • Digital Stethoscope
  • Veterinary products
🖼️ Gallery
Gallery Image 1

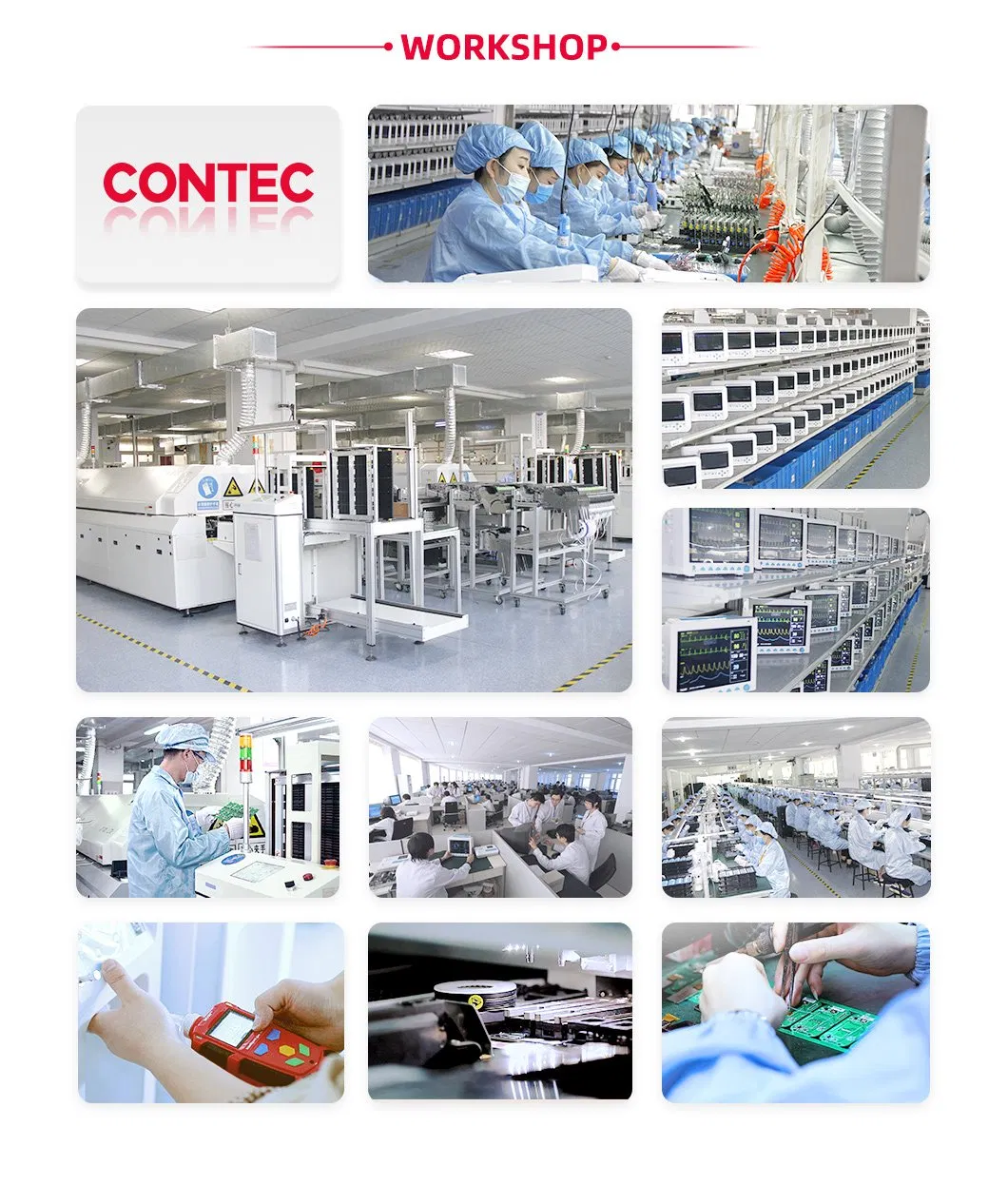

Gallery Image 2
Gallery Image 3
Gallery Image 4
Gallery Image 5
Frequently Asked Questions
What are the primary vital signs monitored by the CMS6500?
The CMS6500 standardly monitors ECG, SpO2, Pulse Rate (PR), NIBP (Non-invasive Blood Pressure), Respiration (RESP), and Temperature (TEMP).
Is the device suitable for newborn babies?
Yes, the CMS6500 is designed for all-round monitoring and is applicable for adult, pediatric, and neonatal patients.
How large is the display and is it easy to operate?
The device features a 7-inch color TFT LCD high-resolution screen with touch-screen functionality for simple and shortcut operations.
Can the monitor store patient data for long-term review?
Yes, it can store up to 72 hours of trend data and review 40-second holographic waveforms, as well as up to 400 groups of NIBP data.
Does it support wireless networking?
The monitor supports both wireless and wired network connection modes for central station monitoring and software updates.
Is the CMS6500 safe for use during defibrillation?
Yes, the device is equipped with ECG defibrillation-proof protection and anti-high frequency surgical unit capabilities to ensure safety in emergency environments.
