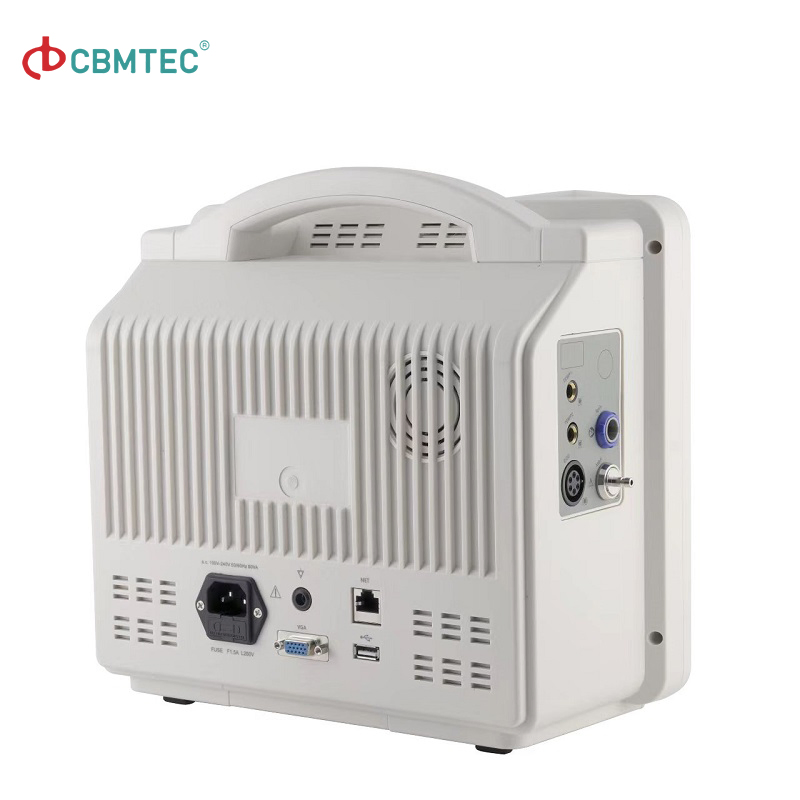

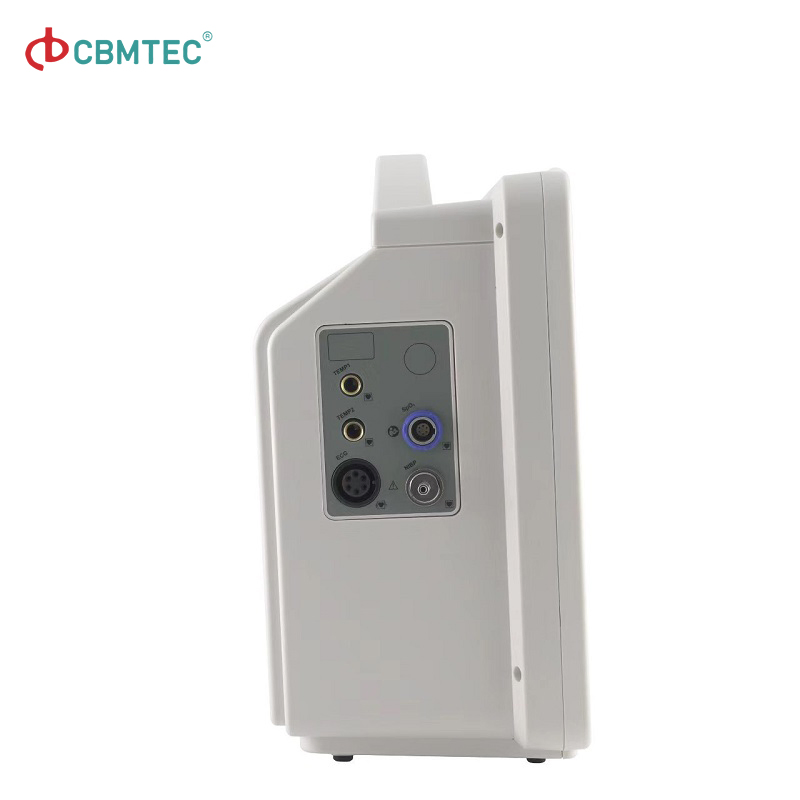

2. Cbmcare Remote Health Monitoring Device with Customized Specifications

📋

Basic Specifications

Certification:ISO13485, FSC

LCD Display:Colorful TFT LCD

Group:Adults, Children, Newborns

Item Name:Patient Monitor

Capacity:20,000 sets/Month

HS Code:9019200000

🏥

Medical Multi-Parameter Vital Sign Monitor

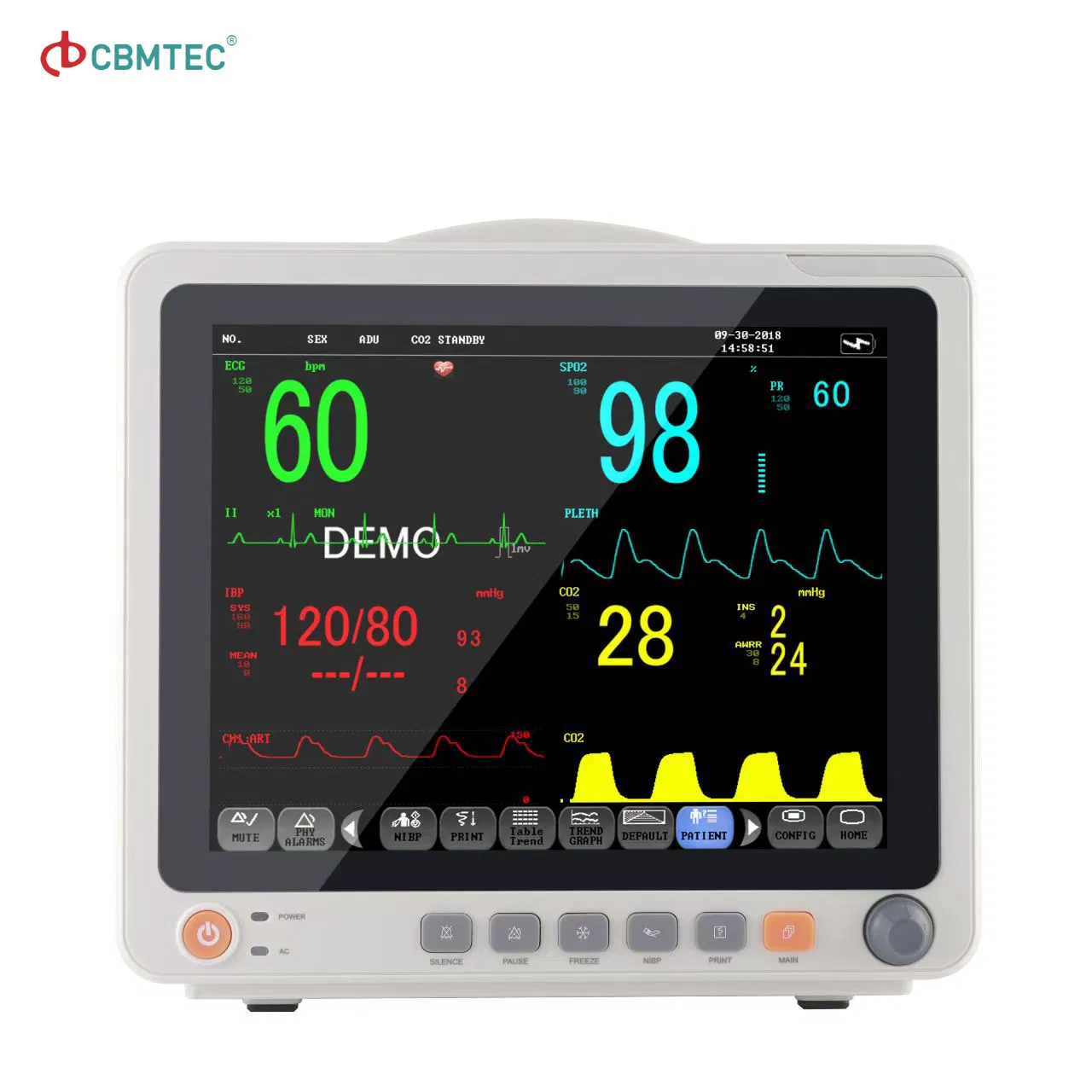

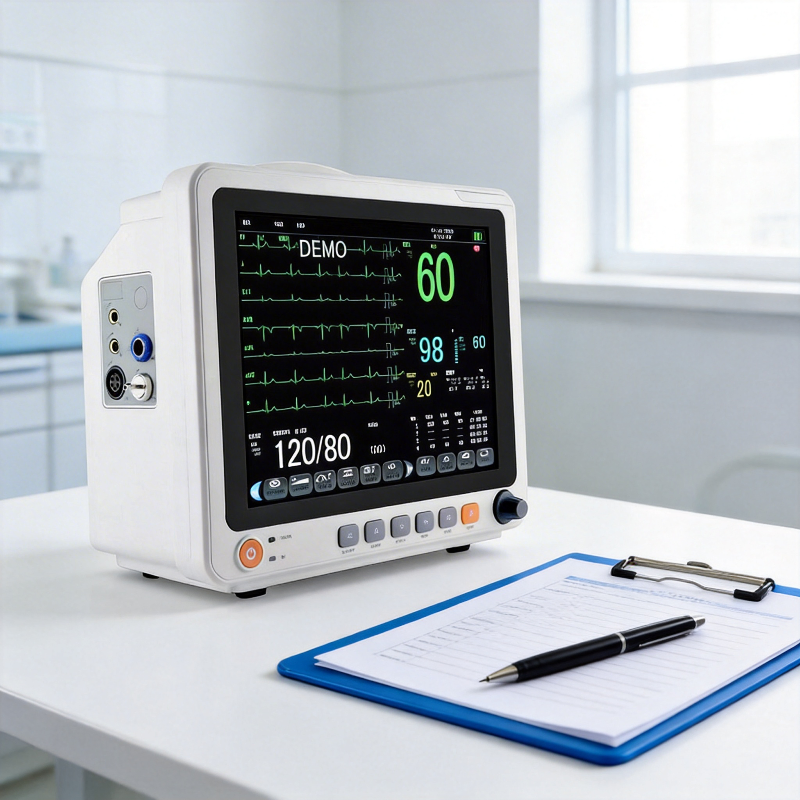

This advanced 12.1-inch multi-parameter patient monitor is designed for high-precision clinical monitoring. Featuring a high-brightness colorful TFT LCD, it provides real-time tracking of vital signs including ECG, SpO2, NIBP, and Respiration.

Key Features:

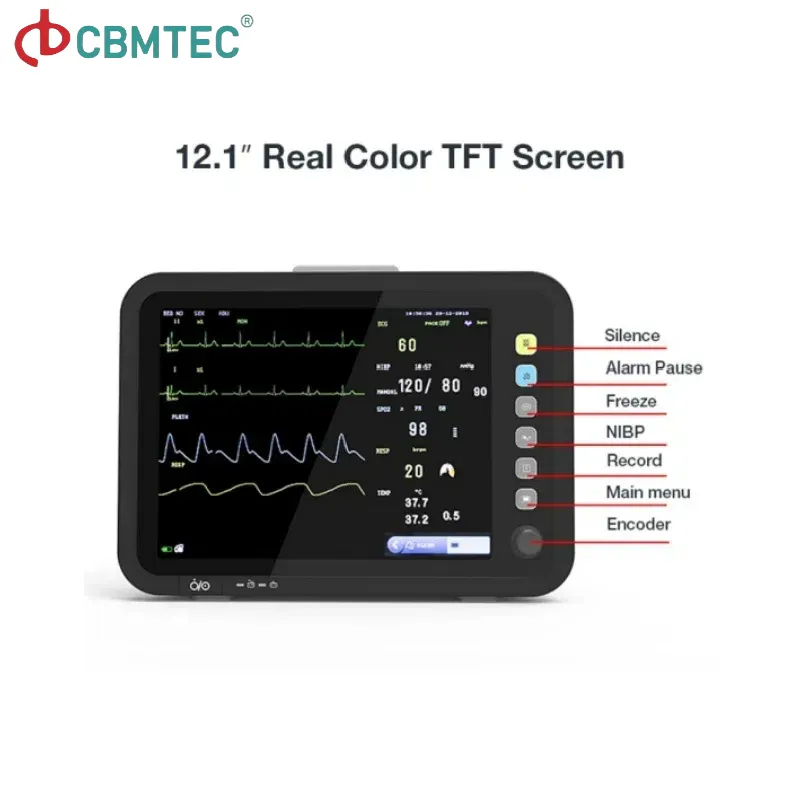

12.1-inch high-resolution colorful TFT LCD with big font display.
Seven-channel synchronous ECG display for comprehensive monitoring.
Built-in Li-ion battery with up to 240 minutes standby time.
Full digital SpO2 technology ensuring accuracy during low perfusion.

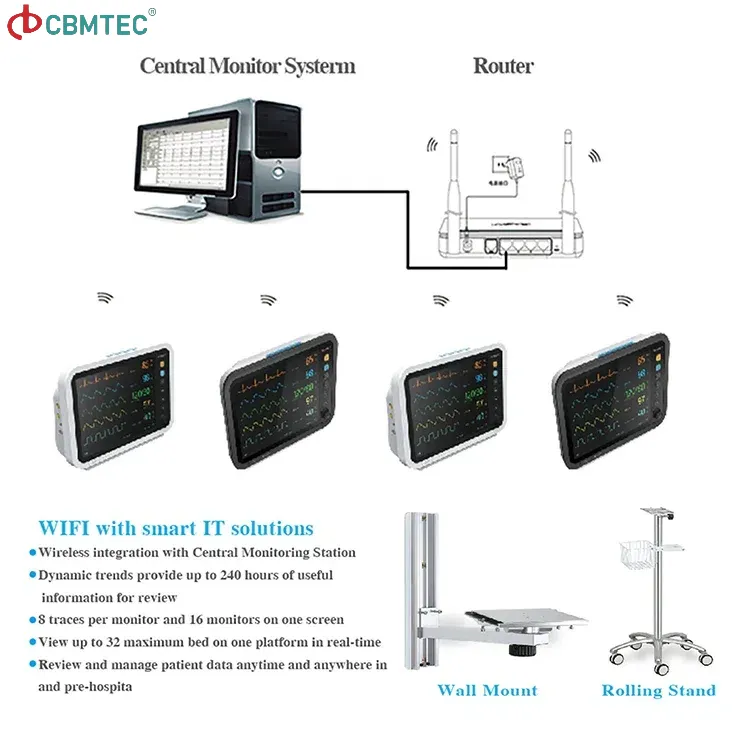

USB data export support (PDF format) and optional WIFI module.
Dual over-pressure protection for NIBP to ensure patient safety.
Supports 16 languages including English, Spanish, French, and German.

⚙️

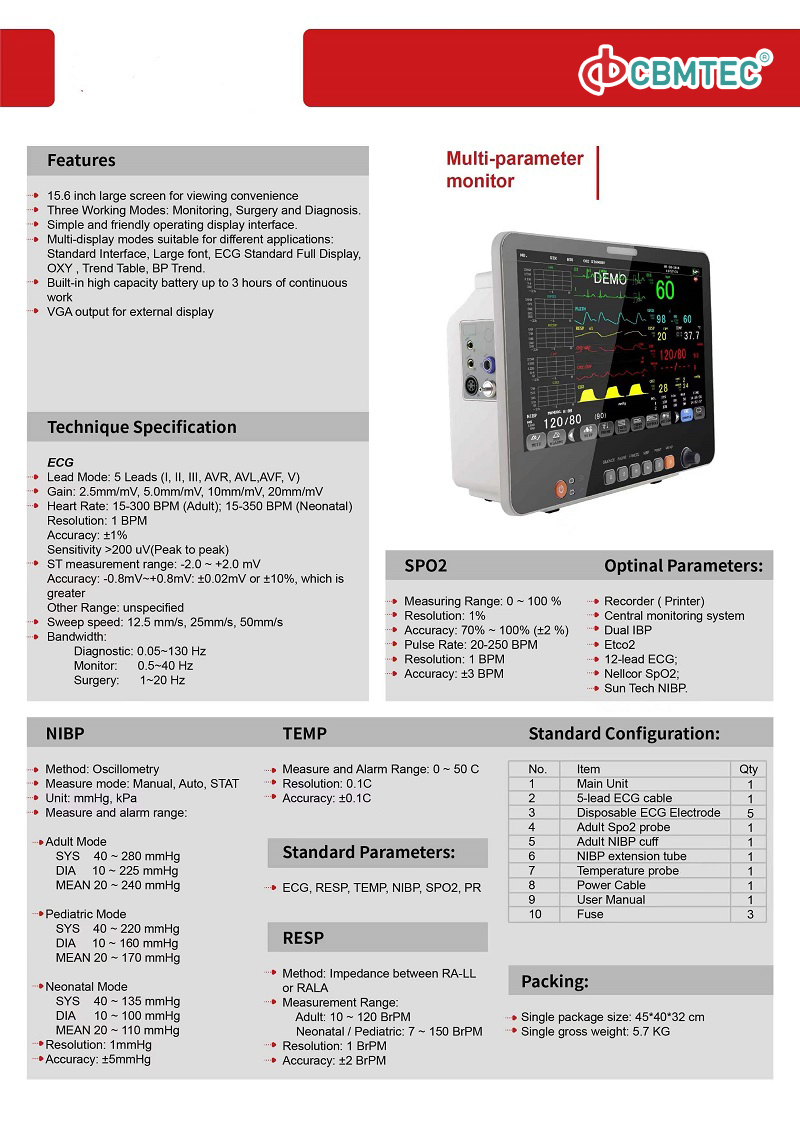

Technical Parameters

Parameter	Specifications	Parameter	Specifications
ECG	Lead mode: I, II, III, AVR, AVL, AVF, V1-6; Gain: ×0.25 to ×2; ST Detection: -2.0mV to +2.0mV	NIBP	Oscillography technology; Manual/Auto modes; Range: SYS 60-250 mmHg, DIA 40-220 mmHg
SPO2	Range: 0-100%; Accuracy: 1%; Pulse frequency: 20-250 bpm; Visual and Sound Alarms	TEMP	Thermostat probe; Range: 20°C - 45°C; Accuracy: ±0.1°C; Resolution: 0.1%
RESP	Breathing frequency range: 0-60 rpm; Accuracy: ±1 rpm; Adjustable alarm range	System	12-inch TFT Screen; Sealed lithium battery; Safety Standard: IEC601-1

📱

Interface & Performance

☆ More than 8 parameter waveforms displayed on a single screen.
☆ Anti-interference from high-frequency electric knives.
☆ 400 groups of blood pressure list and 7-day trend chart storage.

⭐

Our Advantages

Professional Manufacturing: Equipped with advanced medical gas and punch machines.

Strict Quality Control: ISO13485 Management; 100% factory testing before shipping.

Large Capacity: Capability to produce over 50,000 units monthly.

Export Experience: Over 15 years of international medical equipment supply.

📦

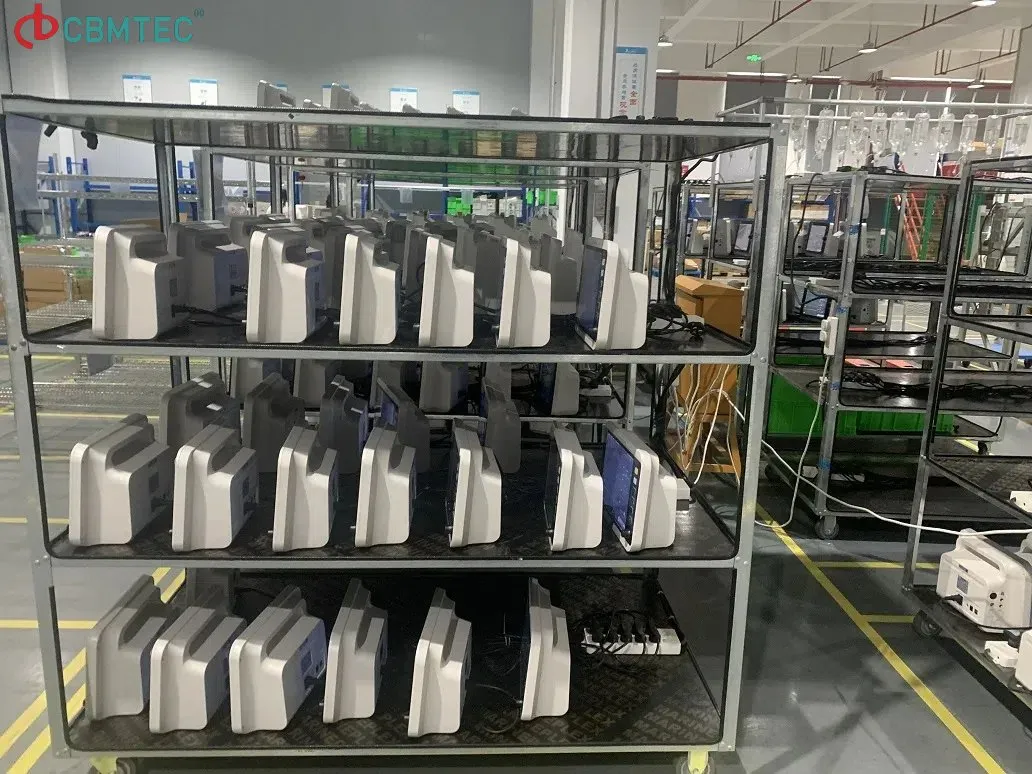

Stock & Logistics

❓

Frequently Asked Questions

Q1: Which vital parameters can this monitor track?

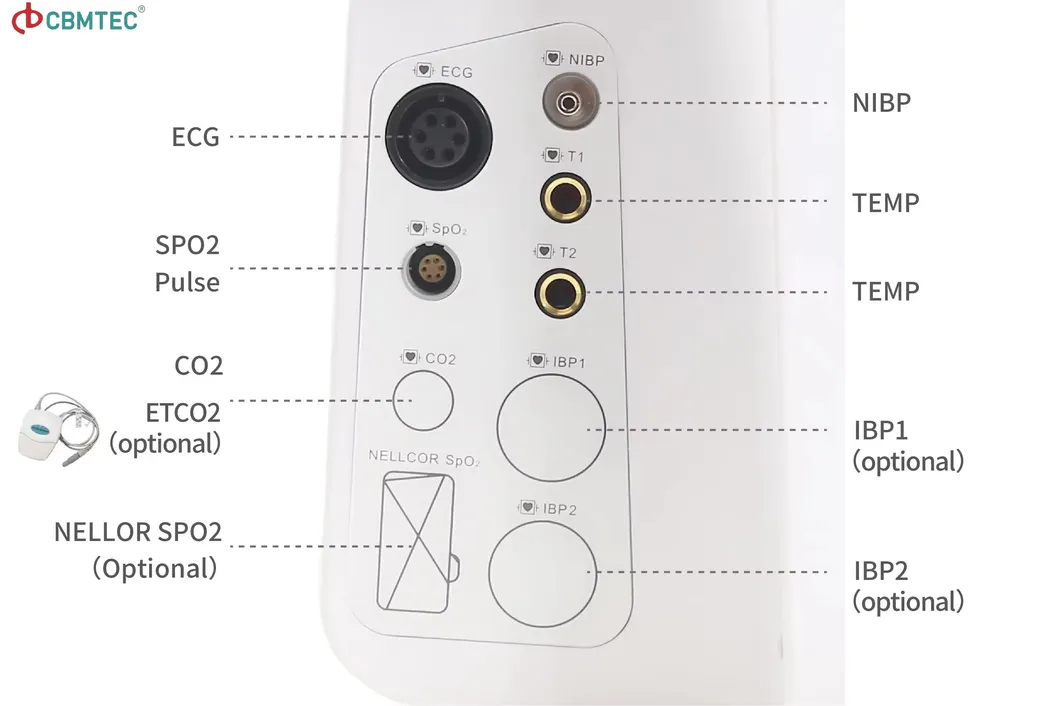

A: The standard configuration includes ECG, Heart Rate/Pulse Rate (HR/PR), SpO2, Non-Invasive Blood Pressure (NIBP), Respiration (RESP), and Temperature (TEMP).

Q2: Is this device suitable for pediatric and neonatal use?

A: Yes, it is designed with specialized measurement ranges (15-350BP heart rate) and inflatable cuff settings specifically for newborns, children, and adults.

Q3: How long does the battery last during portable use?

A: The built-in high-capacity Li-ion battery supports up to 240 minutes of standby time, facilitating safe patient transport.

Q4: Can monitoring data be exported for clinical analysis?

A: Yes, the system supports USB data export to computers and allows users to export records in PDF format for easy clinical documentation.

Q5: Does the monitor feature an alarm system?

A: Yes, it features a comprehensive 3-level alarm system with audible sounds, visible lights, and on-screen messages for both physiological and technical alerts.

Q6: How many languages does the software support?

A: The system supports 16 languages, including English, Spanish, Portuguese, Russian, French, German, and more, making it suitable for global clinical environments.
