Product Description

Basic Information

Model NO. CF-10
Specification 66*50*22 0.073
Origin China
Package Size 1.00cm * 1.00cm * 1.00cm
Package Gross Weight 1.000kg

Product Description

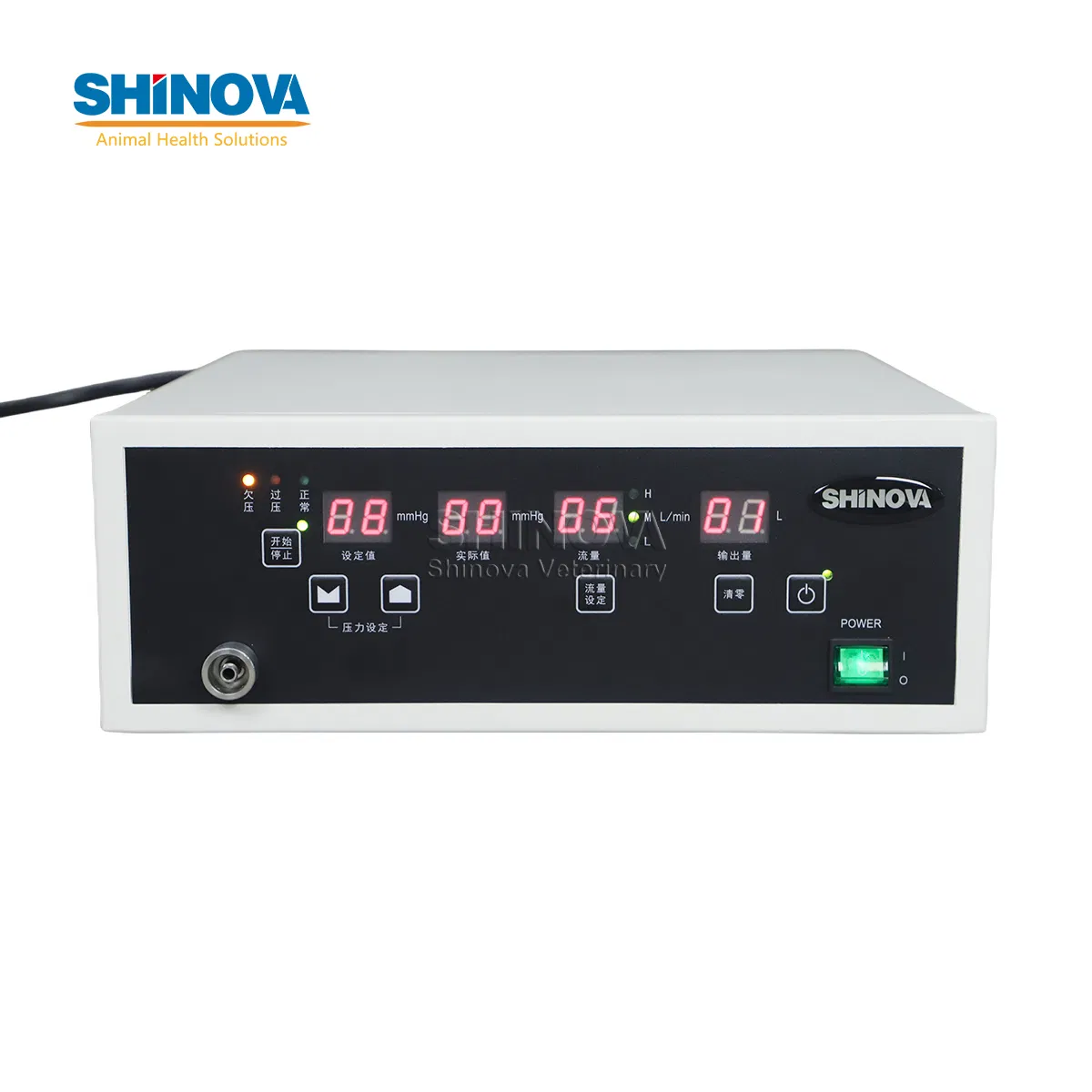

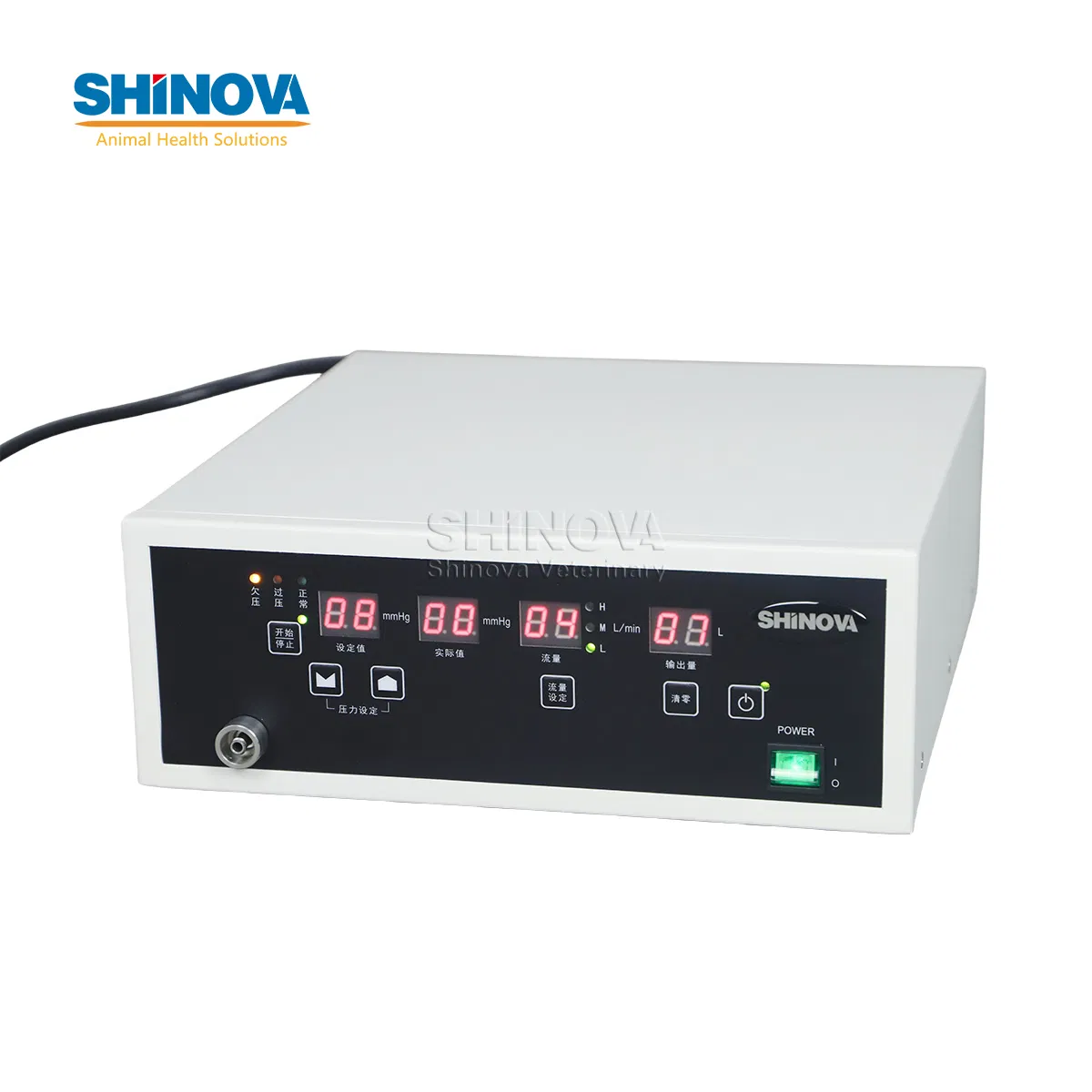

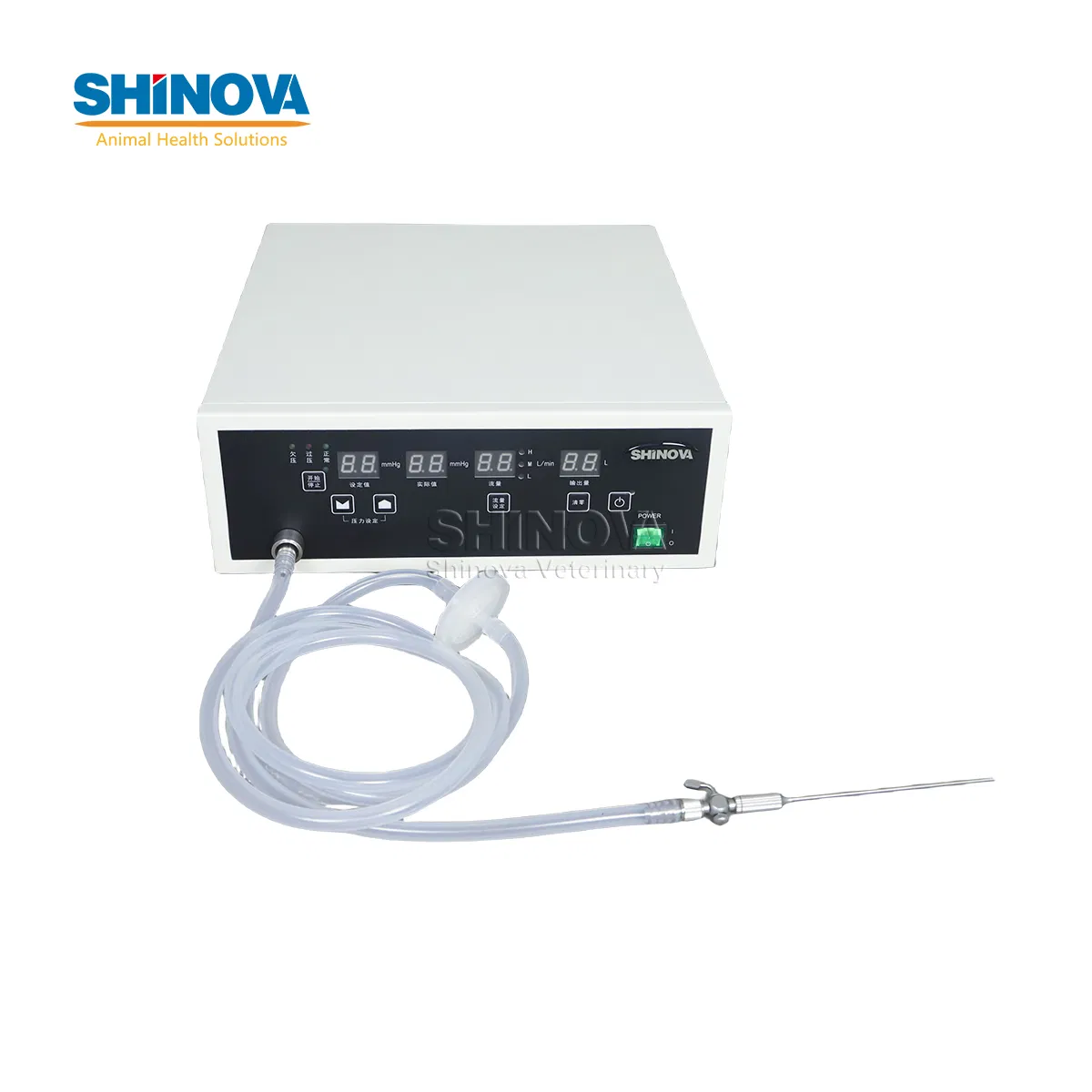

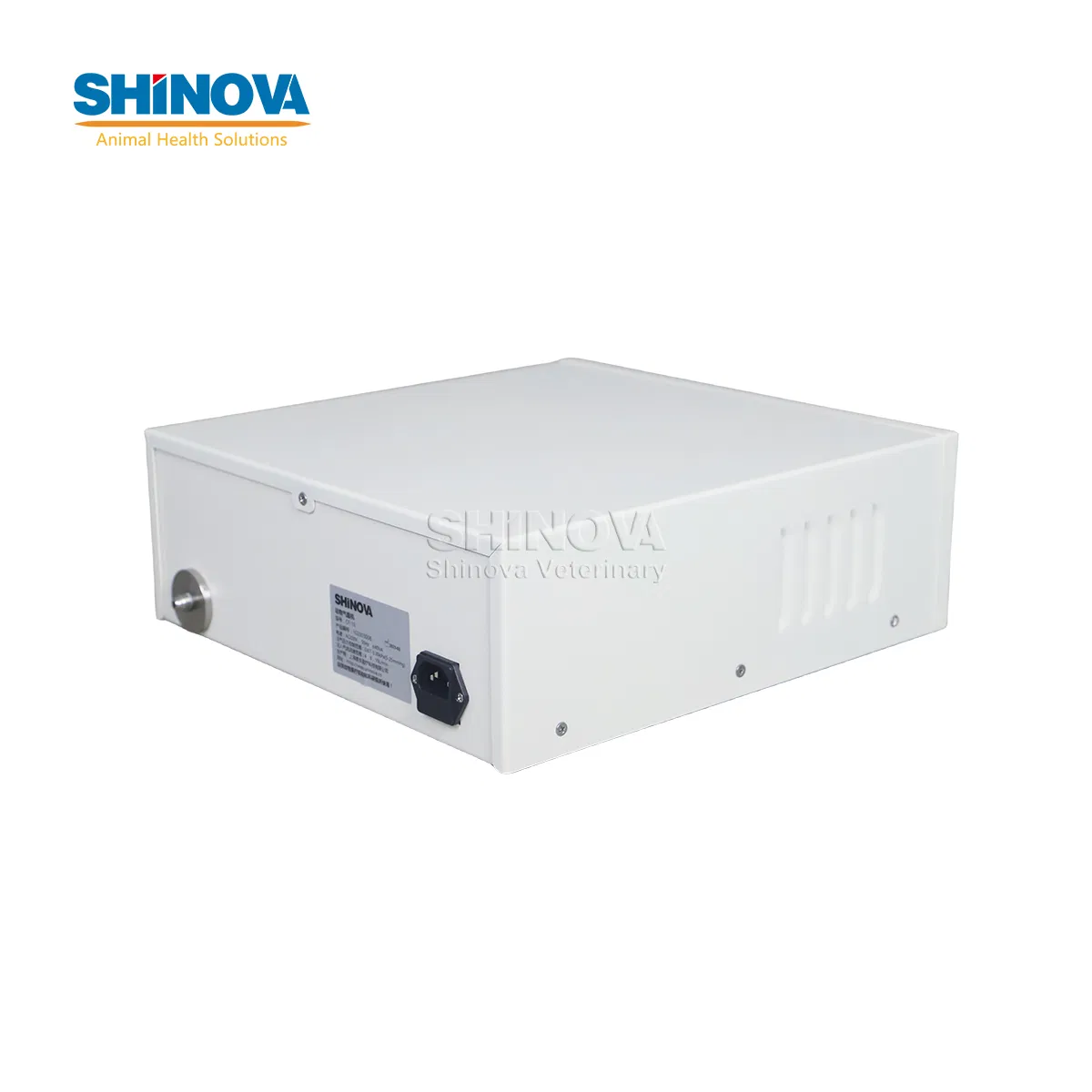

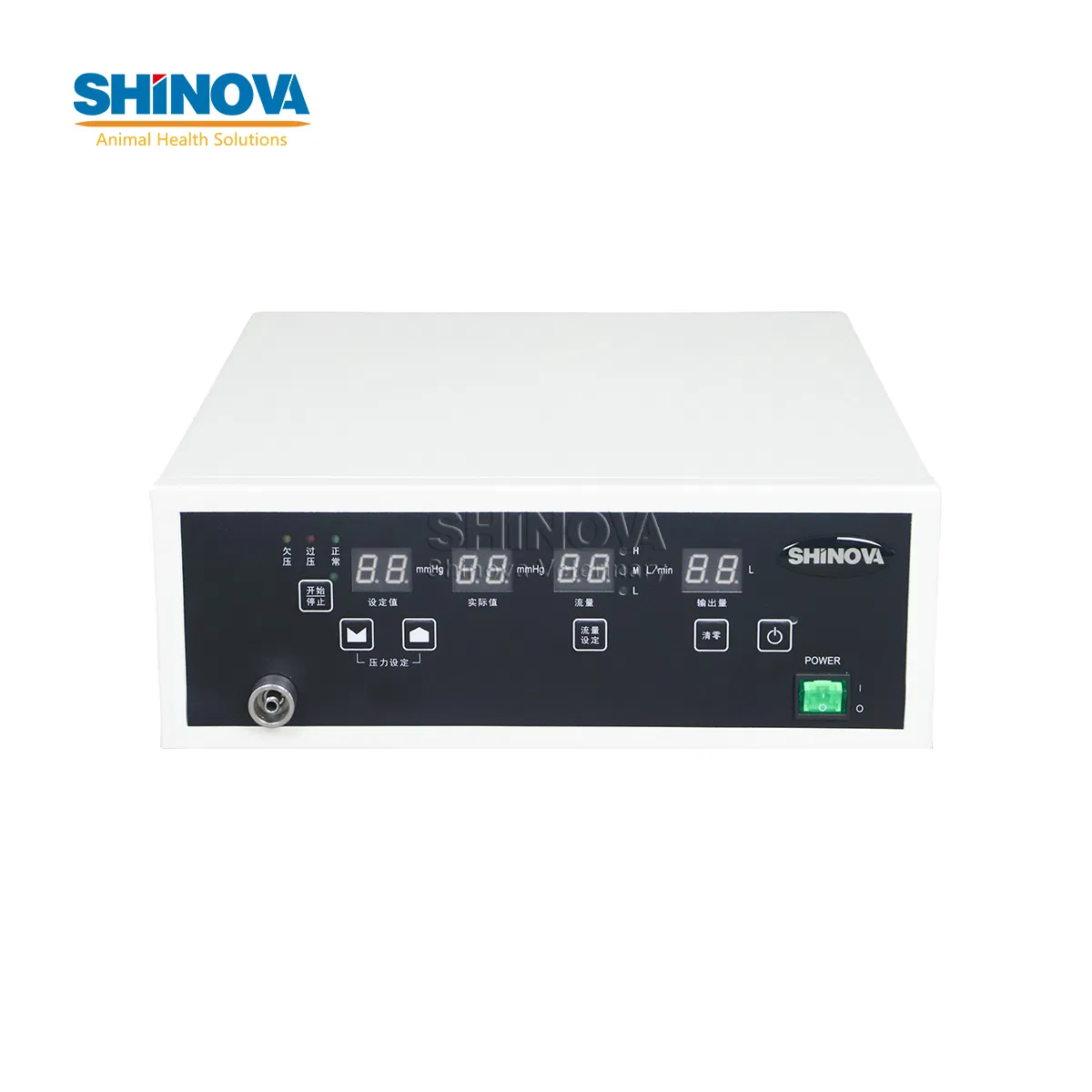

Veterinary CO2 Insufflator (Model: CF-10)

Fully automatic silent design for a stress-free environment.
Three adjustable flow rates: 4L / 6L / 10L per minute.
Specialized for animals, ideal for small animals like dogs and cats.
Automatic alarm function with real-time safety monitoring.
Provides a clear, wide view and optimal surgical space for laparoscopic procedures.
Seamless connection with standard CO2 cylinders.

Technical Specifications

Flow Rate Options 4L/min, 6L/min, 10L/min (Adjustable)
Preset Pressure Range 0.67kPa ~ 3.30kPa (5mmHg ~ 25mmHg)
Control Accuracy ±0.13kPa (1mmHg)
Power Supply AC 220V, 50Hz / 40W
Gas Source Medical CO2
Working Pressure Alarm Alarms if > 4.40kPa±5% (33mmHg) for 3+ seconds
Cylinder Pressure Alarm Alarms when output pressure is ≤0.29MPa
Operating Environment Temp: 5ºC~40ºC | Humidity: 30~75%

Product Images Gallery

Veterinary CO2 Insufflator View 1
Veterinary CO2 Insufflator View 2
Veterinary CO2 Insufflator View 3
Veterinary CO2 Insufflator View 4
Veterinary CO2 Insufflator View 5

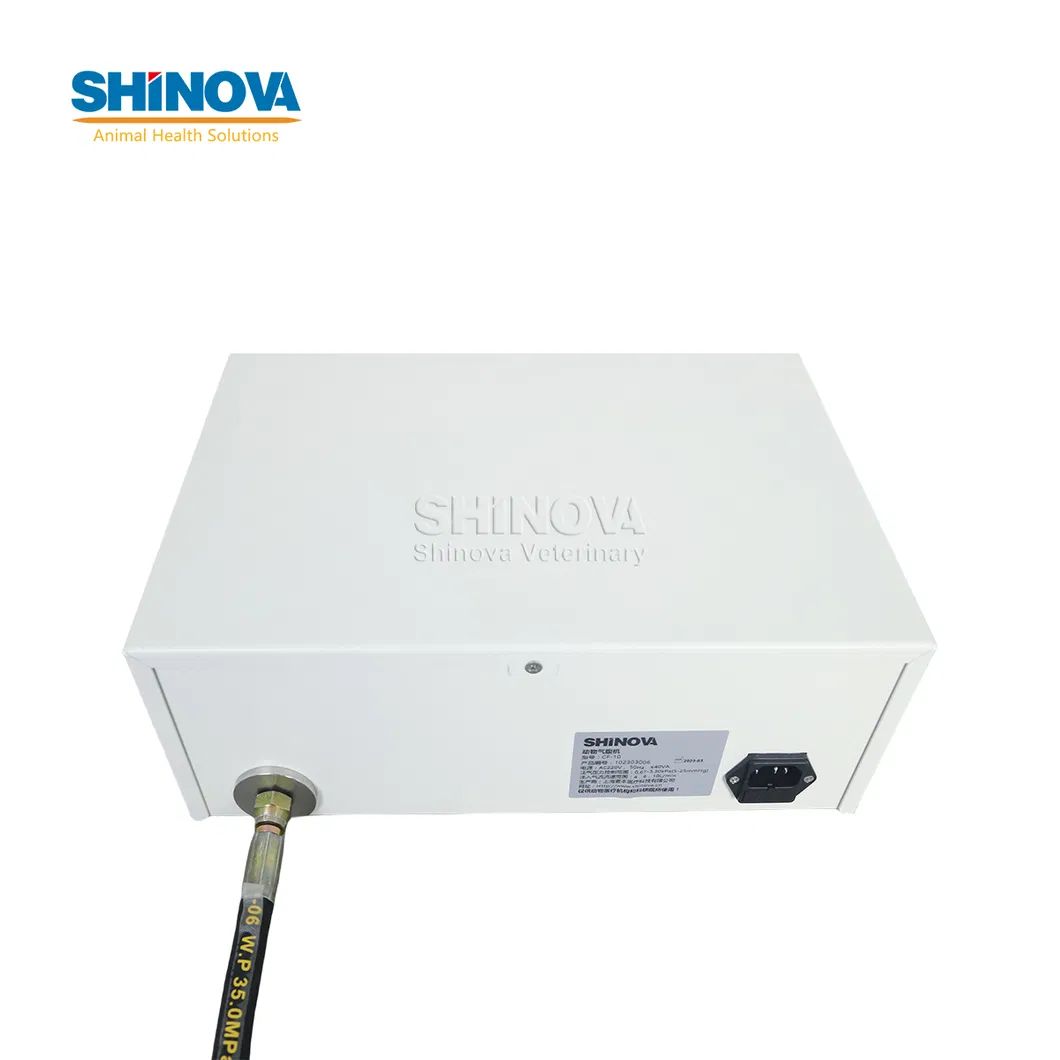

Veterinary CO2 Insufflator View 6
Veterinary CO2 Insufflator View 7
Veterinary CO2 Insufflator View 8

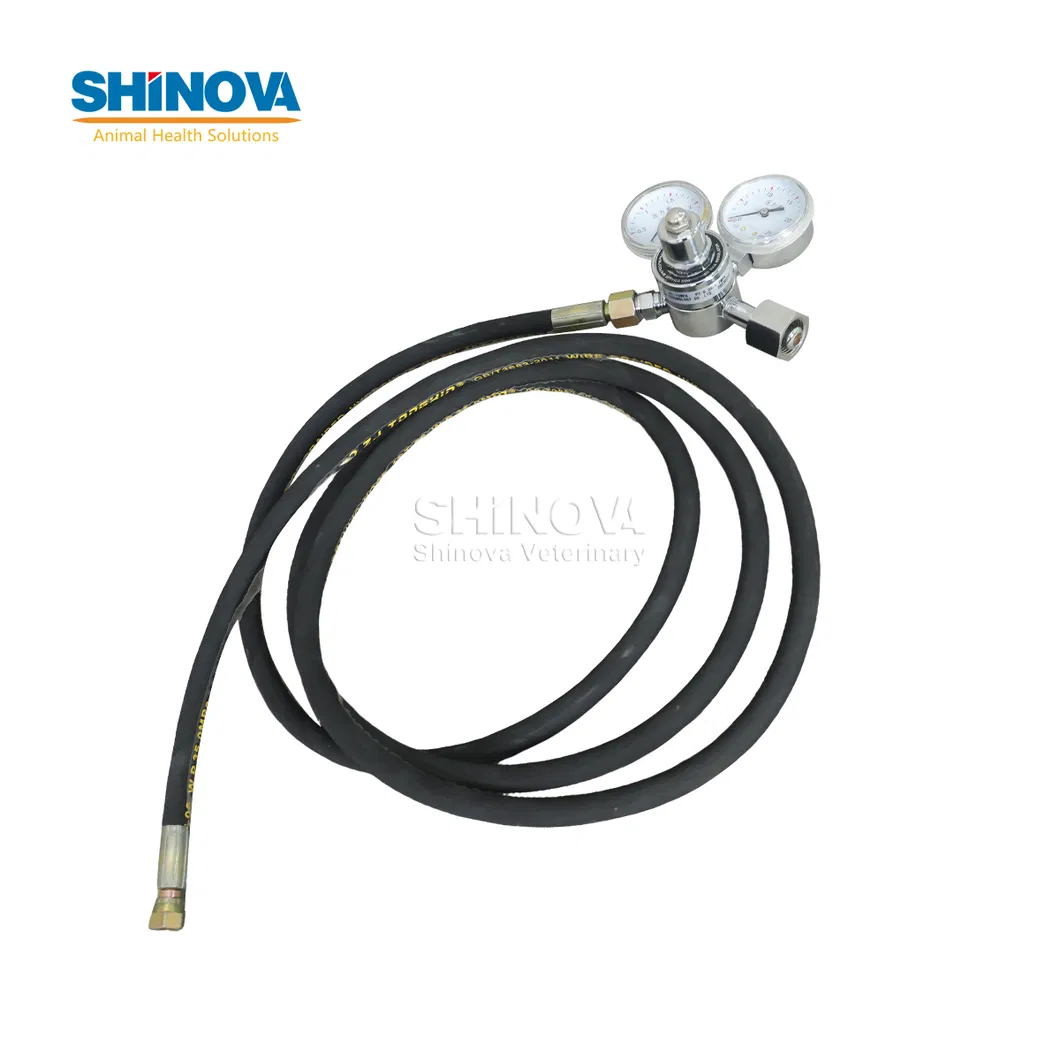

Veterinary CO2 Insufflator View 9

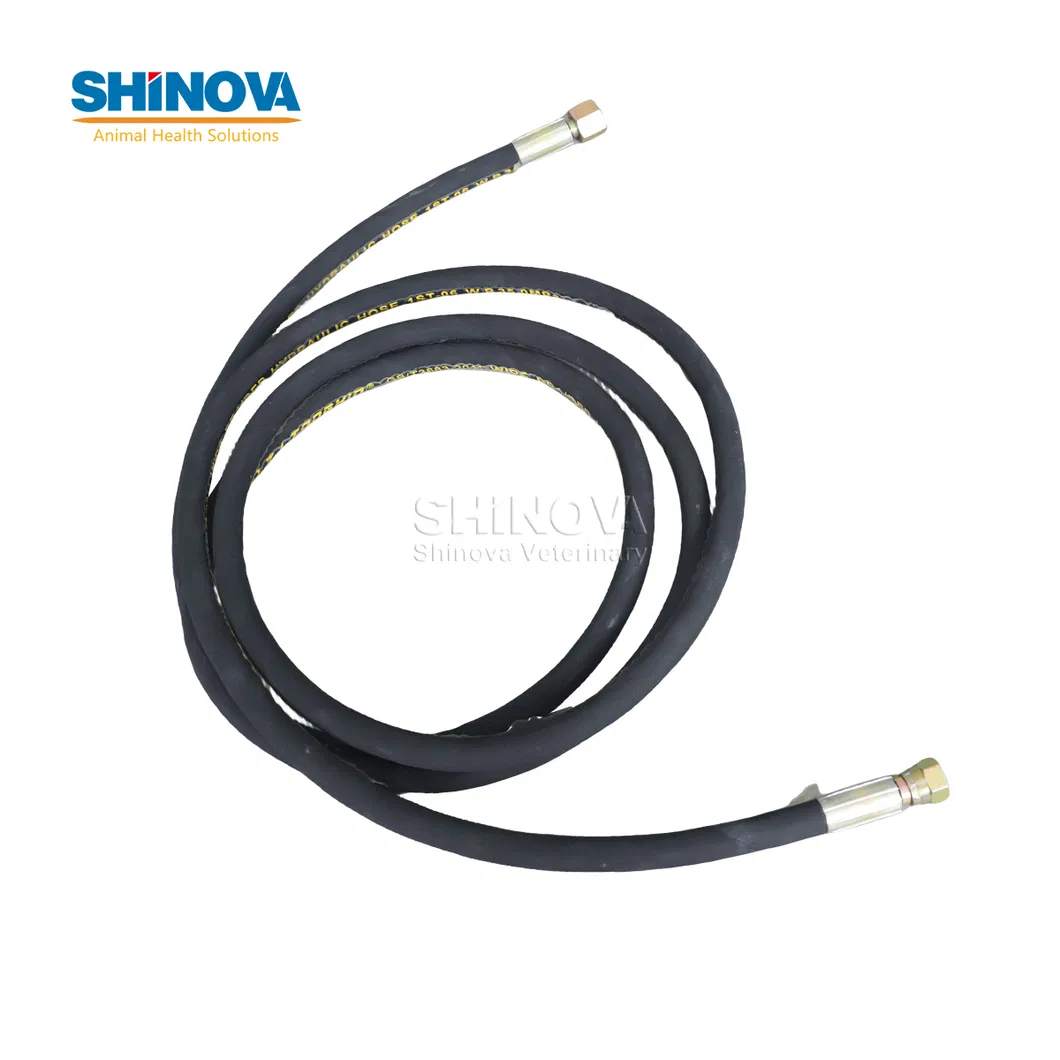

Veterinary CO2 Insufflator View 10

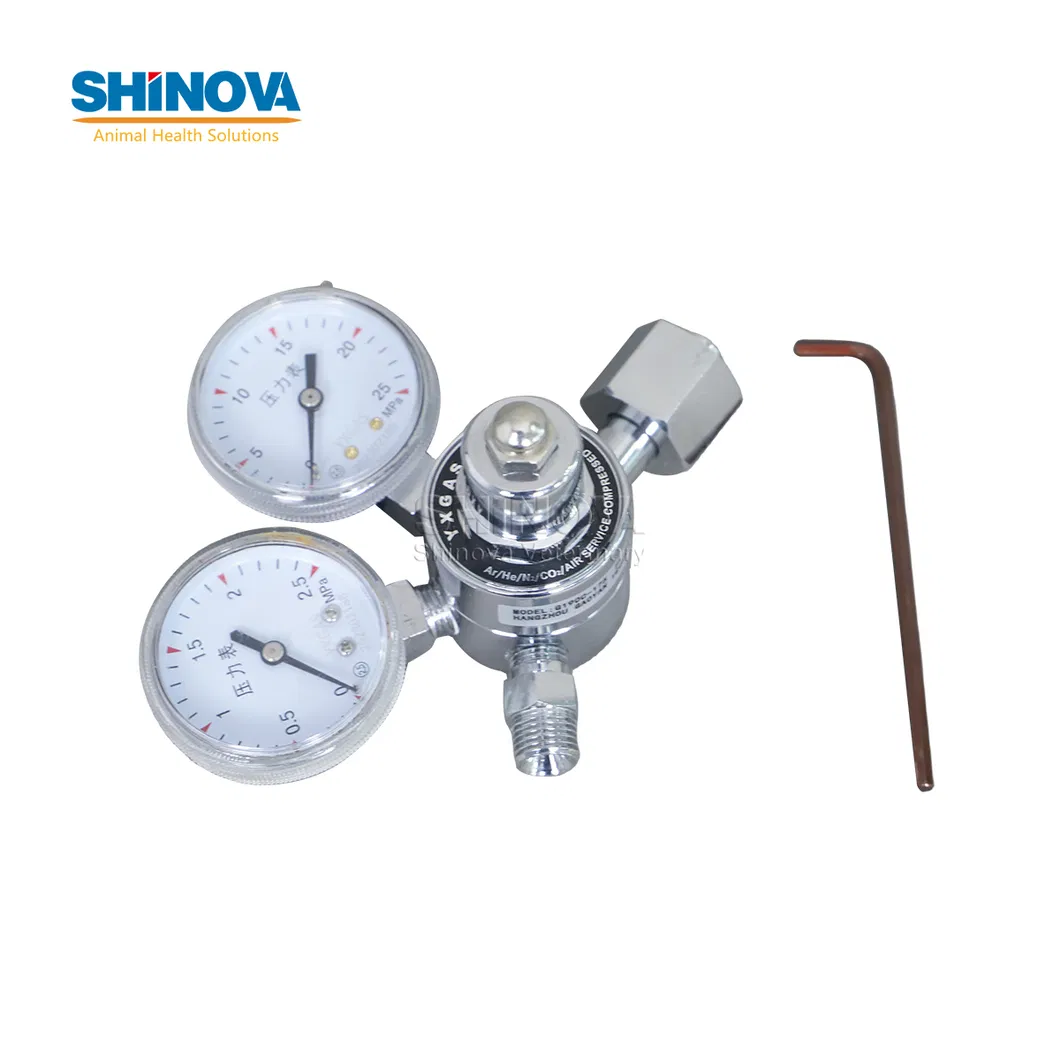

Veterinary CO2 Insufflator View 11

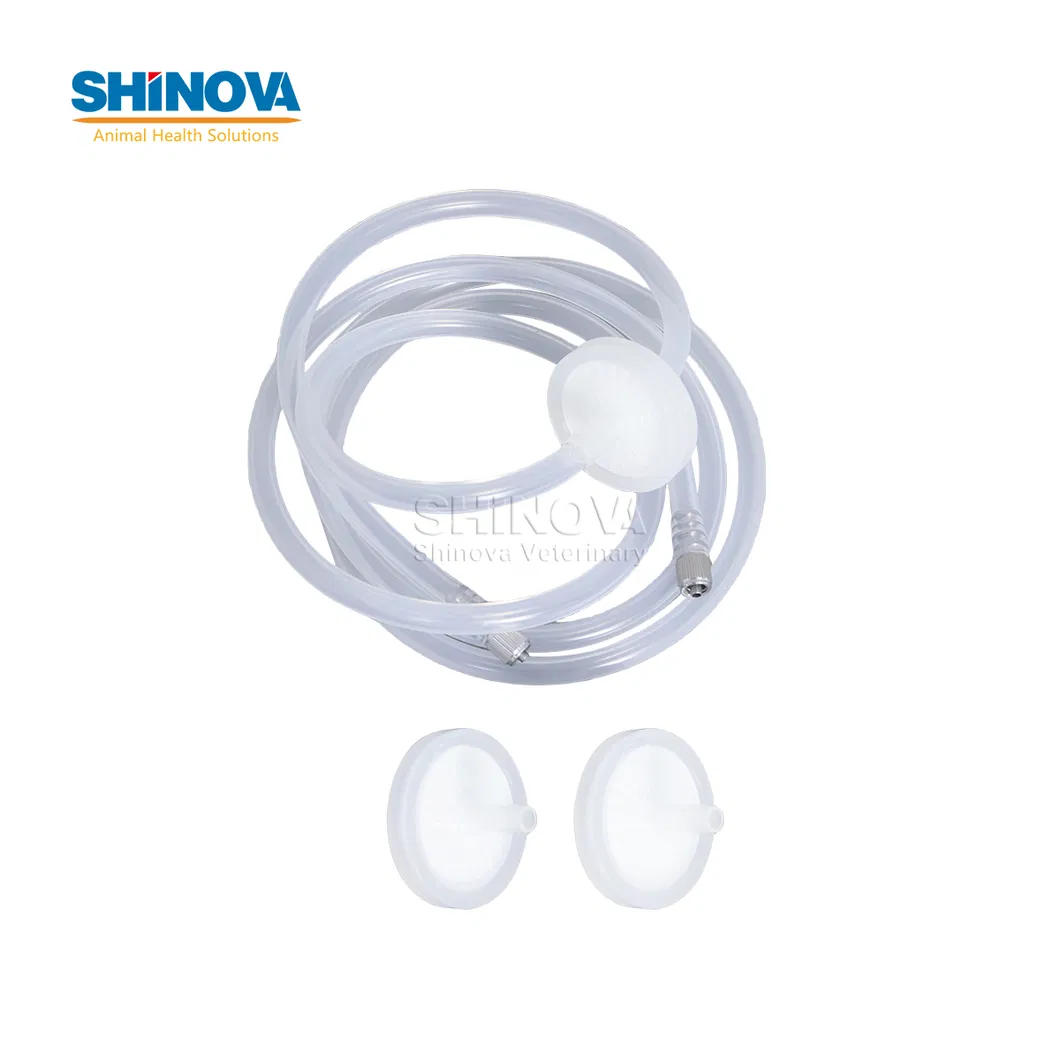

Veterinary CO2 Insufflator View 12

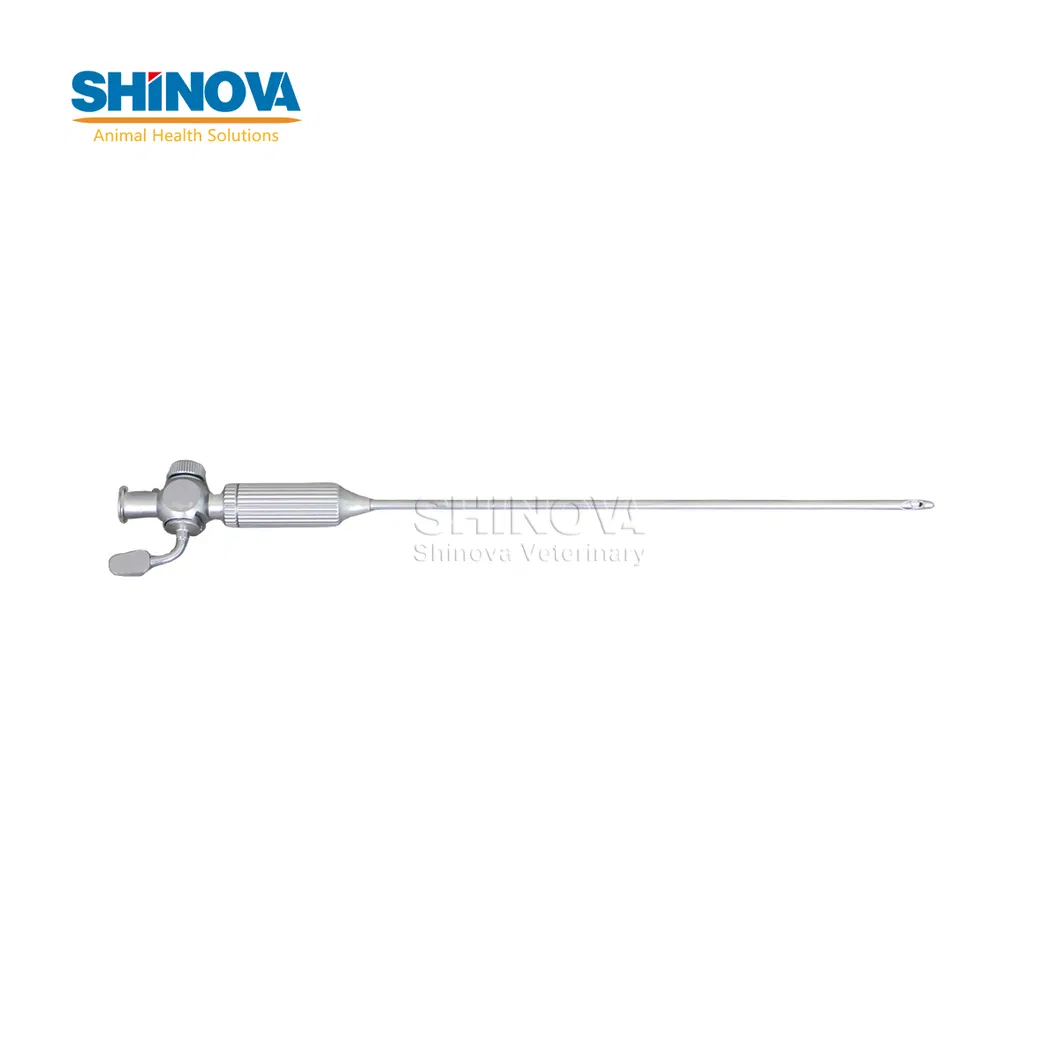

Veterinary CO2 Insufflator View 13

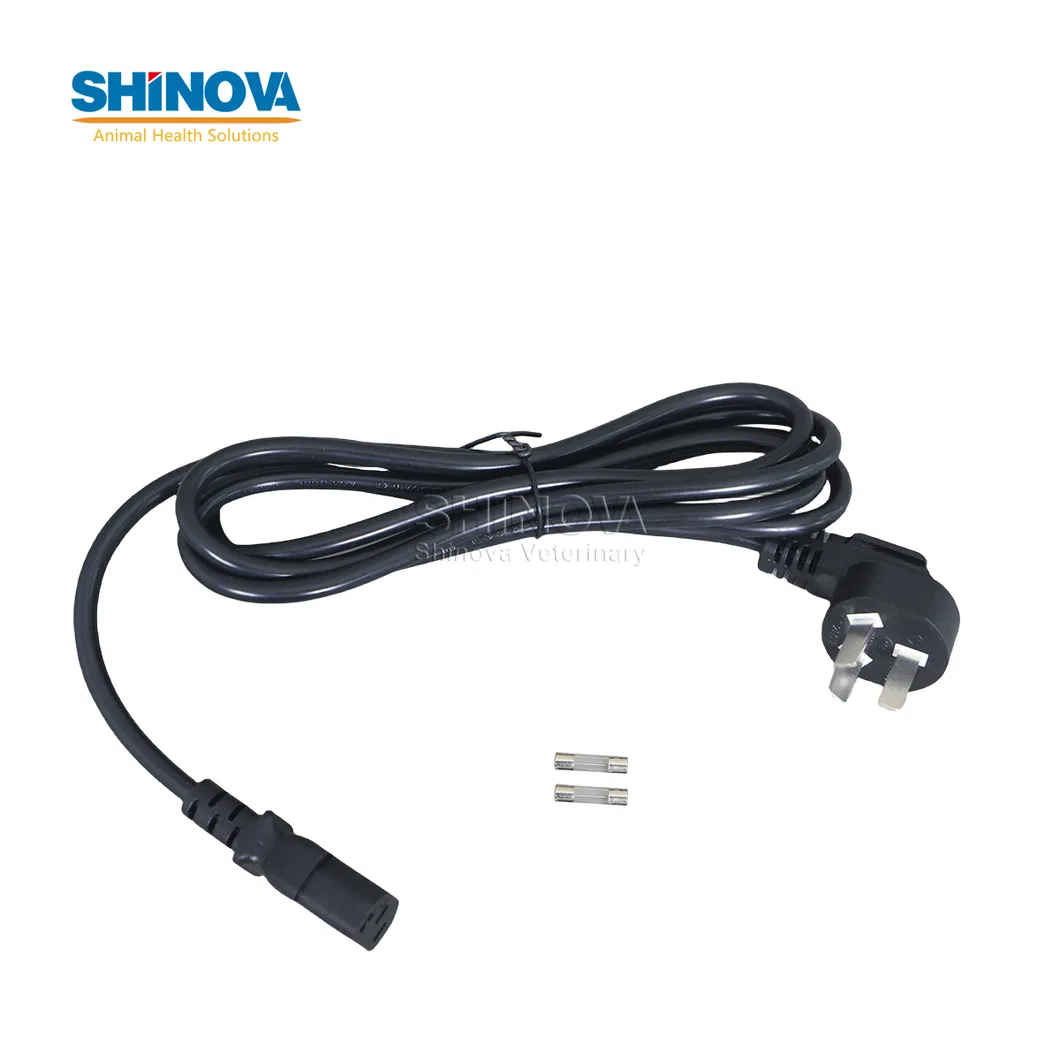

Veterinary CO2 Insufflator View 14

Professional Solutions

Facility Image 1
Facility Image 2
Facility Image 3
Facility Image 4
Facility Image 5
Facility Image 6
Facility Image 7
Facility Image 8

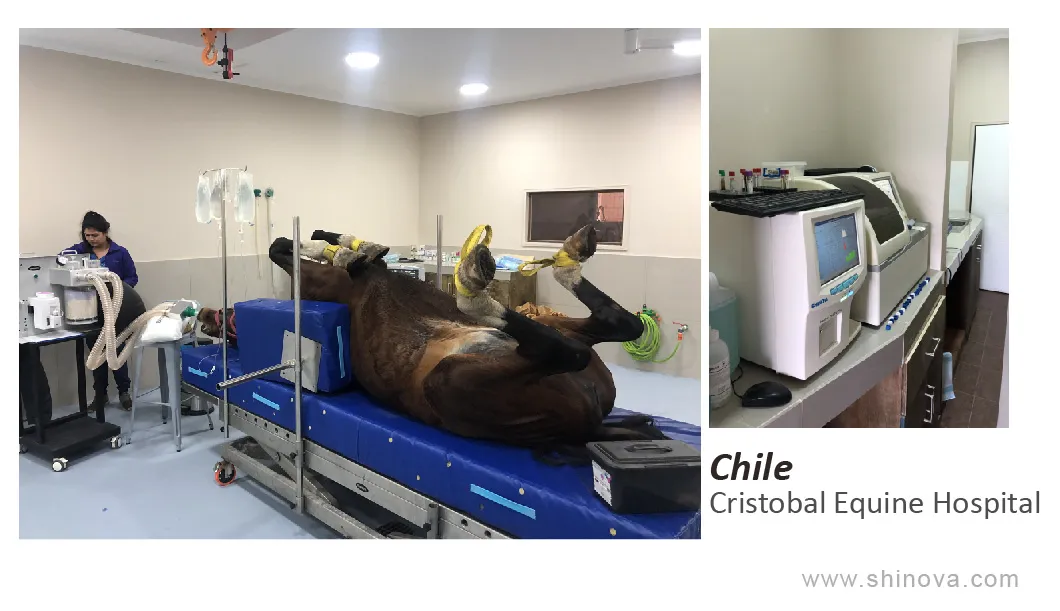

Facility Image 9
Facility Image 10

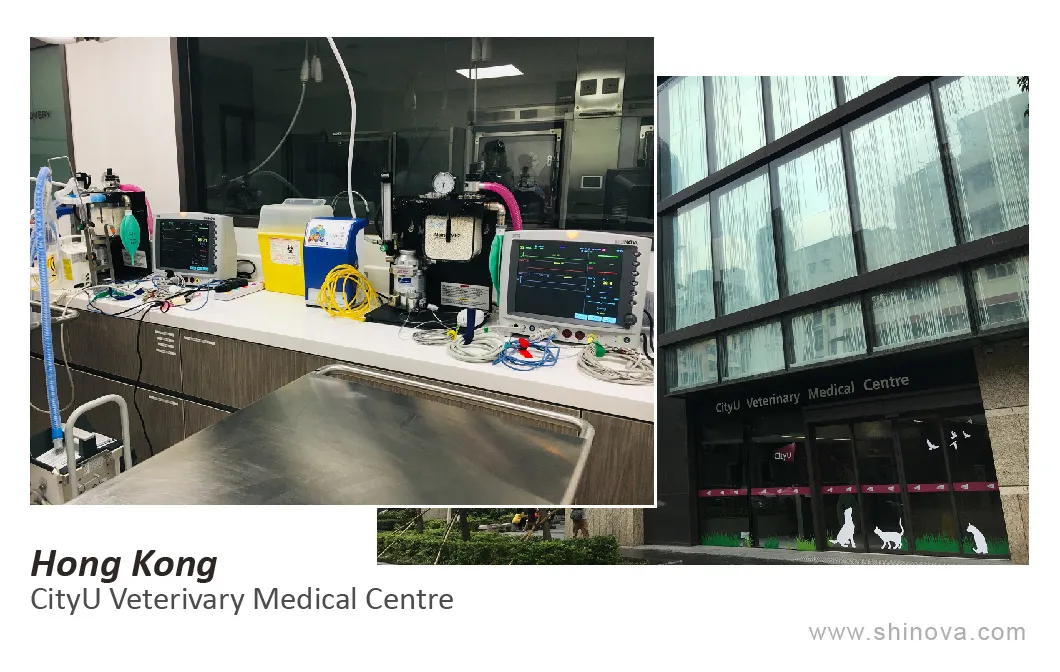

Facility Image 11

Frequently Asked Questions

What animals is the CF-10 CO2 Insufflator suitable for?
The CF-10 is specifically designed for veterinary use, particularly for small animals such as dogs and cats during laparoscopic surgery.
Does this machine offer adjustable flow rates?
Yes, you can freely choose from three preset flow rates: 4L/min, 6L/min, and 10L/min, depending on the surgical requirements.
What safety features are included?
The device features an automatic alarm system that monitors working pressure and cylinder gas output. It will alarm and relieve pressure if it exceeds safety thresholds.
What is included in the standard configuration?

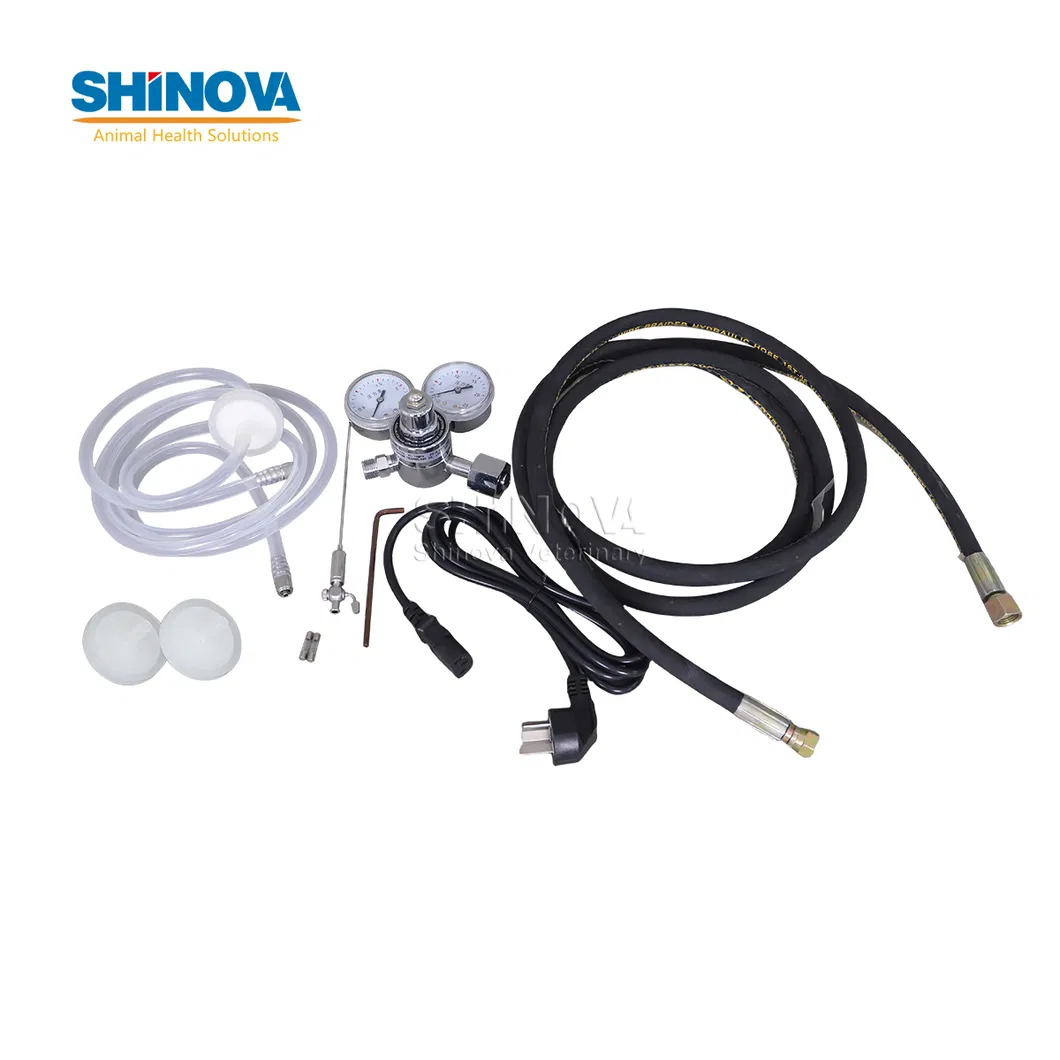

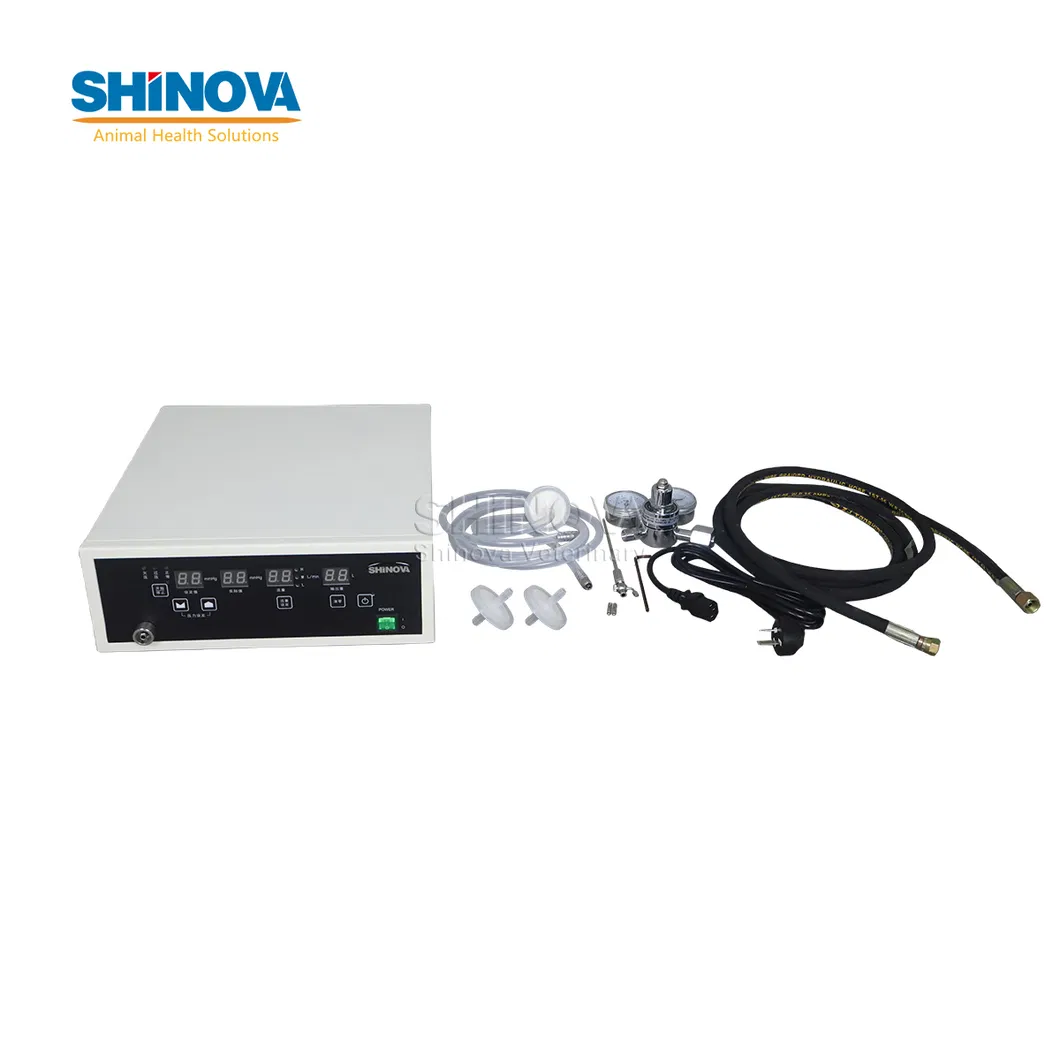

The standard package includes the main unit, a high-pressure tube, a decompressing valve, a silicone tube, a power cord, and necessary fuses.
What kind of gas source is required?
The equipment requires medical-grade CO2 (Carbon Dioxide) and is designed to connect directly with standard CO2 cylinders.
Is the operation noisy?
No, the CF-10 features a fully automatic silent design to ensure a quiet environment in the operating room, which is beneficial for both surgeons and animal patients.
