Alhilal Healthcare Alhilal Healthcare

Sonoscape V-200 Animal Endoscopy System Medical Equipment

Customization: Available
Type: Endoscopy
View of Field: 145°

Product Description

i

Basic Specifications

Model NO.
Sonoscape V-200
Depth of View
3mm-100mm
Range of Tip
up 210° L 100°
Optical Sensor
HD 720p
Diameter of Distal End
6.3
Working Length
1050mm / 1500mm / 3300mm
Origin
China
Production Capacity
1000 Sets/Year

Product Description

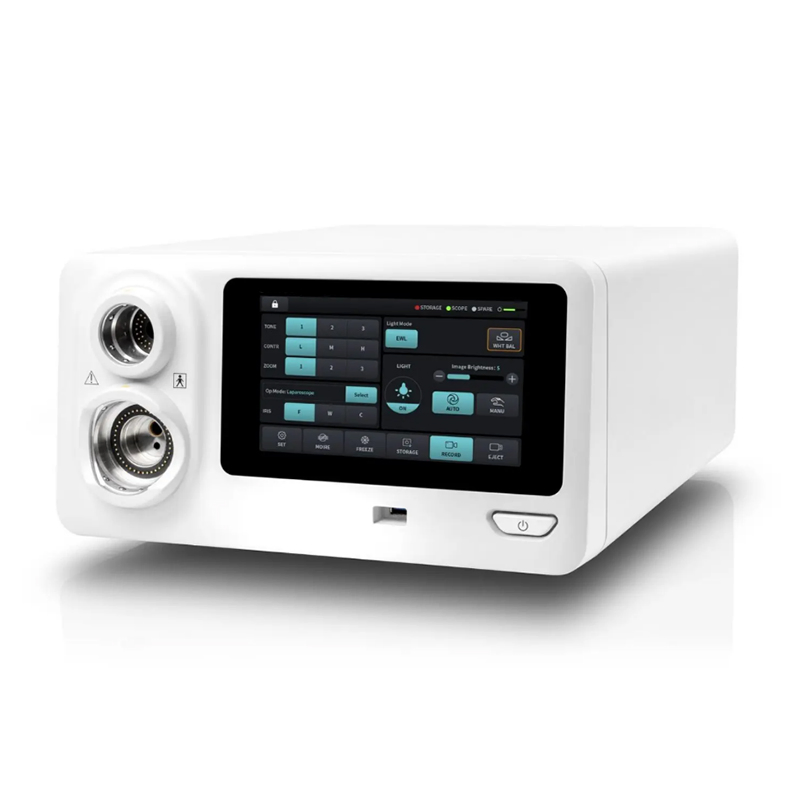

Sonoscape V-200 Animal Endoscopy System Medical Equipment

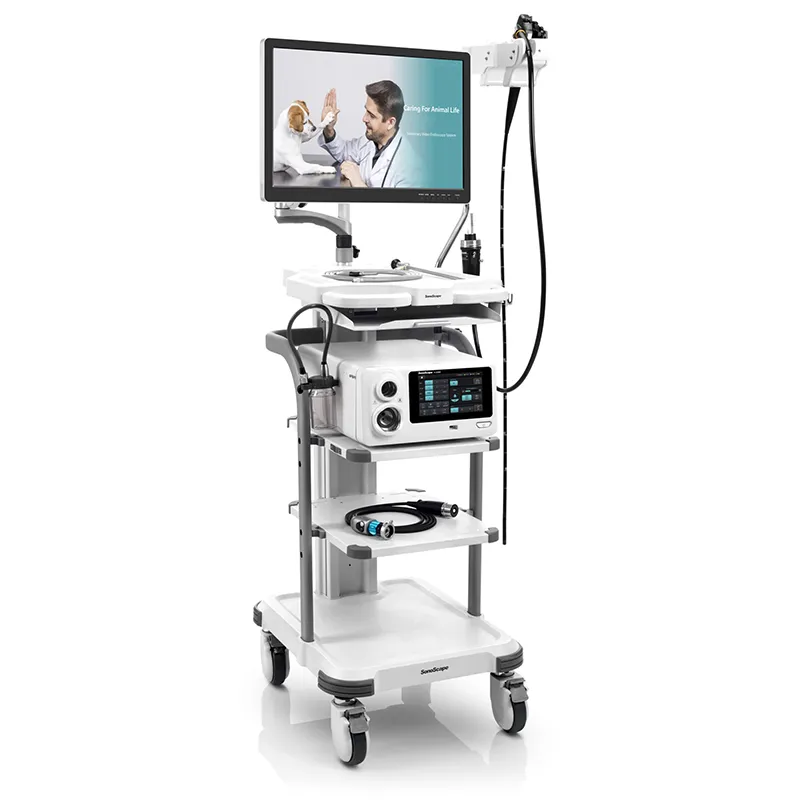

Sonoscape V-200 Animal Endoscopy System

Benefiting from more than 20 years of technological know how, V-2000 is designed for frontline veterinarians. This versatile full high definition video system center is compatible with flexible, rigid and fiber endoscopes, therefore encompassing a large array of animal care needs.

Optical Excellence: Paired light source employs a 2-LED light source with a lifespan of over 50,000 hours. You will obtain a noticeably brighter, high quality image with minimal light loss and mucosal details. Small vessels can be clearly observed under the enhanced White Light mode.

Visual Field Reliability: V-2000's powerful chip allows an optimal image adjustment without delay, and outputs true-to-color images. This outstanding and stable visual field creates an excellent visualising experience, enabling easier and finer operations.

Intuitive Interaction: Thanks to the one of a kind tactile control panel, interacting with V-2000 can't be easier. The system comes with all essential features adjustable directly from the front panel, with a one tap screen lock.

Technical Specifications

Video Output1080p, DVI X 2, SDI X 2
Light Source2-LED lamps, ≥ 50,000 Hours
StoragePicture/video recording on USB memory
White BalanceAuto and memory
IRIS ControlPEAK / AVE / Auto (Flexible); Full / Wide / Circular (Rigid)
BrightnessAuto/Manual 1-19 Levels
Hemoglobin EnhancementCHb Mode Supported
Power Input110-240V 50/60 Hz, 350W
V-200 Endoscopy Detailed Features
?

Frequently Asked Questions

What type of endoscopes is the Sonoscape V-200 compatible with?
The V-200 (V-2000 system) is highly versatile and compatible with flexible, rigid, and fiber endoscopes, making it suitable for a wide range of veterinary diagnostic needs.
How long does the light source last?
The system features a dual-LED light source with an exceptional lifespan of over 50,000 hours, ensuring long-term reliability and minimal maintenance.
Does the system support high-definition video recording?
Yes, the system provides 1080p high-definition video output via DVI and SDI interfaces. It also allows for direct picture and video recording onto USB memory devices.
What are the available working lengths for the probes?
The system offers multiple working length options to accommodate different clinical scenarios, including 1050mm, 1500mm, and 3300mm.
Is the system suitable for observing fine mucosal details?
Absolutely. With its 2-LED light source and CHb hemoglobin enhancement mode, the V-200 provides clear observation of small vessels and fine mucosal details with true-to-color imaging.
What are the power requirements for this medical equipment?
The system is designed for global compatibility, supporting a voltage range of 110-240V at 50/60 Hz with a rated input of 350W.
