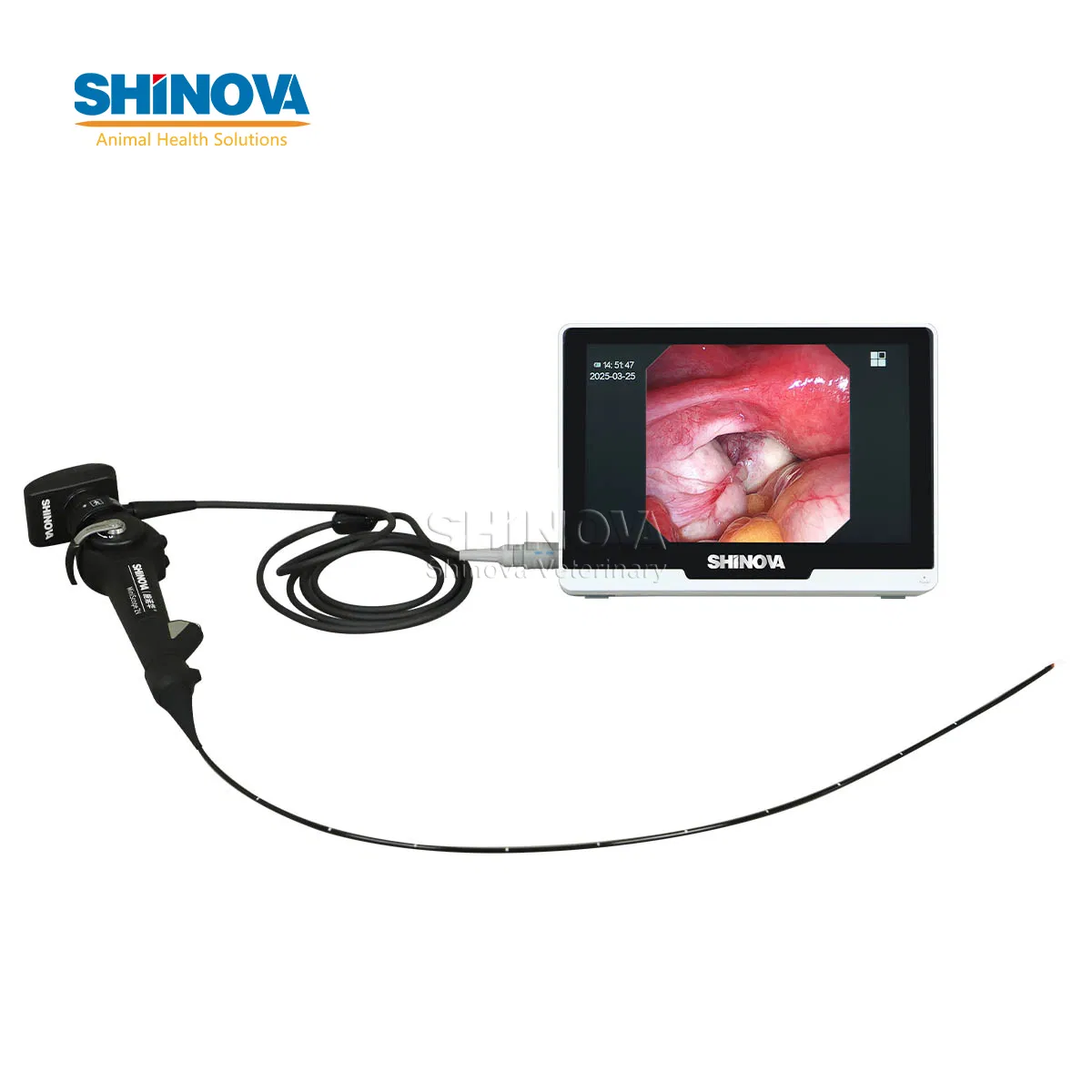

Medical Veterinary Instrument Vet Endoscopy System Video Endoscope for Animals Miniscope 2V

Customization: Available
Type: Veterinary Endoscope
Transport Package: by Air or by Sea

Product Description

📋

Basic Information

Model NO.
MiniScope 2V
Specification
66*50*22 0.073
HS Code
9018903010
📦

Packaging & Delivery

Package Size
1.00cm * 1.00cm * 1.00cm
Package Gross Weight
22.000kg
🔍

Product Description

Key Features:

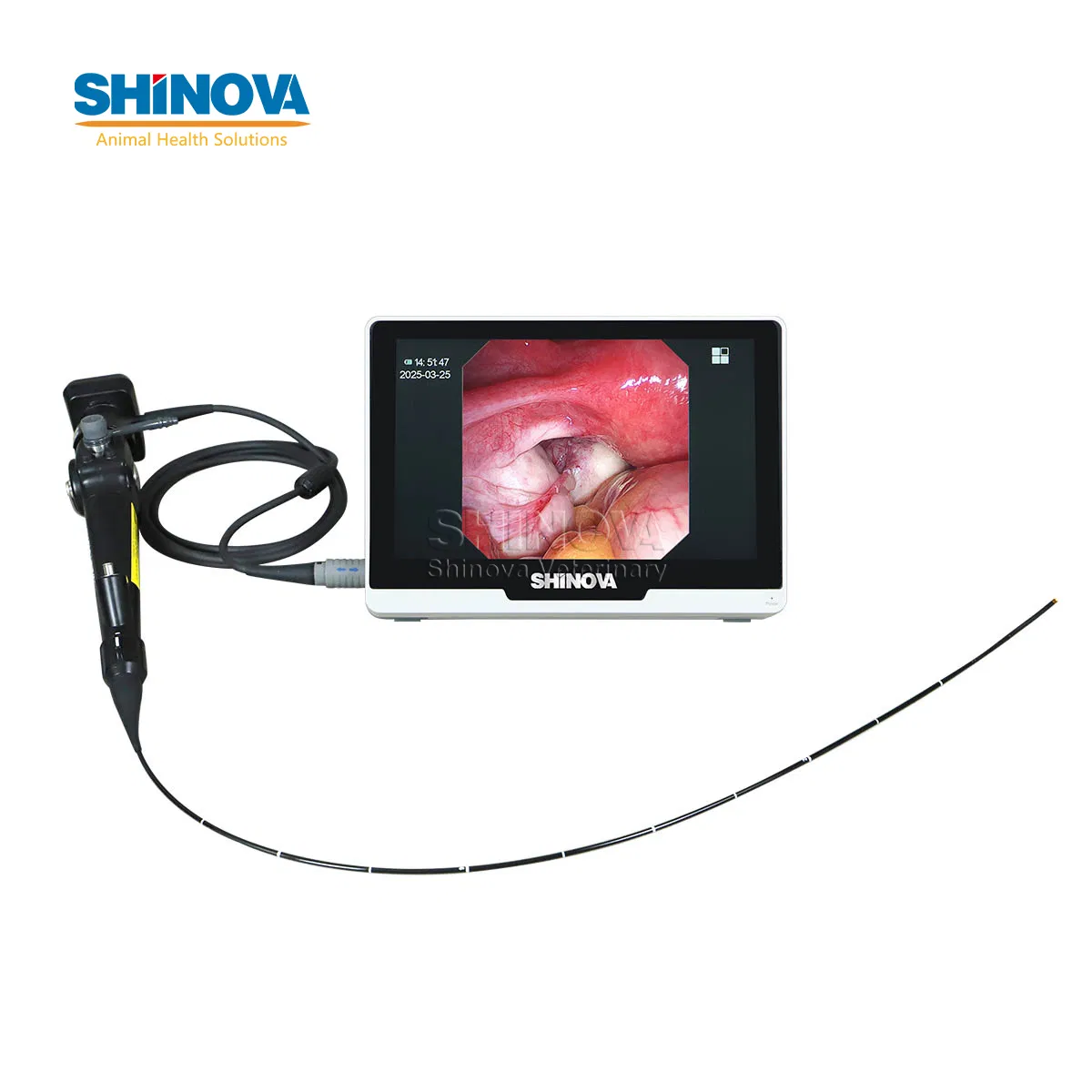

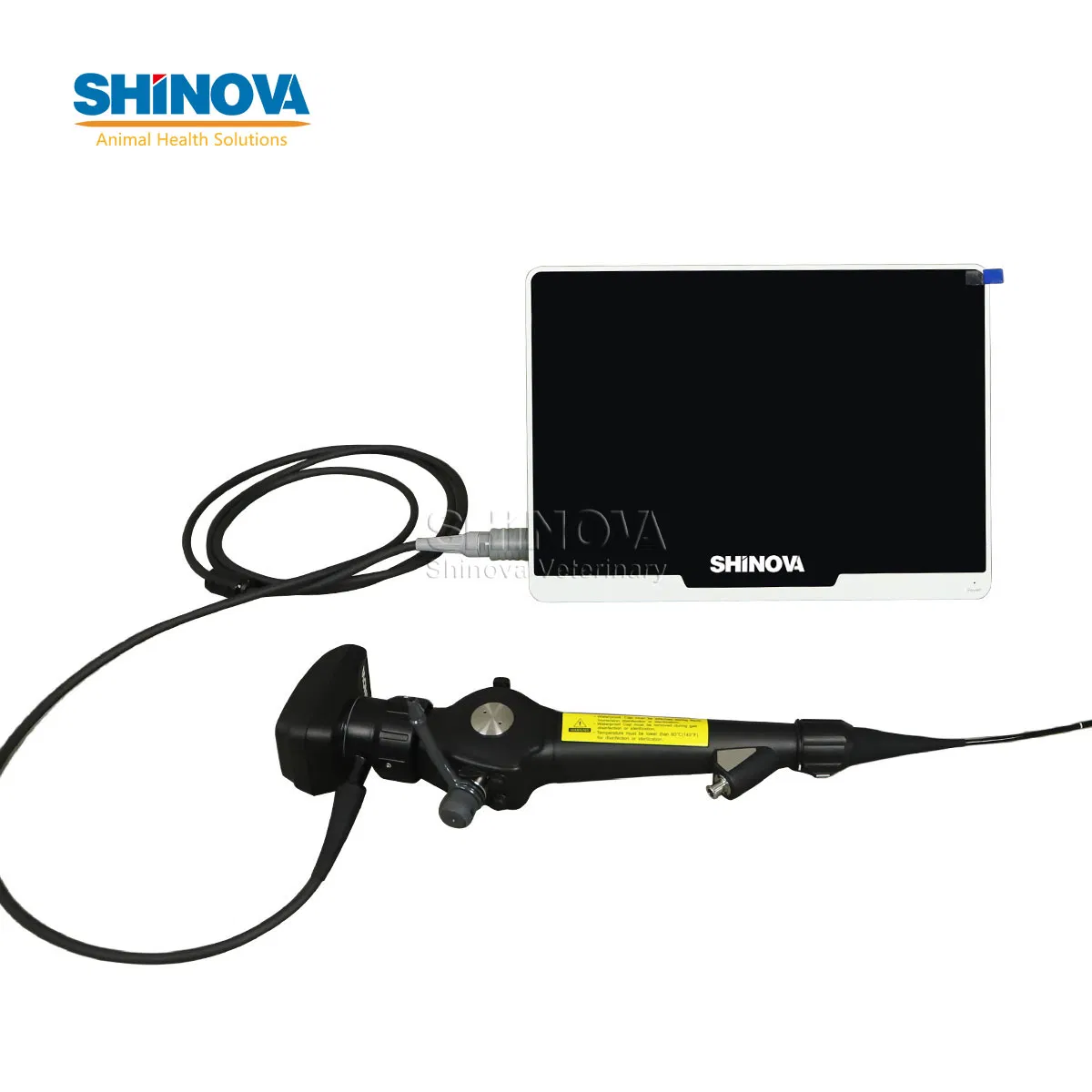

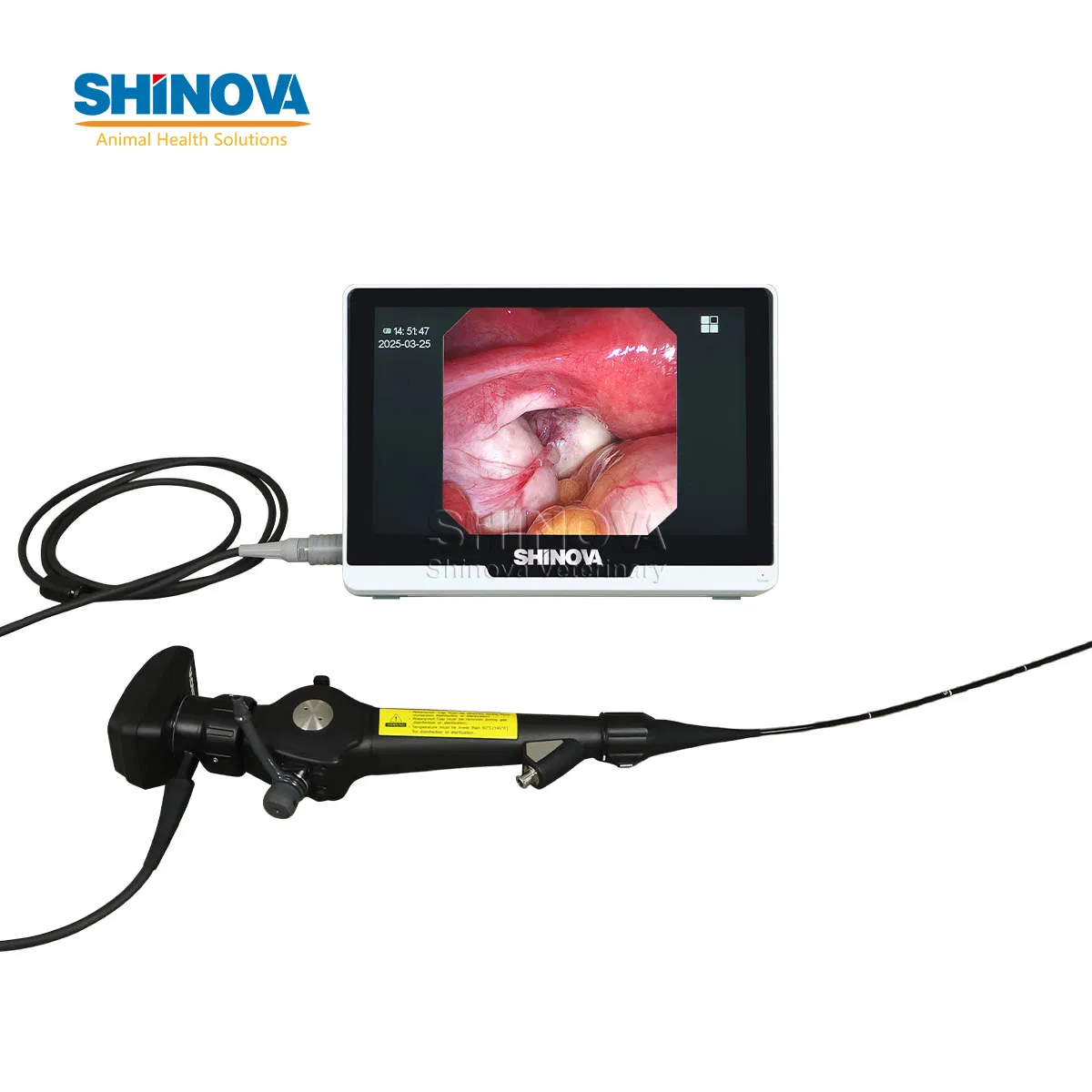

  • 10-inch high-definition image processor with multi-function of display, recording, storage and light source
  • High-resolution CMOS sensor performs clear image, real-time display and no transfer delay
  • Durable LED light source for consistent illumination
  • Multi-function handle buttons (photo/video/freeze/zoom) for convenient one-hand operation
  • Four-directions observations by up/down bending and left/right rotating
  • 180° rotatable video adapter cable to ensure unobstructed operation
  • Applications: Bronchoscopy, rhinoscopy, lung depth detection, urethral and bladder examinations

Core Functions:

Camera / Display / Illumination
Image recorder / Storage / Replay / Snapshot
Simultaneous second transmission
Network video transmission & Live telecast
⚙️

Technical Specifications

Distal-end diameter 3.8mm
Working length 1000mm
Channel diameter 1.5mm
View angle 120°
View depth 3-200mm
Bending range Up 180°, Down 130°
Rotation range Left 120°, Right 120°

Frequently Asked Questions

Q1: What is the diameter of the scope's distal end?

The distal-end diameter is 3.8mm, designed for precise veterinary examinations.

Q2: Does the system support video recording?

Yes, the 10-inch image processor includes multi-functional capabilities for display, recording, and storage.

Q3: What are the primary veterinary applications for the MiniScope 2V?

It is widely used for bronchoscopy, rhinoscopy, lung depth detection, as well as urethral and bladder treatments.

Q4: What is the bending range of the probe?

The scope offers a flexible bending range of 180° upwards and 130° downwards for comprehensive observation.

Q5: Is there any delay in the image transmission?

No, the high-resolution CMOS sensor ensures real-time display with no transfer delay for accurate procedures.

Q6: Can the handle be operated with one hand?

Yes, the handle features multi-function buttons for photo, video, freeze, and zoom, specifically designed for one-handed veterinary operation.
