| Model NO. | SY-P033-1 |
| Insertion Tube Diameter | 6.3mm, 8.3mm, 12.9mm |
| Field of View | 120° |
| Image Definition | 1080P |
| Application | Animal Hospital |
| Transport Package | Carton Box |
| Origin | China |
| Production Capacity | 200 Set/Month |

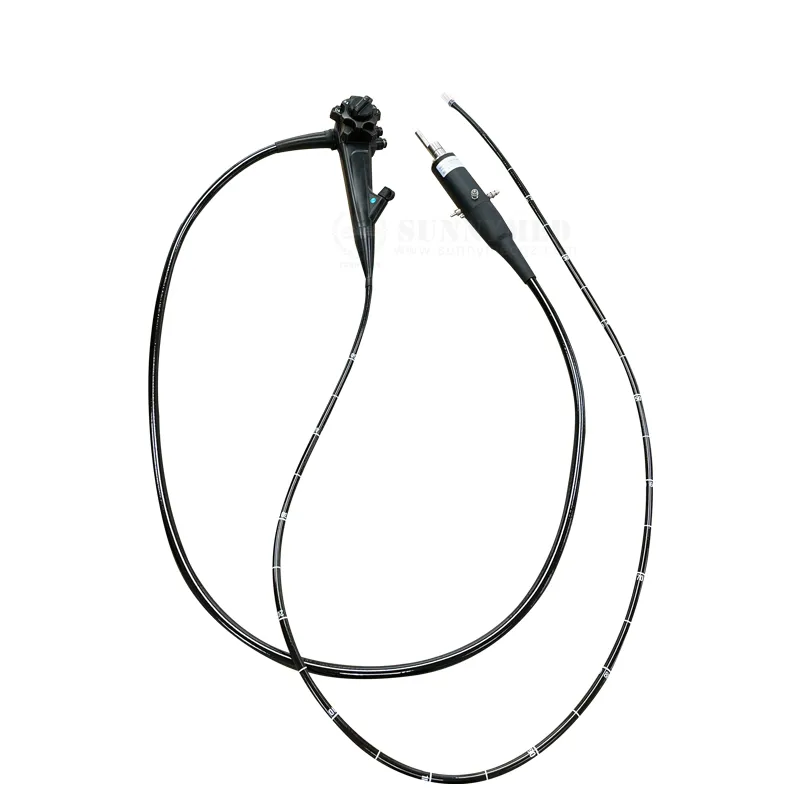

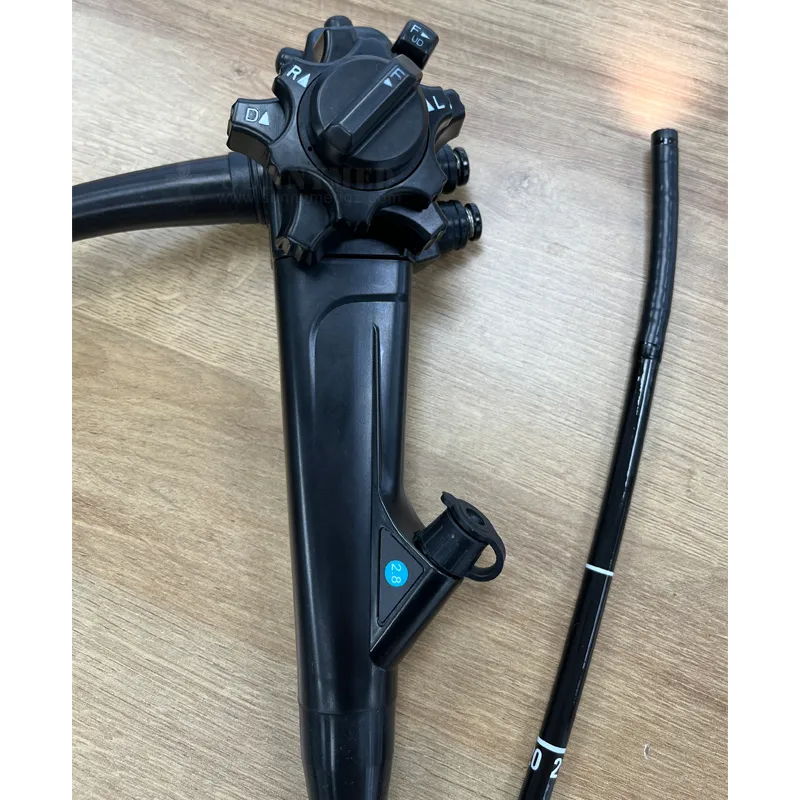

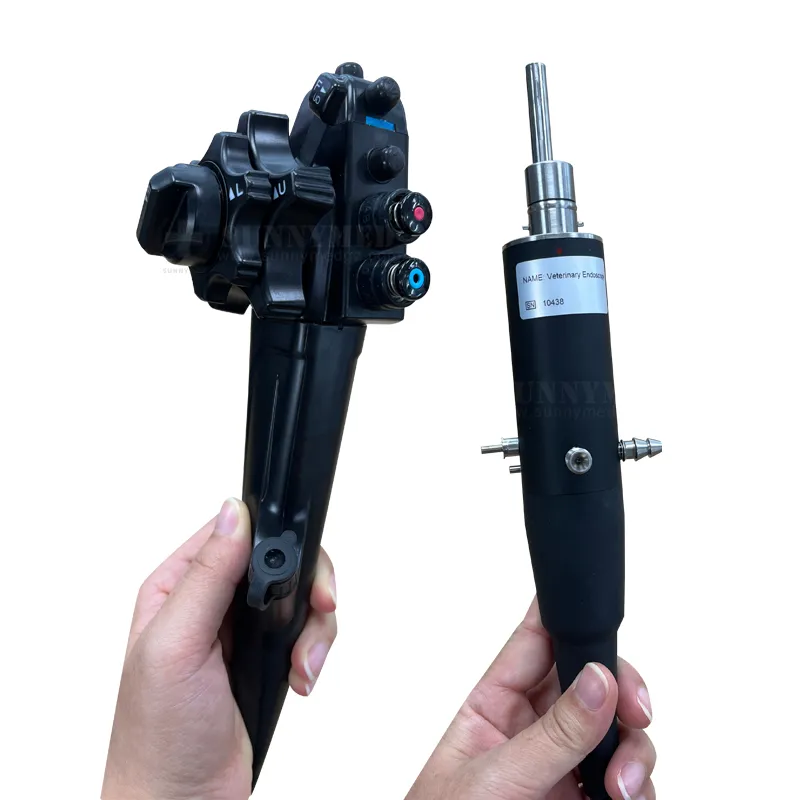

| Video Gastroscope | Standard | Optional | |
|---|---|---|---|
| Type | VET-1508 | VET-1206 | VET-3313 |
| Insertion tube diameter | Φ8.3mm | Φ6.3mm | Φ12.9mm |
| Working channel | Φ2.8mm | Φ2.0mm | Φ3.7mm |
| Working length | 1500mm | 1200mm | 3300mm |
| Tip Deflection | U210°D90°L100°R100° | U180°D180°L160°R160° | |
| Field of view | 120° | ||
| Depth of field | 3-100mm | ||
| Image definition | 1080P | ||
| Endoscope Processor Details | |
|---|---|
| TYPE | VET-300F |
| White balance | Automatic |
| RGB adjustment | -50~+50 |
| Cold light | LED 40W |
| Luminance | >800Lm |
| Air/Flow | 0.05MPa, 0.75m³/n |
| Snap/Record | 1080P/30Fps |
| Voltage | ~100V-240, 50HZ/60HZ |
Video endoscopy for large and small animals includes:
A1: Yes, the SY-P033 series offers multiple gastroscope types (VET-1206, VET-1508, VET-3313) with different lengths and diameters to accommodate various animal sizes in veterinary clinics.
A2: The system supports Full HD 1080P resolution at 30Fps for both snapping photos and recording video, ensuring high-definition diagnostic quality.

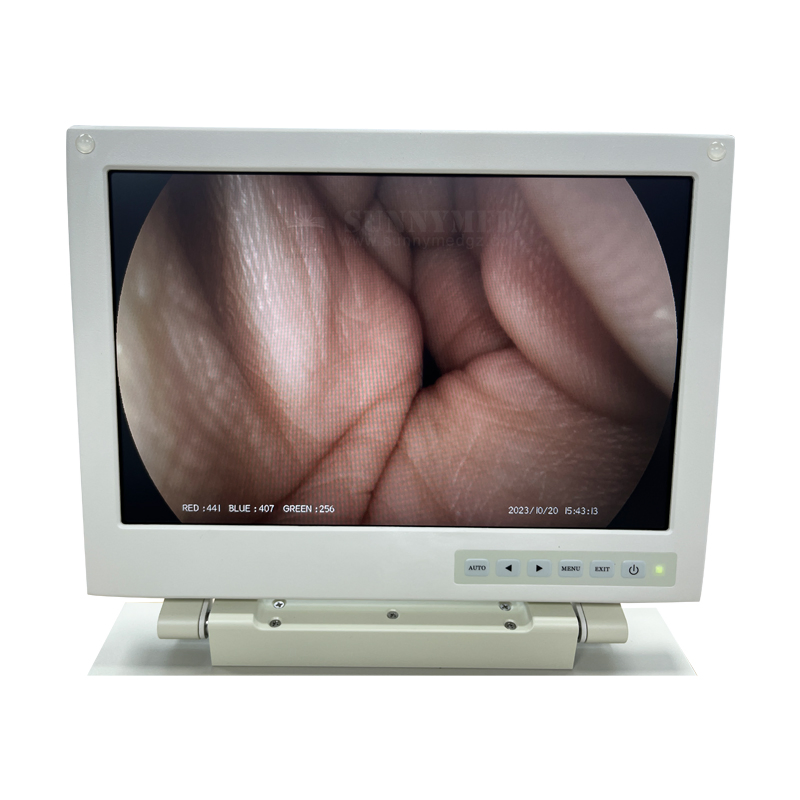

A3: Yes, the standard set includes an all-in-one endoscope processor with an integrated 12-inch monitor for real-time viewing.

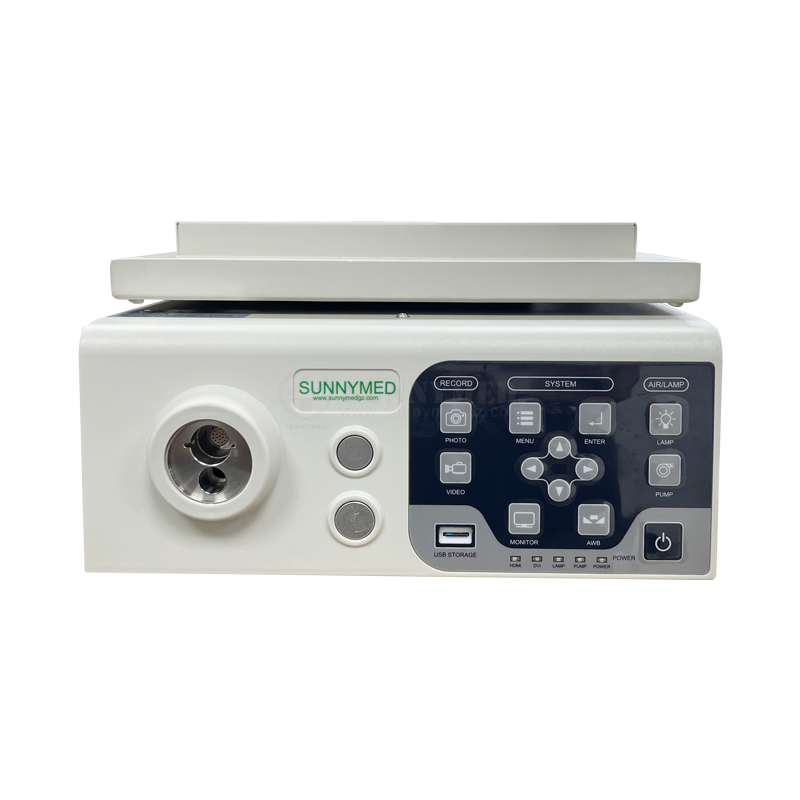

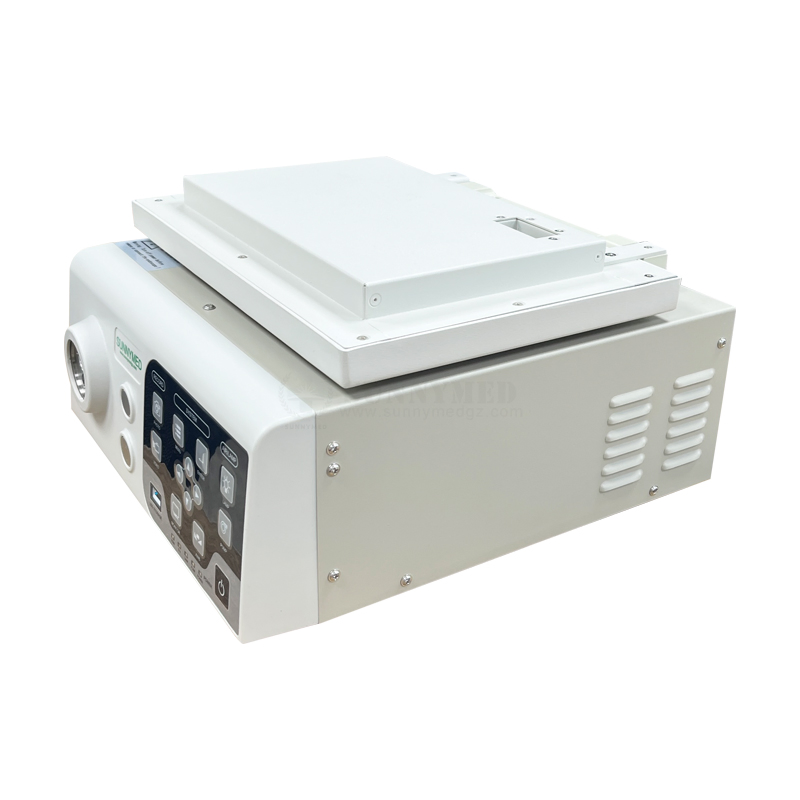

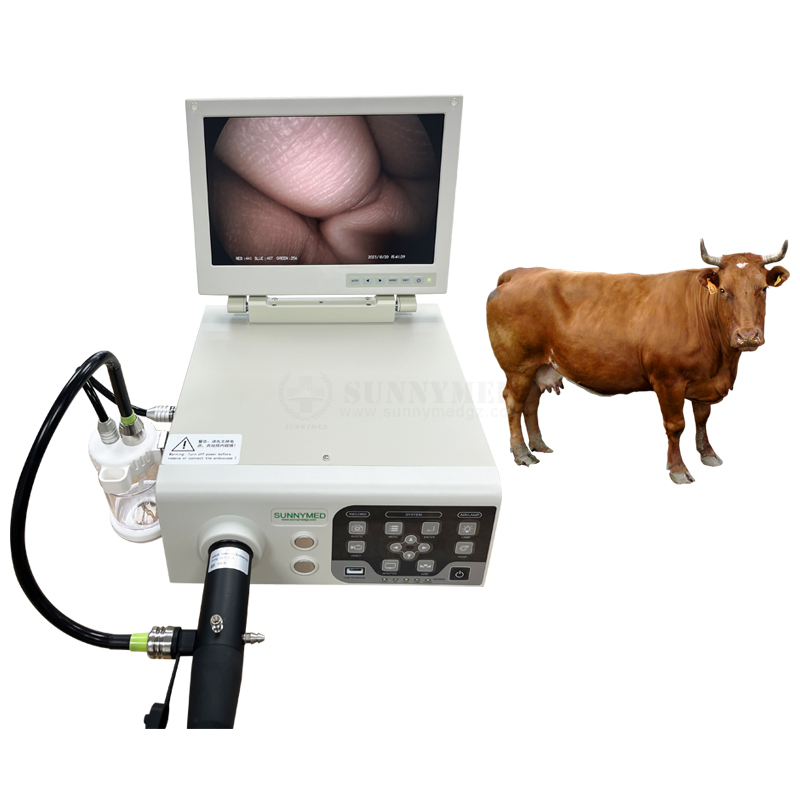

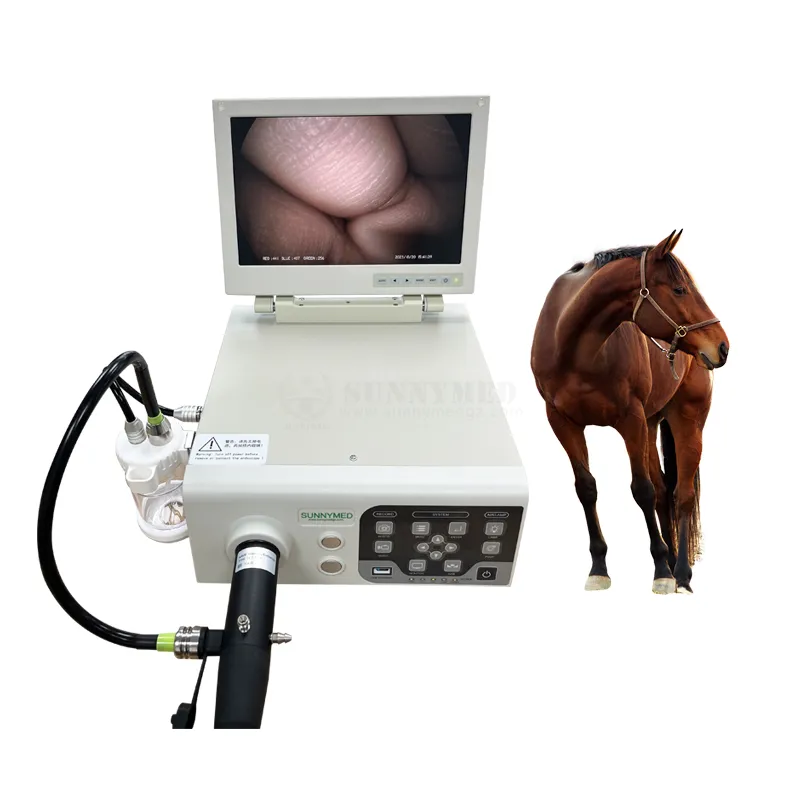

A4: The SY-P033-2 is an all-in-one processor designed to support both rigid and flexible endoscopy procedures in animal hospitals.
A5: The processor features a built-in 40W LED cold light source with a luminance of over 800Lm and automatic white balance adjustment.

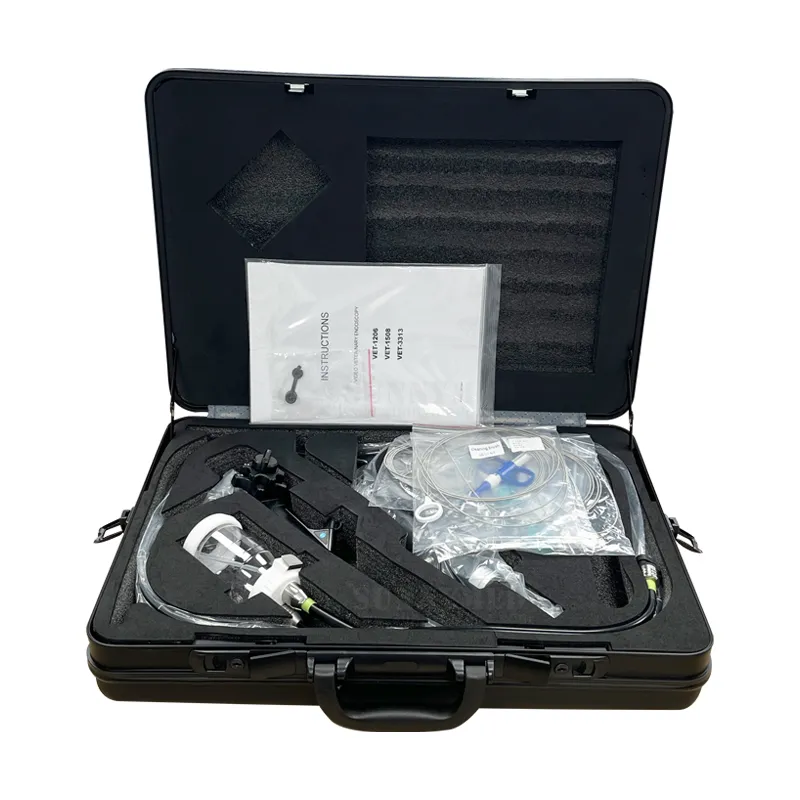

A6: The package includes essential maintenance tools such as a leakage tester, venting cap, and channel cleaning brushes to ensure device longevity.
