| Video output | DVI/HDMI | Lamp type | LED 40W |
| Color adjustment | AWB R/G/B | CRI | 90 |
| Enhancement | H/M/L | Color temp | 5600K |
| IRIS | Ave/Peak | Lamp life span | 25000H |
| Gamma level | 1-15 | Pump life span | 5000H |
| Gain level | 1-15 | Air pressure | 0.05MPa |
| SD memory | Freeze/ Save/ View | Air level | H/M/L |
| USB memory | Record / USB video | Voltage | ~110V-240V, 50Hz-60Hz |
| Insertion tube diameter | φ8.4mm |
| Working length | 1050mm |
| Working channel | φ2.8mm |
| Tip bending | Up 210° Down 90° Left 100° Right 100° |
| Field angle | 145° |
| Depth of view | 3-100mm |
| Image definition | 720P |
| Insertion tube diameter | φ12.8mm |
| Working length | 1300/1650mm |
| Working channel | φ3.7mm |
| Tip bending | Up 180° Down 180° Left 160° Right 160° |
| Field angle | 120° |
| Depth of view | 3-100mm |
| Image definition | 720P |

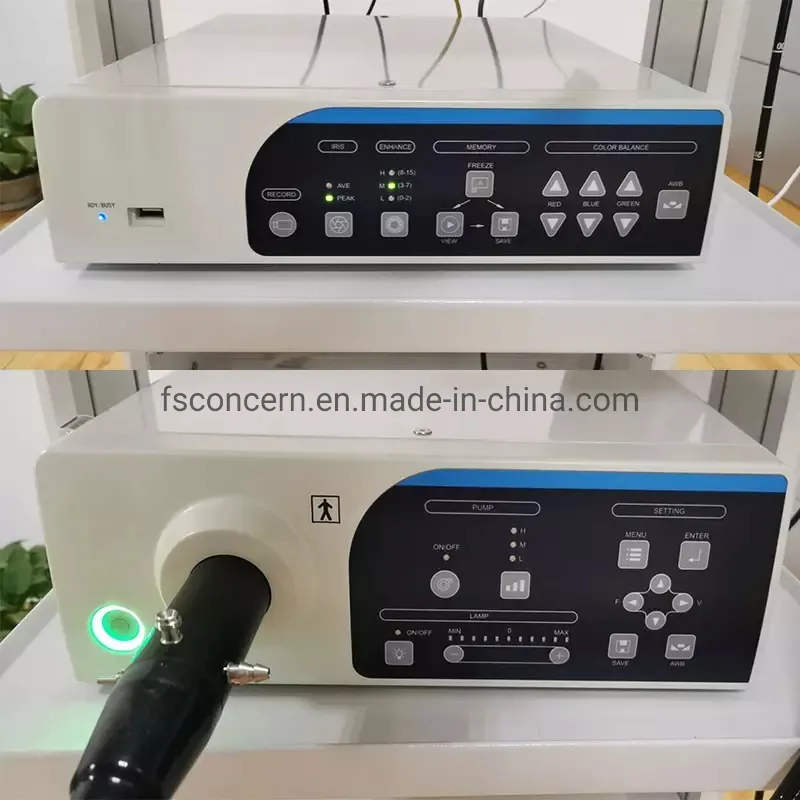

A: The system supports high-definition DVI and HDMI video outputs for clear imaging on medical monitors.
A: The 40W LED lamp is designed for long-term use with a lifespan of approximately 25,000 hours.
A: Yes, the CC-EN100 supports both SD card memory (Freeze/Save/View) and USB memory for recording and video storage.
A: The gastroscope features a slim insertion tube with a diameter of φ8.4mm.
A: The colonoscope provides excellent maneuverability with tip bending of Up/Down 180° and Left/Right 160°.
A: Yes, it is compatible with a wide voltage range of 110V-240V and frequencies of 50Hz-60Hz.
