Arthroscopic Ultra HD 4K Medical Endoscopy Video Imaging System with U Disk

1 / 5

Arthroscopic Ultra HD 4K Medical Endoscopy Video Imaging System with U Disk

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	Digital Imaging System

Send Inquiry

Product Description

Basic Information

Model NO.

TV-LSD101A

Certification

CE, FCC

Group

Middle-aged and Old

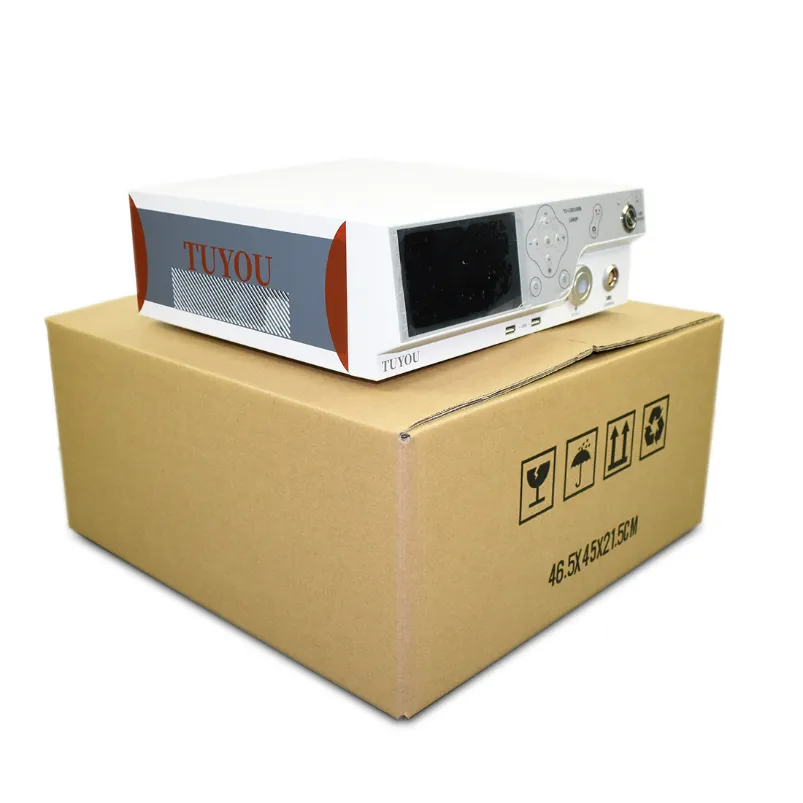

Transport Package

Standard Carton with Foam

Specification

46.5*45*21.5cm 5.8kg

Trademark

Tuyou

Production Capacity

500/Month

System Parameters

Input Interface	SDI 4K 60FPS

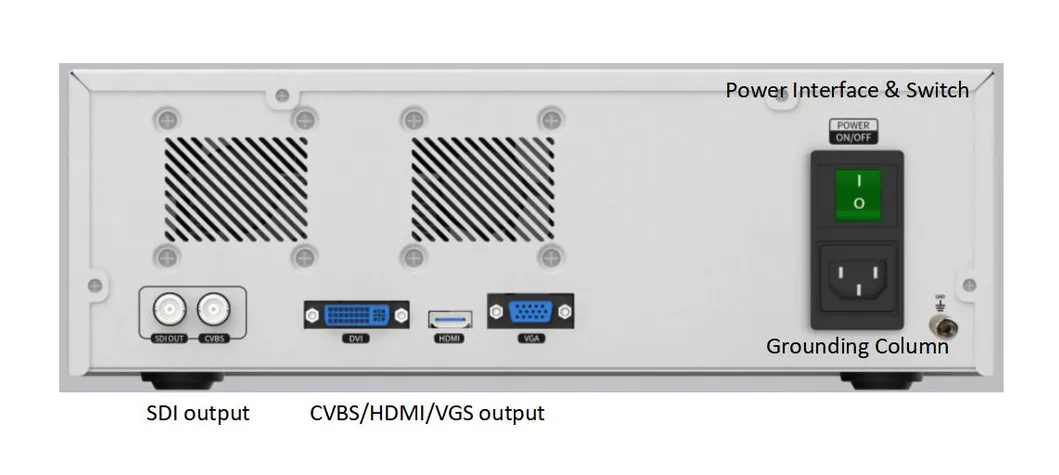

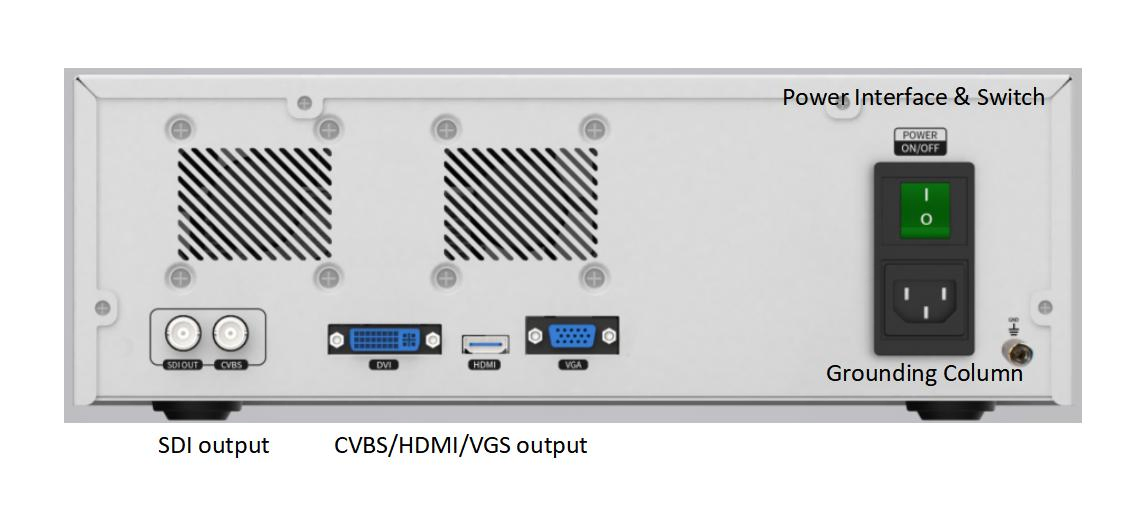

Output Interface	HDMI/SDI/CVBS
Keypad Control	Control the mainboard menu and shortcut keys through RX/TX
Power	AC110V~240V
U Disk	USB2.0/USB3.0 (up to 32GB) to record and take photos
Shortcut Key	Freeze/White Balance/Video/Photo/Digital Zoom
Noise	<45db
Product Size	L336W330H116mm
Net Weight	4.3KG

Camera Parameters

Image Sensor	1/1.8" SONY CMOS
Effective Pixels	3864(H) × 2192(V) Approx. 8.46M Pixels
Resolution	SDI 4K 60fps
D-ZOOM	Image zoom 1-8X

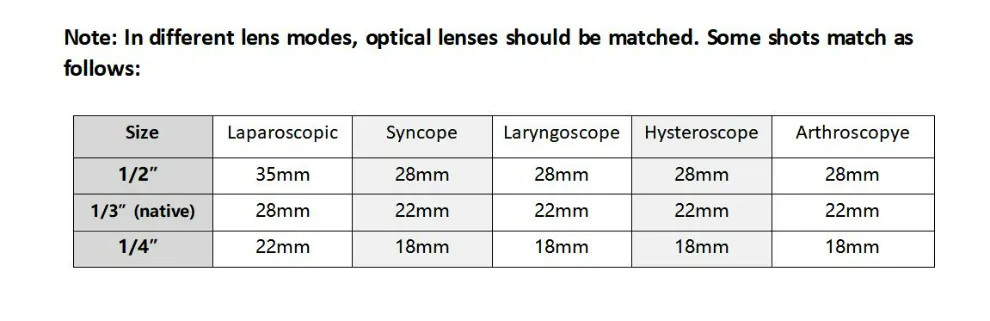

Lens Mode	ENT/Abdominal/Bladder/Uterine/Joint/Fiber/Custom
Min-illumination	Color: 0.017 LUX \| B/W: 0.008 LUX

Light Source Parameters

Light Type	LED
Effective Power	80W
Illuminance	400W LUX
Color Temperature	5800-6500K
Adjustment	Brightness Support

Product Composition & Features

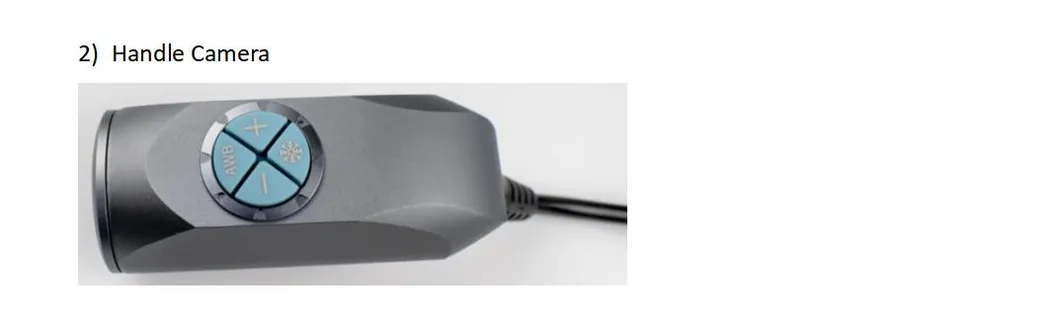

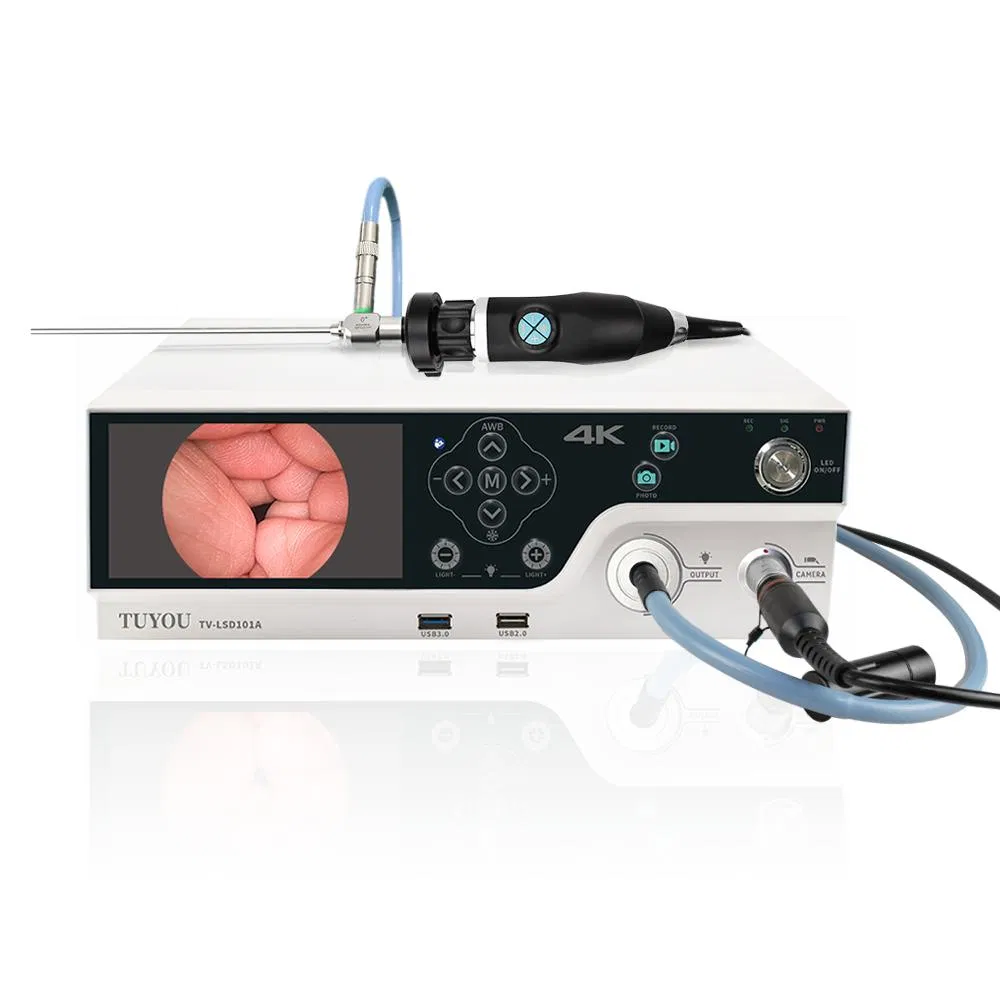

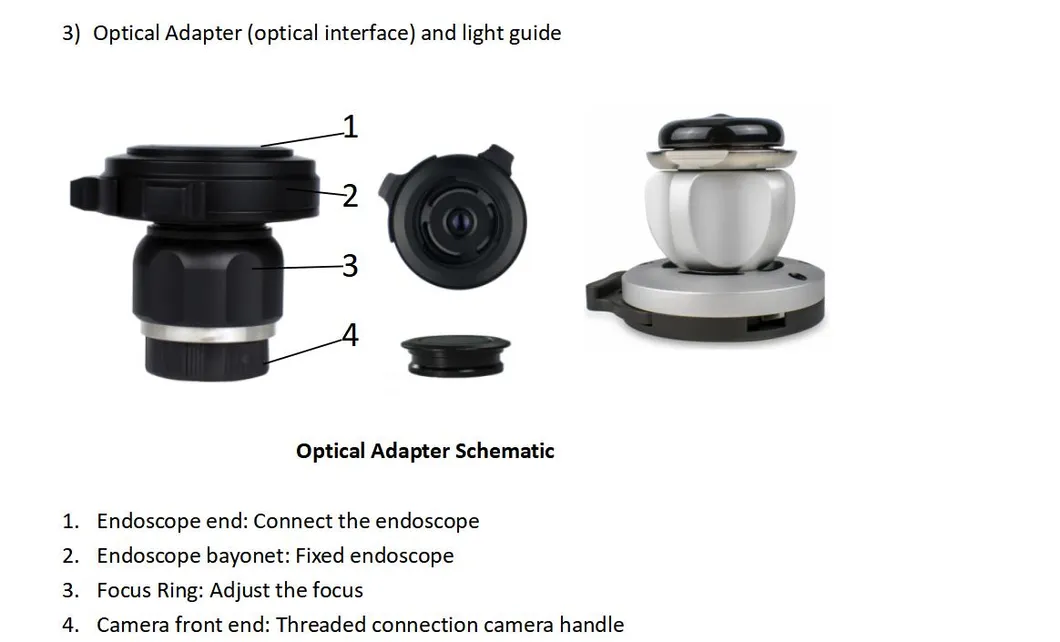

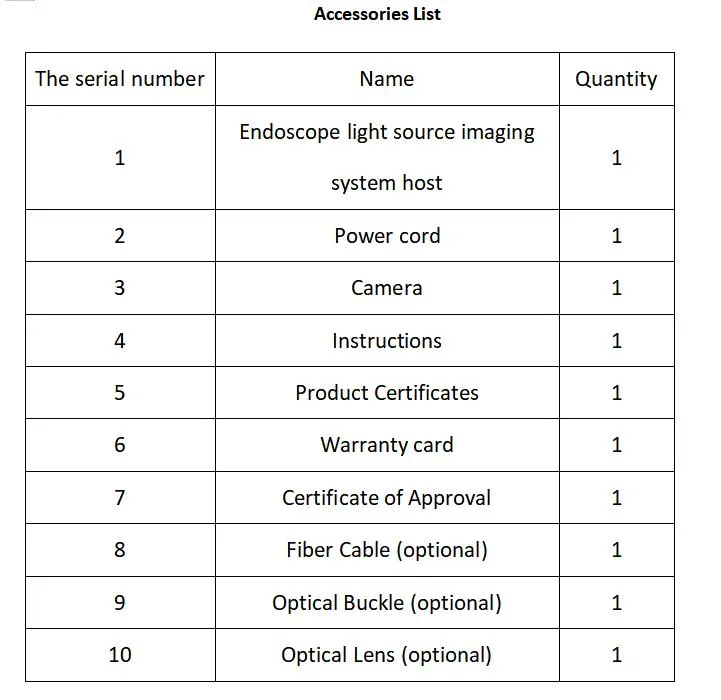

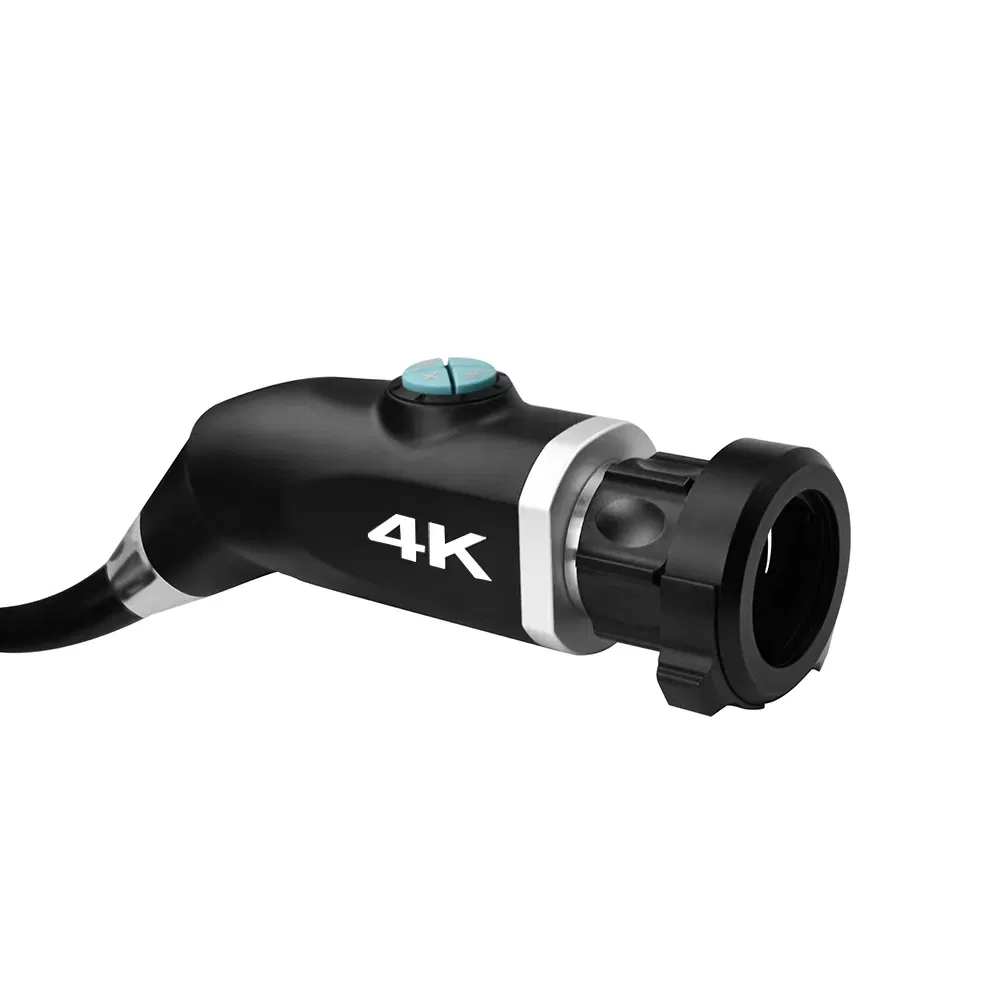

System Introduction: The endoscope light source imaging system consists of a camera control system, a handle camera, a light guide and an optical adapter.

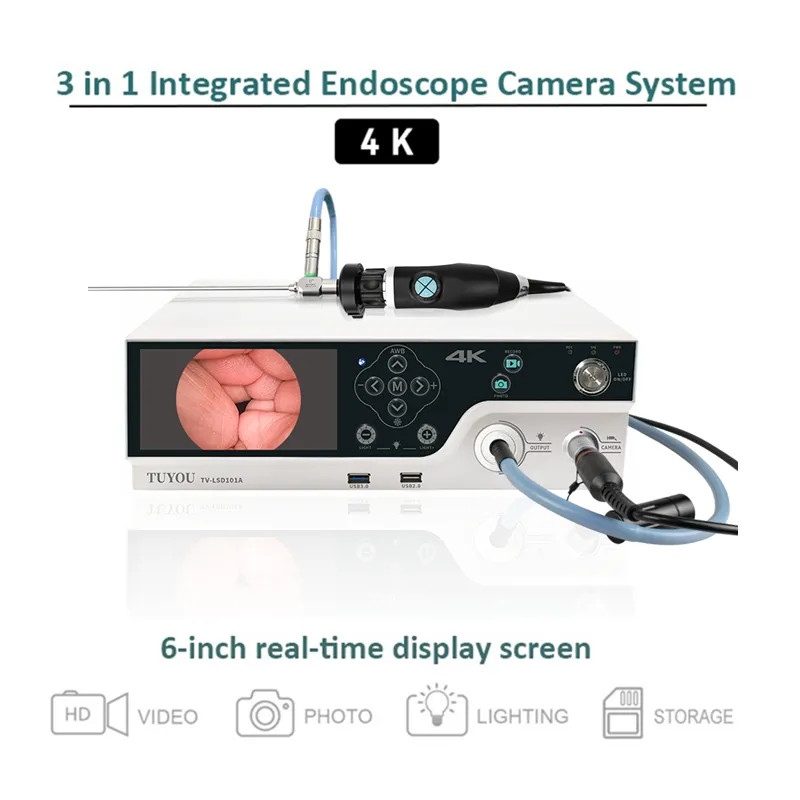

Self-contained video recording system and LED light source.

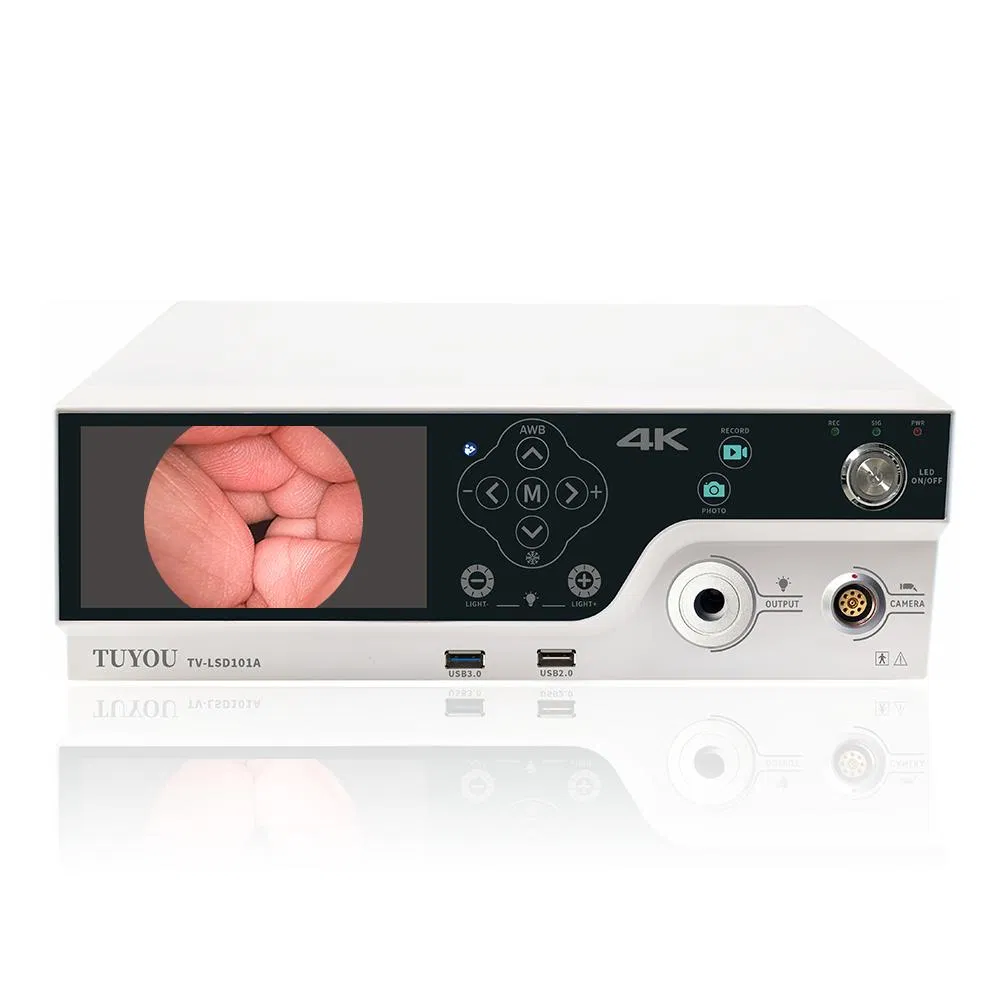

Built-in 6-inch display screen for immediate visualization.
Dual USB full HD image storage support.
Multiple output signals for external monitor connectivity.
One-key functions: Freeze, White Balance, Zoom in/out.
Brightness Memory: Automatically restores the last brightness setting after startup.

Product Display

Certifications & Logistics

Frequently Asked Questions

Are you a factory or a trading company?

We are a Chinese medical imaging instruments manufacturer. All products are produced by our skilled workers in our own facility.

Do you offer OEM services?

Yes, while we offer our own brand, we also provide comprehensive OEM services to meet your specific requirements.

What is the delivery timeline?

Standard delivery is within 7 working days upon receipt of payment. Samples are typically ready-made and available for quick dispatch.

What is the warranty policy?

We provide a free warranty for two years. During this period, we will repair any faults or replace assembly parts free of charge.

What payment methods do you accept?

We accept T/T Bank Transfer, Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, and Cash.

What are the main components of the imaging system?

The system consists of a camera control unit, a high-definition handle camera, a light guide cable, and an optical adapter interface.
