Product Composition Introduction:

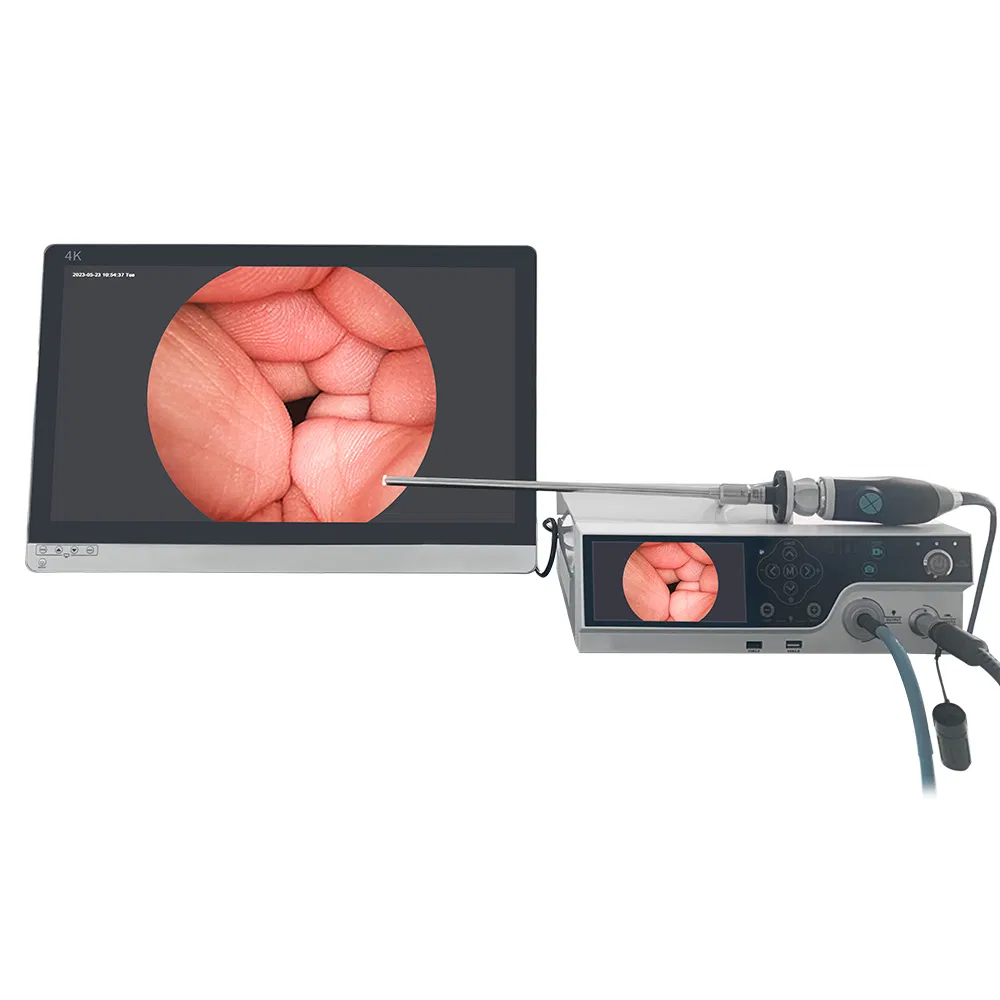

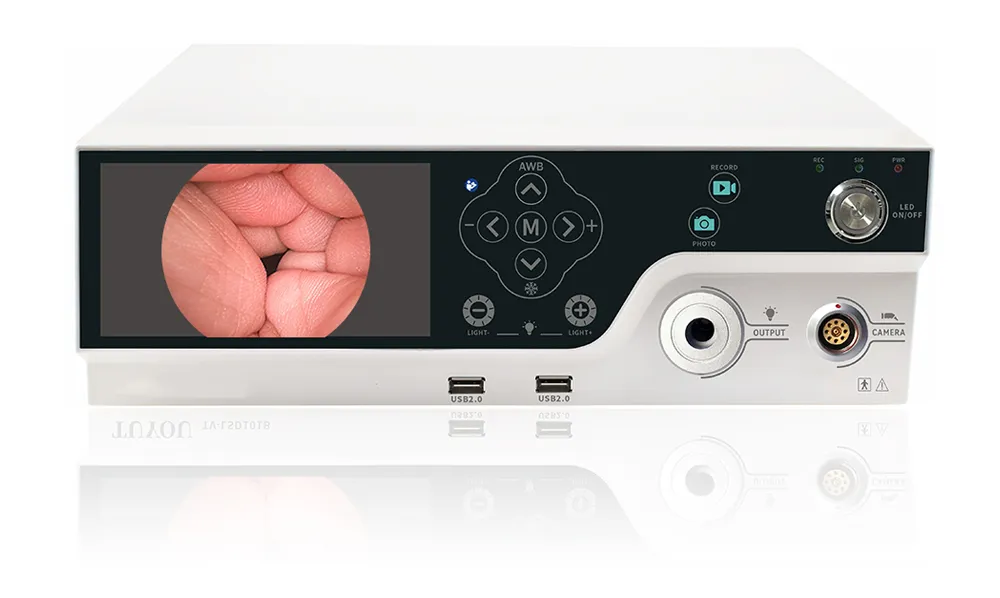

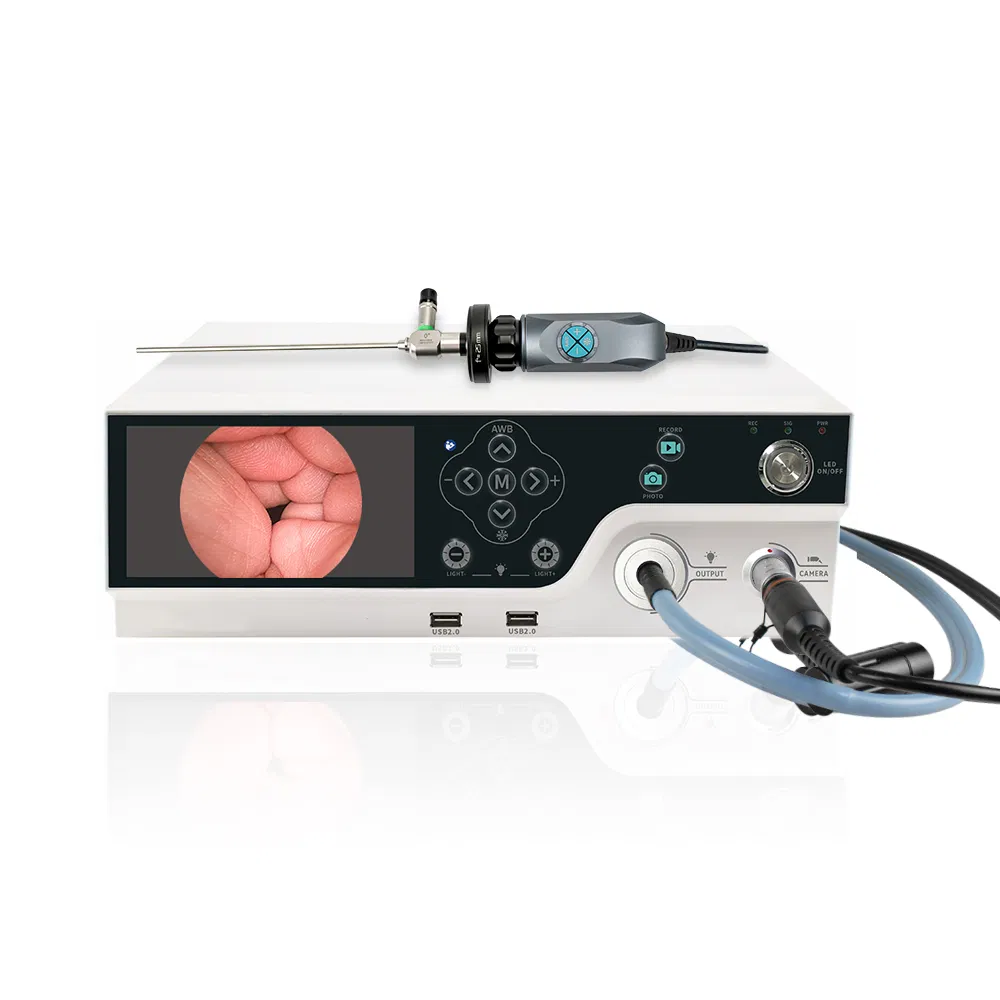

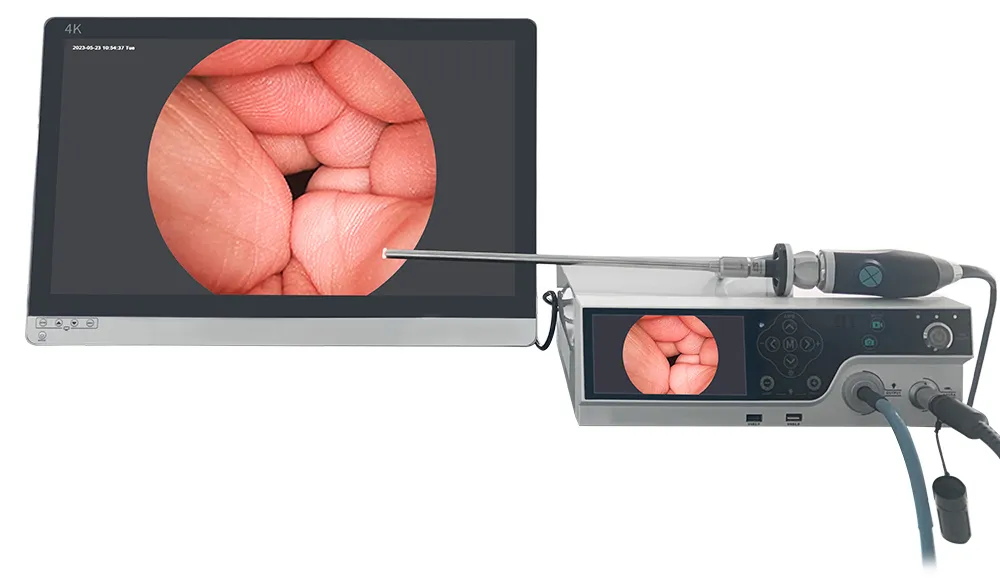

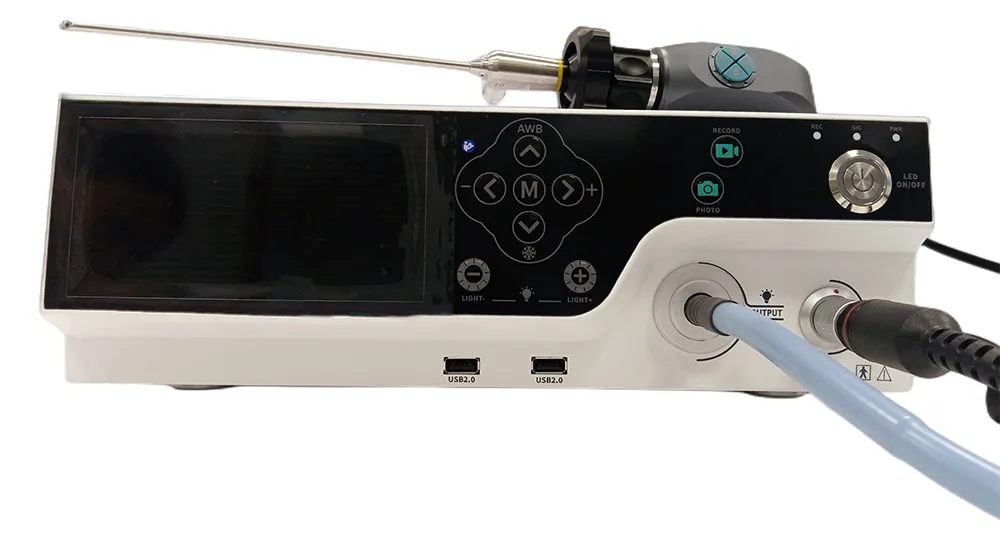

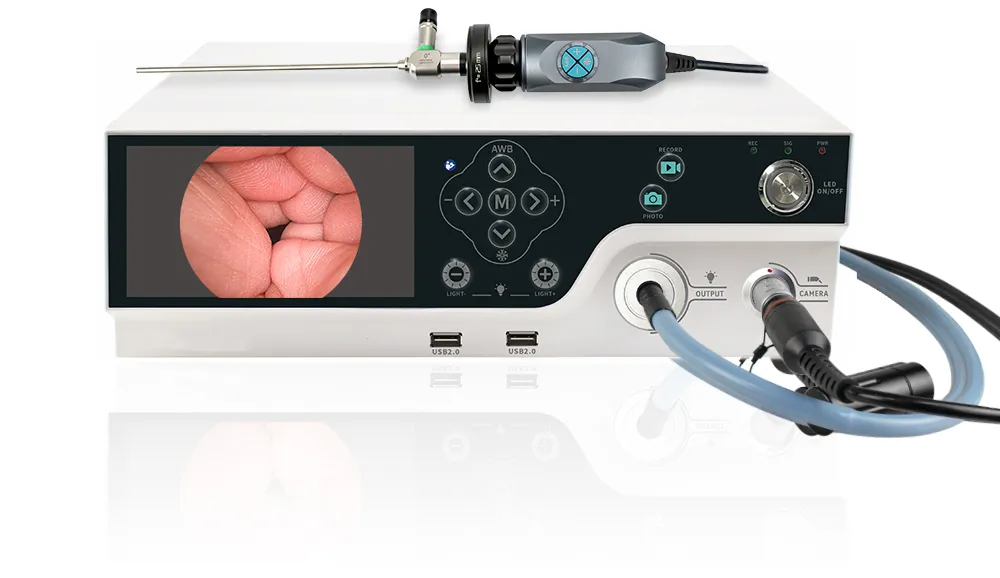

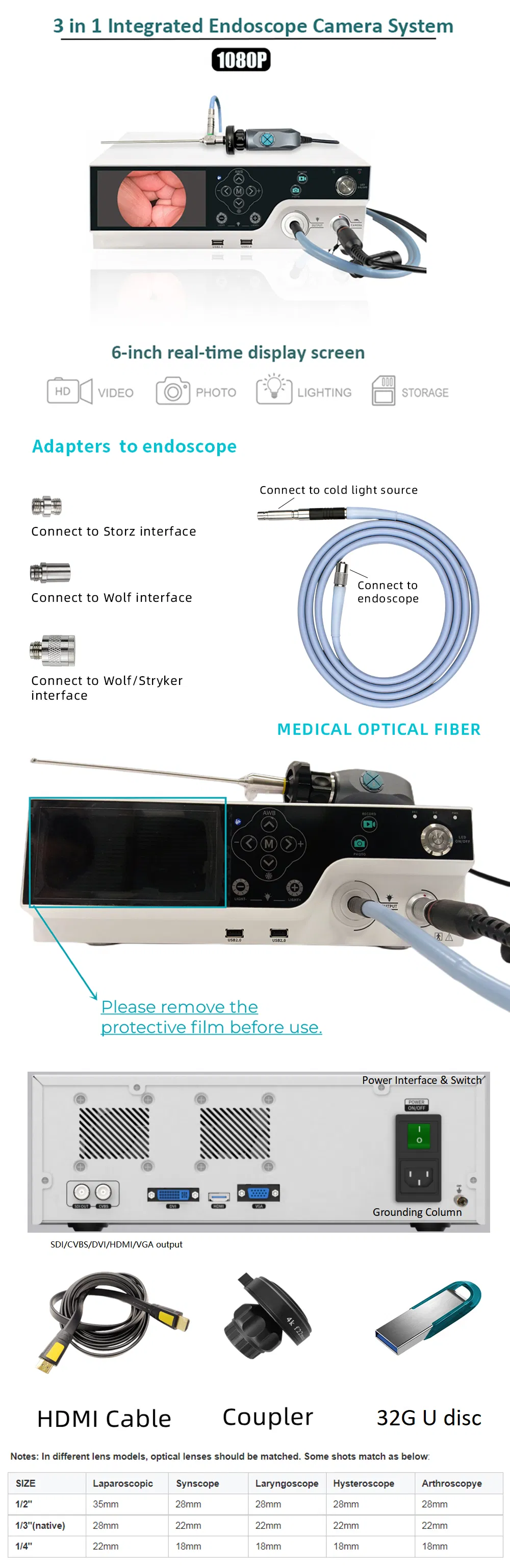

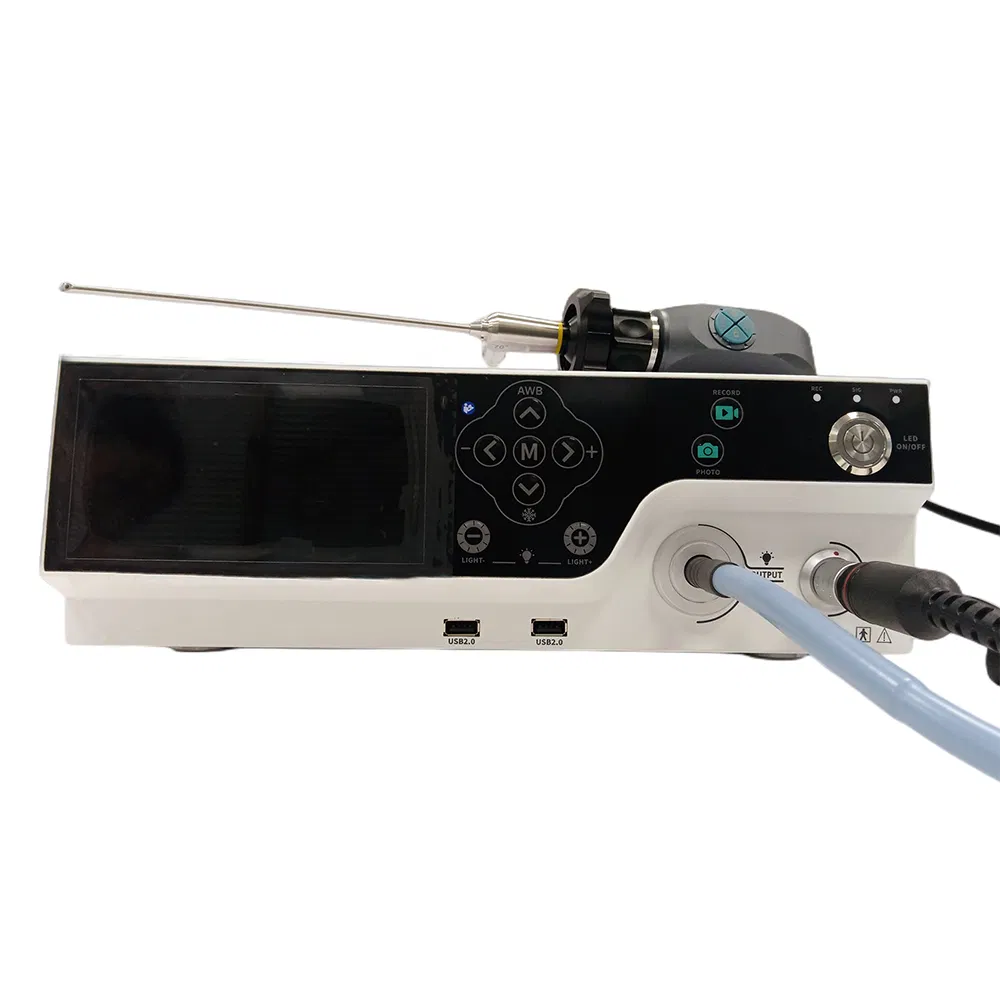

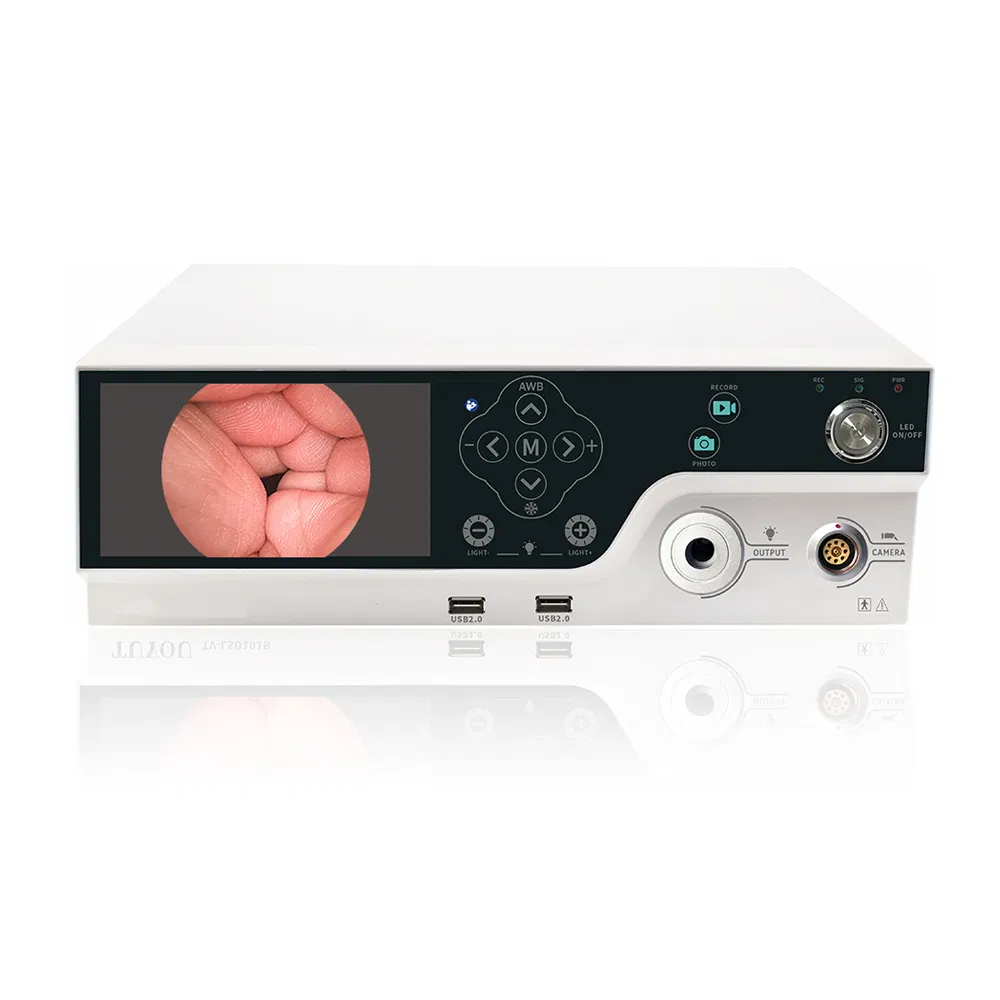

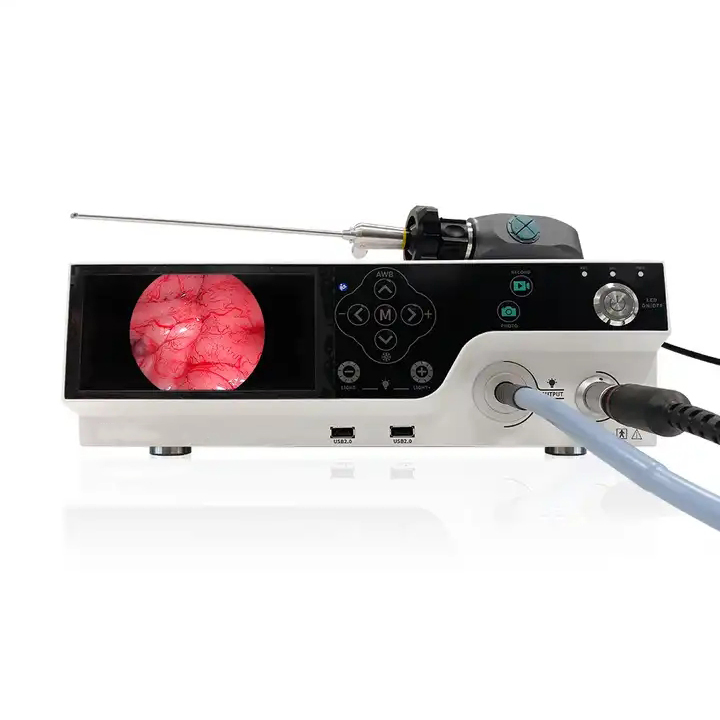

The endoscope light source imaging system consists of a camera control system, a handle camera, a light guide and an optical adapter (optical interface).
Brightness memory function: The brightness of the LED light source automatically memorizes the previous setting before shutdown.
| Full HD Endoscope Camera System Parameters | |
|---|---|
| Input Interface | SDI 1080P 60FPS |
| Output Interface | HDMI/SDI/CVBS |
| Keypad Control | Mainboard menu and shortcut keys via RX/TX |
| Power | AC110V~240V |
| U Disk | USB2.0(up to 32GB) for storage and capture |
| Shortcut Functions | Freeze/White Balance/Video/Photo/Digital Zoom |
| Noise | <45db |

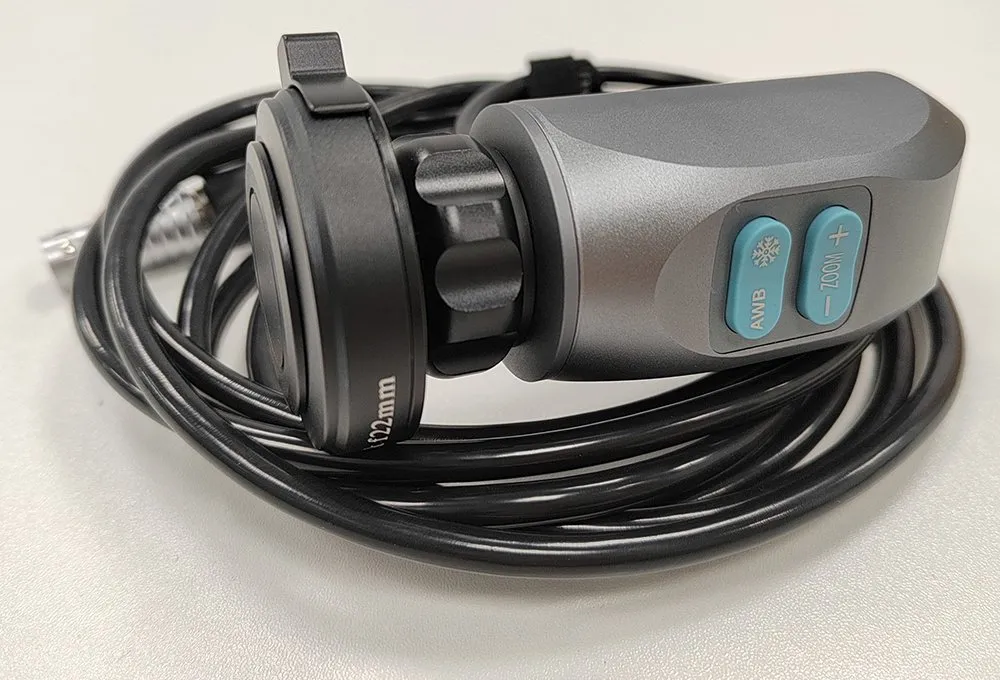

| Camera Head Parameters | |
|---|---|
| Image Sensor | 1/1.8" SONY CMOS |
| Effective Pixels | Approx. 2.13M pixels |
| D-ZOOM | Image zoom 1-8X |
| Brightness/Sharpness | 1-30 steps / 1-40 steps |
| Lens Modes | ENT/Abdominal/Bladder/Uterine/Joint/Fiber/Custom |
| Light Source Parameters | |
|---|---|
| Light Type | LED |
| Effective Power | 60W |
| Color Temperature | 4500-6500K |
| Service Life | 60,000 hours |
