Hanyoo Professional Manufacturer Semi-Automatic Capsule Filling Device

1 / 5

Hanyoo Professional Manufacturer Semi-Automatic Capsule Filling Device

Customization:	Available
After-sales Service:	Engineers Available to Service Machinery Overseas
Certification:	CE, GMP

Send Inquiry

Product Description

Product Overview

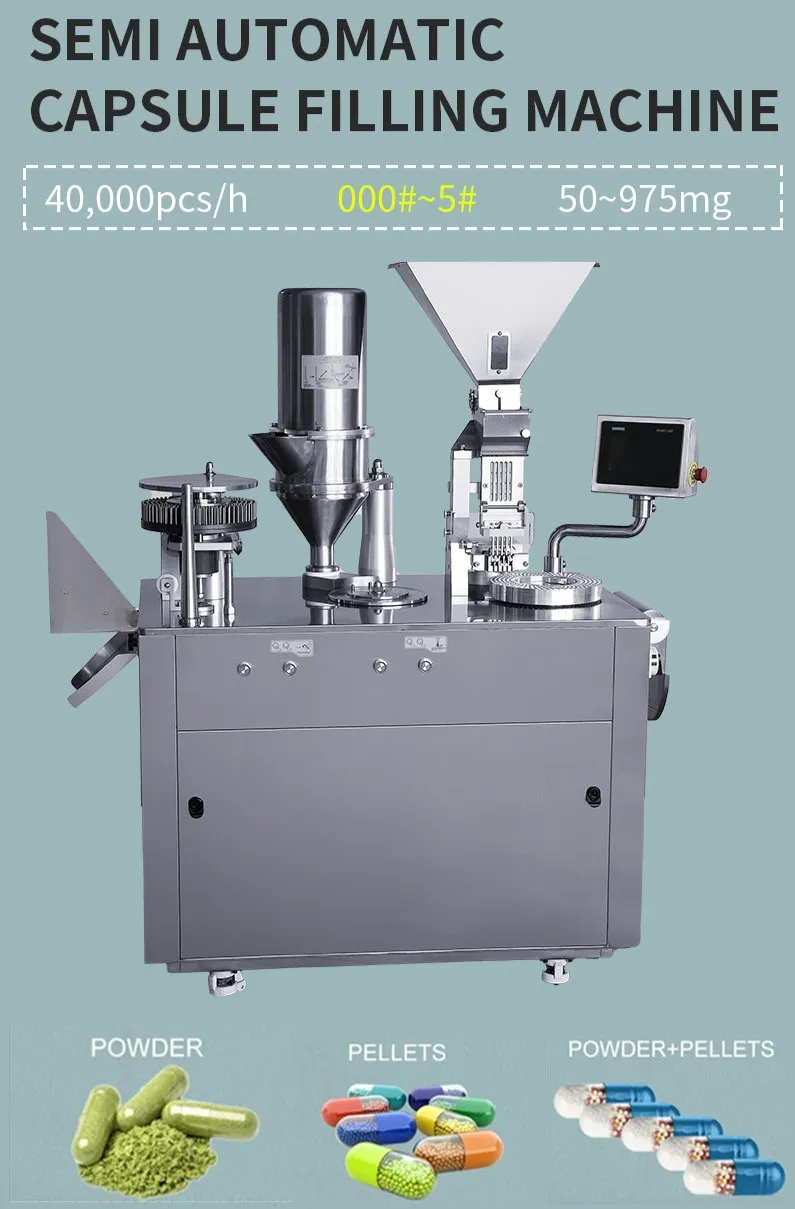

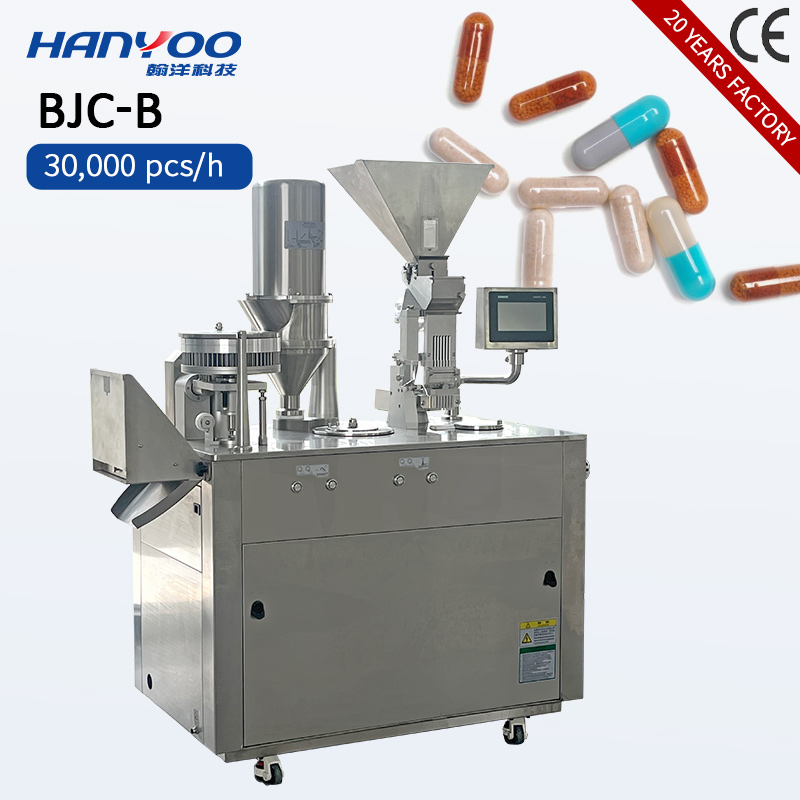

BJC-B Semi-Automatic Capsule Filling Machine

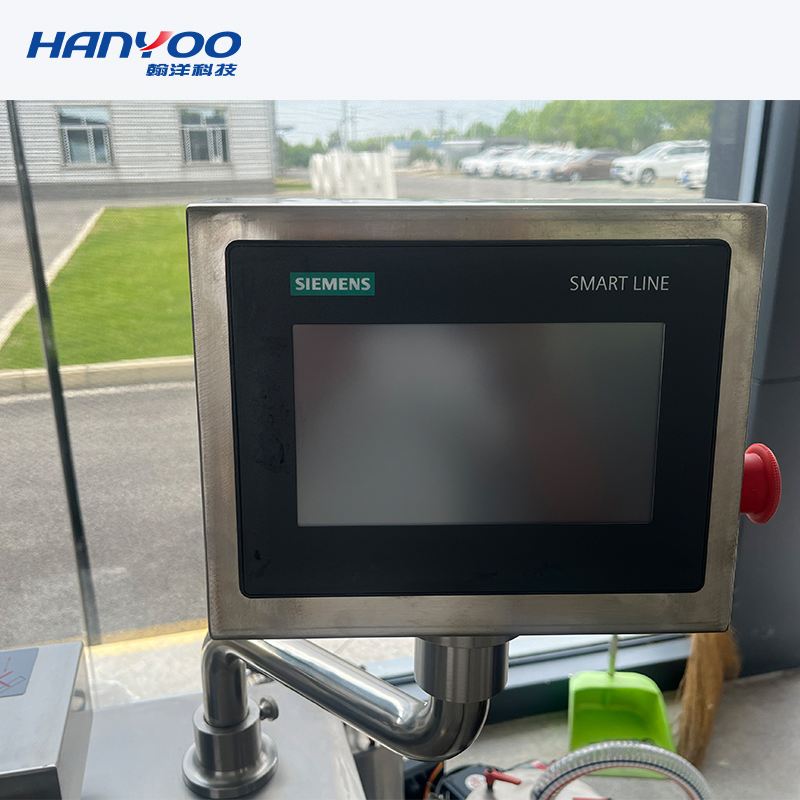

The machine is adopted programmable control system, touch panel operation, stepless transduction speed shift, and electronic automatic counter. It can automatically complete the action of position, separation, filling, locking, etc. The filling dosage is accurate, and the operation is very convenient. The overall machine is made of good quality stainless steel, suitable for capsules filled with powder and pellet.

Model NO.

BJC-B

Condition

New

Fill Range

≤49ml

Machine Type

Capsule Filling Machine

Main Material

Stainless Steel

Voltage

380V

Warranty

1 Year

Production Capacity

25000-30000 PCS/H

Motor Power

4kw

Size

1630×700×1720mm

Weight

400 Kg

Machine Features

The new horizontal capsule filling machine offers performance improvements developed to address market needs.

Broadcasting device adopts independent support and power separation for stable and low-noise operation.

Linear track type control bag switch for convenient and accurate adjustment of the control bag frame.

The front plate of the small capsule bucket can be opened independently for easier cleaning.

Both large and small capsule buckets feature quick positioning devices for disassembly without tools.

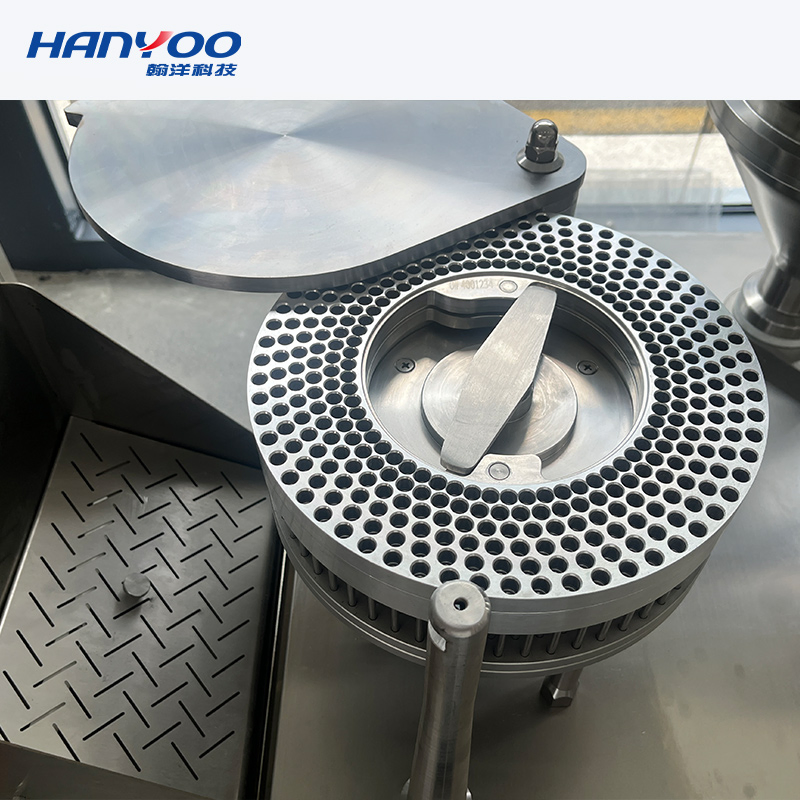

Linked operation in the capsule tray ensures high-speed and stable rotation.

Self-rotation design helps achieve smooth separation of unseparated capsules.

304 stainless steel body and workbench for superior corrosion and oxidation resistance.

Safety horizontal locking device improves safety indices by covering exposed cylinders.

Technical Parameters

Parameter Item	Specifications (BJC-B)
Mould changing time	5-10 mins
Production capacity	25000-30000 pcs/h
Suitable capsule size	000#, 00L, 00#, 0L#, 0#, 1#, 2#, 3#, 4#, 5#
Filling type	Pellet, powder without moisture, granules
Power	4.0kw
Compressed air	0.03m3/min 0.7Mpa
Vacuum pump	Pumping rate 63m3/h
Overall dimension (LWH)	1630×700×1720mm
Net weight	400 kg

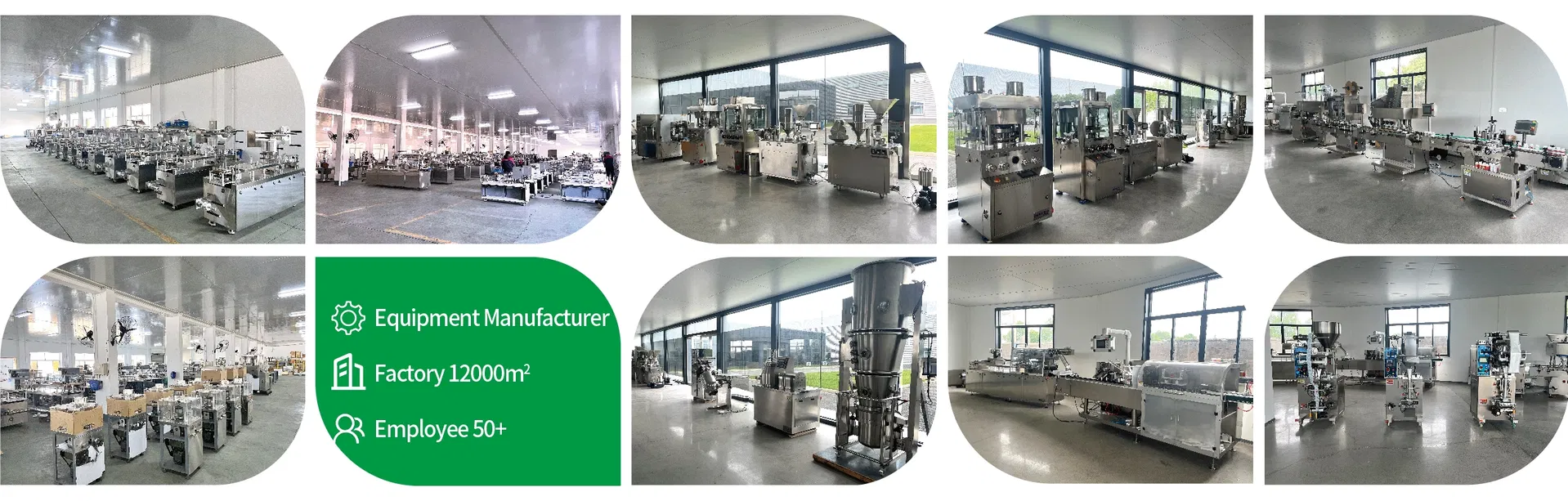

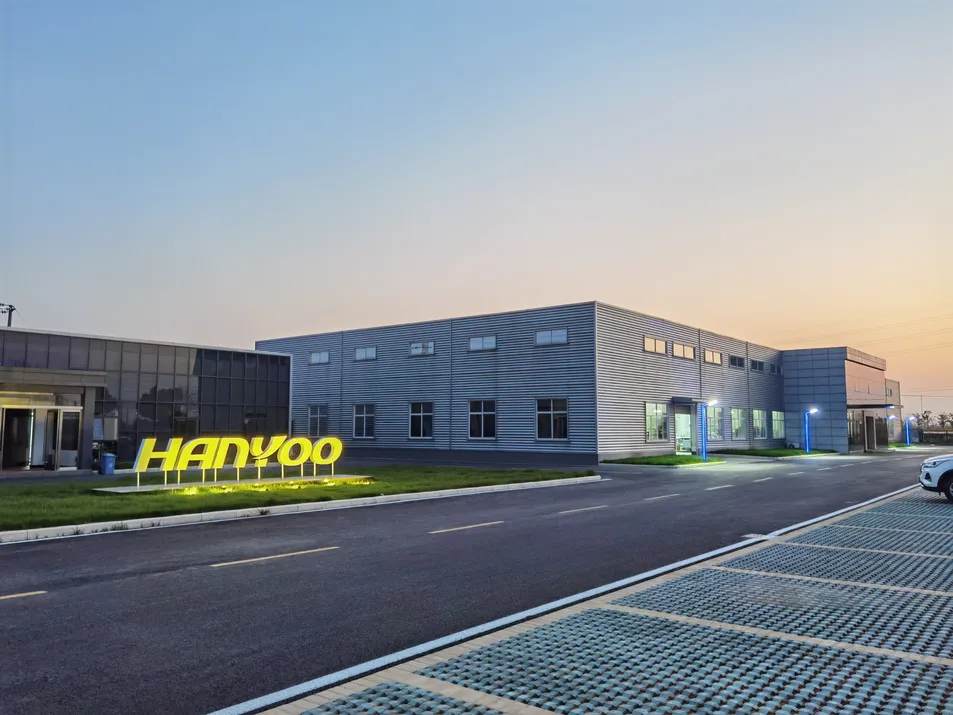

Product & Workshop Gallery

Professional Services

Pre-sale Service

Customization support for equipment
Free tablet/capsule drawing design based on your needs
Free trial and testing services
Professional solid preparation solutions
Free design of mechanical layout drawings

After-sale Service

Operation manuals and installation videos provided
Maintenance and setting guidance videos
Free video guidance from technicians with 10+ years experience
Overseas engineering services available
Warranty coverage for non-human damage

Packaging & Exhibition

Frequently Asked Questions

How can I verify if the machine is suitable for my specific product?

You can send us your samples for testing. We will record videos and take clear pictures of the machine processing your product, or we can arrange a live video chat to show you the performance in real-time.

What is the production capacity of the BJC-B model?

The machine has a maximum production capacity of 25,000 to 30,000 pieces per hour, depending on the capsule size and the nature of the filling material.

What capsule sizes can this machine handle?

It is compatible with a wide range of capsule sizes, including 000#, 00L, 00#, 0L#, 0#, 1#, 2#, 3#, 4#, and 5#.

What is the warranty period and what does it cover?

We offer a standard warranty (ranging from 1 to 3 years depending on terms). During this period, any non-human damage will result in a free replacement of parts. Technical support is available 24/7 for the entire lifespan of the machine.

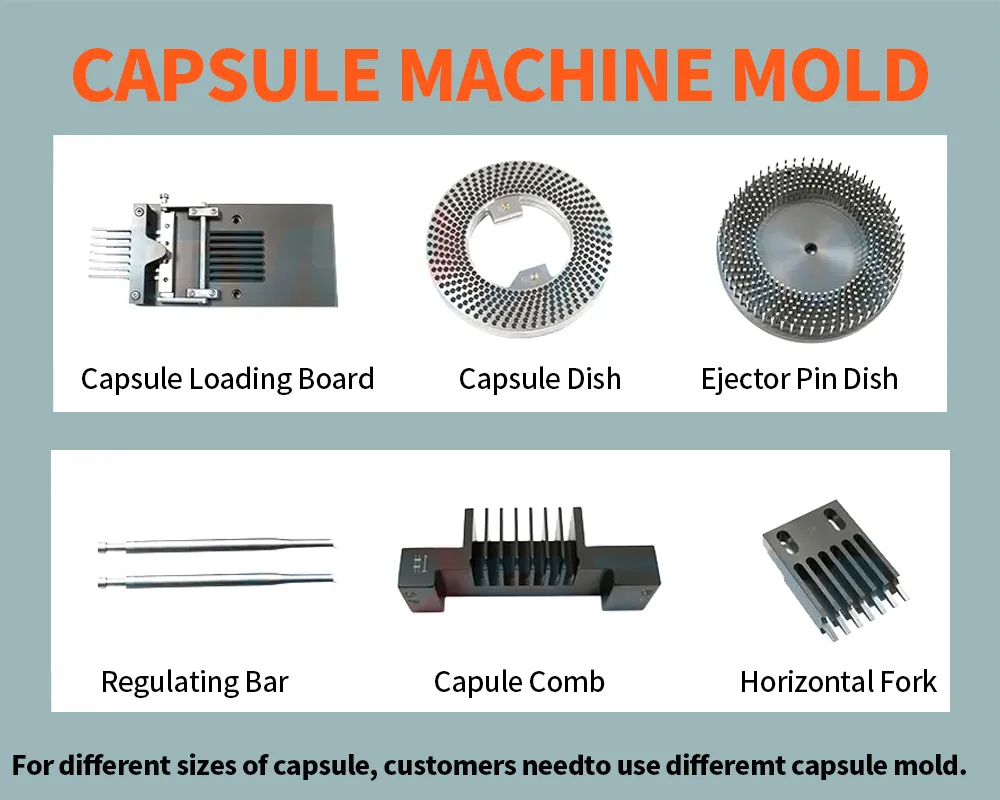

Is it difficult to change the molds for different capsule sizes?

No, the machine is designed for efficiency. Mold replacement and debugging typically take only 5 to 10 minutes, allowing for quick transitions between different production batches.

What materials can be filled using this equipment?

The BJC-B is versatile and suitable for filling capsules with pellets, granules, and powders without moisture.
