Certification
CE, GMP, ISO, SGS, RoHS
Applicable Capsule
Hard Capsule 000, 00, 0, 1, 2, 3, 4, 5#
Applicable Product
Power, Granule, Pellet, Tablet
Control Mode
Full Automatic
Machine Voltage
380/220V 50Hz

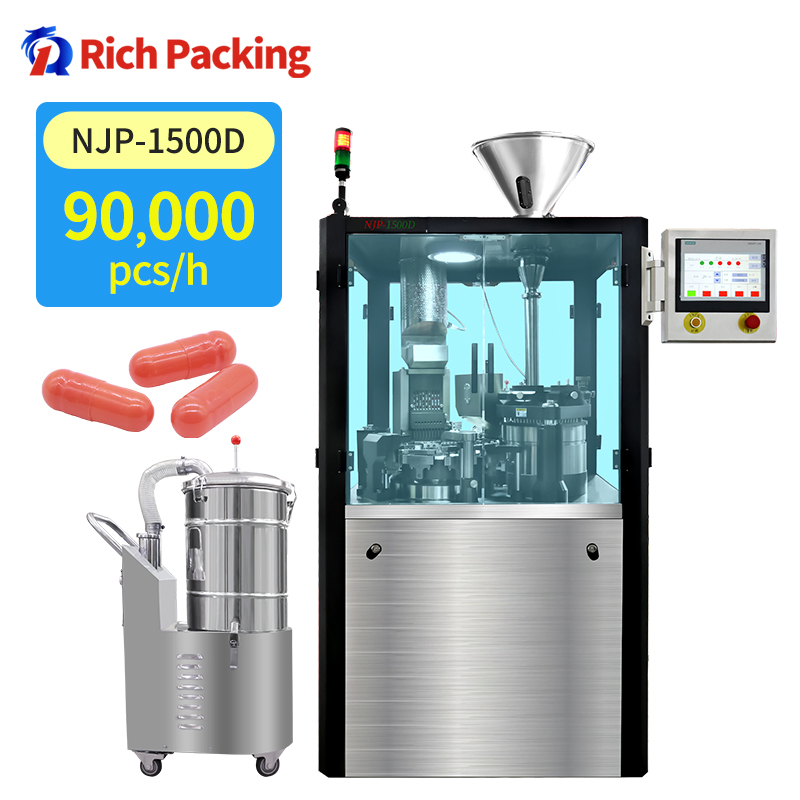

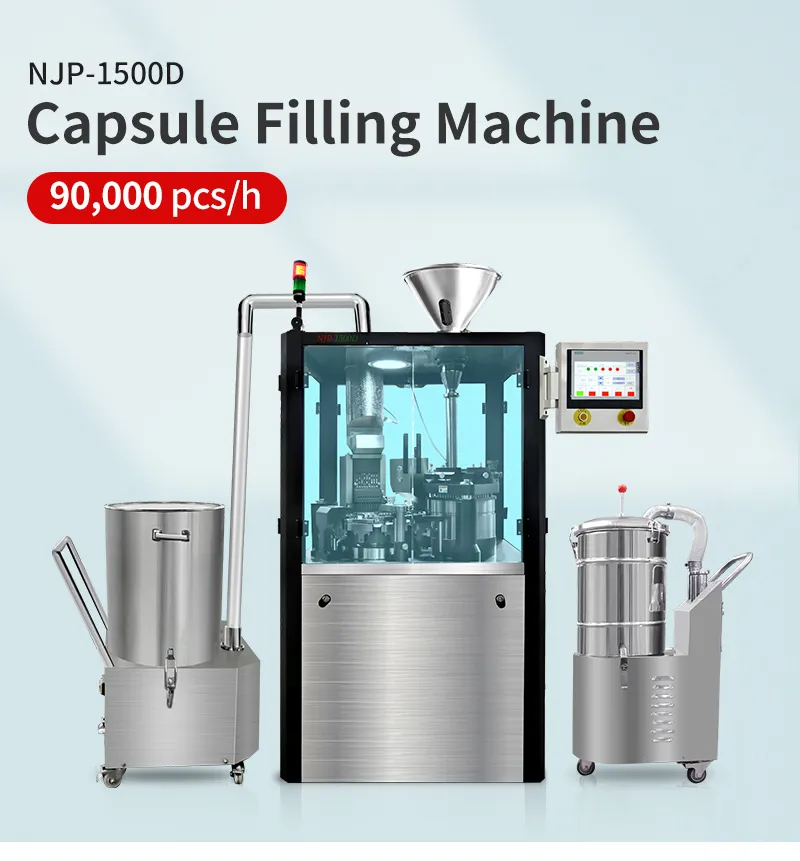

Industrial capsule filling machine is the latest D-type innovative product developed. This filling pellet capsule machine features 7 major technological innovations and 2 invention patents. It is designed to fill powder, granules, and other materials into hollow capsules ranging from size 000# to 5#.
The device can automatically complete the entire production process, including sowing, capsule separating, filling, locking, unqualified capsule rejection, and finished product output. It offers the advantages of accurate loading, stable operation, and dust-free performance, meeting GMP and JB20025-2004 requirements. It is an ideal solution for pharmaceutical and health care product manufacturing.
| Production capacity | 90000 pcs/h |
| Net weight of machine | 1200Kg |
| Overall size of machine | 900×870×1950mm |
| Power | 380/220V 50Hz |
| Total power | 5.5KW |
| Noise | < 75dBA |
Easy maintenance with a continuous lubrication system for the cam, ensuring no oil leaks and GMP compliance.

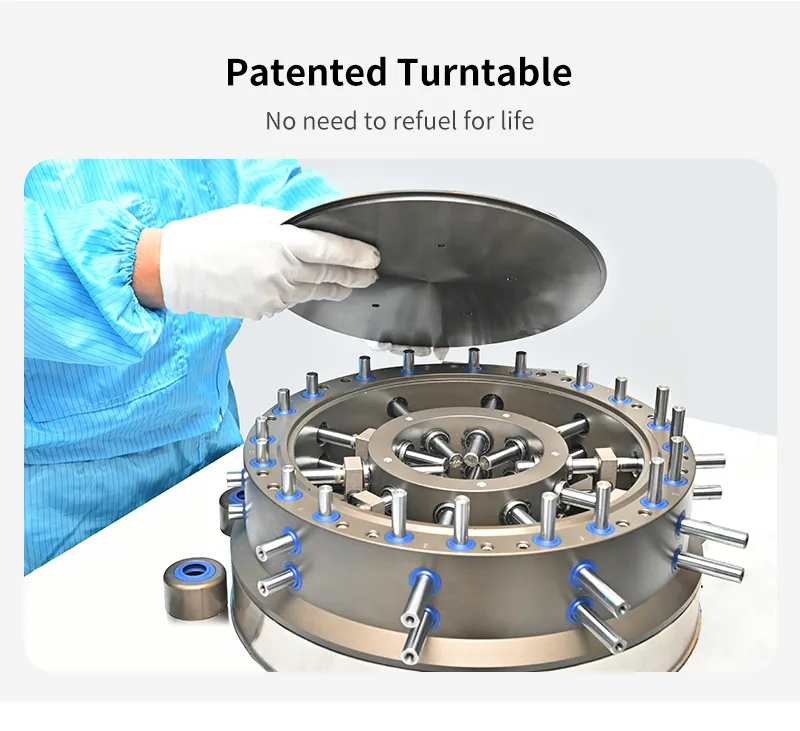

Patented rotary design with imported SIL silicone sealing rings to prevent dust contamination.
Adopts high-precision 100DS indexing box for superior stability and reduced failure rates compared to standard models.

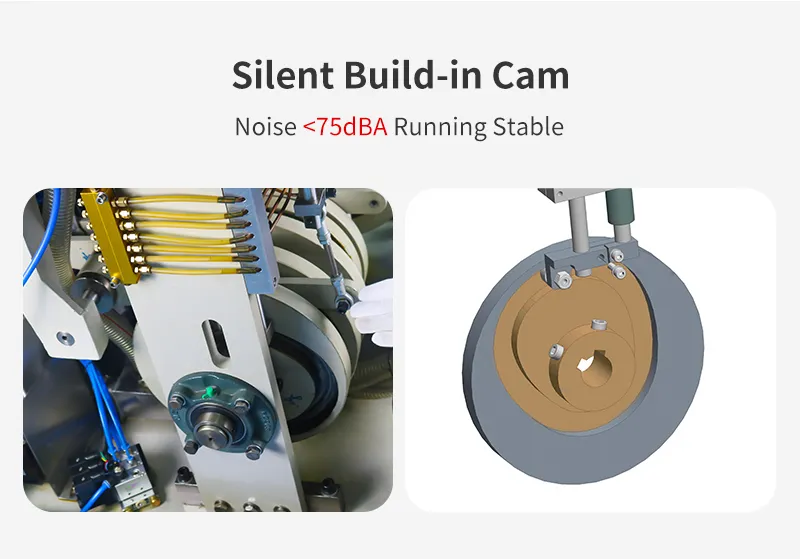

Inner groove cam formed by one-time CNC machining for seamless, noiseless high-speed operation.

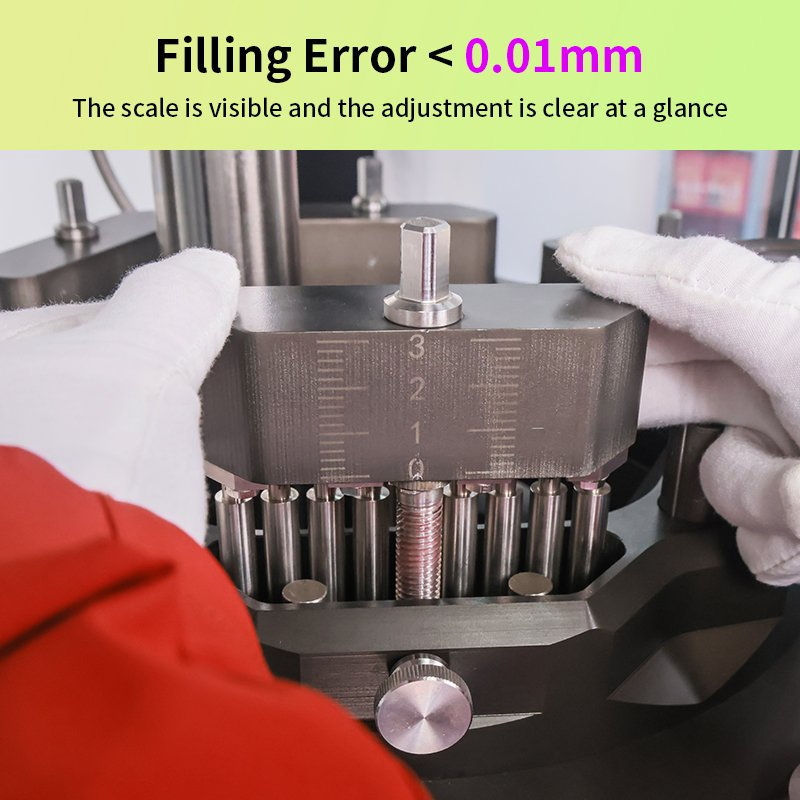

Advanced filling mechanism with 3D adjustment and a 100% powder recovery rate to reduce waste.
On-line air pressure die cleaning system to keep upper and lower dies free of dust.

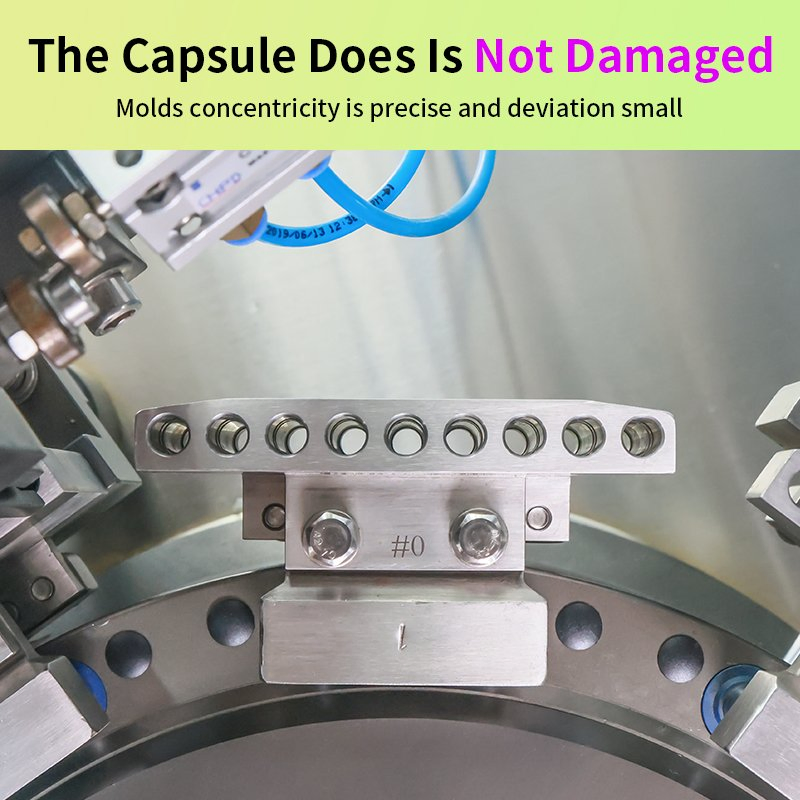

Precision mold concentricity with zero deviation to prevent capsule damage.
Non-polar electronic polishing treatment for filling rods and die holes to improve material fluidity and prevent sticking.
❓
Frequently Asked Questions
How can I visit your factory?
We warmly welcome you to visit our facility if you have a travel plan. We can assist with arrangements for your visit.
How can I know your machine is designed for my specific product?
You can send us samples and we will test them on our machines. We will provide high-definition videos and pictures, or show you the process via live video chat.
What is the warranty and after-sales service policy?
We offer a 3-year warranty from the date of arrival. One year of free replacement parts is included. Professional door-to-door installation and training services by experienced technicians are also available.

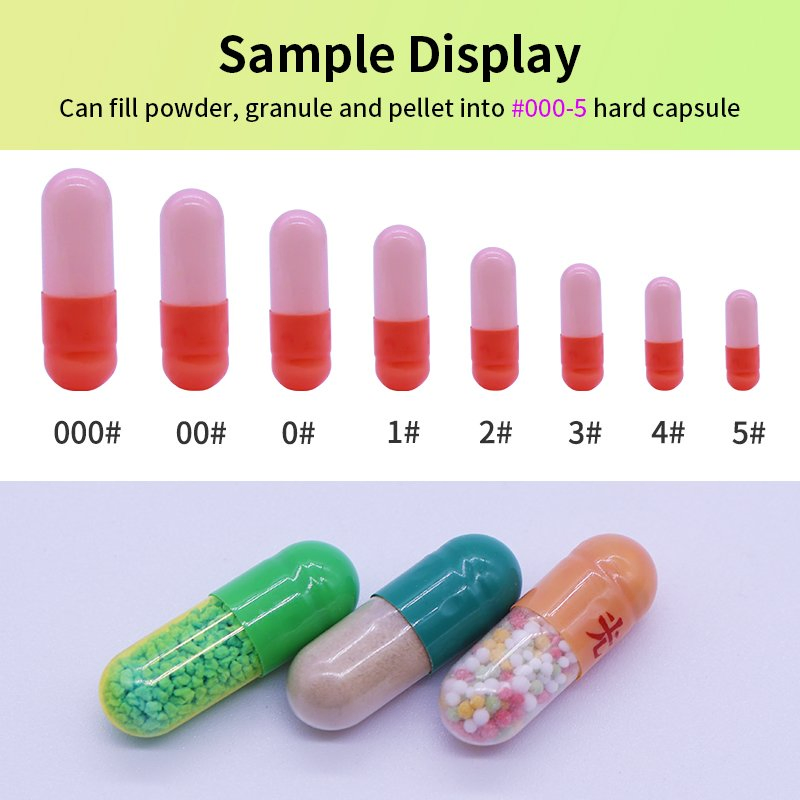

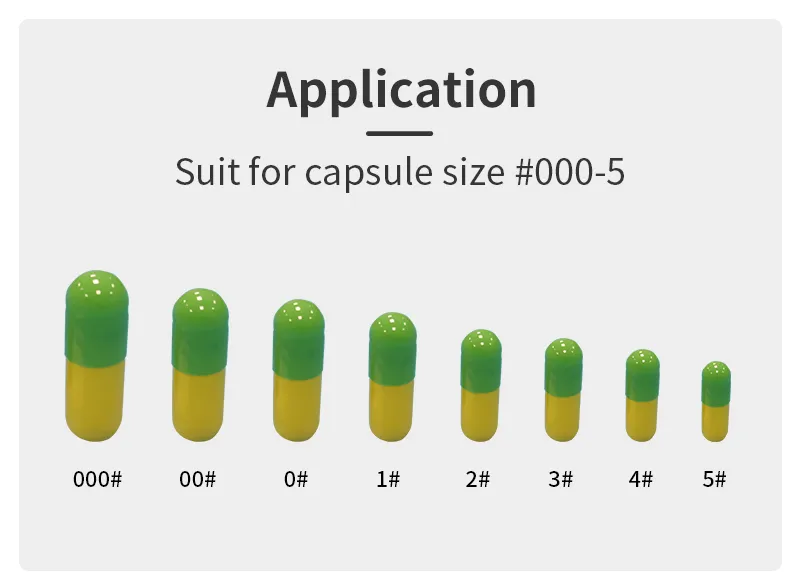

What types of capsules can this machine handle?
This machine is versatile and can handle hard capsules in sizes 000, 00, 0, 1, 2, 3, 4, and 5. It is compatible with both gelatin and vegetable capsules.
Is the machine compliant with international standards?
Yes, our equipment is fully compliant with CE, GMP, ISO, SGS, and RoHS certifications, ensuring it meets strict safety and quality standards for pharmaceutical production.

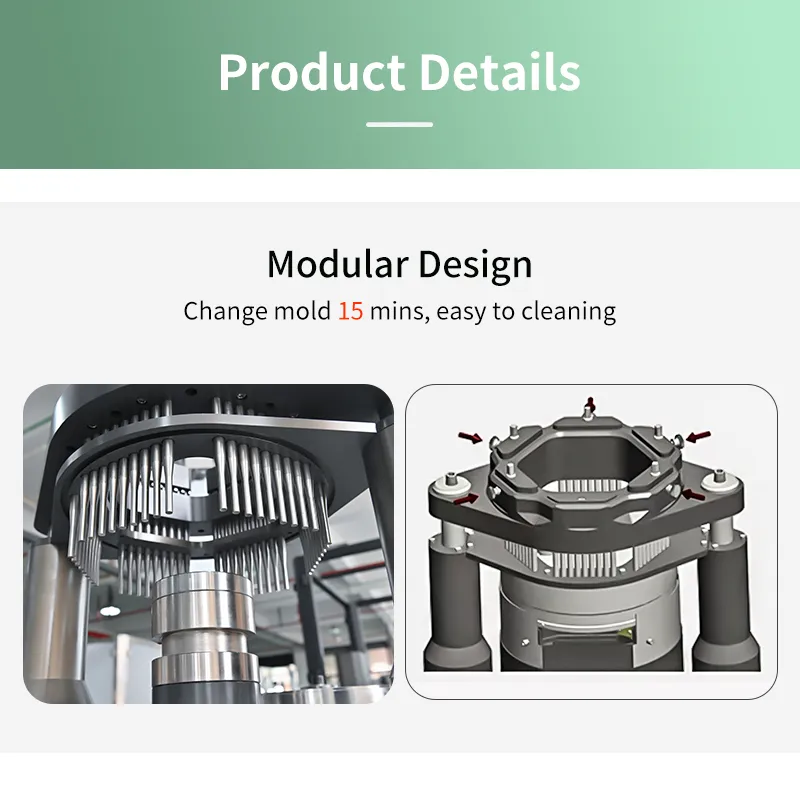

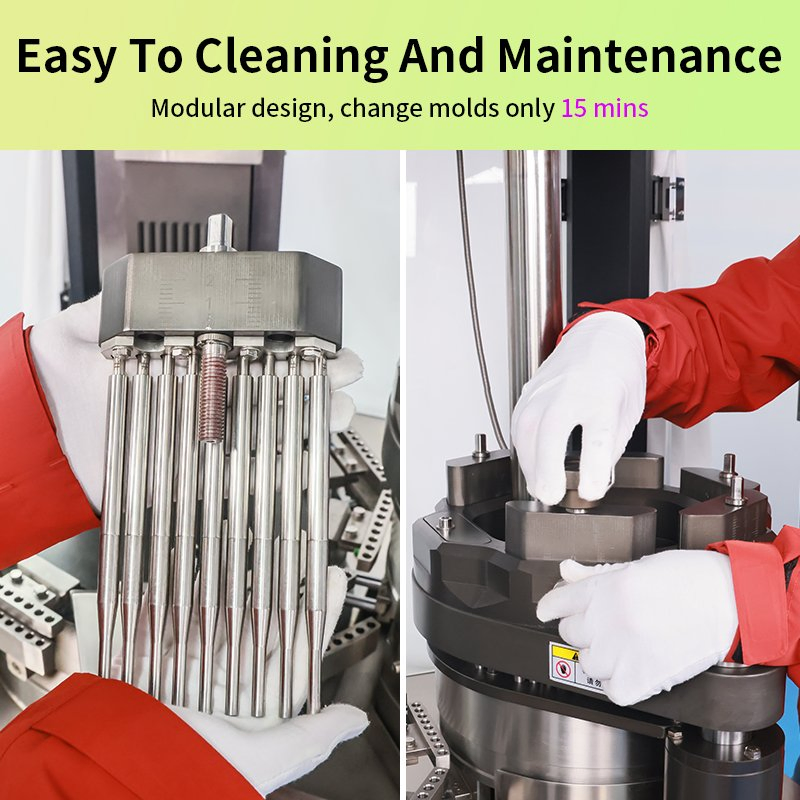

How long does it take to change the molds?
The modular structure of the machine allows for very efficient mold replacement. A complete change of molds typically takes only about 15 minutes.
