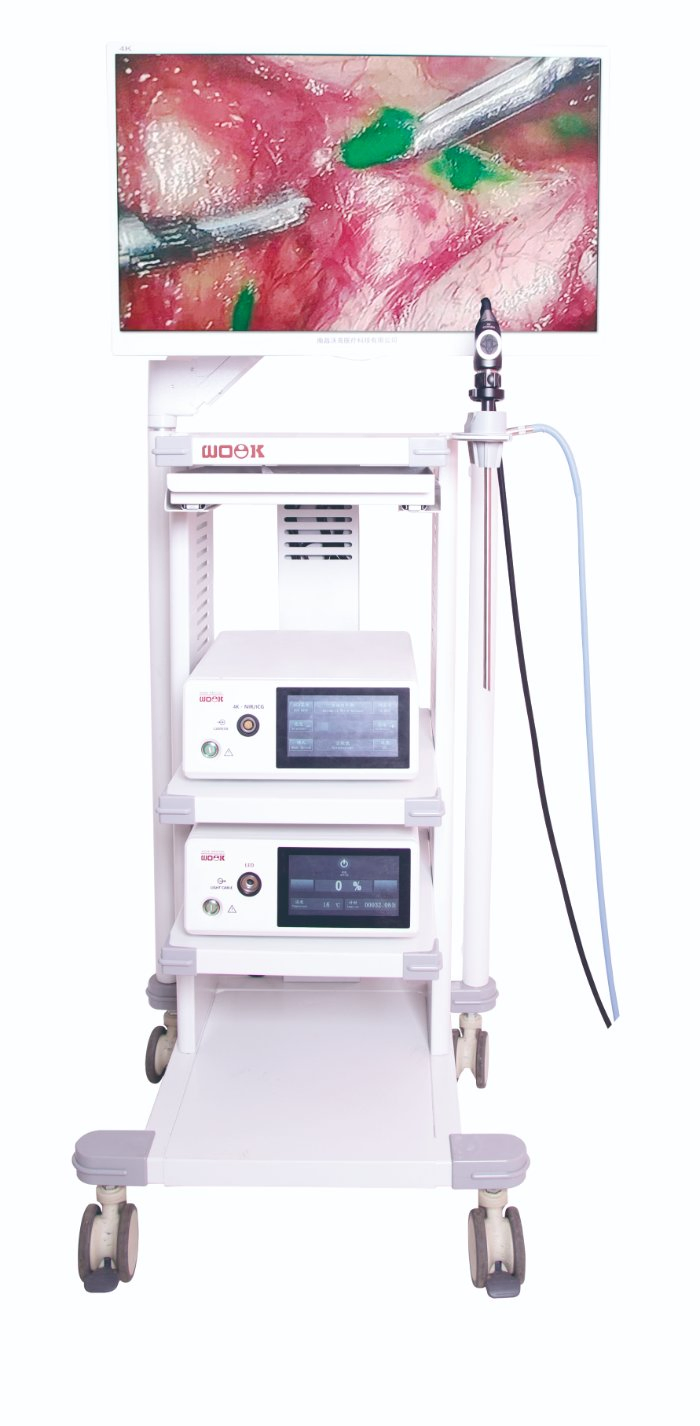

Favorable Price 4K Fluorescence Endoscopy Cart HD Video Camera Laparoscope System

Customization: Available
Type: Imaging Diagnostic Equipment
Application: Anorectal, Urology, Ureteral Stone,Ureter Calculi,Kidney,Renal

Product Description

📋

Basic Information

Model NO. 4K Fluorescence Camera System
Material Steel
Feature Reusable
Certification ISO13485
Group Adult
Model No. Wk-4K-Yg
Name 4K Fluorescence Camera System
Transport Package Carton
HS Code 9018903010
📸

Detailed Photos

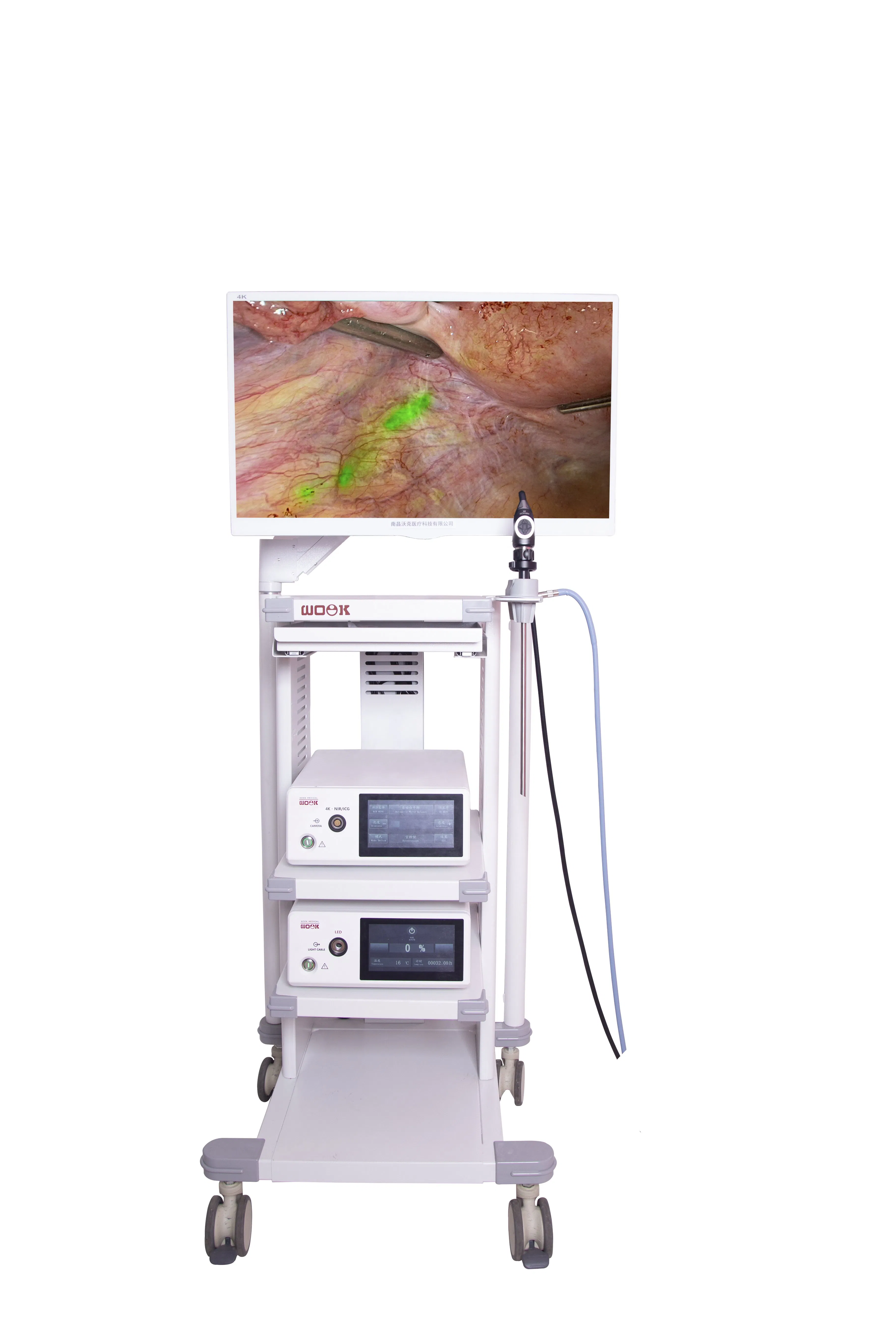

4K Fluorescence Endoscopy System
🔬

Product Description

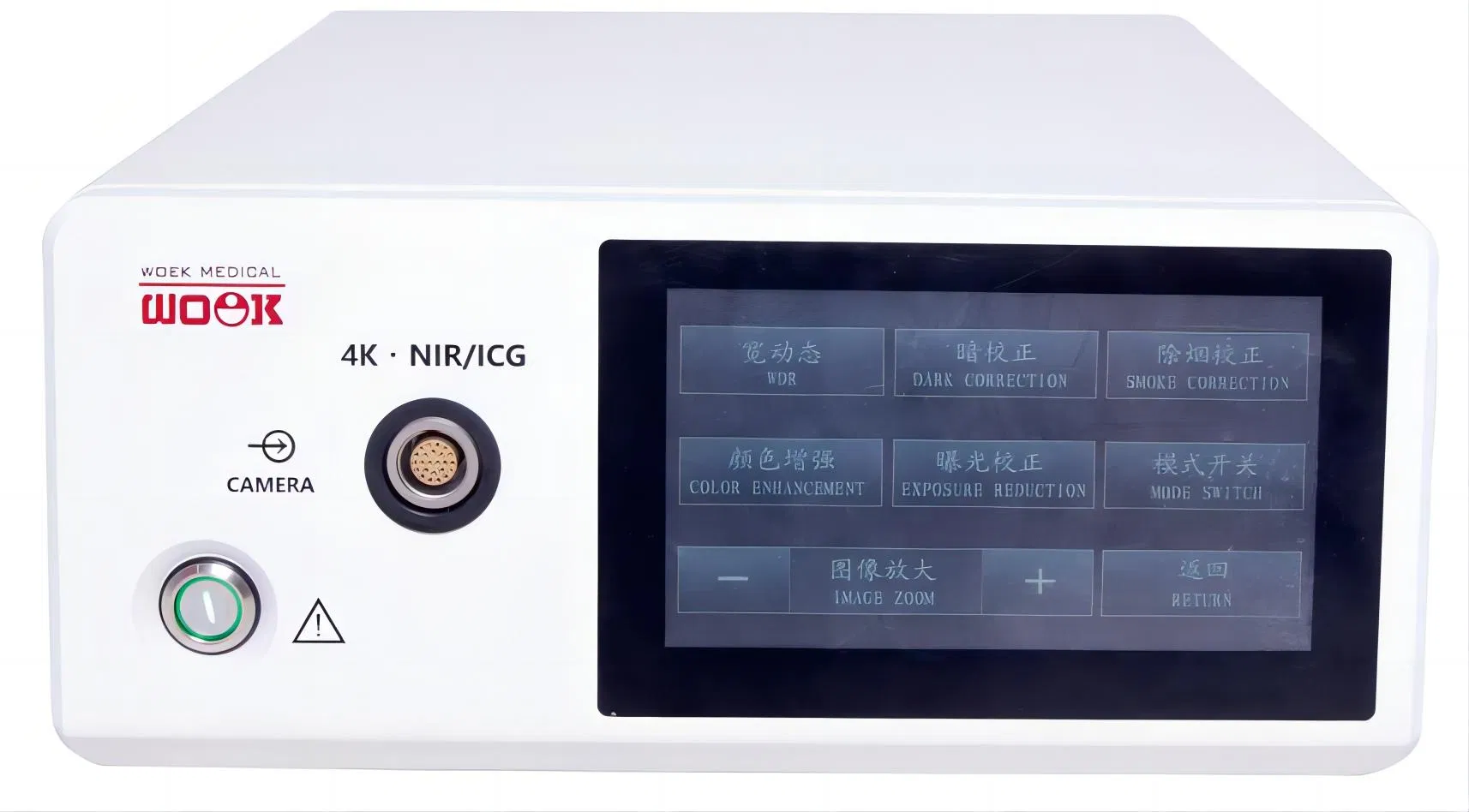

Camera System

4K Fluorescence Camera System

  • 1/3inch 4CMOS system with 3480*2160P resolution and 1600TV Line.
  • Highly sensitive camera with 400-900mm fluorescence-specific spectrum.
  • Built-in multiple surgical application modes for various endoscopes.
  • Optical zoom plus 1-1.25x digital zoom capability.
  • Advanced WDR processing, grid elimination, and blood vessel enhancement.
  • Multiple outputs: HDMI, 3G-SDI, 12G-SDI for UHD and FHD signals.
  • Three modes: Black & White fluorescence, standard fluorescence, and 4K white light.

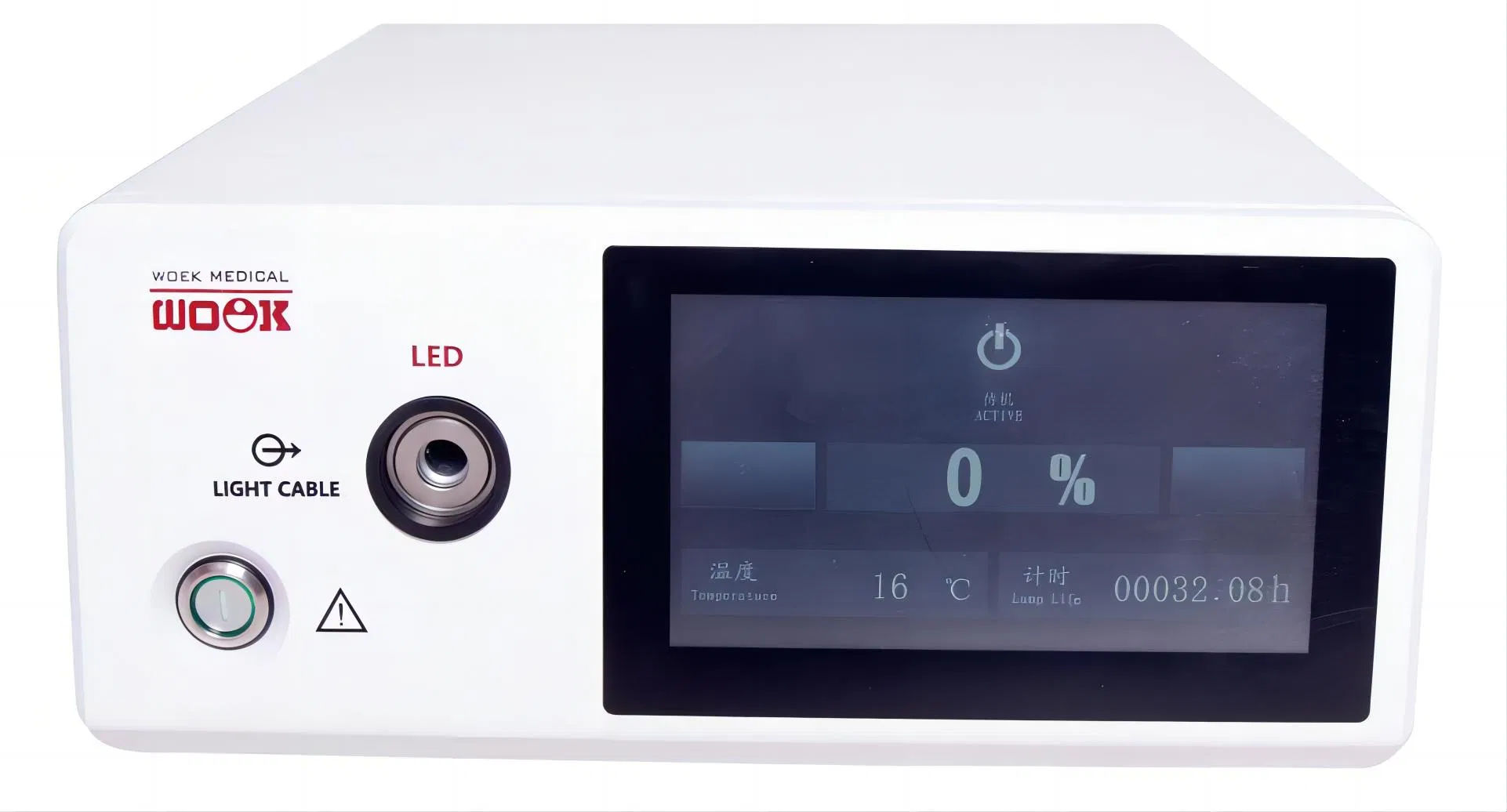

Medical Endoscope Cold Light Source

  • Power: <120W with low noise operating conditions (<55dB).
  • LED bulb lifespan exceeding 60,000 hours.
  • Color temperature ≥6500K, Color rendering index ≥90%.
  • Full touch screen LCD with automatic light shut-off safety feature.
  • Dual output: White LED and Fluorescent LED functions.
  • RS232 communication for camera synchronization.
Light Source

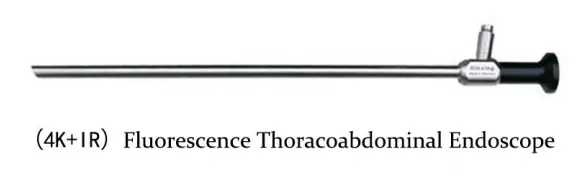

Laparoscope Characteristics

Laparoscope Features

  • Ultra-HD thoracoabdominal endoscope for visible and near-infrared light.
  • Special coating technology for 400nm-900nm spectral range.
  • Nitrogen-filled optical system to prevent internal fogging.
  • Superior contrast and realistic 4K color reproduction.
  • Compatible with plasma, soaking, and high-temperature disinfection.
📊

Product Parameters

ModelWK-4K-YG
Sensor type4K · 4CMOS
Sensor size1 / 3 inch
Signal OutputSDI 1x4, SDI 2x1, HDMI x2
Filter Plate Transmittance410nm-665nm, 851nm-900nm
Signal-to-Noise Ratio25dB
White BalanceOne-key Auto Balance
Minimal Illumination≤3lx
Working Modes4 Independent Memory Modes
Output Pixels3840x2160; 1920x1080
Fluorescence ColorAvailable in 6 colors
📜

Certifications

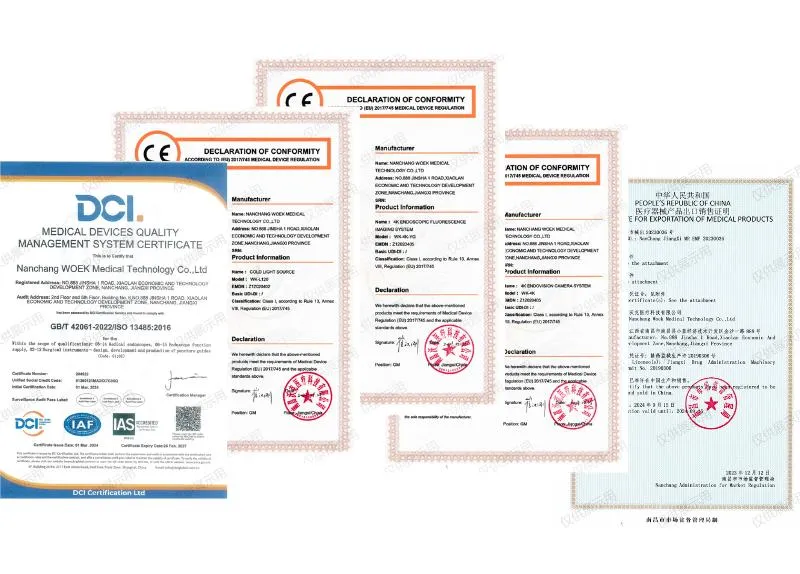

Product Certifications
📦

Packaging & Shipping

Packaging 1 Packaging 2
🏢

Exhibitions

Exhibition 1 Exhibition 2 Exhibition 3
💬

Customer Feedback

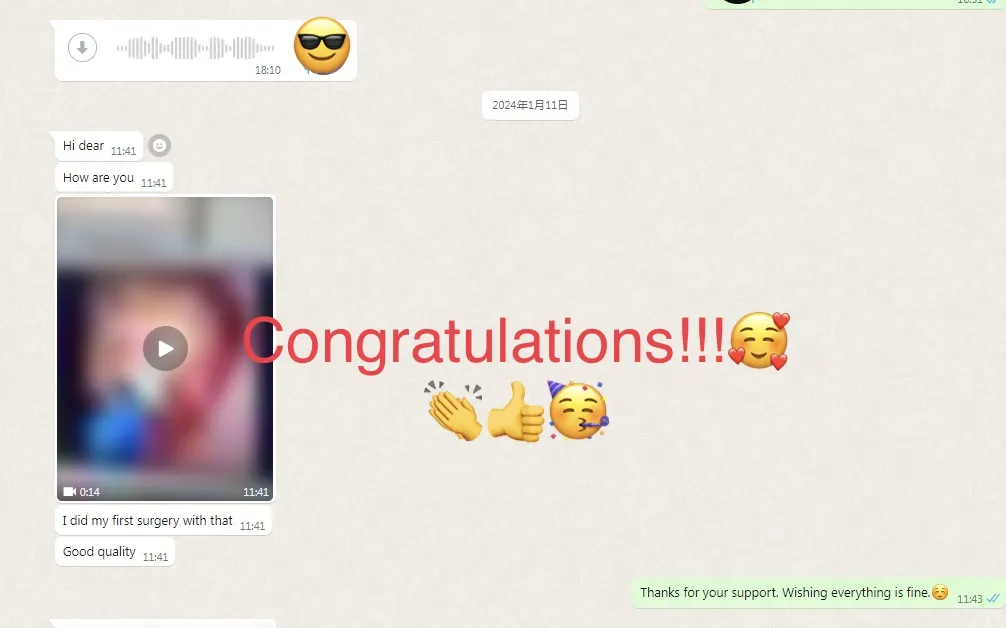

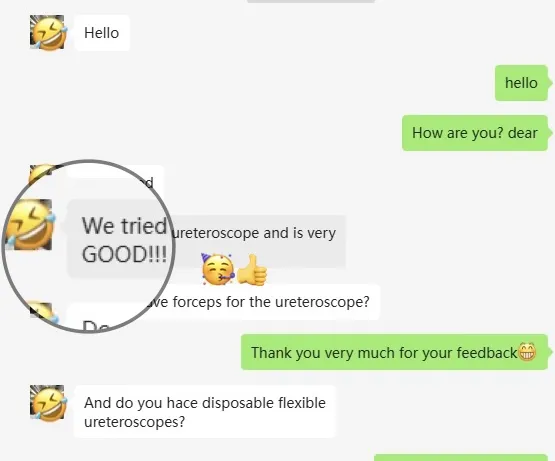

Feedback 1 Feedback 2

Frequently Asked Questions

Are you a factory or a trading company?
We are a specialized manufacturer that independently develops and produces optical imaging systems. All products are manufactured by our dedicated workforce.
What is the payment term for orders?
We accept various payment methods including T/T, D/P, PayPal, Western Union, L/C, Money Gram, and Cash.
What is the estimated delivery time?
Standard shipping typically occurs within 12 to 18 days following the receipt of payment.
Does the system support multiple fluorescence modes?
Yes, the system features one-click switching between Black and White fluorescence, standard fluorescence, and 4K white light modes.
Can the laparoscope be sterilized at high temperatures?
Yes, the HD 4K laparoscope is designed to withstand both conventional disinfection (soaking, plasma) and high-temperature/high-pressure disinfection.
What is the lifespan of the LED light source?
The high-performance LED bulb is designed for longevity, with a service life exceeding 60,000 hours.
