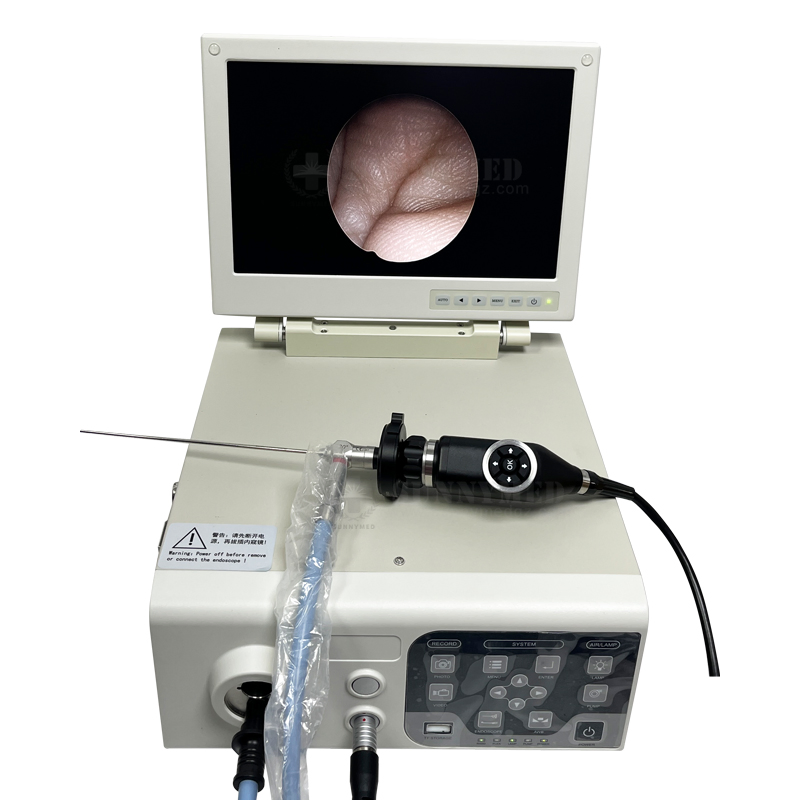

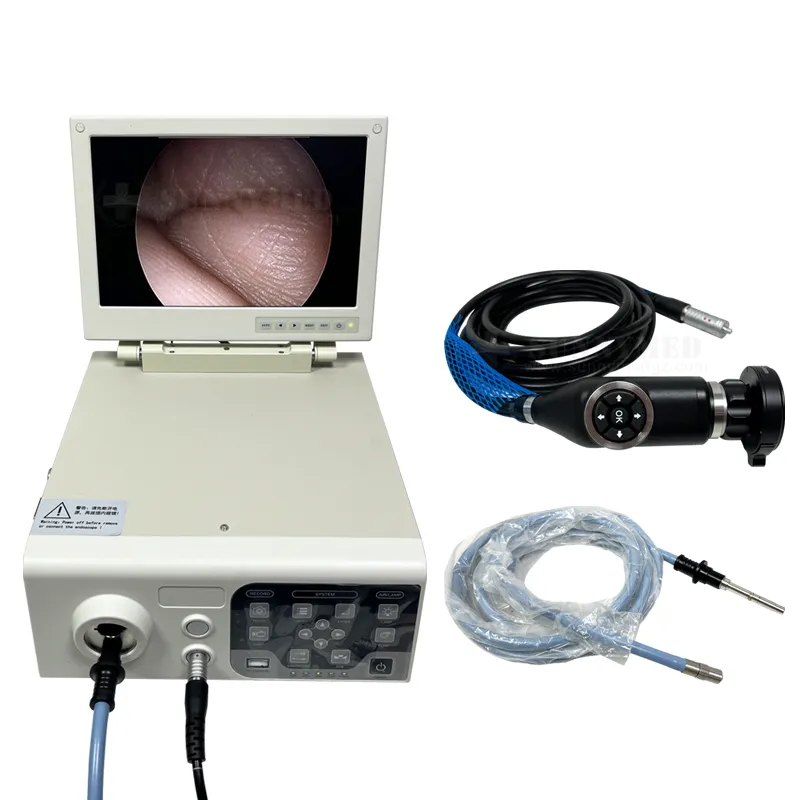

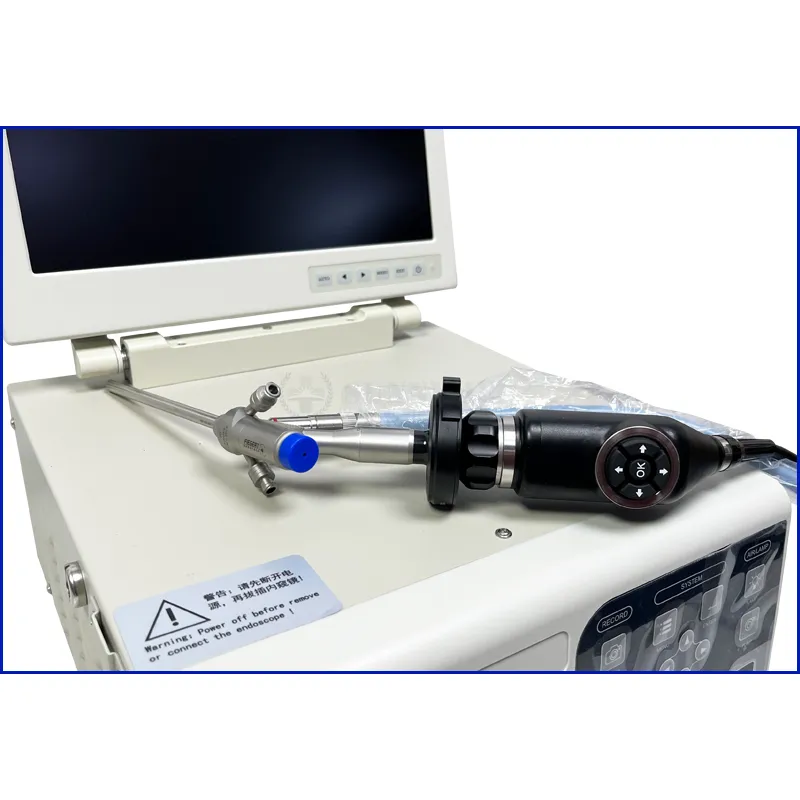

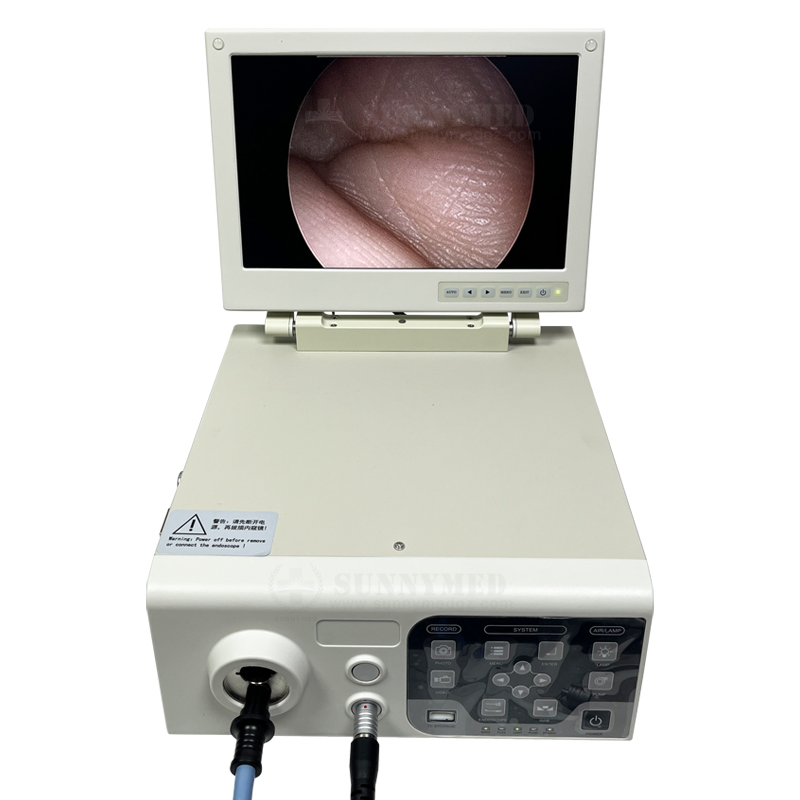

SY-P033-2 Both rigid and flexible endoscopy camera system for human and animals
📋 Basic Information
Model NO.SY-P033-2
ApplicationAnimal Hospital / Clinical Use
Image Definition1080P
Field of View120°
Insertion Tube Diameter6.3mm / 8.3mm / 12.9mm
Production Capacity200 Set/Month
⚙️ Technical Specifications
| Video Gastroscope |
VET-1508 (Standard) |
VET-1206 (Optional) |
VET-3313 (Optional) |
| Insertion tube diameter |
Φ8.3mm |
Φ6.3mm |
Φ12.9mm |
| Working channel |
Φ2.8mm |
Φ2.0mm |
Φ3.7mm |
| Working length |
1500mm |
1200mm |
3300mm |
| Tip Deflection |
U210° D90° L100° R100° |
U180° D180° L160° R160° |
| Field of view / Depth |
120° / 3-100mm |
| Image definition |
1080P |

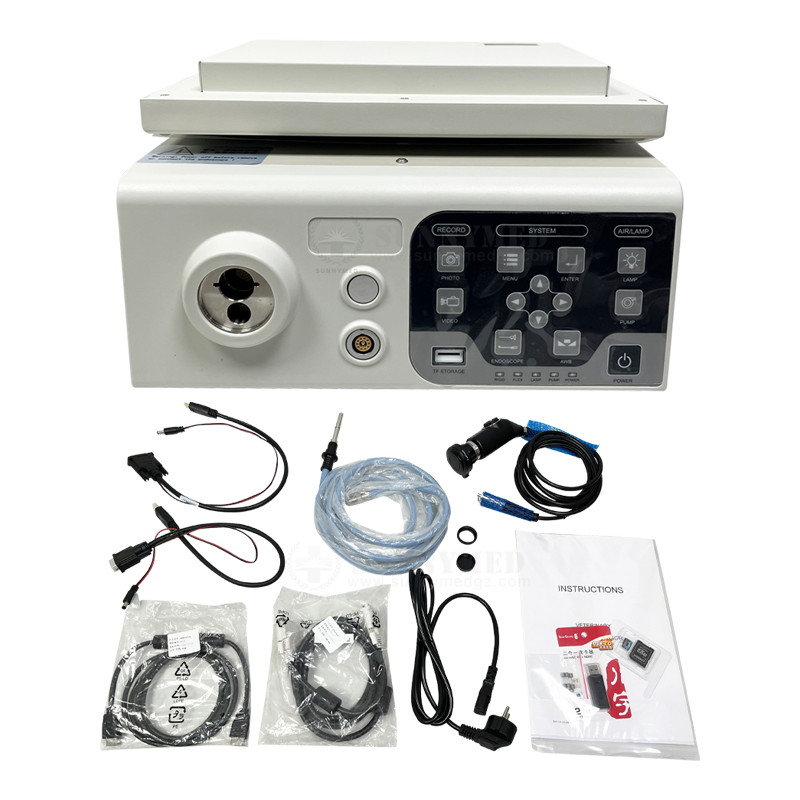

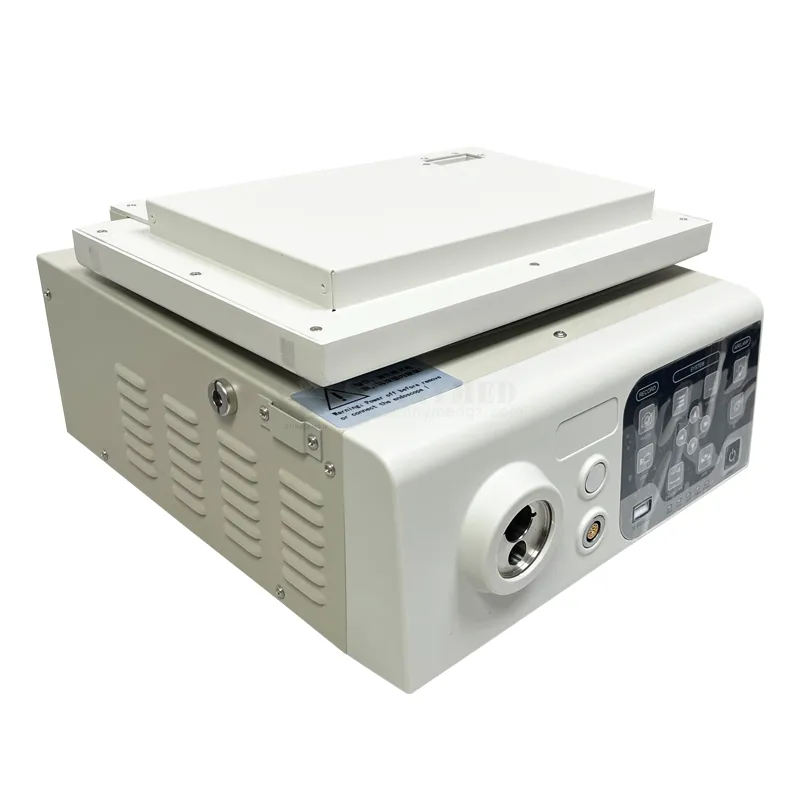

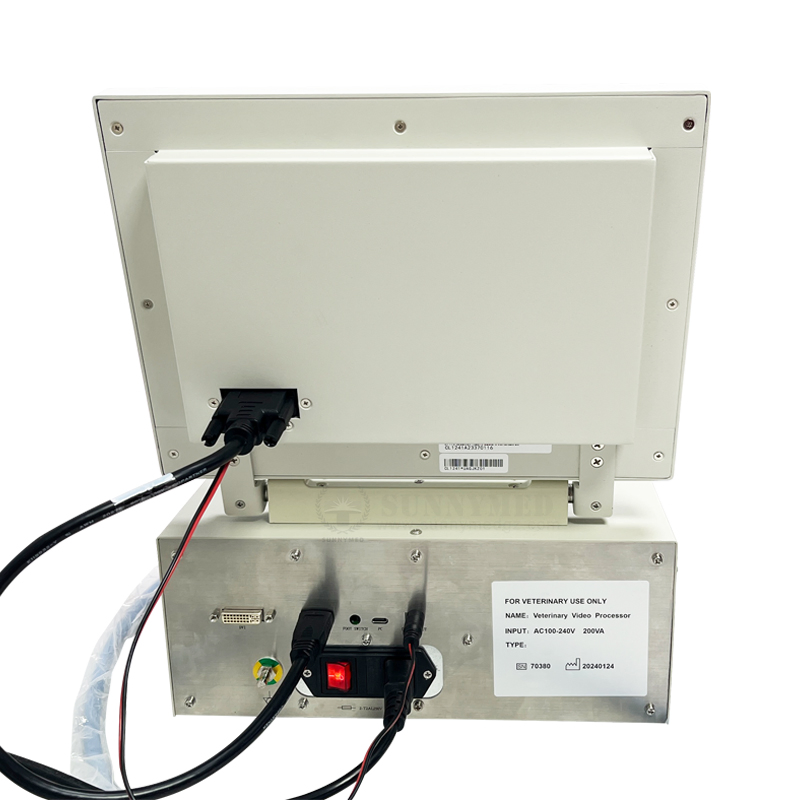

| Endoscope Processor VET-300F |
| White balance |
Automatic |
| RGB adjustment |
-50 to +50 |
| Cold light source |
LED 40W (>800Lm) |
| Air/Flow |
0.05MPa, 0.75m³/h |
| Snap/Record |
1080P / 30Fps |
| Voltage |
~100V-240V, 50HZ/60HZ |
❓ Frequently Asked Questions
What is the main application of the SY-P033-2 system?
It is primarily designed for animal hospitals and veterinary clinics, suitable for both human and animal endoscopic procedures including gastroscopy.
What imaging resolution does this endoscopy system provide?
The system features a high-definition 1080P resolution with a 30Fps recording rate for clear and smooth medical imaging.
What are the available insertion tube diameters?
The system offers three options for insertion tube diameters: 6.3mm, 8.3mm, and 12.9mm to suit various clinical needs.
Does the system include its own light source?
Yes, the VET-300F processor comes with a built-in 40W LED cold light source providing luminance greater than 800Lm.
How far can the tip of the gastroscope deflect?
The standard VET-1508 model provides wide tip deflection: Up 210°, Down 90°, and Left/Right 100° for comprehensive viewing.
Is it possible to record videos and take photos during procedures?
Yes, the system supports built-in snapshot and recording functions at 1080P quality for diagnostic documentation.
