Portable Veterinary Video Endoscope System
Portable Veterinary Video Endoscope System
Portable Veterinary Video Endoscope System
Portable Veterinary Video Endoscope System
Portable Veterinary Video Endoscope System
1 / 5
Portable Veterinary Video Endoscope System
Portable Veterinary Video Endoscope System
Portable Veterinary Video Endoscope System
Portable Veterinary Video Endoscope System
Portable Veterinary Video Endoscope System

Portable Veterinary Video Endoscope System

Customization: Available
Type: Veterinary Endoscope
Syringe: **
Send Inquiry

Product Description

🔹 Basic Information
Model NO.
MiniScope 2V
Distal-End Diameter
2.8mm
Working Length
610mm
Channel Diameter
1.2mm
View Angel
120°
Origin
China
HS Code
9018903010
Veterinary Endoscope
Veterinary Endoscope System
📝 Product Description

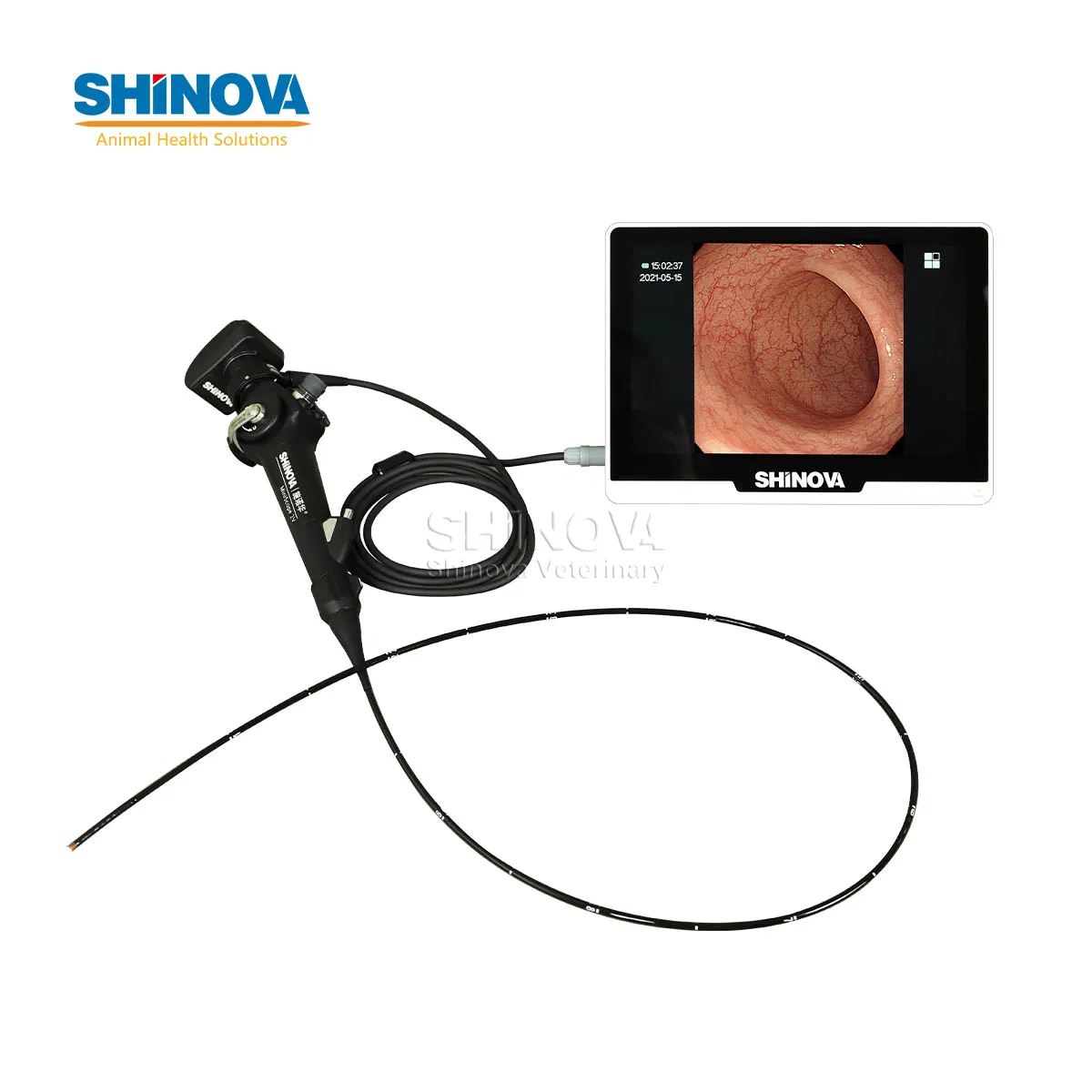

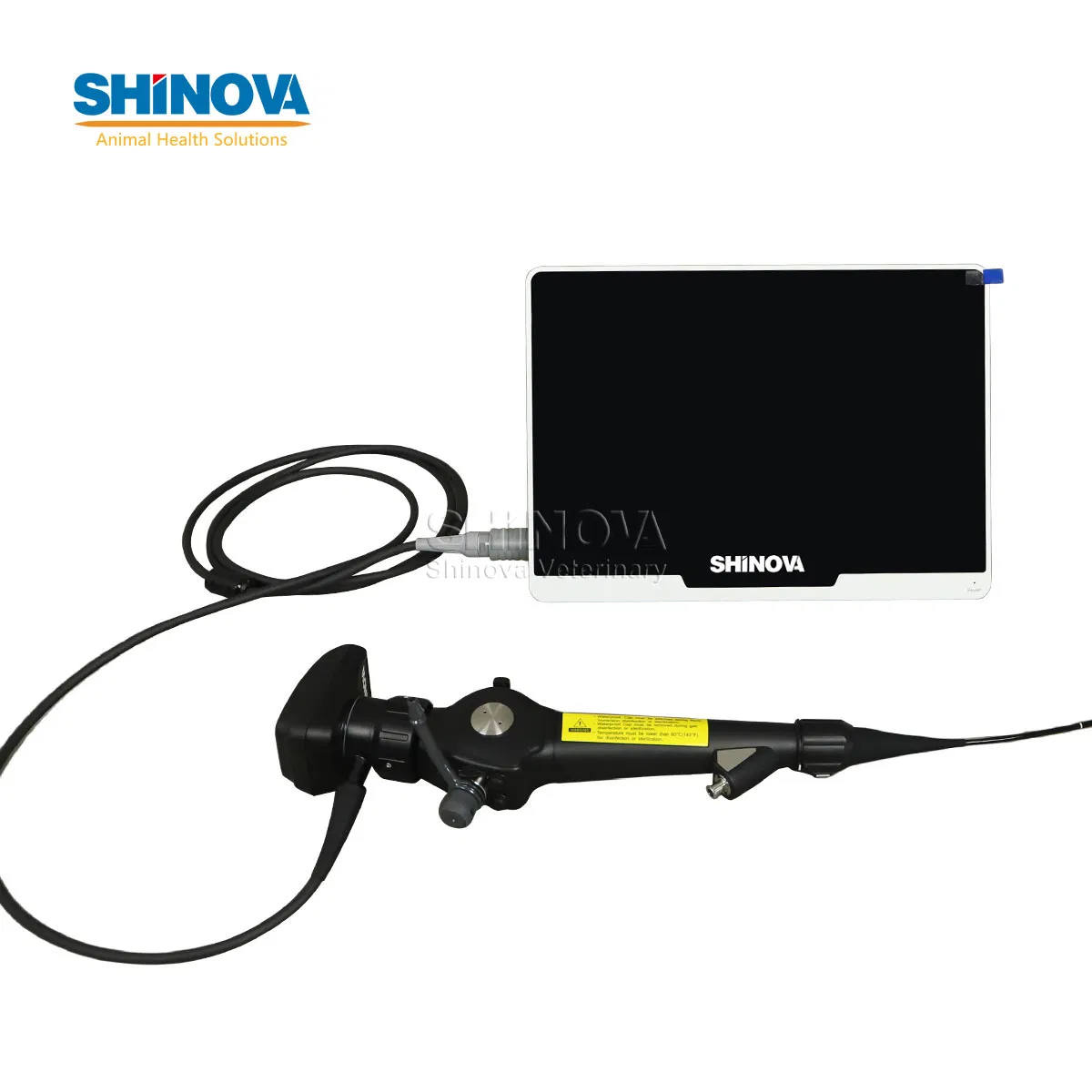

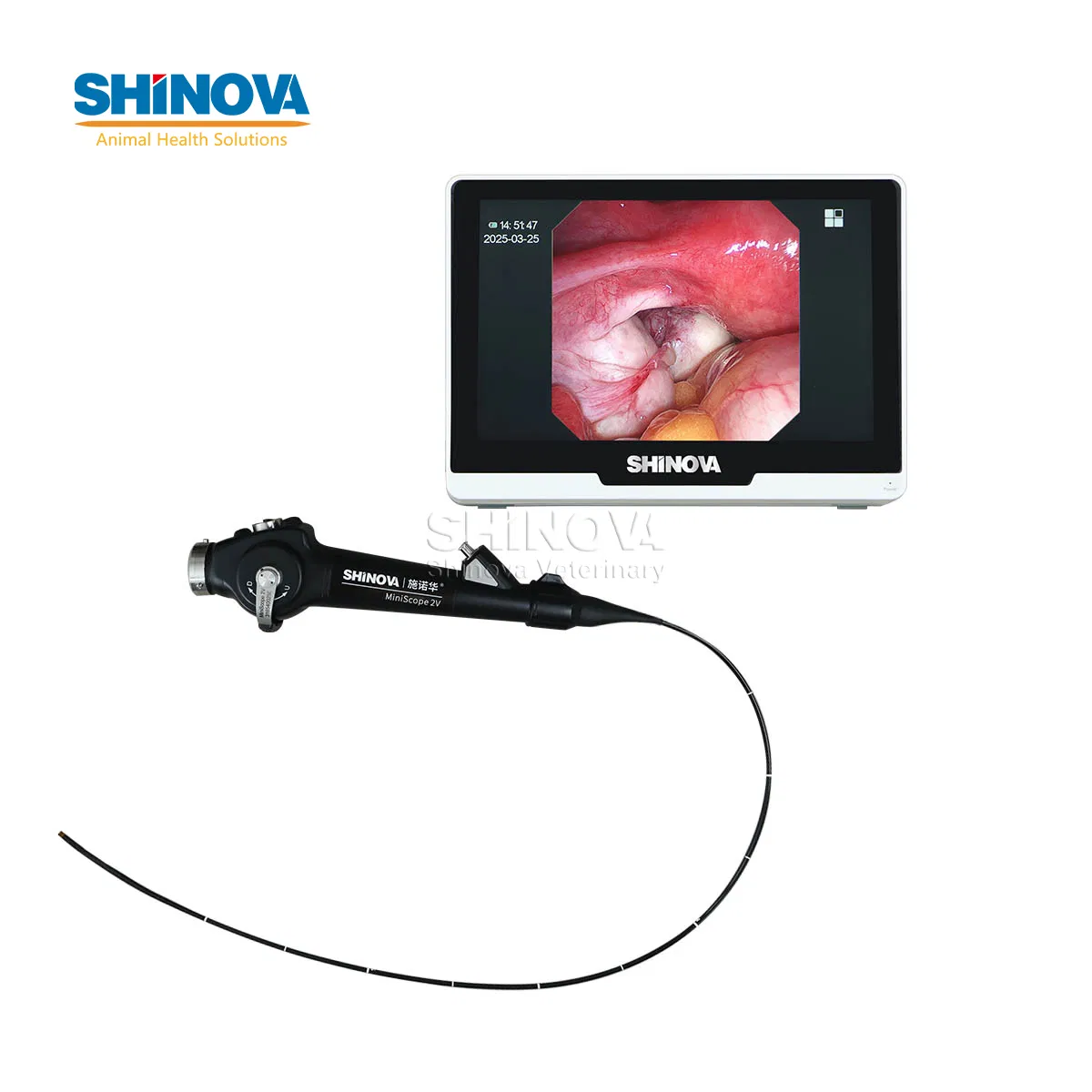

2.8mm Veterinary Endoscope Bronchoscope (MiniScope 2V)

🖥️

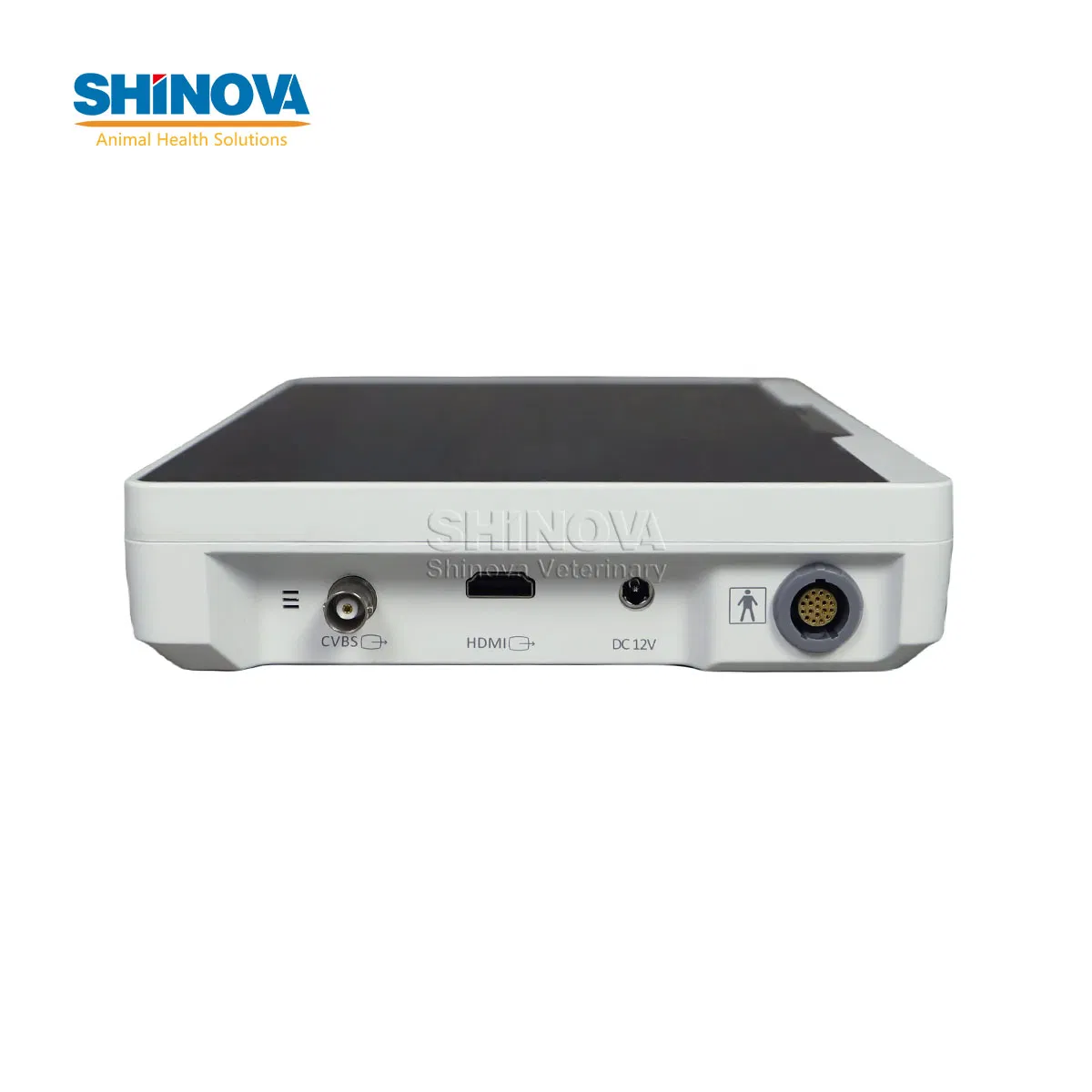

HD Display: 10-inch high-definition image processor with multi-function display, recording, storage, and integrated light source.
🔍
High Resolution: Advanced CMOS sensor provides clear images, real-time display, and zero transfer delay.
💡
Durable Lighting: Built-in long-lasting LED light source for consistent illumination.
🖱️
One-Hand Operation: Multi-function handle buttons for photo, video, freeze, and zoom, designed for convenient veterinary use.
🔄
Flexible Observation: Four-direction observation via up/down bending and left/right rotation.
🔌
Rotatable Adapter: Video adapter cable rotates 180° to prevent blocking during surgical procedures.

Key Functions:

  • Camera, Display, and Illumination integration
  • Image Recording, Storage, Replay, and Snapshot capabilities
  • Simultaneous second transmission and network video transmission
  • Network telecast live and live browsing on network terminals
📊 Technical Parameters
Distal-end diameter2.8mm
Working length610mm
Channel diameter1.2mm
View angel120°
View depth3-200mm
Bending rangeUp 210°, Down 130°
Rotation rangeLeft 120°, Right 120°
🏢 Professional Veterinary Solutions

We are a professional veterinary equipment manufacturer and solutions provider primarily serving animal hospitals and clinics. With leading research, design, and service capabilities, we are devoted to providing advanced veterinary techniques to solve diagnostic and treatment difficulties in animal care.

Our Services include:

  • Veterinary Equipment: Diagnostic equipment, anesthesia surgical tools, and fast-test reagent kits.
  • Hospital Solutions: Design, planning, and decoration solutions for new departments.
  • Software Services: Hospital Management Systems (SaaS), Laboratory Information Systems (LIS), and Cloud Services.
Feature 1
Feature 2
Feature 3
Feature 4
Feature 5
Feature 6
Feature 7
Feature 8
Feature 9
Frequently Asked Questions (FAQ)
1. What are the primary veterinary applications for the MiniScope 2V?
It is widely used for bronchoscopy, rhinoscopy, lung depth detection, as well as urethral and bladder examinations or treatments in animals.
2. Does the system support video recording?
Yes, the 10-inch HD processor features multi-functional capabilities including real-time display, recording, storage, and image snapshot.
3. What is the bending capability of the endoscope tip?
The scope offers four-direction observation with a bending range of 210° up and 130° down, along with 120° rotation to both left and right.
4. What is the diameter of the working channel?
The endoscope has a 1.2mm channel diameter, suitable for various small veterinary surgical instruments.
5. Is there any delay in the image transmission?
No, the high-resolution CMOS sensor ensures clear image performance and real-time display with no transfer delay.
6. How is the lighting provided in the scope?
The system utilizes a durable, integrated LED light source to ensure clear visibility during all medical procedures.
