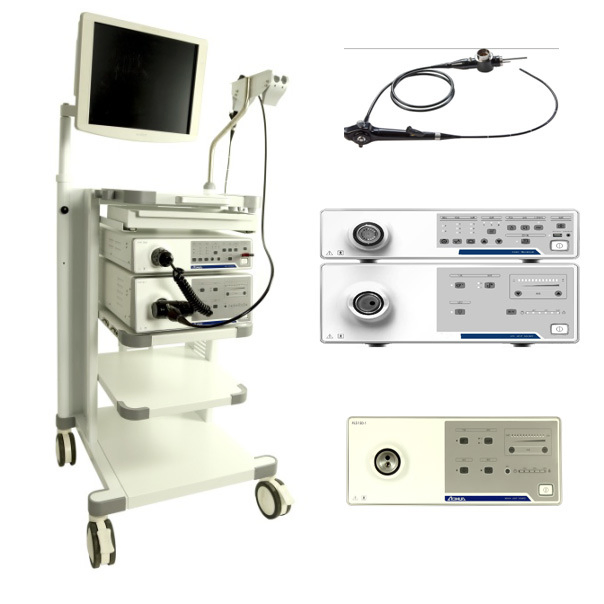

CB-It30 Video Bronchoscopy Equipment/ Bronchoscope System

1 / 4

CB-It30 Video Bronchoscopy Equipment/ Bronchoscope System

Customization:	Available
Customized:	Customized
Certification:	CE, ISO13485

Send Inquiry

Product Description

Basic Information

Model NO.

CB-IT30

Name

Bronchoscopy Equipment

Scale

Large

View of Field

100 Degree

Depth of View

3-50mm

Range of Tip Bending

Up 160, Down 130

Bulb

LED Lamp

Color Temperature

≥ 5200K

Illumination

≥ 70000lux

Video Outputs

RGB, S-Video, Composite, DVI

Origin

China

Production Capacity

50/Month

Product Description

Electronic Bronchoscopy Specifications

Feature	Technical Indicators
View of field	100°
Depth of view	3-50mm
Range of tip bending	Up 160° , Down 130°
Diameter of distal-end	5.8mm
Diameter of insertion tube	5.7mm
Diameter of instrumental channel	2.0mm
Working length	530mm / 820mm

Power Requirements

1. Power Voltage: 220V ± 10%
2. Power frequency: 50HZ ± 1%
3. Total power consumption: ≤ 230W

Medical Endoscopic Image Processor

1. Video signal outputs: RGB, S_Video, Composite, DVI
2. Color tone adjustment: "R", "B" adjustment ±50 steps
3. Brightness adjustment: "Y" adjustment ±50 steps
4. Freeze: Endoscopic images can be frozen
5. Image enhancement: E-stressed mucosal morphology or profile to increase sharpness
6. White balance adjustment: One-touch adjustment
7. Power Supply: 110/220V~240V, 50Hz~60Hz

LED Lamp Light Source

1. Bulb Type: LED Lamp
2. Color temperature: ≥ 5200K
3. Average life of bulb: Approx. 10,000 hours
4. Illumination: ≥ 70000lux
5. Air pump: Barometric adjustment L, H
6. Voltage: 220V, 50Hz

Frequently Asked Questions

Q1: What is your Minimum Order Quantity (MOQ)? Our Minimum Order Quantity (MOQ) is generally 1 unit. Certain small accessories may vary; please contact us for specific item details.

Q2: Which payment methods do you accept? We accept various payment methods including bank transfer, T/T, direct transfer, and Western Union.

Q3: What is the estimated shipping and delivery time? Once the order and payment are confirmed, we typically ship the products within 5 working days.

Q4: What product certifications do you hold? Most of our products are CE, ISO, and RoHS certified. Some medical equipment also carries FDA approval.

Q5: How long is the standard warranty period? We typically offer a 12-month warranty for all products, with some specific accessories having shorter coverage periods.

Q6: Do you provide after-sales and technical support? Yes, we provide comprehensive technical, customer service, and troubleshooting support for our medical equipment.
