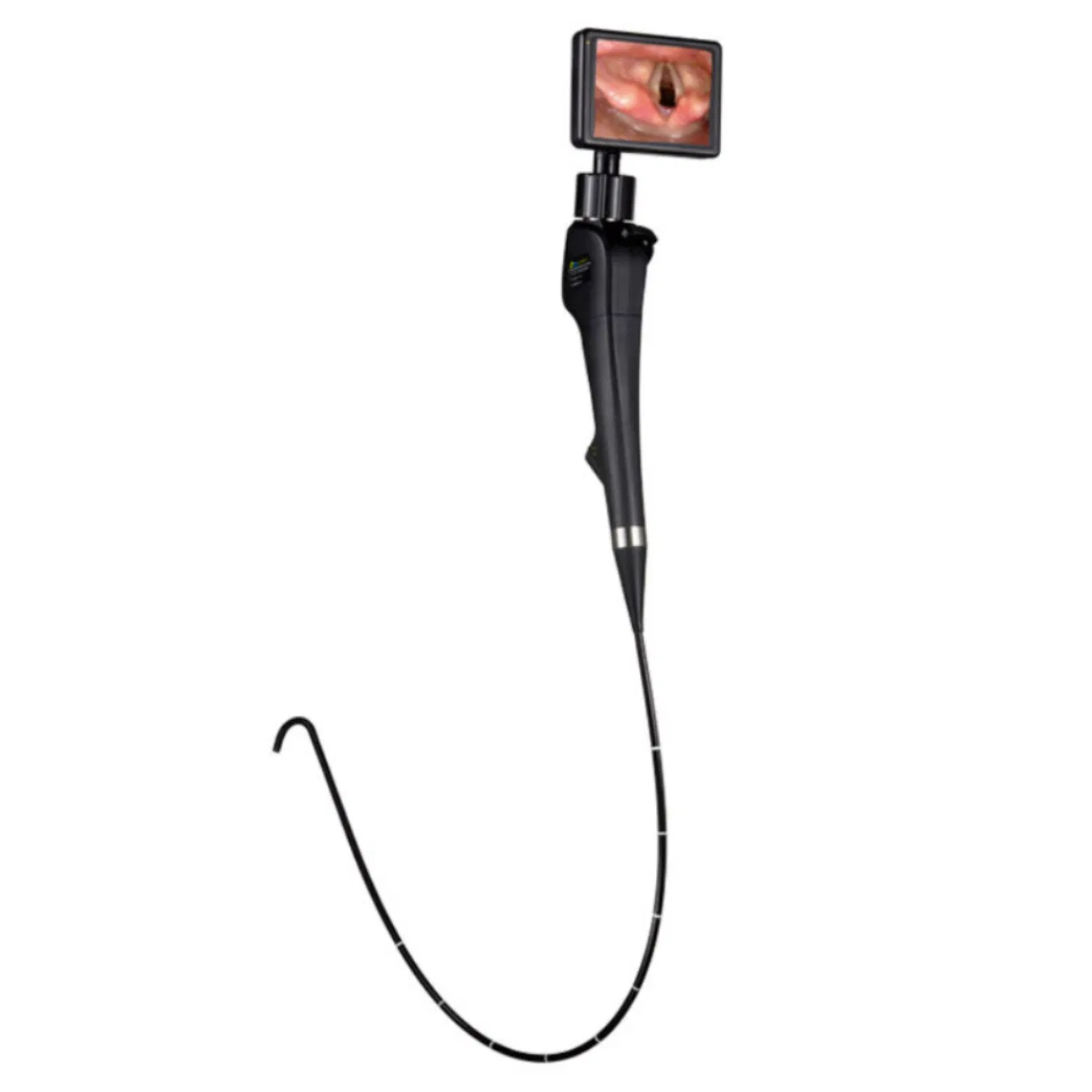

Portable Flexible Video Ent Endoscope Medical Ent Endoscopy Bronchoscopy

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: Flexible Video Fiber Bronchoscope

Product Description

📋

Basic Information

Model NO.
JLD-660
Certification
CE, MSDS, ISO13485
Group
Middle-aged and Old
Product Name
Flexible Fiber Endoscope Laryngoscope
Material
Metal, Plastic, Steel
Display Size
3.5"TFT LCD, High Resolution
Charging Time
3-5 H
Resolution
960 * 240
Illuminance
≥800lux
Light Source
LED Light Source
Curved Angle
Upward 150° / Downward 130°
Waterproof
IP67 (Cable and Holder)
Battery Capacity
1850mA
Observe Depth
3-100mm
Warranty
1 Year
Power Source
Electric
🔬

Product Description

Portable Flexible Video Endoscope for Medical Bronchoscopy and ENT Applications

The JLD-D660 is a professional-grade flexible video fiber endoscope designed for multi-department clinical use.

Primary Applications:

  • Anesthesiology and ICU Intensive Medicine.
  • E.N.T (Ear, Nose, and Throat) departments.
  • Emergency and Respiratory care.
  • Airway management, difficult tracheal intubation, and placement of bronchial occluders.

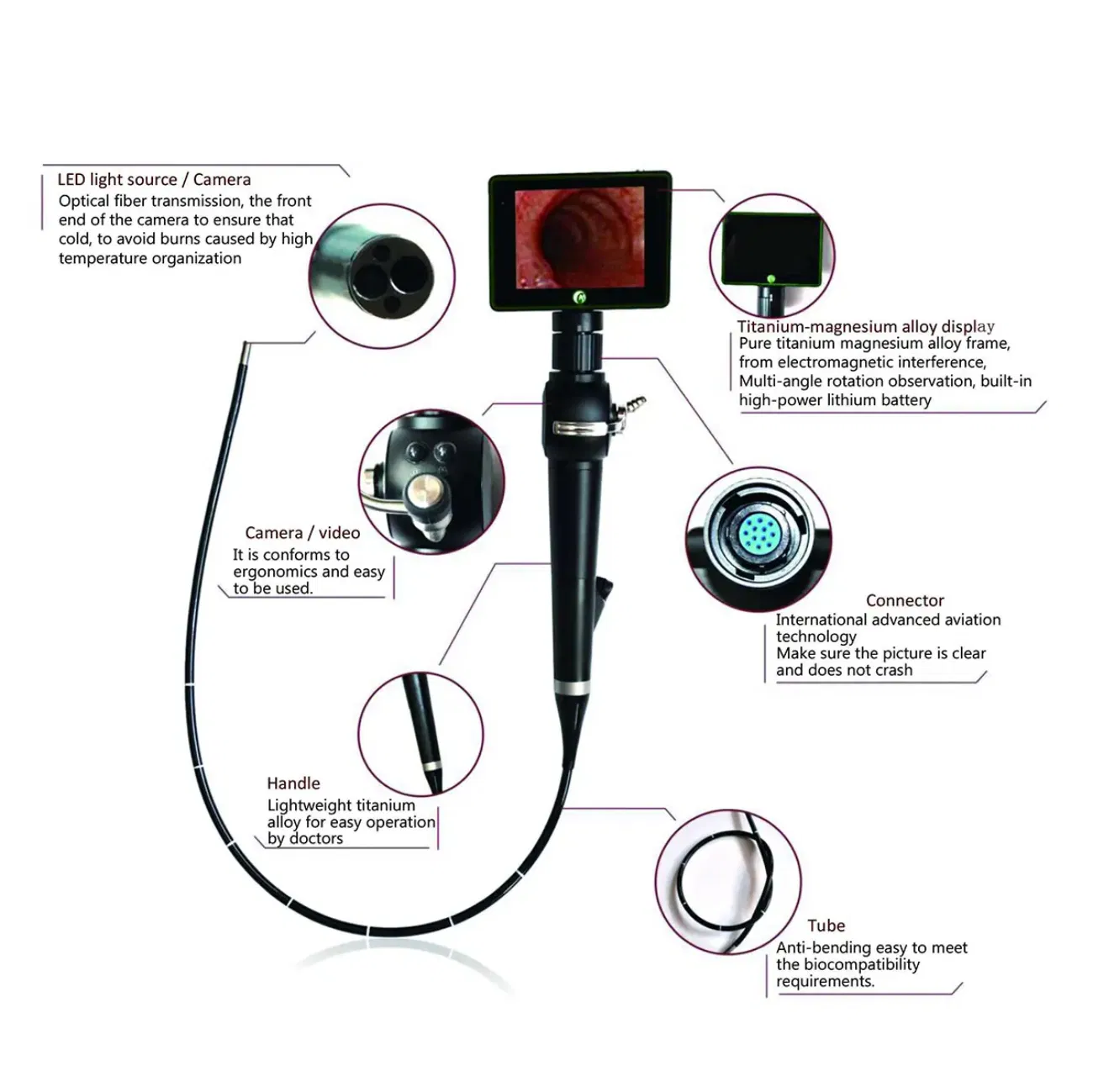

Key Features:

  • Anti-fogging Technology: Advanced LED cold light source prevents airway secretions and exhaled gas from fogging the lens while avoiding tissue burns.
  • High-Resolution Display: Multi-angle rotation monitor provides clear, continuous visualization of airway structures.
  • Stable Connectivity: Aviation-grade connection technology between the handle and screen ensures a flicker-free, stable image.
  • Powerful Battery: Built-in high-power lithium battery supports extended operational time.
  • Clinical Flexibility: Soft, flexible intubation tube supports both oral and nasal entry for difficult airways.
  • Standardized Procedures: Operates using conventional intubation steps and standard disinfection protocols.
📊

Technical Specifications

Visual Field90°± 10%Visual direction
Observe depth3-100mmEffective work length600mm
Intubation diameter2.8mm / 3.8mm / 4.8mm / 5.2mm / 5.8mm
Suction channel0 / 2.0mm / 2.2mm / 2.4mm / 2.6mm
Pixel2,000,000 pixelsDisplay3.5" TFT LCD
Curved angleUp 150°, Down 130°Revolve angleUp/Down 180°, Left/Right 330°
Battery3.7V polymer lithiumCharging Time< 3 hours
Discharge Time> 2.5 hoursCharge cycles> 600 times
📦

Standard Configuration

Item NameQuantity
3.5 inch Display Set1 set
Operative Section1 pc
Recharger Battery1 pc
Pressure Compensation Cap / Waterproof Cap2 pcs each
Reusable Biopsy Valve / Suction Button2 pcs each
Leak Detector / Cleaning Brush / SD Save Card1 pc each
📷

Detailed Product Gallery

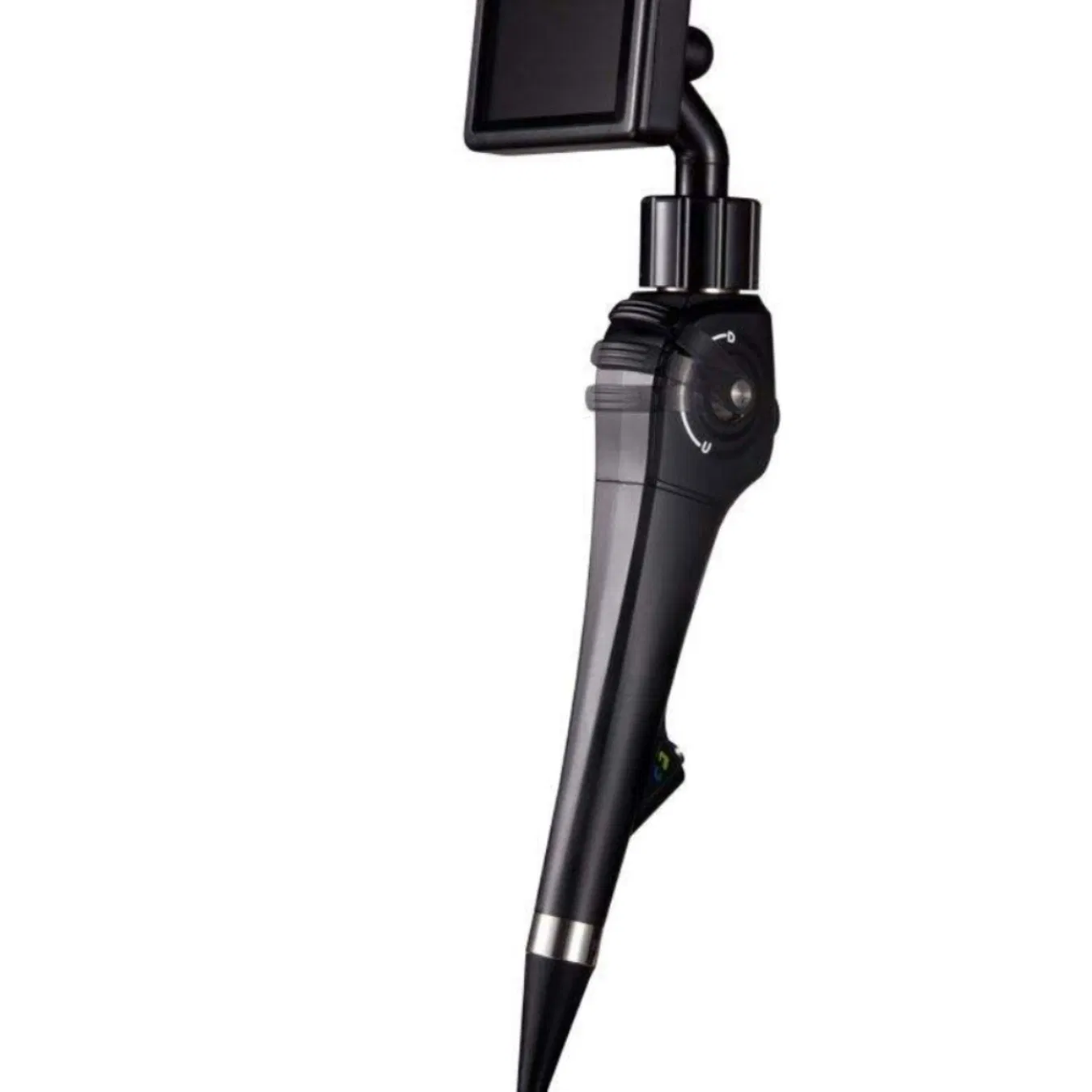

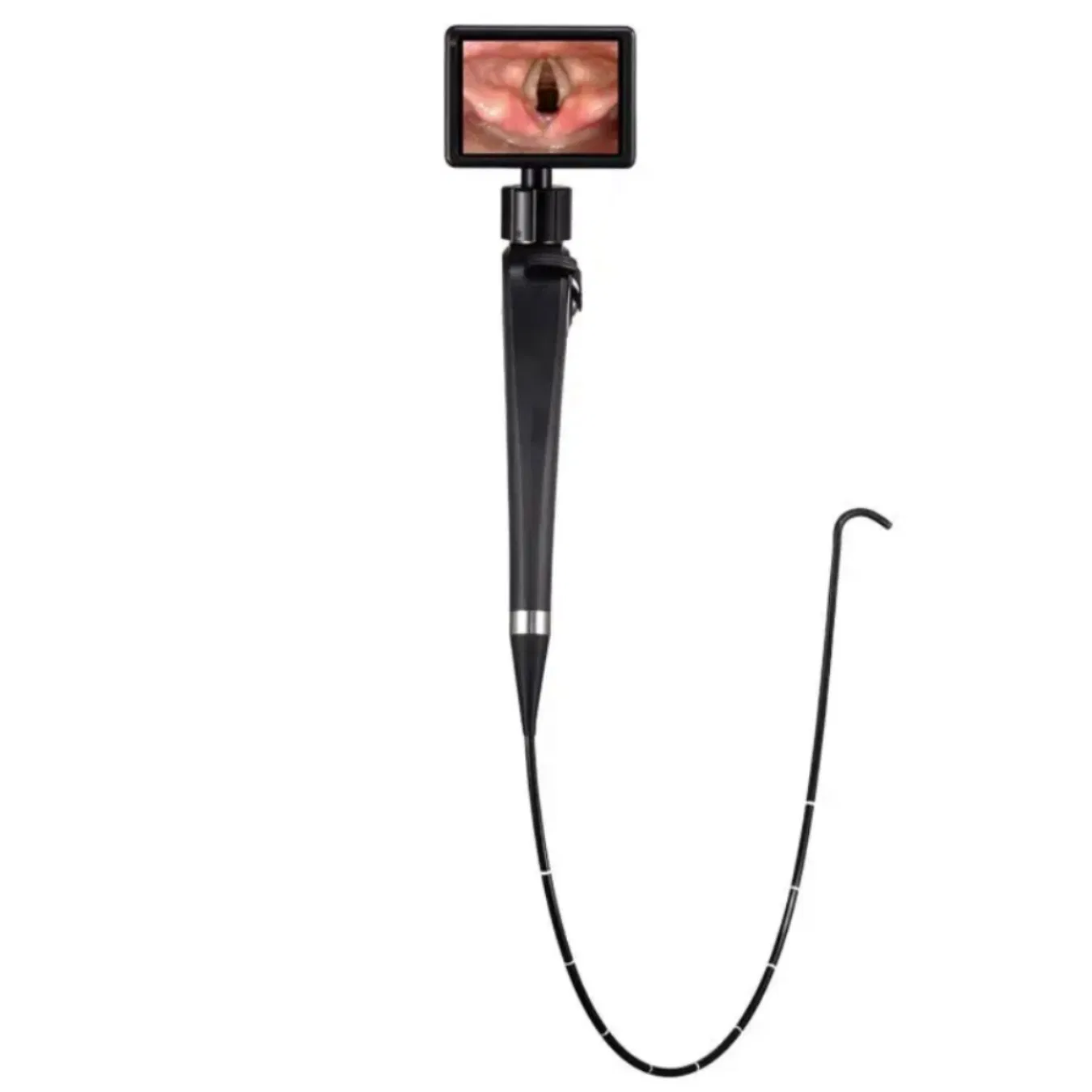

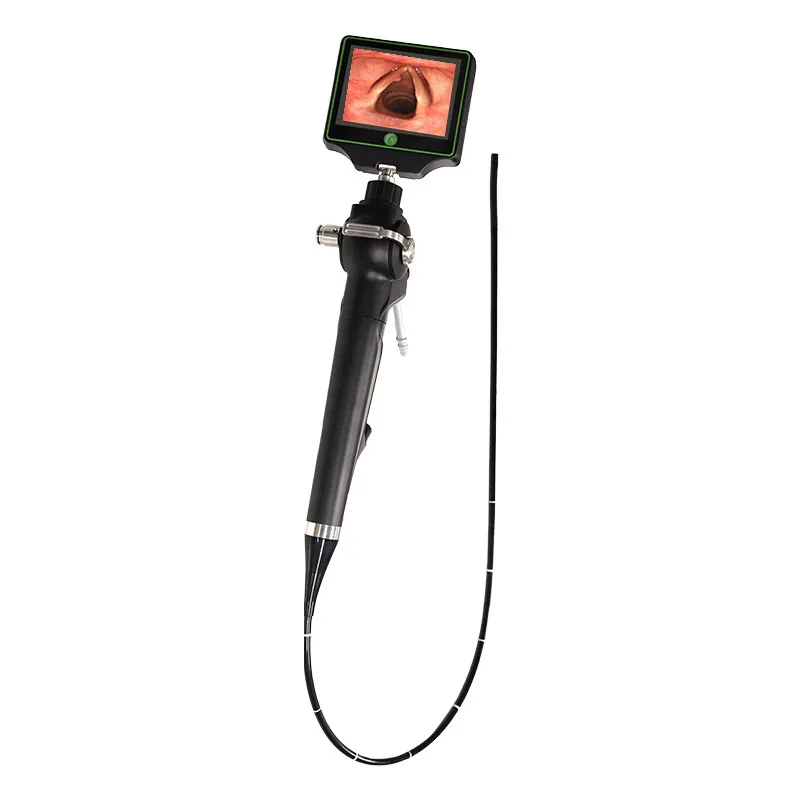

Video Endoscope Main View

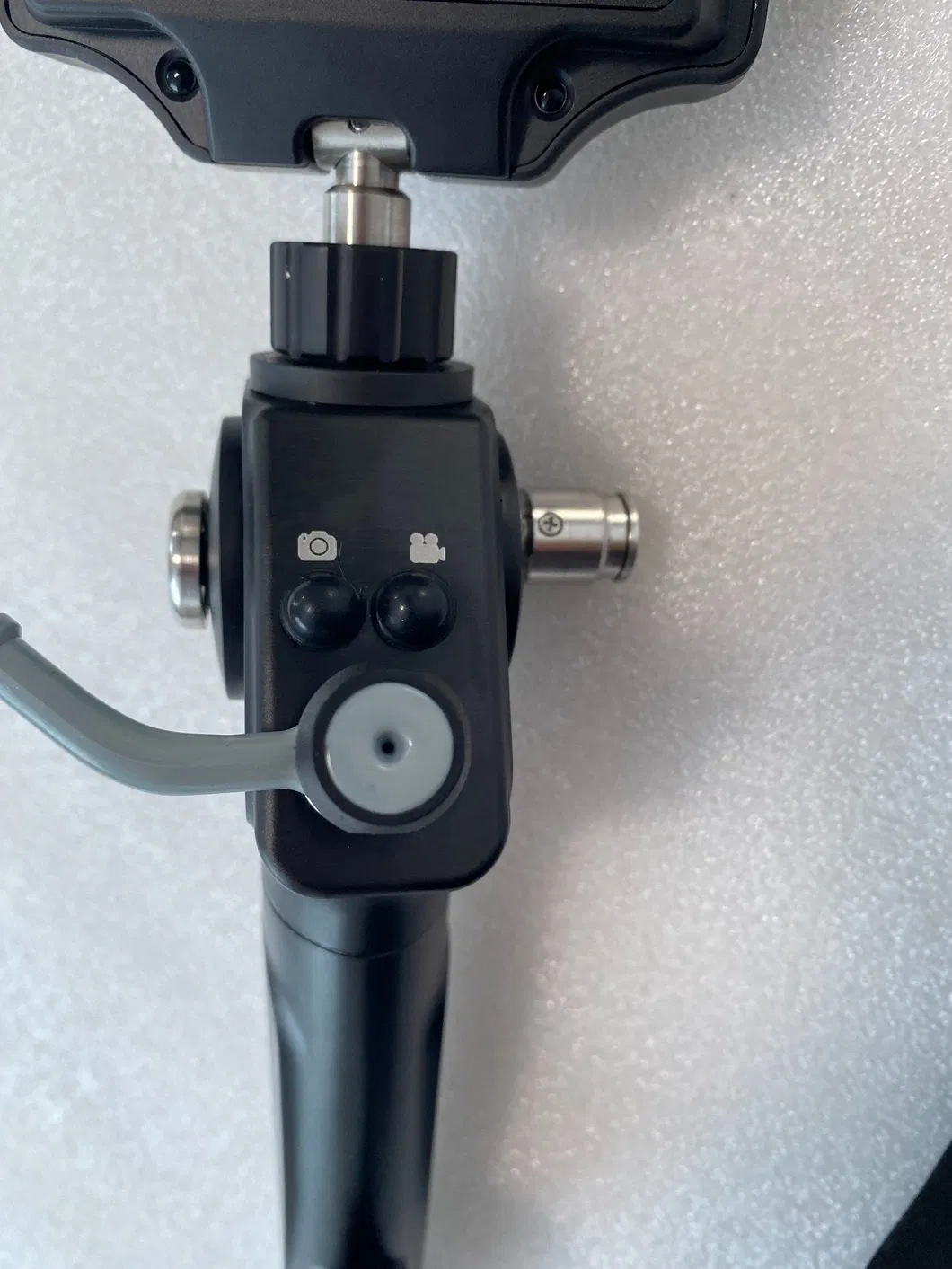

Detail View 1

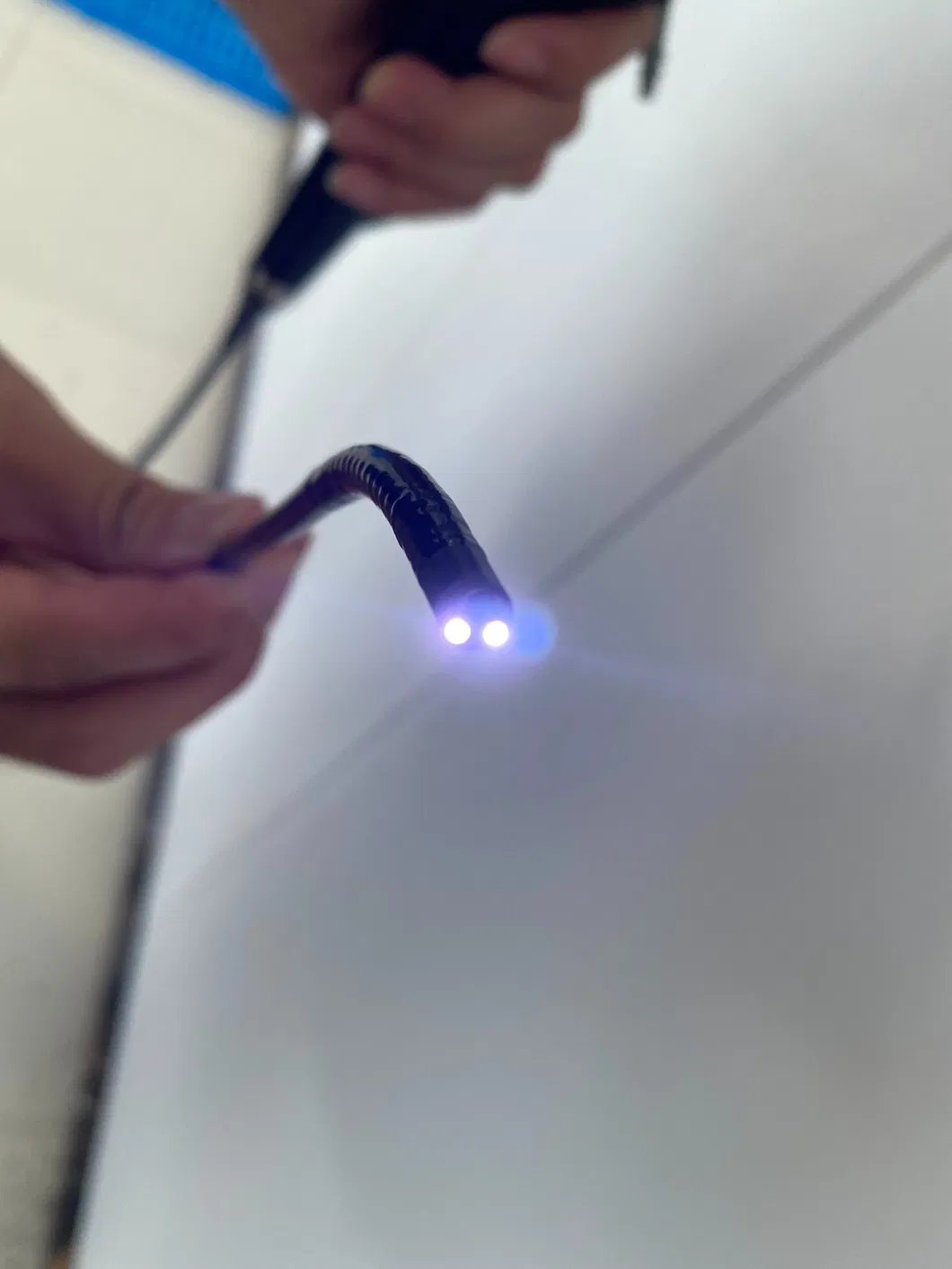

Detail View 2

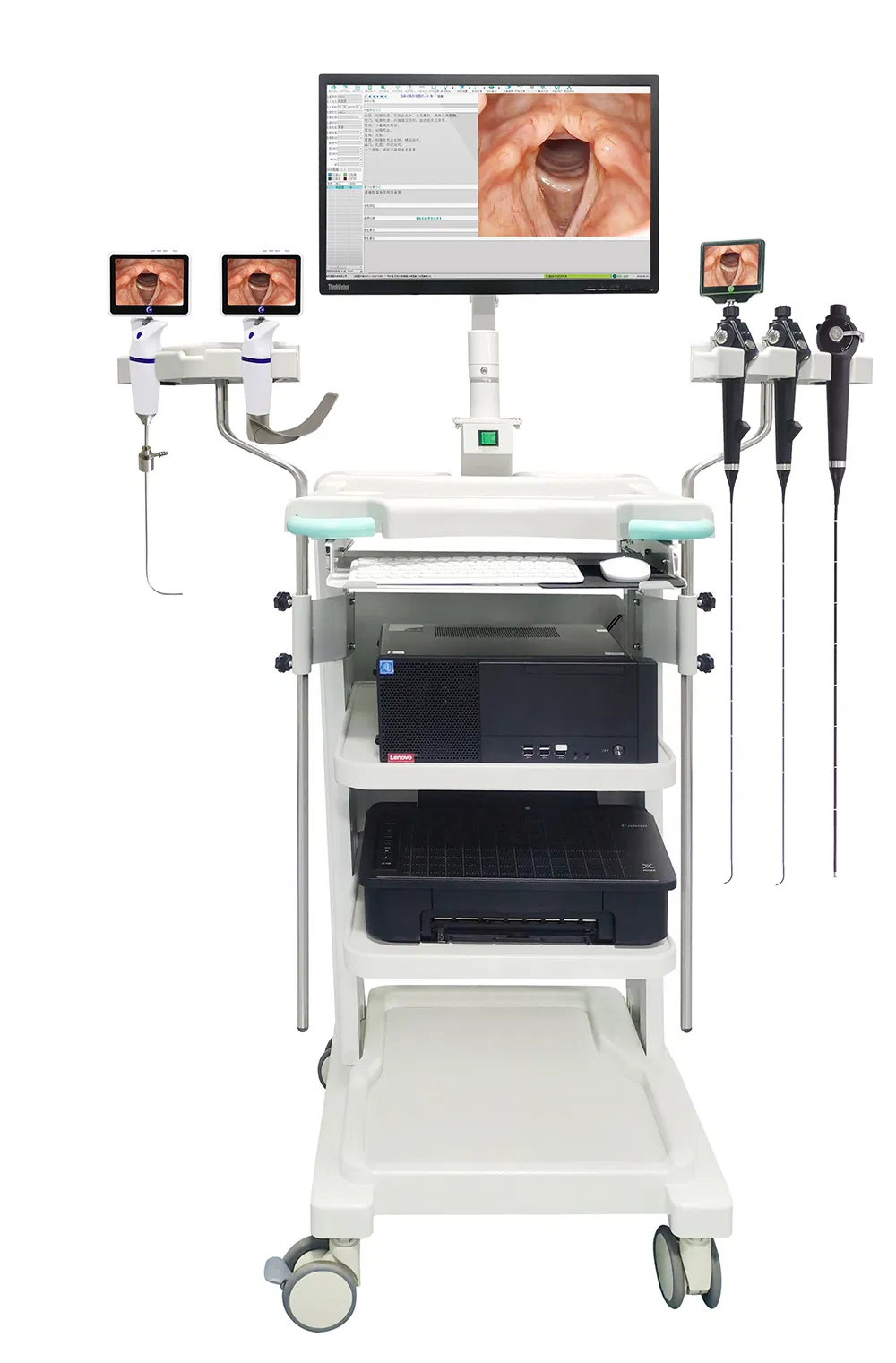

Detail View 3

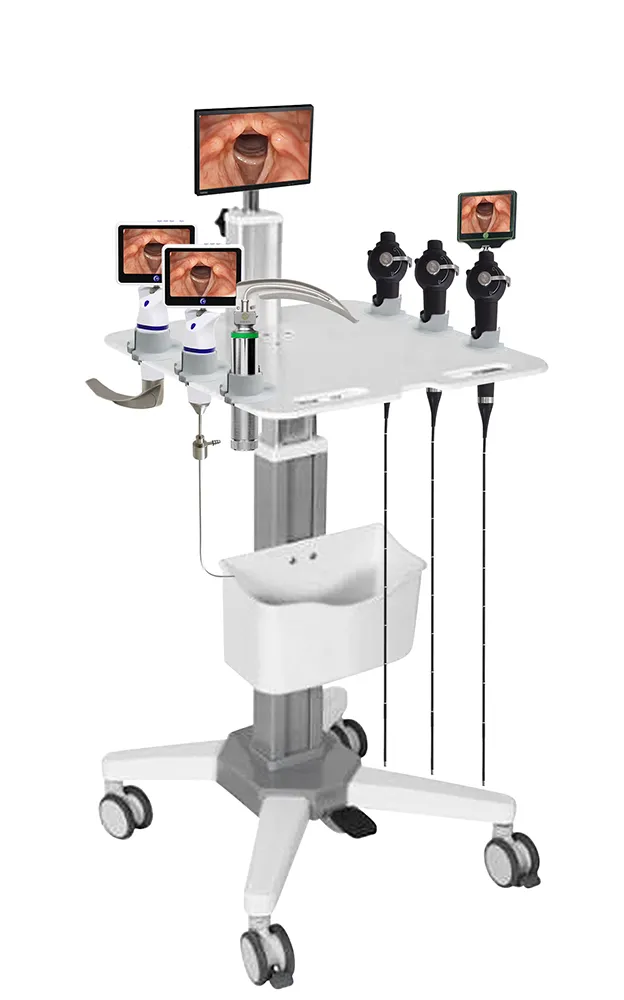

Detail View 4
🚚

Packaging & Accessories

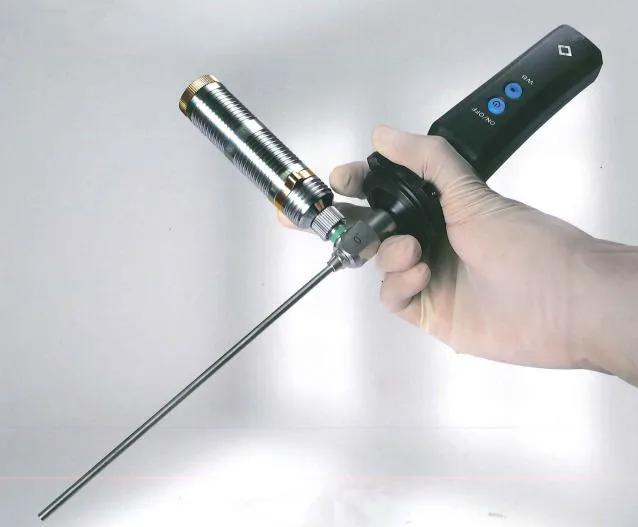

Product variation 1

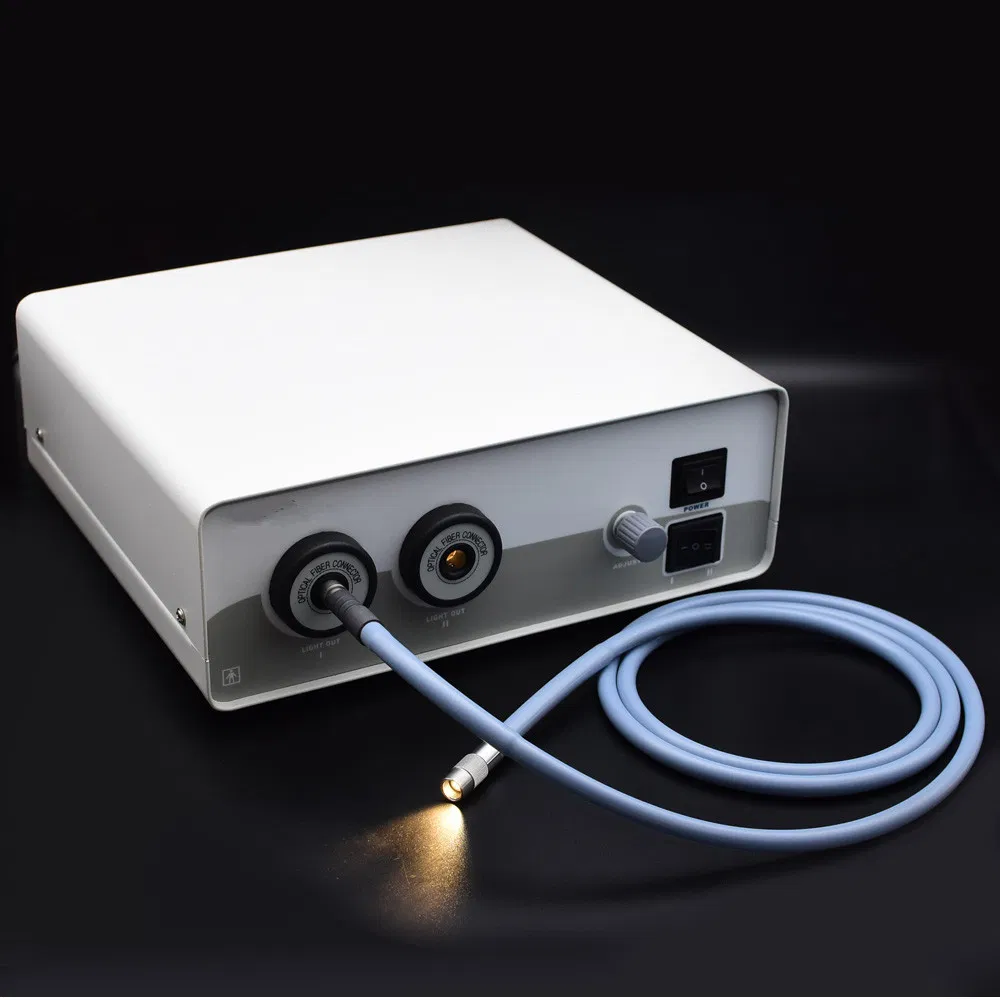

Product variation 2

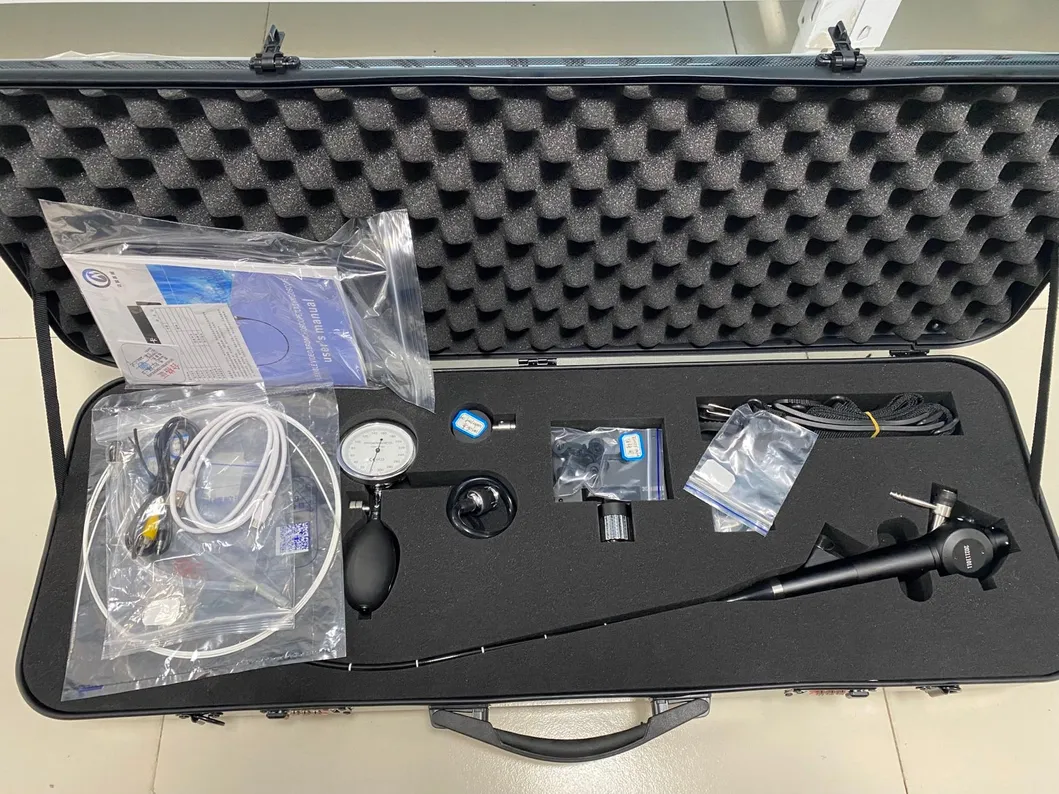

Shipping Box

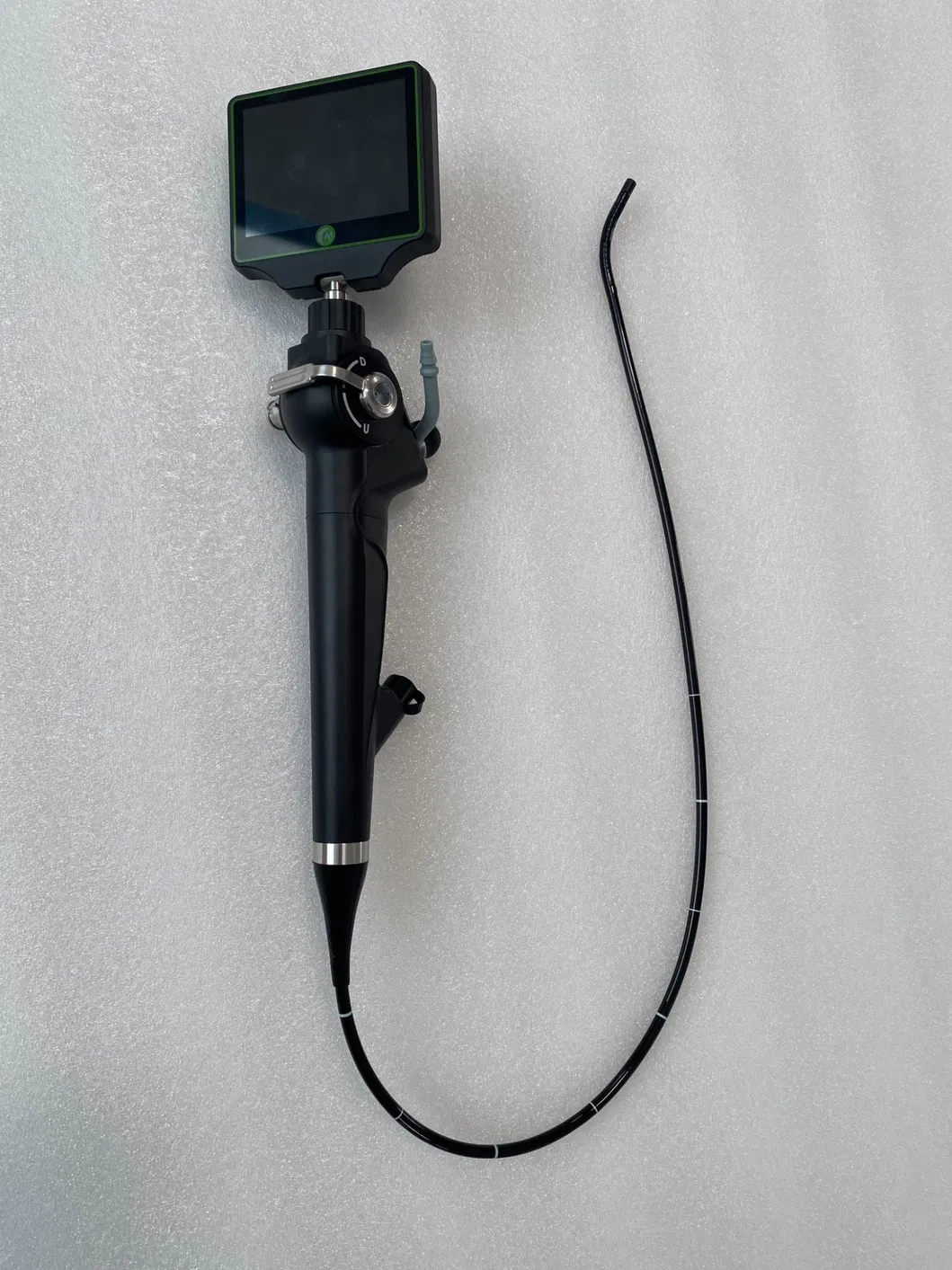

Packaging Detail
🛡️

Quality Assurance

We are dedicated to offering reliable, high-quality, and value-added medical products. Our production processes adhere to strict medical device standards to ensure patient safety and clinical efficiency.

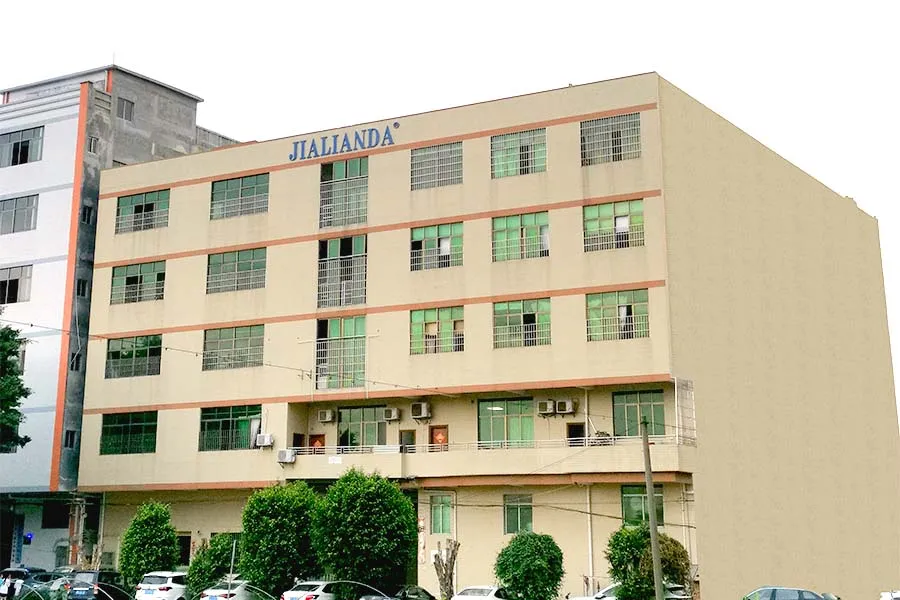

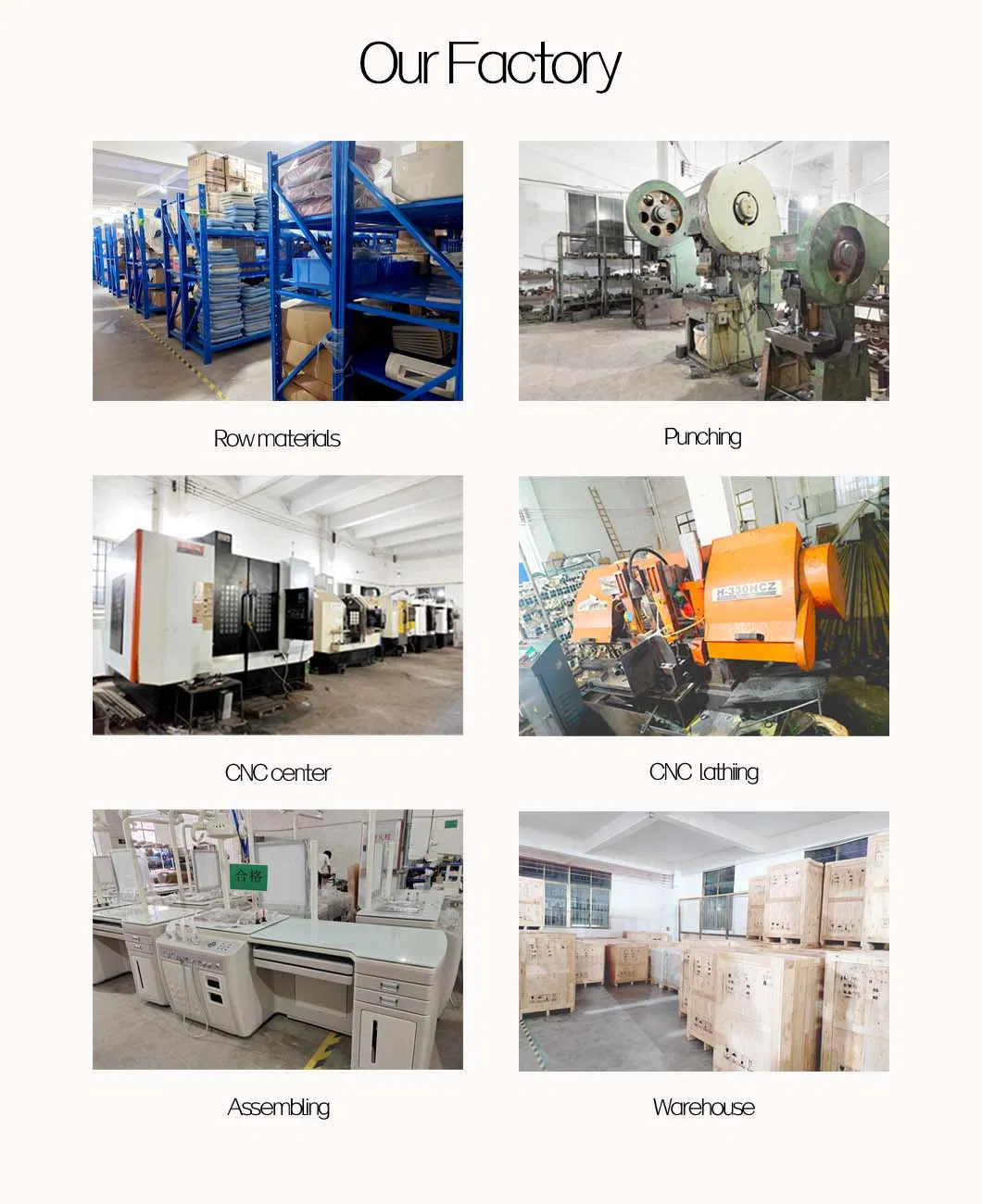

Production Facility
Product Certification
Official Certificates

Frequently Asked Questions

What is the minimum order quantity (MOQ)?
The MOQ for our products is 1 piece.
Why should I choose your endoscope solutions?
We are professional manufacturers specializing in ENT units and chairs. We offer comprehensive problem-solving support, CE/FSC certifications, and a 1-year warranty on our equipment.
Do you offer OEM or ODM services?
Yes, we fully support OEM and ODM customization based on your specific clinical or branding requirements.
What is the estimated delivery time?
Delivery typically takes 3-7 days after payment is confirmed, depending on the order quantity.
How is the after-sales service handled?
We provide online technical support and installation videos. During the warranty period, we can provide replacement accessories for naturally damaged components.
What disinfection procedures are required?
This product is designed to be compatible with conventional medical disinfection procedures used for flexible endoscopes.
