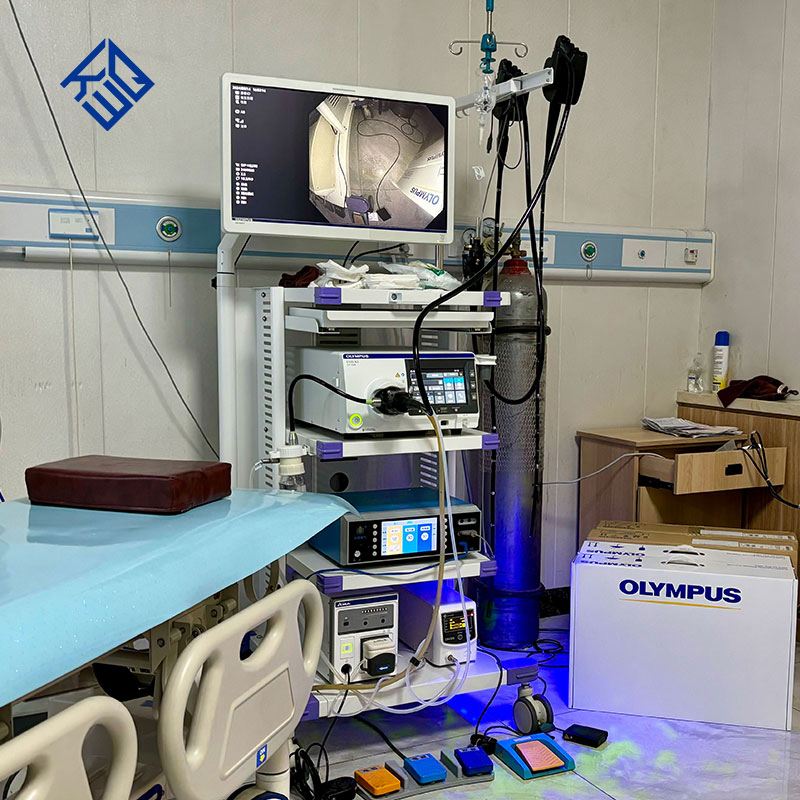

CV-290 + CLV-290SL + GIF-HQ290 + CF-HQ290I
Setting a new standard for high-definition upper gastrointestinal tract endoscopes, this system features further improved approachability and operability to meet modern clinical demands.

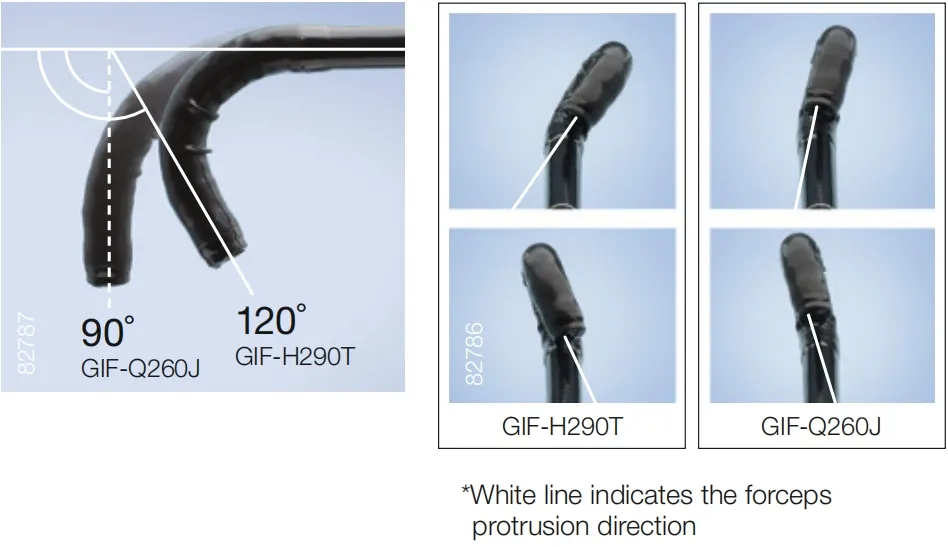

The down angle of the GIF-H290T has been expanded to 120° from 90°, offering easier approachability through expanded bending ranges.
Auxiliary water channel position is optimized close to the instrument channel for smooth operation and quick response.

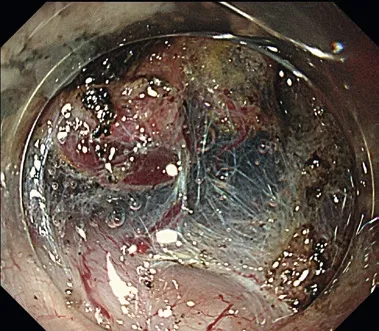

Equipped with a high-definition CCD, providing high-resolution HD images for superior treatment accuracy.
| Category | Parameter | Specification |
|---|---|---|
| Optical System | Field of view | 140º |
| Direction of view | 0° (Forward viewing) | |
| Depth of field | 3-100 mm | |
| Insertion Section | Distal end outer diameter | 9.8 mm |
| Insertion tube outer diameter | 9.9 mm | |
| Working length | 1030 mm | |
| Minimum visible distance | 3 mm | |
| Bending Section | Angulation range | Up 210º / Down 120º / Right 100º / Left 100º |
| Physical | Total Length | 1350 mm |
