Gastroscope and Colonoscope Medical Gastrointestinal Endoscopy System
Gastroscope and Colonoscope Medical Gastrointestinal Endoscopy System
Gastroscope and Colonoscope Medical Gastrointestinal Endoscopy System
Gastroscope and Colonoscope Medical Gastrointestinal Endoscopy System
Gastroscope and Colonoscope Medical Gastrointestinal Endoscopy System
1 / 5
Gastroscope and Colonoscope Medical Gastrointestinal Endoscopy System
Gastroscope and Colonoscope Medical Gastrointestinal Endoscopy System
Gastroscope and Colonoscope Medical Gastrointestinal Endoscopy System
Gastroscope and Colonoscope Medical Gastrointestinal Endoscopy System
Gastroscope and Colonoscope Medical Gastrointestinal Endoscopy System

Gastroscope and Colonoscope Medical Gastrointestinal Endoscopy System

Customization: Available
Type: Electrosurgical
Application: Emr-ESD-Ercp
Send Inquiry

Product Description

Overview & Basic Info

Feature
Reusable
Group
Children and Adult
Function
Flexible
Language
Multi Language
Model
CV170/190/290, Ect
Endoscopy
CV-290+Clv-290SL+GIF-Hq290+CF-Hq290I
Electronic System
CV-170+GIF-H170+CF-H170L/I
Imaging
Evis Lucera Elite
Trolley
Wm-Np2
Package
Wooden Box
Trademark
Olympus
Origin
Japan

Product Description

Medical Gastrointestinal Endoscopy System
CV-290 + CLV-290SL + GIF-HQ290 + CF-HQ290I
A New Standard for High-definition Upper Gastrointestinal Tract Endoscopes with Further Improved Approachability and Operability.

Product Features

Feature 1
Feature 2
Feature 3

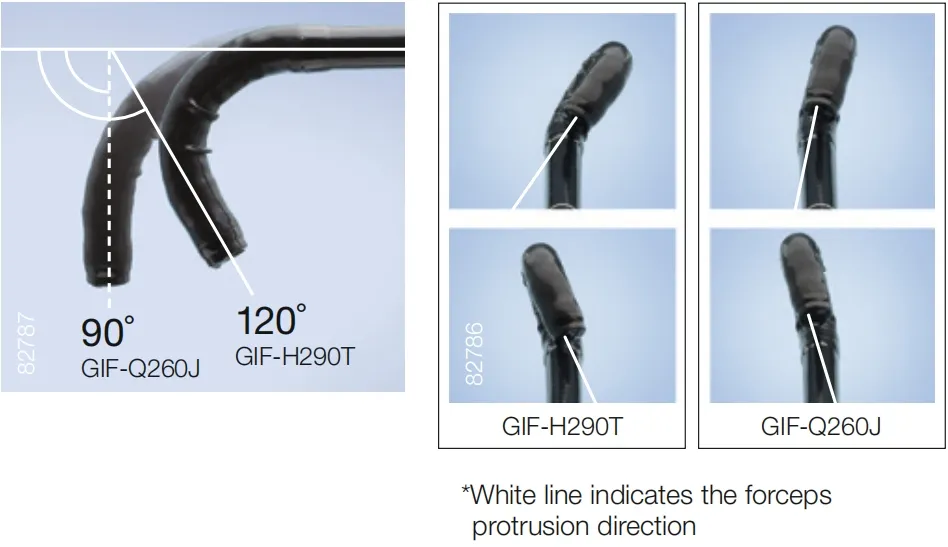

Improved Approach to the Lesion
Down angle expanded to 120˚ from 90˚. Extended left/right range for better lesion access.		 Supports Rapid Hemostasis
Auxiliary water channel positioned close to the instrument channel for smooth operation and rapid response.		 HD Images
Equipped with high-definition CCD, providing superior resolution for improved treatment accuracy.

Product Parameters

Optical System Field of view 140º
Direction of view 0° (Forward viewing)
Depth of field 3-100 mm
Insertion Section Distal end outer diameter 9.8 mm
Insertion tube outer diameter 9.9 mm
Working length 1030 mm
Channel inner diameter Standard Instrument Channel
Minimum visible distance 3 mm
Bending Section Angulation range Up 210º / Down 120º / Right 100º / Left 100º
System Compatibility Video System OLYMPUS CV-290, Light Source CLV-290SL/CLV-290

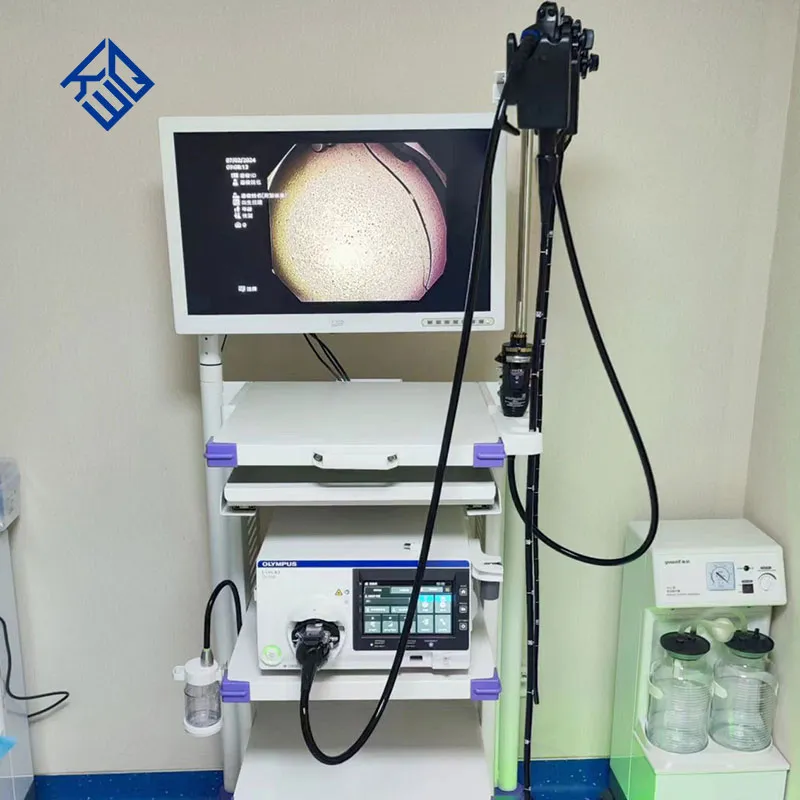

Endoscopy Detail 1

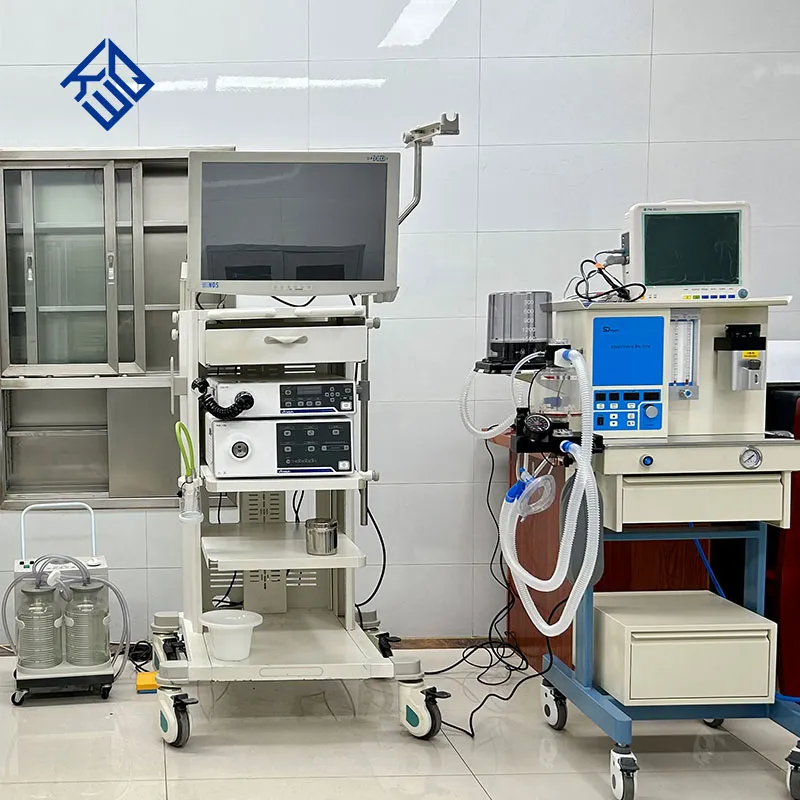

Endoscopy Detail 2

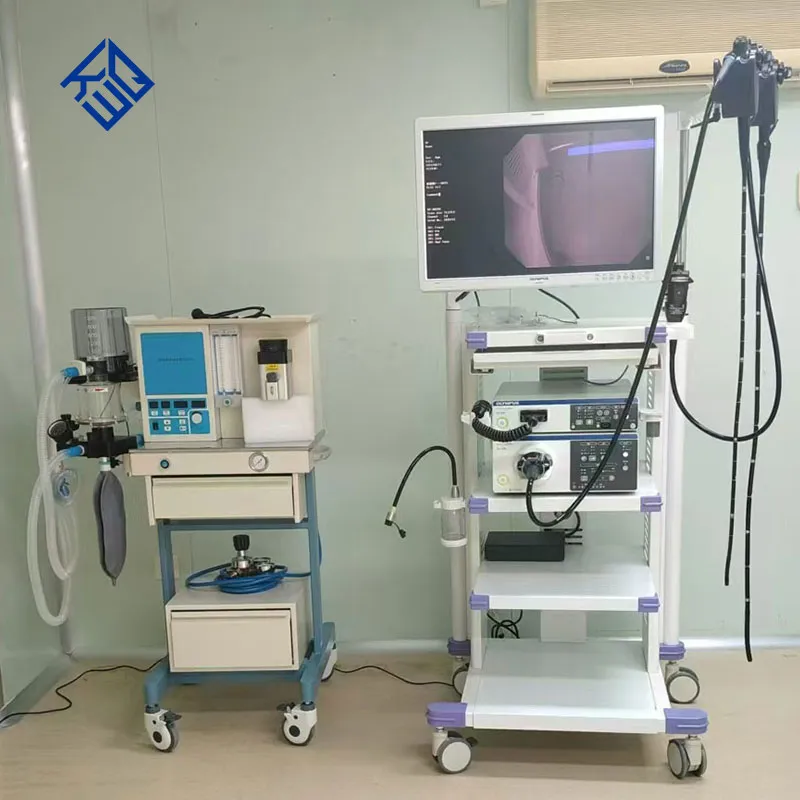

Endoscopy Detail 3

Frequently Asked Questions

What are the primary components of the CV-290 system?
The system typically includes the Video System Center (CV-290), a Xenon Light Source (CLV-290SL), and specific scopes like the GIF-HQ290 for gastroscopy and CF-HQ290I for colonoscopy.
How does the "Improved Approach" feature benefit clinical procedures?
By expanding the down angle to 120˚ and increasing the moveable range, physicians can reach difficult-to-access lesions more easily, enhancing diagnostic and therapeutic efficiency.
Does this system support high-definition imaging?
Yes, it is equipped with a high-definition CCD that provides HD resolution, ensuring clear visualization of mucosal structures and vascular patterns.
Is the system compatible with different language settings?
Yes, the system supports multi-language interfaces to accommodate medical professionals in various regions globally.
What is the field of view for the GIF-H290 series?
The optical system offers a wide 140-degree field of view, allowing for comprehensive observation of the gastrointestinal tract.
What type of packaging is used for transport?
The equipment is securely packed in a wooden box to ensure maximum protection during international shipping and handling.
