0.8mm Flexible Medical Optical Fiberscope with 850mm Working Length, Ent Endoscopy
0.8mm Flexible Medical Optical Fiberscope with 850mm Working Length, Ent Endoscopy
0.8mm Flexible Medical Optical Fiberscope with 850mm Working Length, Ent Endoscopy
0.8mm Flexible Medical Optical Fiberscope with 850mm Working Length, Ent Endoscopy
0.8mm Flexible Medical Optical Fiberscope with 850mm Working Length, Ent Endoscopy
1 / 5
0.8mm Flexible Medical Optical Fiberscope with 850mm Working Length, Ent Endoscopy
0.8mm Flexible Medical Optical Fiberscope with 850mm Working Length, Ent Endoscopy
0.8mm Flexible Medical Optical Fiberscope with 850mm Working Length, Ent Endoscopy
0.8mm Flexible Medical Optical Fiberscope with 850mm Working Length, Ent Endoscopy
0.8mm Flexible Medical Optical Fiberscope with 850mm Working Length, Ent Endoscopy

0.8mm Flexible Medical Optical Fiberscope with 850mm Working Length, Ent Endoscopy

Customization: Available
Classification: Biological Diagnostics
Type: Digital Imaging System
Send Inquiry

Product Description

Basic Specifications

Model NO.
SZF101D
Certification
CE
Diameter
0.8mm
Cable Length
850mm
Waterproof
IP67
Light Source
Adjustable LED
View Angle
More Than 85 Degree
Dof
2mm-50mm
Battery Life
More Than 4 Hours
Dimensions
18mm x 40mm x 50mm

Product Description

0.8mm Flexible Medical Optical Fiberscope with 850mm Working Length, ENT Endoscopy

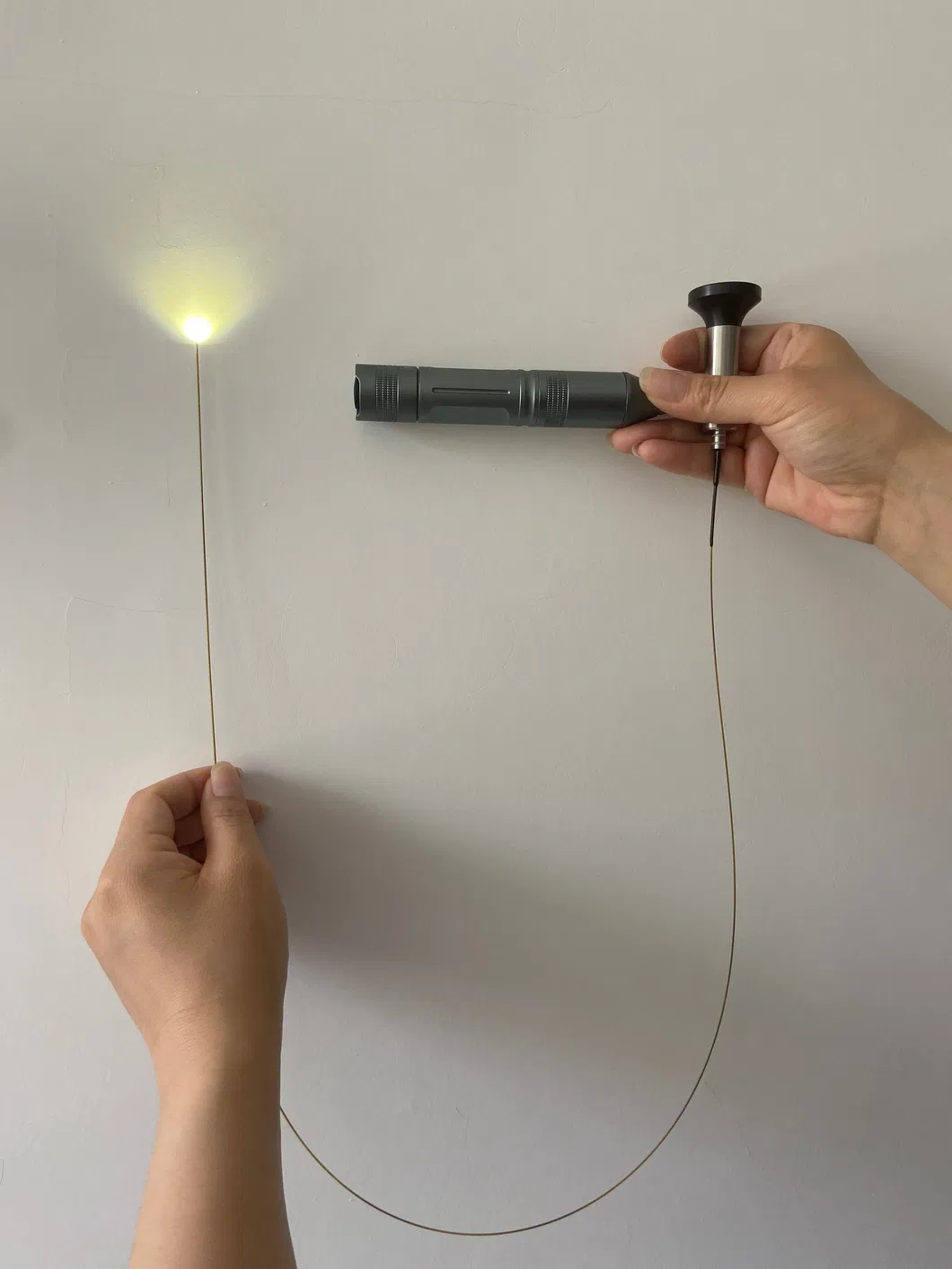

Medical Optical Fiberscope Detail 1

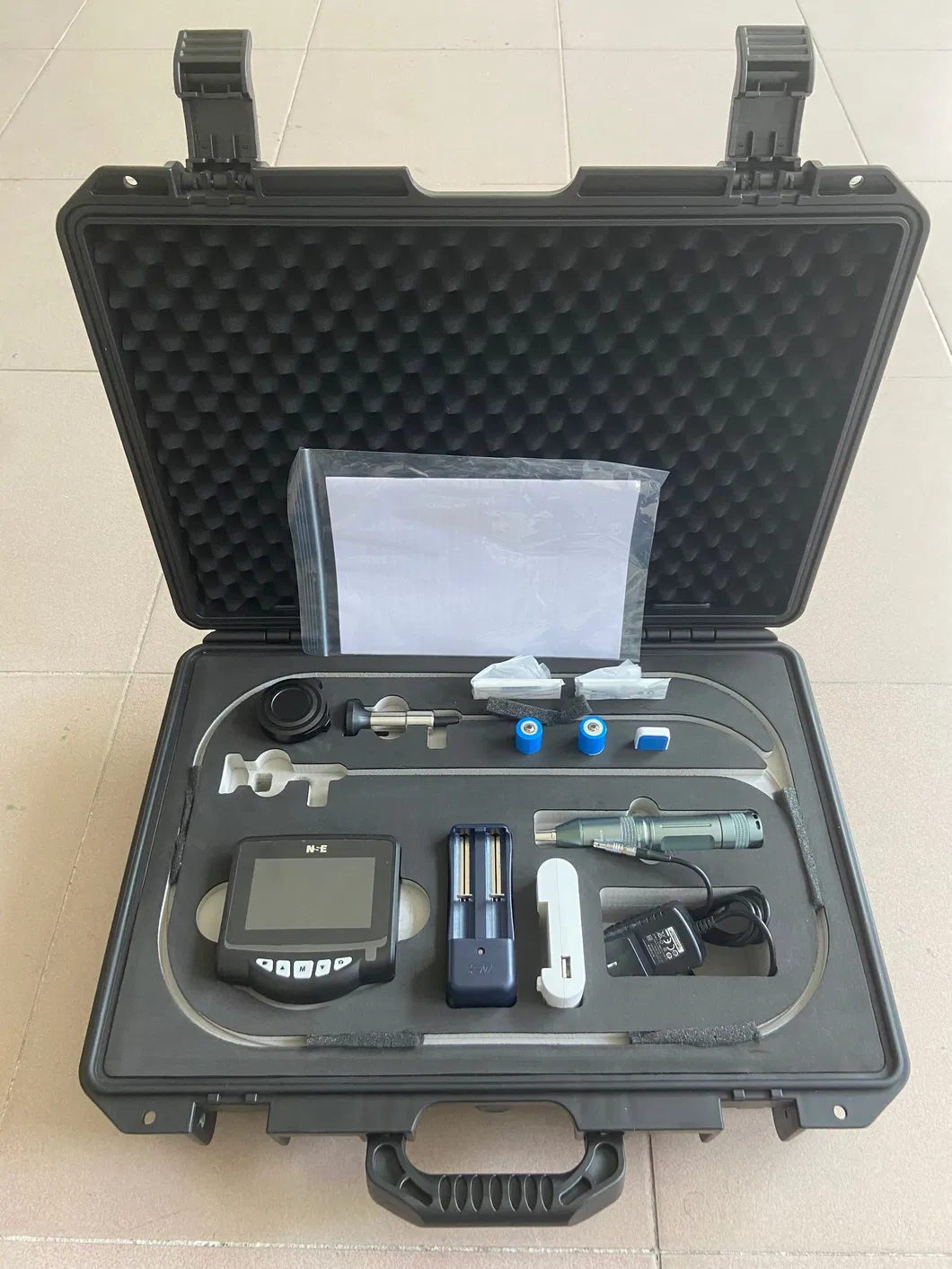

Medical Optical Fiberscope Detail 2
Medical Optical Fiberscope Detail 3

Technical Specifications

Tube 1. Diameter: 0.8mm, working cable length: 850mm
2. Working hose surface material is nylon (polyamide), lens and hose waterproof, anti-oil; resistant to weak acid, weak base
Probe Camera Lens 1. View field angle: ≥85°
2. View direction angle: 0°
3. DOF: 2mm ~ 50mm
4. Magnification: 60 times (positive) or 65 times (reverse image)
Lighting Hose fiber optic light transmission, high brightness LED source, portable integrated, adjustable brightness
Viewing Terms Optical eyepiece observation
Temperature -20ºC ~ 70ºC
Battery Time ≥4 hours

Frequently Asked Questions

What is the diameter and length of this fiberscope?
This medical fiberscope features an ultra-fine diameter of 0.8mm and a working cable length of 850mm, making it ideal for ENT endoscopy.
Is the device resistant to liquids and chemicals?
Yes, the lens and hose are IP67 waterproof and anti-oil. The nylon (polyamide) surface material is also resistant to weak acids and weak bases.
How long can the battery last during continuous use?
The integrated light source is powered by a battery that provides more than 4 hours of continuous working time.
What are the viewing capabilities of the probe lens?
The probe offers a wide view field angle of ≥85° and a Depth of Field (DOF) ranging from 2mm to 50mm, with magnification options up to 65 times.
What type of lighting system does it use?
It utilizes a high-brightness LED light source with fiber optic transmission through the hose. The brightness is fully adjustable for optimal observation.
What are the environmental operating conditions?
The device is designed to operate reliably in temperatures ranging from -20ºC to 70ºC.
