Home > ENT Endoscopy Instruments > Hospital Flexible Fiberscope with Optical 4mm Lens, 1m Working Cable, Ent Endoscopy

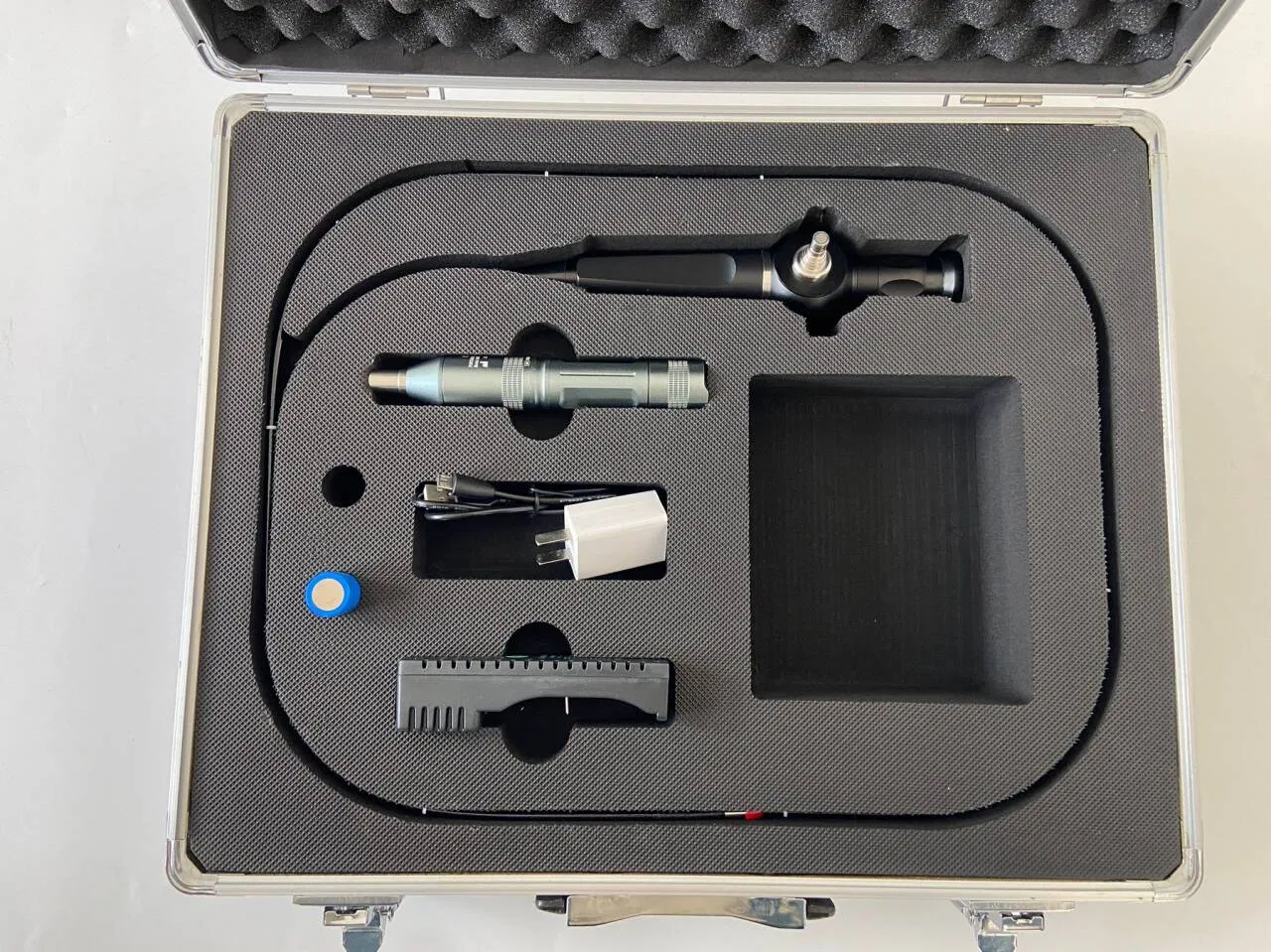

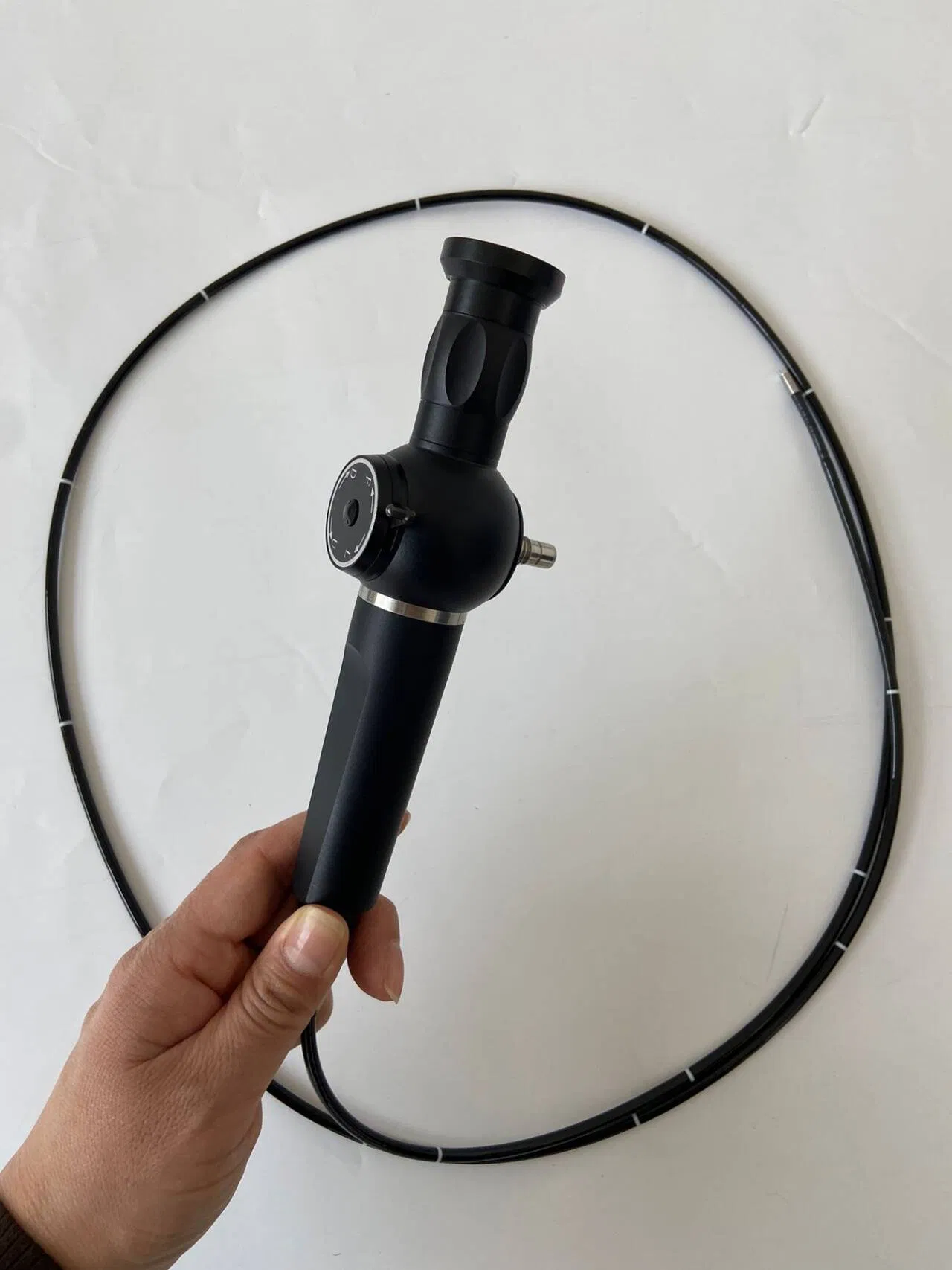

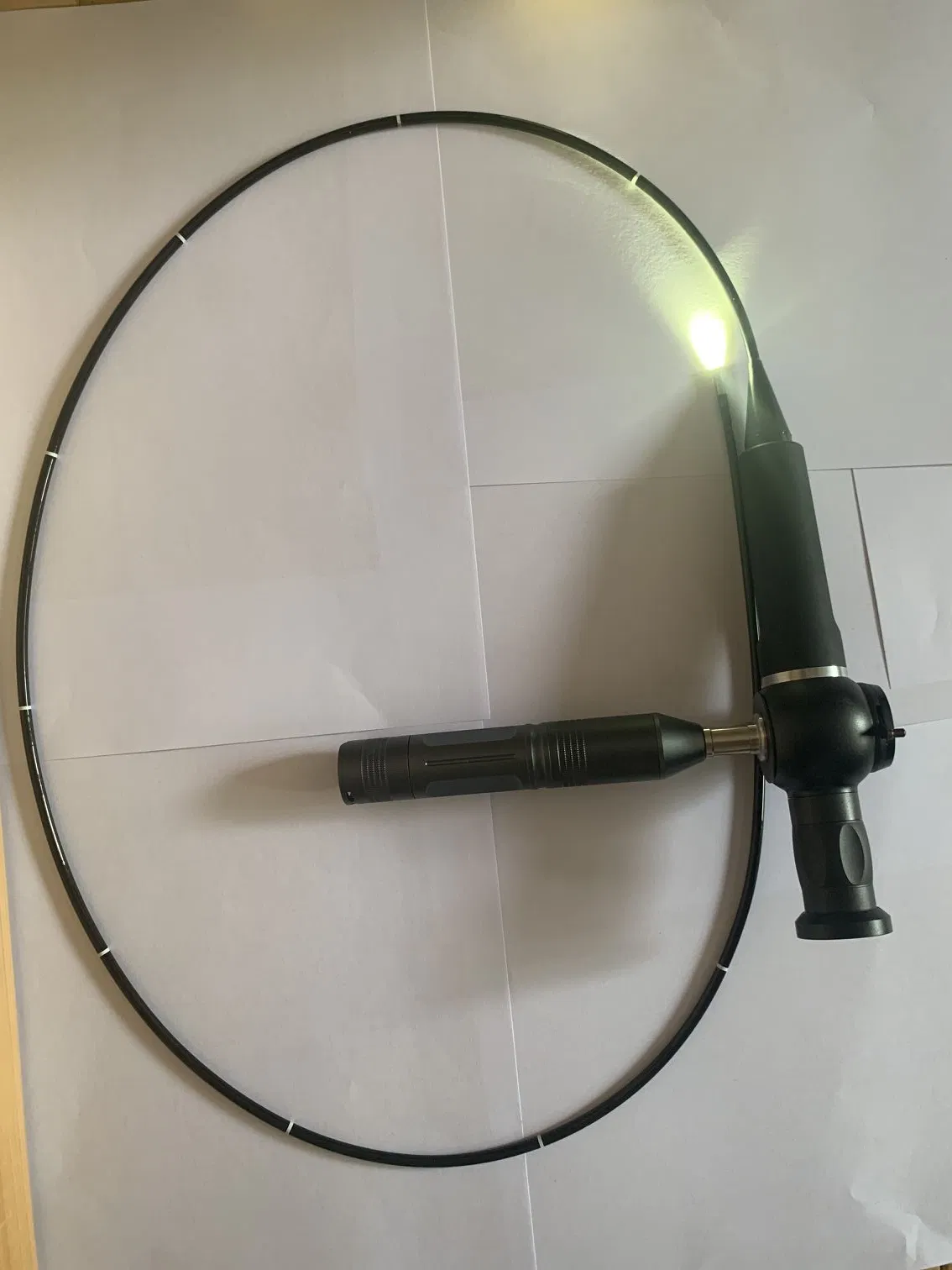

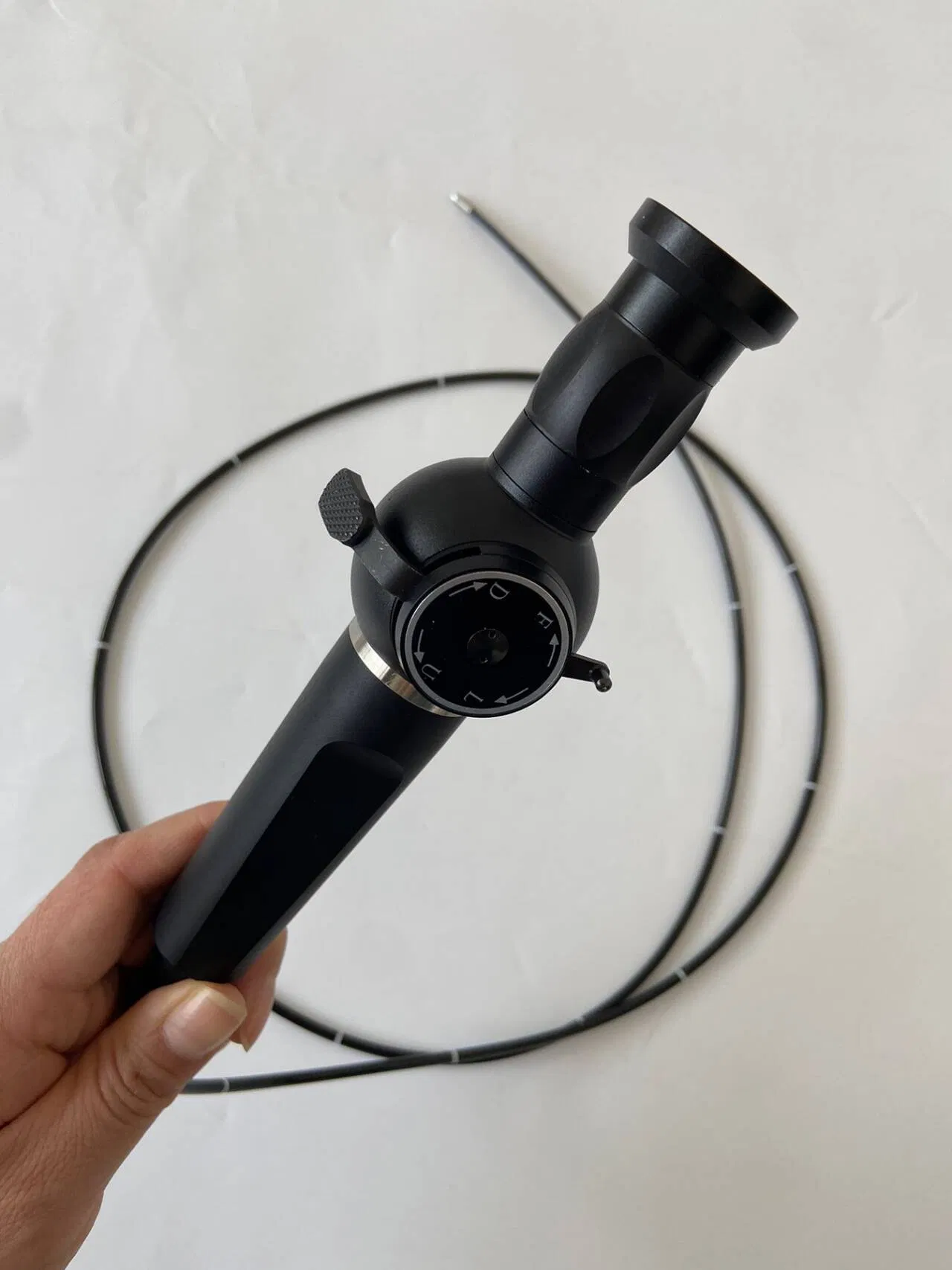

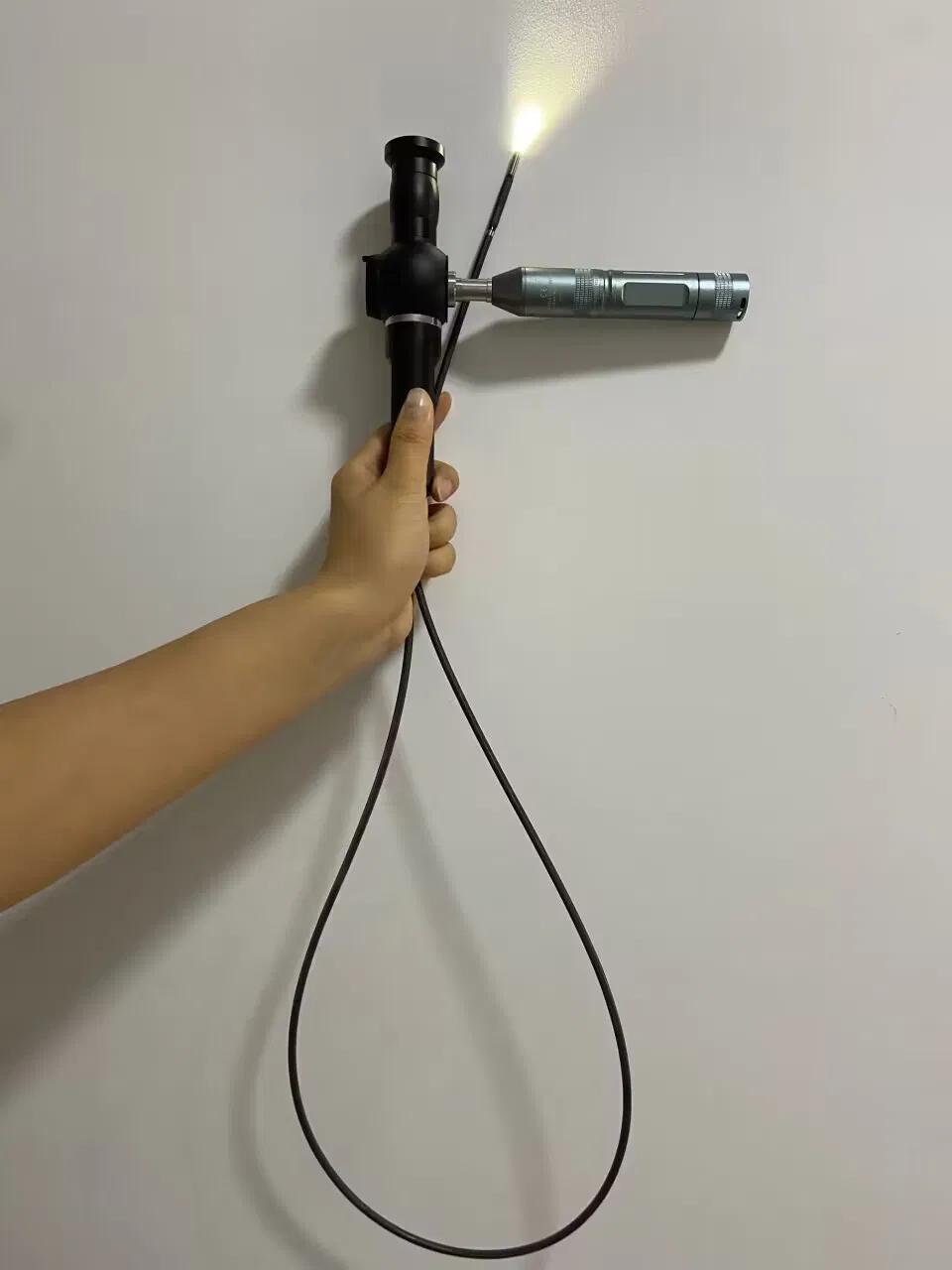

Hospital Flexible Fiberscope with Optical 4mm Lens, 1m Working Cable, Ent Endoscopy
Hospital Flexible Fiberscope with Optical 4mm Lens, 1m Working Cable, Ent Endoscopy
Hospital Flexible Fiberscope with Optical 4mm Lens, 1m Working Cable, Ent Endoscopy
Hospital Flexible Fiberscope with Optical 4mm Lens, 1m Working Cable, Ent Endoscopy
Hospital Flexible Fiberscope with Optical 4mm Lens, 1m Working Cable, Ent Endoscopy
1 / 5
Hospital Flexible Fiberscope with Optical 4mm Lens, 1m Working Cable, Ent Endoscopy
Hospital Flexible Fiberscope with Optical 4mm Lens, 1m Working Cable, Ent Endoscopy
Hospital Flexible Fiberscope with Optical 4mm Lens, 1m Working Cable, Ent Endoscopy
Hospital Flexible Fiberscope with Optical 4mm Lens, 1m Working Cable, Ent Endoscopy
Hospital Flexible Fiberscope with Optical 4mm Lens, 1m Working Cable, Ent Endoscopy

Hospital Flexible Fiberscope with Optical 4mm Lens, 1m Working Cable, Ent Endoscopy

Customization: Available
Tip Articulation: 2 Way
Camera Diameter: 4.0mm
Send Inquiry

Product Description

Basic Information
Model NO.
SZF401T
Cable Length
1m
Waterproof
IP67
Light Source
Adjustable
Focus
Adjustable
Dof
5mm-150mm
Transport Package
Box: Fire Protection
Specification
48cm x 39cm x 19.5cm
Origin
China
HS Code
9031809090
Production Capacity
200PCS / Month
Hospital Flexible Fiberscope with Optical 4mm Lens, 1m Working Cable, ENT Endoscope

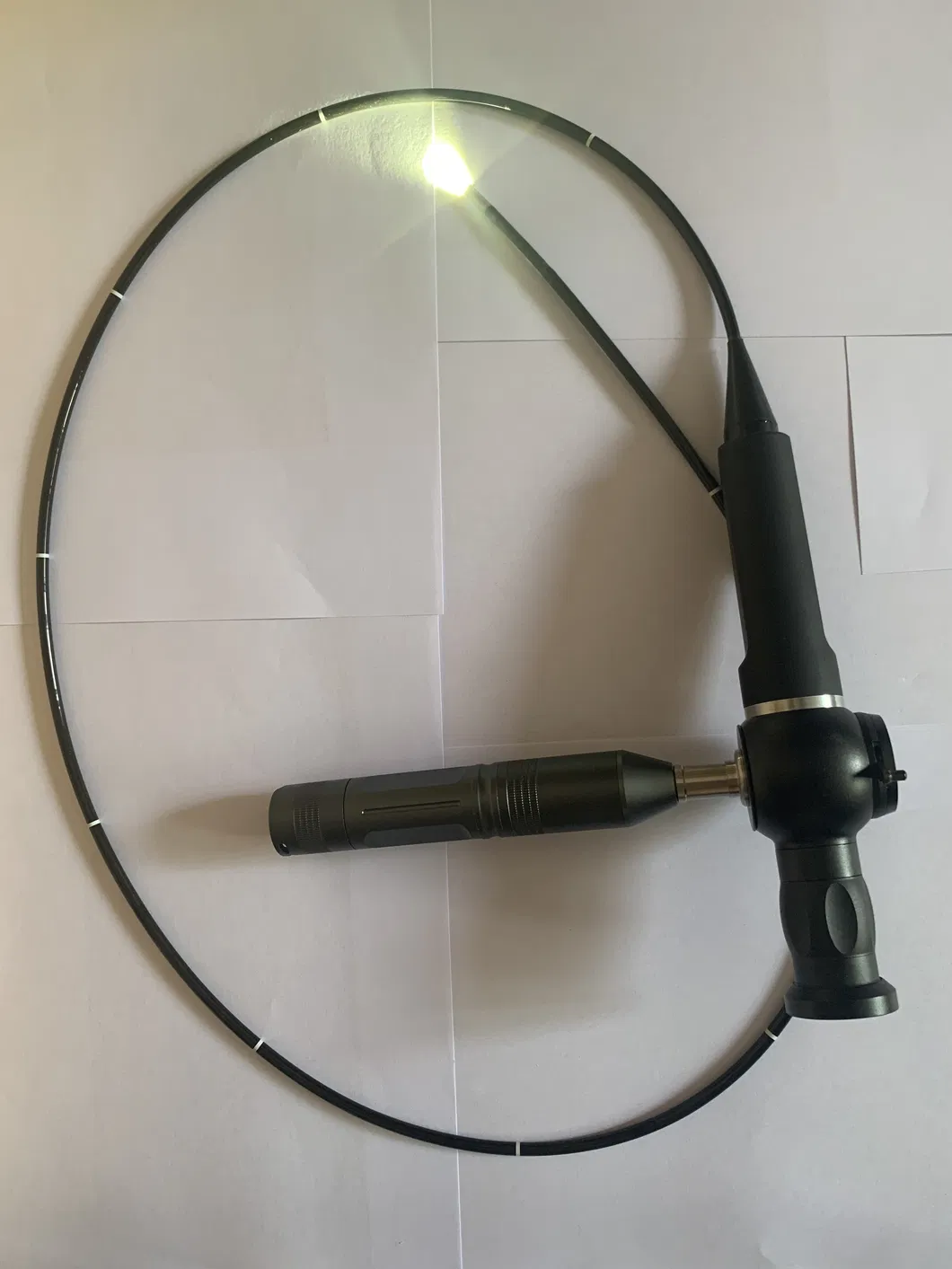

Hospital Flexible Fiberscope

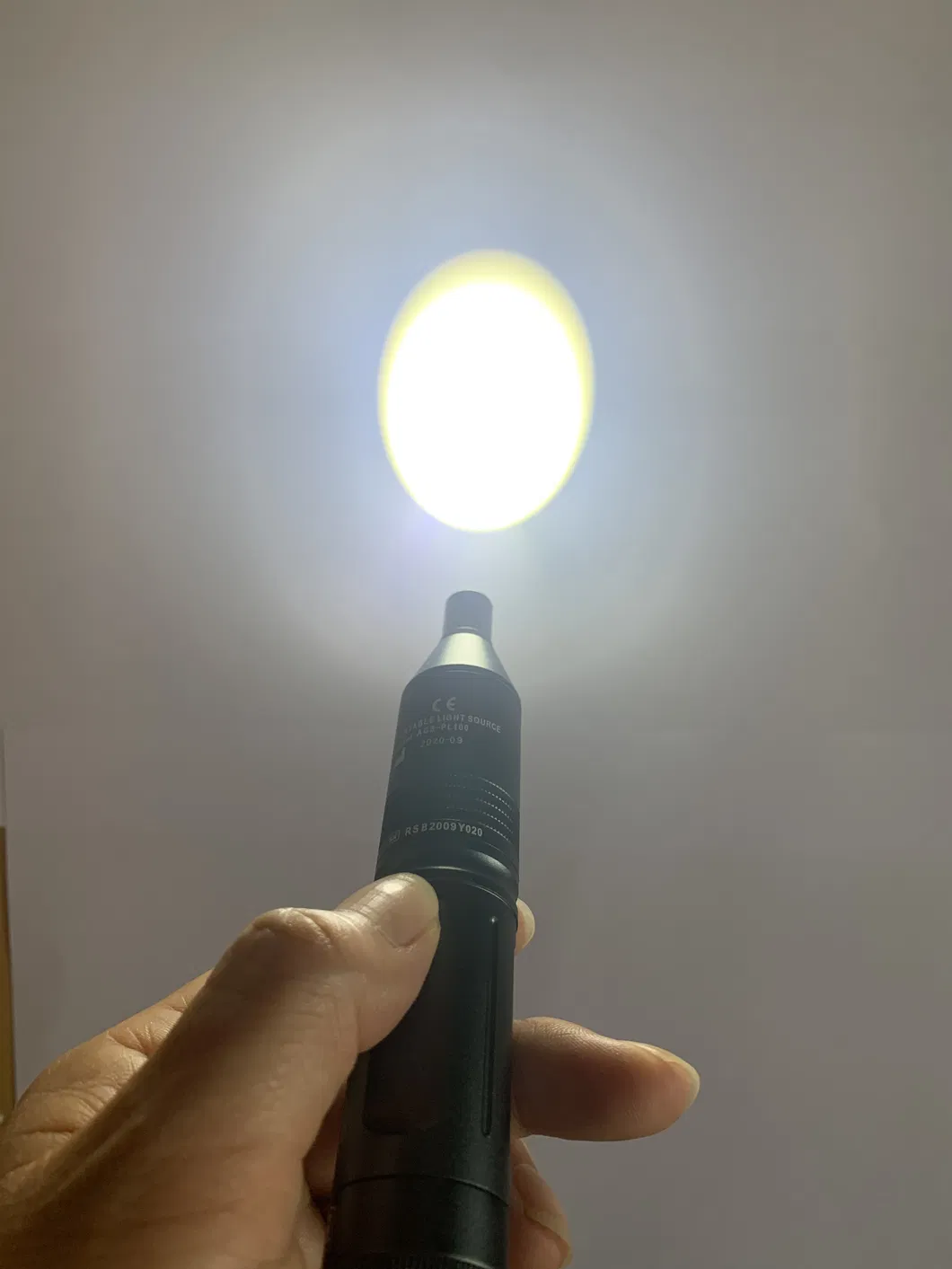

Flexible Endoscopy Battery
Technical Specifications
Tube 1. Camera diameter 4.0mm, working cable length: 1.0M
2. Working hose surface material is nylon (polyamide) / stainless steel / tungsten braided, lens and hose waterproof, anti-oil; resistant to weak acid, weak base
Probe camera lens 1. View field angle: ≥ 90°
2. Tip articulation: 2-way
3. DOF: 5.0mm -- 150mm
Lighting Hose fiber optic light transmission inside, high brightness LED light source back lighting, portable integrated light source, adjustable brightness
Viewing terms Optical eyepiece observation
Temperature -20ºC ~ 70ºC
Battery ≥ 4 hours continuous use
⭐ Battery with Flash Light Feature

The integrated portable light source provides high-intensity illumination via fiber optic transmission, ensuring clear visualization during procedures.

Frequently Asked Questions
What is the diameter of the insertion tube?
The insertion tube has a precision diameter of 4.0mm, suitable for specialized ENT and medical examinations.
How long can the device operate on a single charge?
The device is equipped with a high-capacity battery that provides at least 4 hours of continuous operation.
Is the insertion tube waterproof?
Yes, the lens and hose are IP67 waterproof and resistant to oils, weak acids, and weak bases.
Does this fiberscope support articulation?
Yes, it features 2-way tip articulation for enhanced maneuverability and viewing angles.
What is the depth of field (focus range) for the lens?
The lens provides a clear depth of field ranging from 5.0mm to 150mm.
What material is used for the working cable?
The surface material can be configured with nylon (polyamide), stainless steel, or tungsten braided options for maximum durability.
