Arthroscope Rigid Endoscape, Stainless Steel Surgery Department Surgical Instruments

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.
NCM-70417
Feature
Reusable
Group
Adult
Application
Surgery, Diagnosis
Package
Standard Cartons
Specification
Steel
Capacity
300 Unit/Month

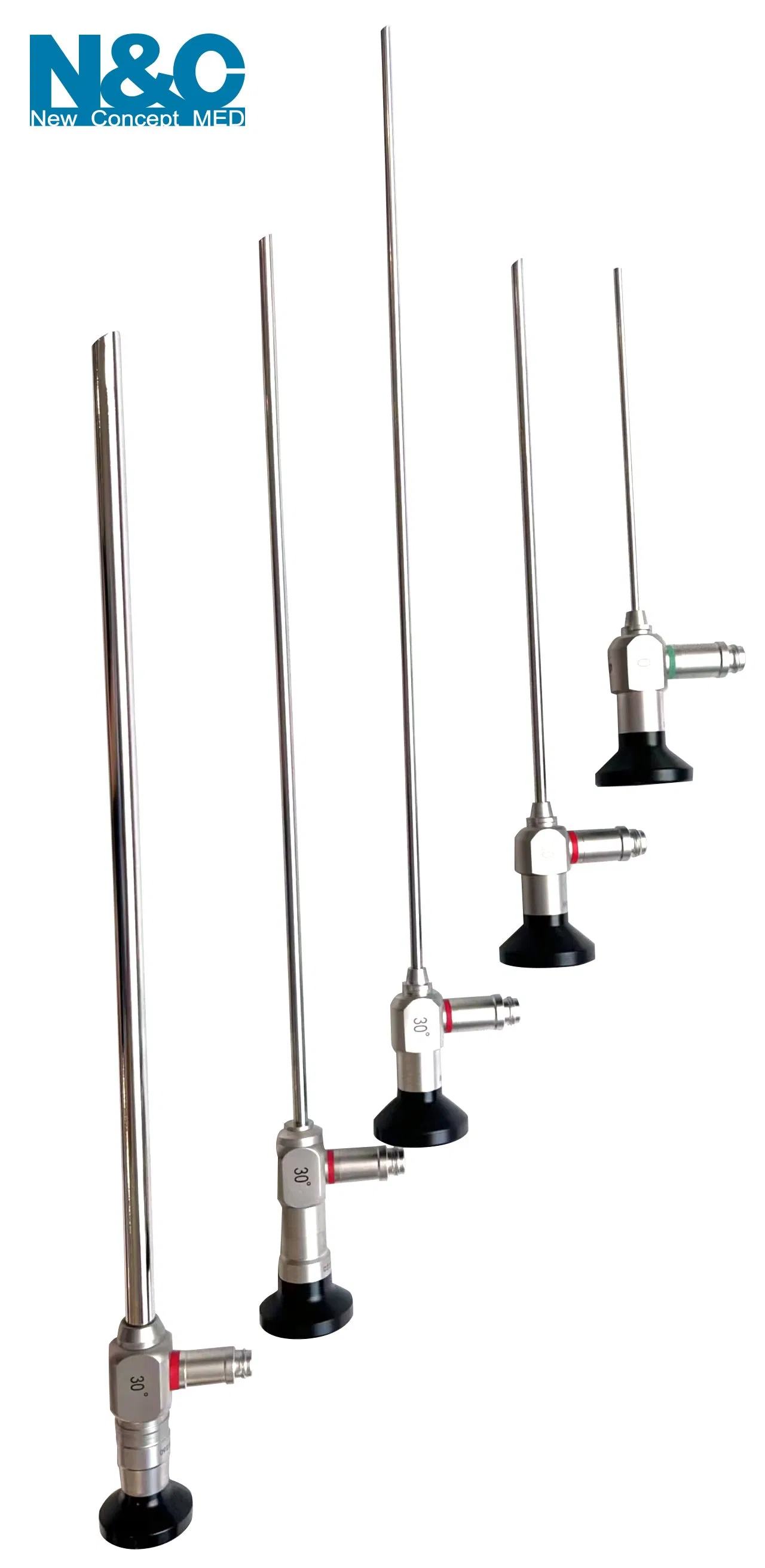

Arthroscope Specifications

Product name: Endoscope Arthroscope

NCM-70417 Arthroscope 0°, Ø4mm×175mm
NCM-73417 Arthroscope 30°, Ø4mm×175mm
NCM-77417 Arthroscope 70°, Ø4mm×175mm
NCM-70417G Arthroscope (Angle of field:90°) 0°, Ø4mm×175mm
NCM-70417CG Arthroscope (Angle of field:110°) 0°, Ø4mm×175mm
NCM-70317 Arthroscope 0°, Ø3mm×175mm
NCM-70217 Arthroscope 0°, Ø2.7mm×175mm
NCM-71417 Arthroscope 12°, Ø4mm×175mm
NCM-73417G Arthroscope (Angle of field:90°) 30°, Ø4mm×175mm
NCM-73417CG Arthroscope (Angle of field:110°) 30°, Ø4mm×175mm
NCM-73317 Arthroscope 30°, Ø3mm×175mm
NCM-73217 Arthroscope 30°, Ø2.7mm×175mm
NCM-73414 Arthroscope (Stryker connector) 30°, Ø4mm×140mm
NCM-74417G Arthroscope (Angle of field:90°) 45°, Ø4mm×175mm
NCM-74417 Arthroscope 45°, Ø4mm×175mm
NCM-77417G Arthroscope (Angle of field:90°) 70°, Ø4mm×175mm
NCM-77417CG Arthroscope (Angle of field:110°) 70°, Ø4mm×175mm
NCM-77317 Arthroscope 70°, Ø3mm×175mm
NCM-77217 Arthroscope 70°, Ø2.7mm×175mm
NCM-79417 Arthroscope 90°, Ø4mm×175mm
NCM-7A417 Arthroscope 110°, Ø4mm×175mm

Key Features

1
Adopted high quality stainless steel
2
Endoscopes adopt the German optic fiber
3
With direction index for precise operation
4
Sapphire lens cover, never abrasion
5
New optic system, clear field of view

When is arthroscopy used?

Bones, cartilage, ligaments, muscles, and tendons can all be damaged by disease and injury. To diagnose your condition, your doctor will take a thorough medical history, perform a physical examination and order imaging studies - usually x-rays. For some conditions, an additional imaging study - such as a magnetic resonance imaging (MRI) scan or a computerized tomography (CT) scan - may also be needed. After making a diagnosis, your doctor will determine the most appropriate treatment choice for your condition.

Arthroscope Rigid Endoscape

Frequently Asked Questions

What materials are used in the construction of this Arthroscope?
Our arthroscopes are constructed using high-quality stainless steel and feature a sapphire lens cover to prevent abrasion and ensure long-term durability.
What is the advantage of the German optic fiber used in these endoscopes?
The German optic fiber, combined with our new optical system, provides a significantly clearer field of view and superior light transmission for diagnostic and surgical procedures.
Can these arthroscopes be reused?
Yes, these are professional-grade reusable surgical instruments designed to withstand standard sterilization processes.
What viewing angles are available for the 4mm Arthroscope?
We offer a wide range of viewing angles including 0°, 12°, 30°, 45°, 70°, 90°, and 110° to accommodate different surgical requirements.
Is there a specific model for Stryker connectors?
Yes, model NCM-73414 is specifically designed with a Stryker connector, featuring a 30° viewing angle and Ø4mm×140mm dimensions.
What application scenarios are these instruments suitable for?
They are primarily used in surgery and diagnosis related to joints, including bones, cartilage, ligaments, and tendons.
