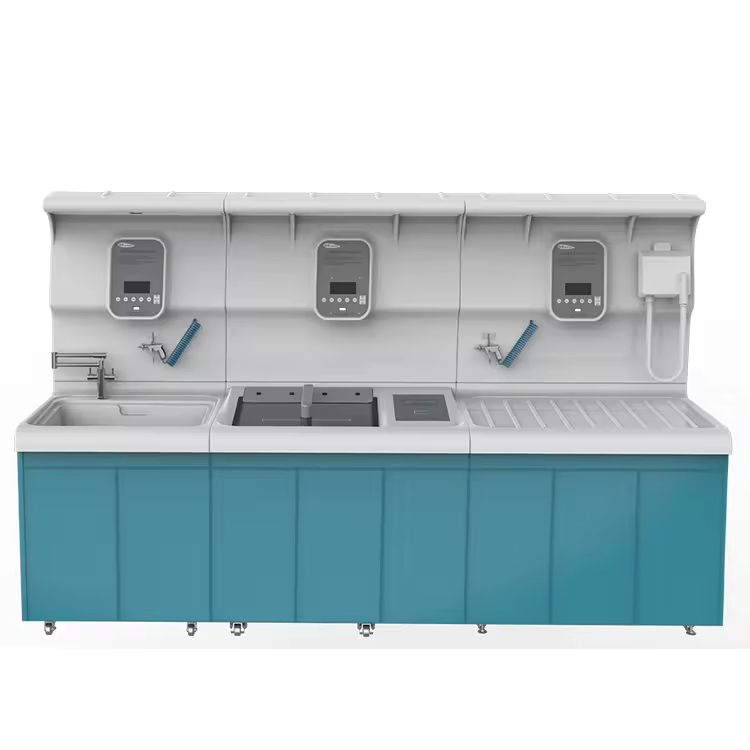

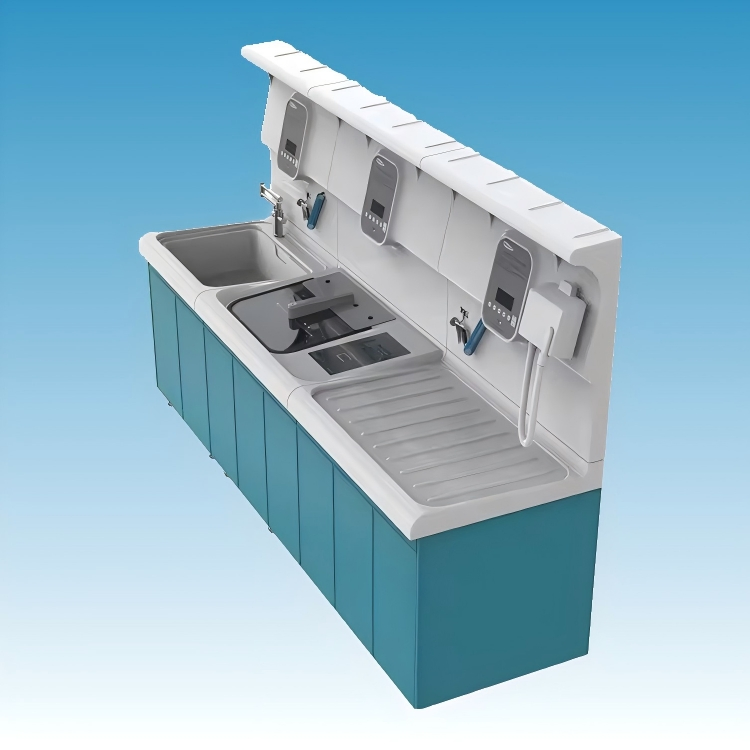

Advanced Endoscope Cleaning System for Superior Hygiene Control

Customization: Available
Theory: Autoclave
Type: Endoscope Washer

Product Description

i

Basic Specifications

Model NO.
SD-NX
Certification
CE, FDA, EEC, ISO13485
Electric Tension
220V
Alarm System
Ultra High Temperature Alarm
Material
PMMA
Classification
Class II
Power Supply
AC 380V, 50Hz
Display
LCD Screen
Working Pressure
4/5 Sinks
Color Options
Blue / White

Technical Parameters

Configuration "-" font/"L" font: 3*water gun; 3*air gun; 1*air compressor; 1*endoscope dryer; 5*automatic perfusion system; 1*side leakage device
"U" font: all devices*2
Water Requirements Tap water; pure water (bacteria per liter ≤10CFU)
Table Width 80 cm
Faucet 3-stage 360° freely rotatable
Drying Method 1. 95% alcohol perfusion; 2. Drying outside dryer; 3. Drying inside air gun
Filtering System High-efficiency filter device with an accuracy of 0.22um
Disinfection Time Bronchoscopy ≥20min; Gastroscopy/Colonoscopy ≥10min; Mycobacterium ≥45min; Ultrasonic cleaning 5-10min

System Features

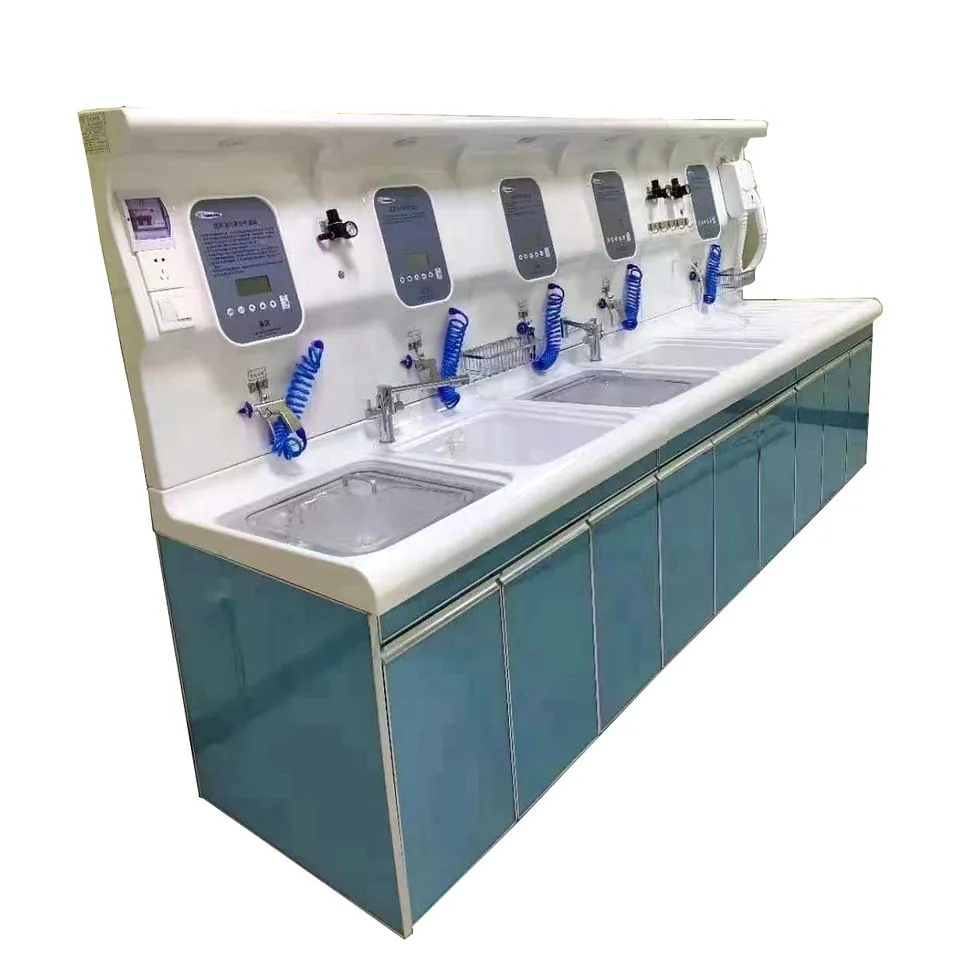

Cleaning System
  • Elegant design with 2 sinks per group, customizable assembly.
  • Sophisticated alcohol perfusion for meticulous cleansing and drying of slender pipes.
  • Microcomputer control system for flexible parameter adjustments.
  • Designed for large-scale cleaning to boost efficiency and reduce labor costs.

Cleaning Process: Initial wash/enzyme wash -- rinsing -- Immersion disinfection -- Last wash -- dry

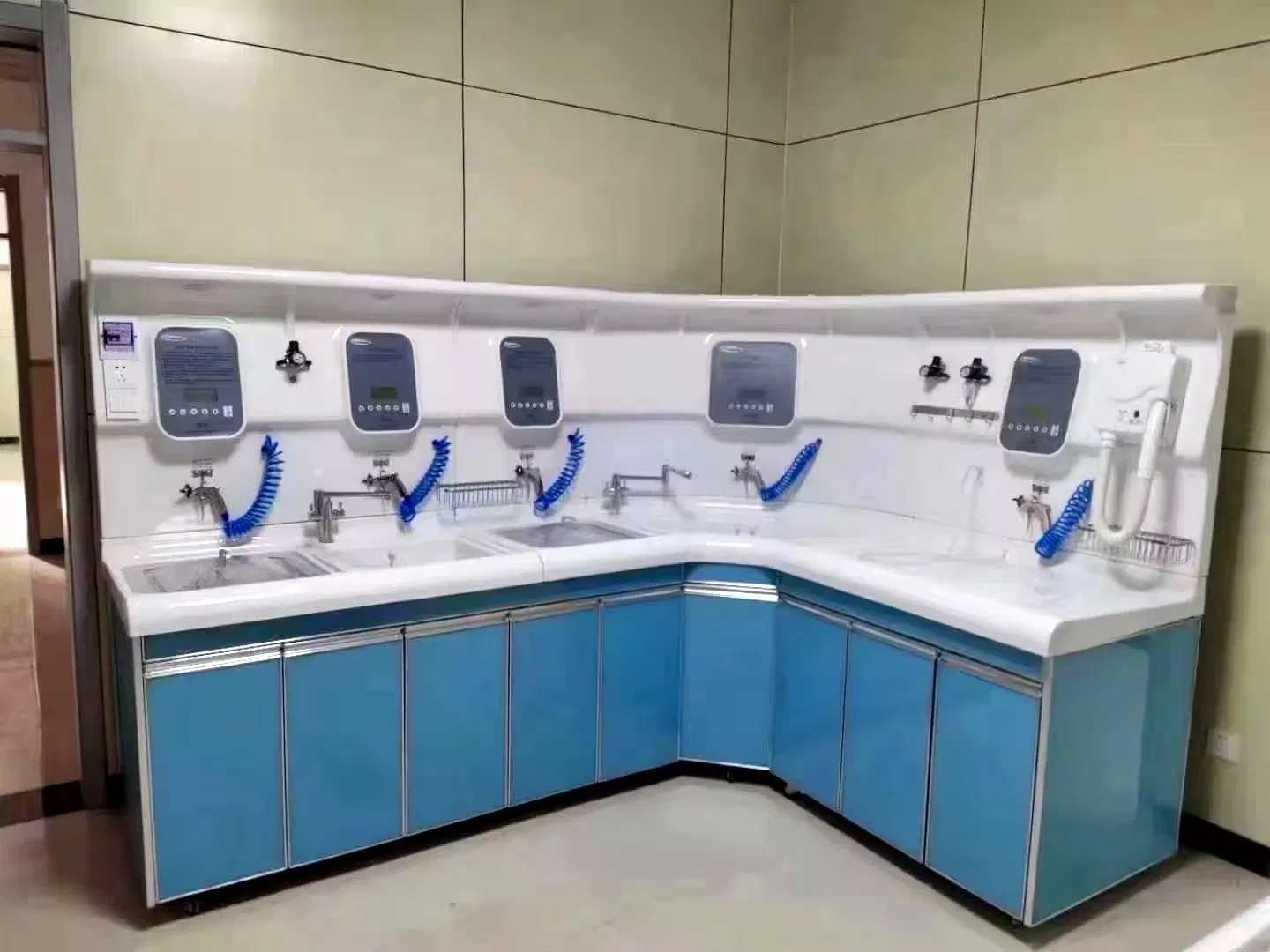

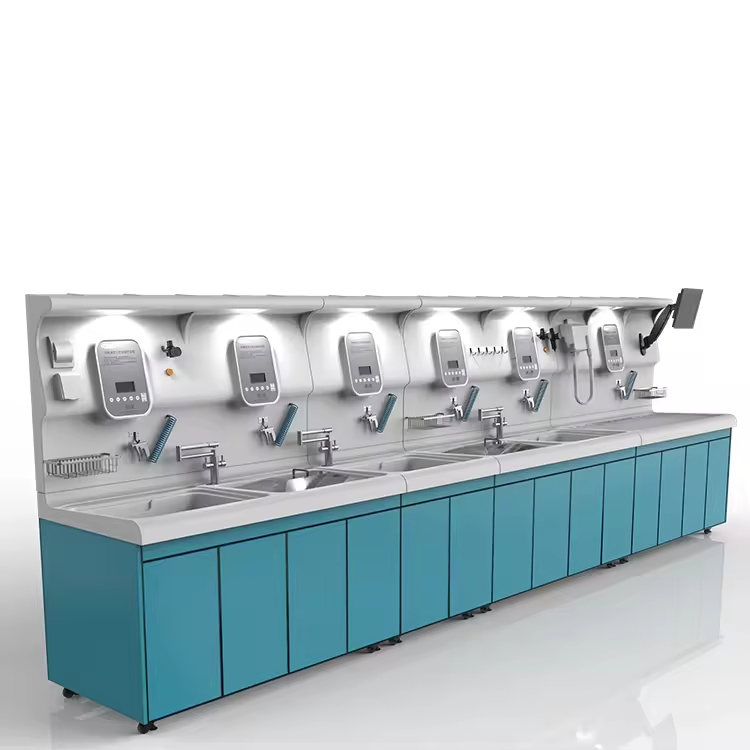

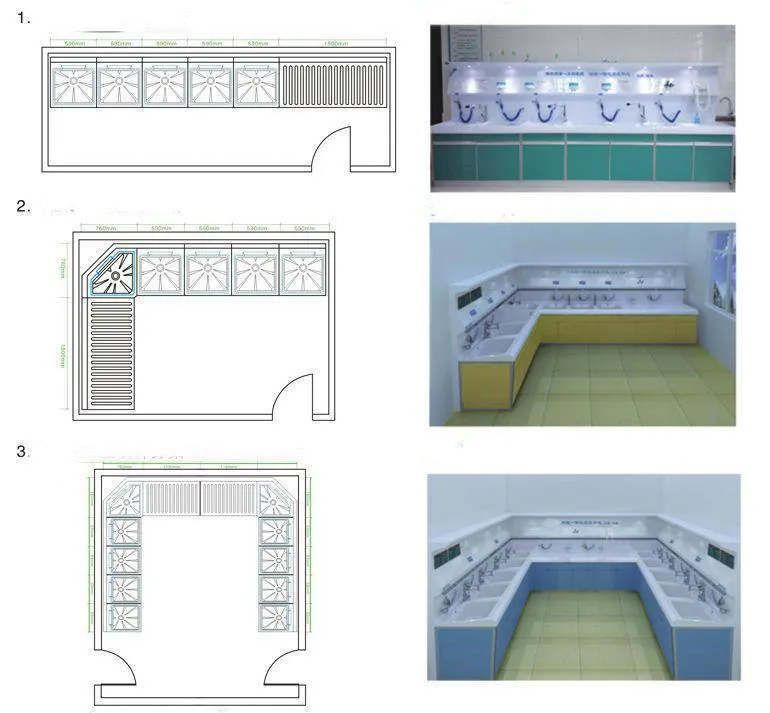

Design Plans: "--" shape; "L" shape; "U" shape

Colors: Elegant White or Soothing Light Blue

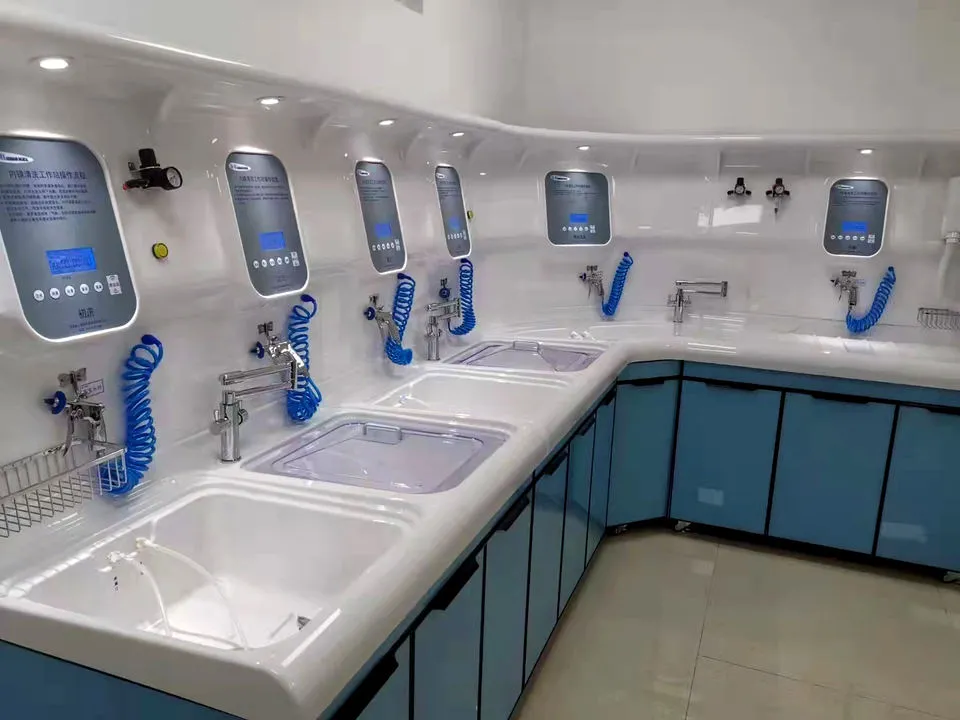

Cleaning Process
📷

Detailed View

Detailed View 1

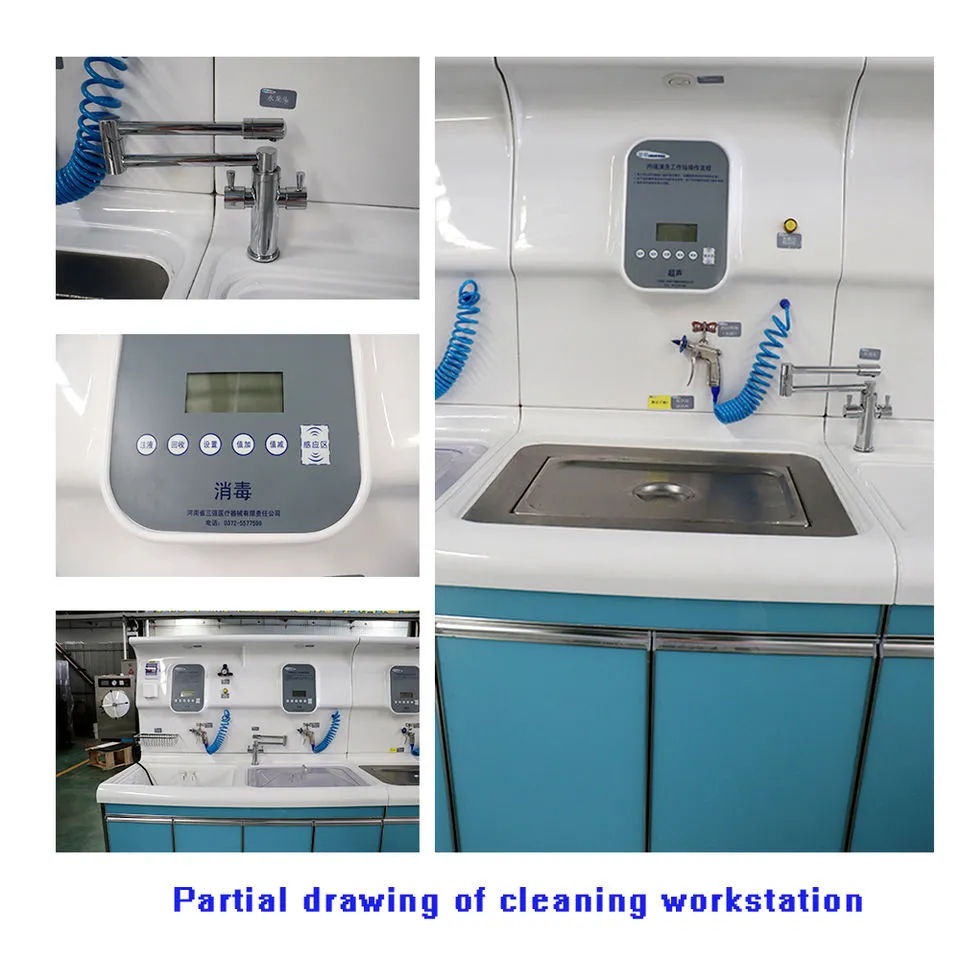

Detailed View 2

Application Areas

Ideal for use in operating rooms, outpatient clinics, and ICU departments. Provides fully automatic and efficient cleaning and disinfection for surgical instruments and various containers.

Application
🏢

Professional Manufacturer

Manufacturing

With over a decade of experience since 2012, we are dedicated to delivering comprehensive services in medical sterilization. We have served more than 1000 hospitals, clinics, research institutions, and universities globally. Our products ensure the utmost safety and quality, supported by a robust technical R&D team and prompt service.

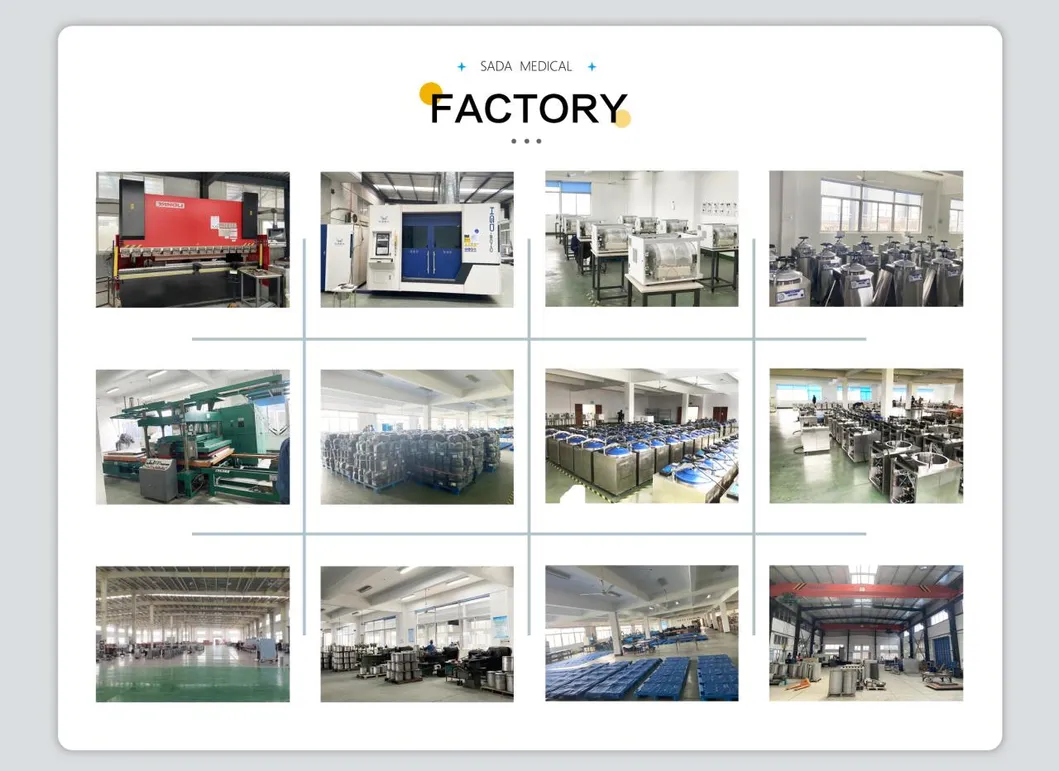

Production 1
Production 2
Production 3
Production 4
Production 5
Production 6
?

Frequently Asked Questions

1. What is the warranty for these products?
We offer a 2-year warranty and provide lifetime technical service.
2. How is after-sales service handled?
We provide technical support via operating manuals and videos. Our engineers respond promptly to email or phone inquiries. Hardware parts under warranty are replaced free of charge.
3. What are the delivery methods and times?
We ship via express (7-10 days), air freight (3-10 days), or sea (10-45 days depending on port).
4. Is customization available?
Yes, we can customize parameters such as control panels and voltage requirements.
5. What is the standard lead time for production?
Portable types: 5-10 days; Table-top/Vertical: 10-25 days; Large-scale stations: 30-35 days.
6. How is an order placed?
We provide a Proforma Invoice for confirmation, and production begins immediately following payment arrangement.
