Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	ECG

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

K-EB12

Certification

CE, FDA, EEC, MSDS, ISO13485

Display Mode

10.2 Inches Color Touch-Screen

Lithium Battery

About 4 Hours

Storage Capacity

500 ECG Reports

Working Mode

Manual/Auto/Arrhythmia Analysis

Sensitive Filters

Ads, Hum, and Emg.

Paper Spec

Roll 215mm*20m

External Support

SD Card, USB Disk

Properties

Diagnosis & Injection

Product Description

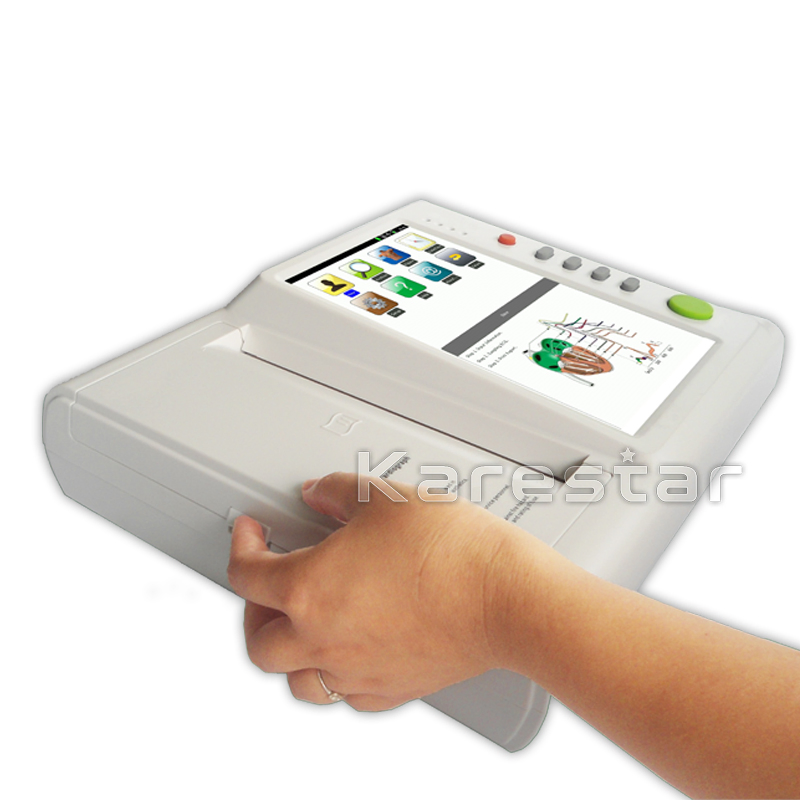

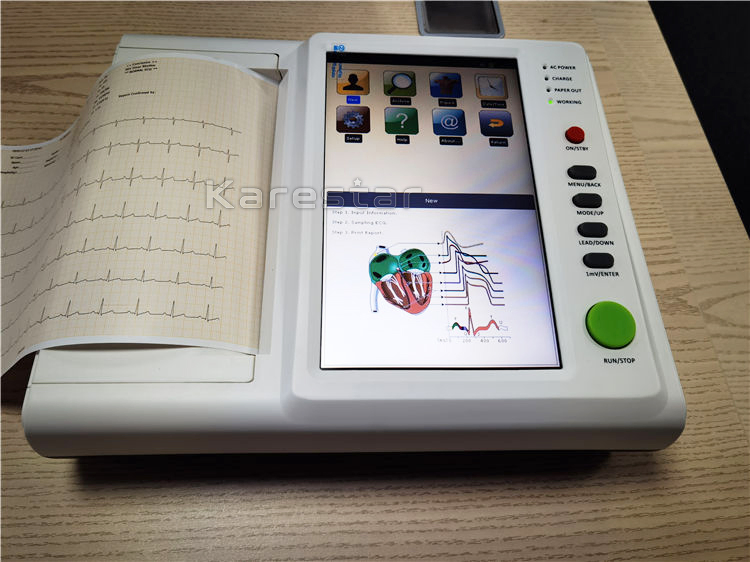

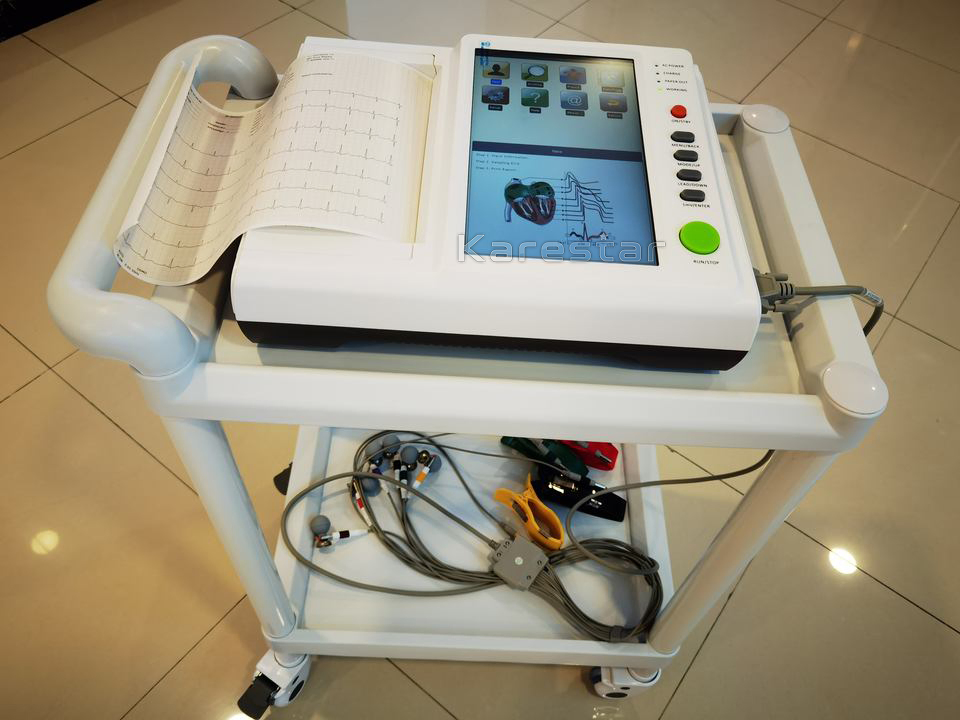

12 Channel ECG K-EB12 Touch Screen Veterinary Handheld ECG Device

ECG Device Overview

Standard 12 leads for precise monitoring

10.2 inch high resolution color touch screen

Massive storage: over 500 ECG reports

Built-in rechargeable Li-ion battery

Full interface support: SD card and USB disk

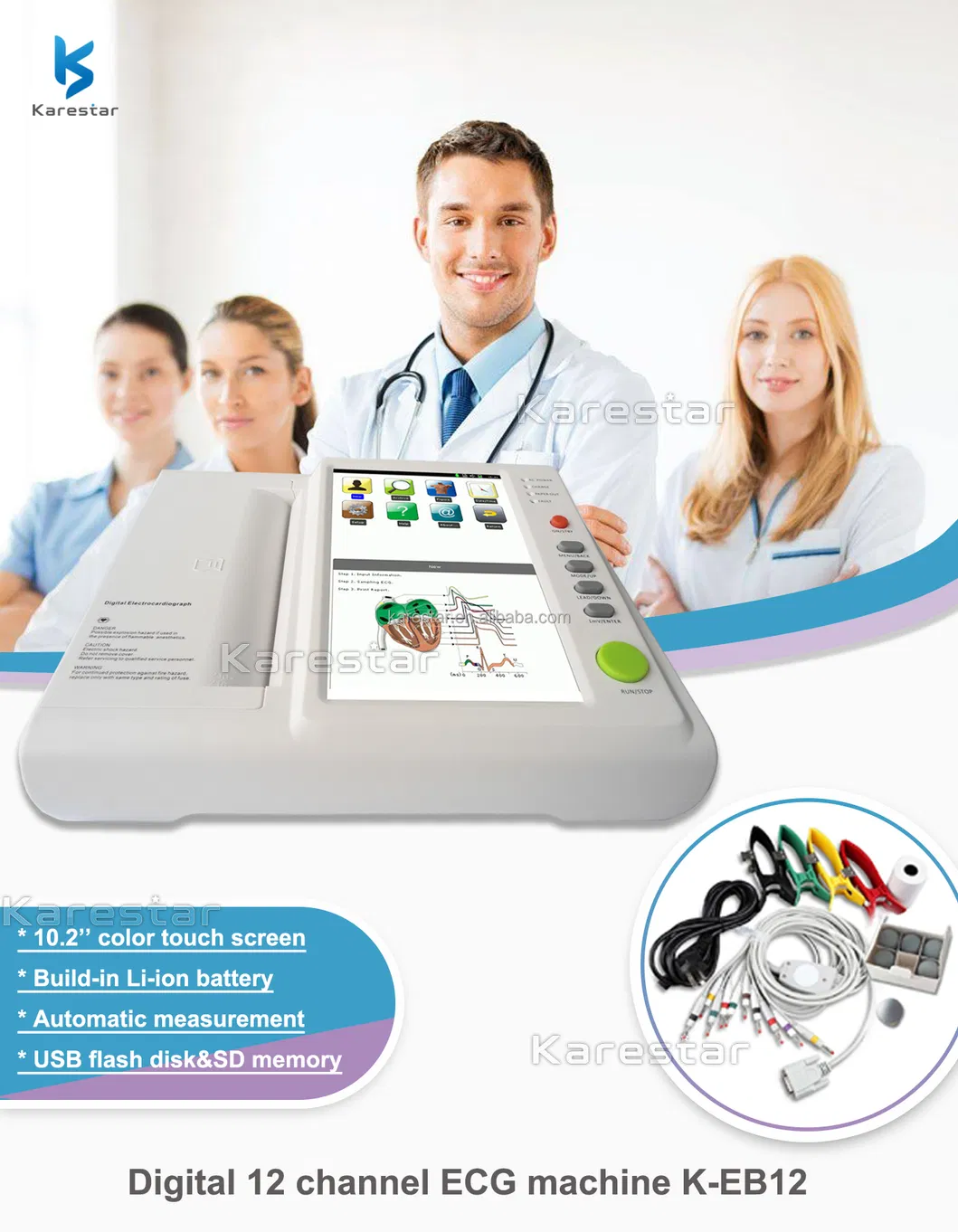

Product Layout

Standard Configuration	Qty	Optional Configuration
Main Machine	1 PC	Thermal Paper
Patient Cable	1 PC	Trolley
Limb Electrode	1 set (4pcs)	PC Accessories
Chest Electrode	1 set (6pcs)	ECG Bag
Power Cable	1 PC	-

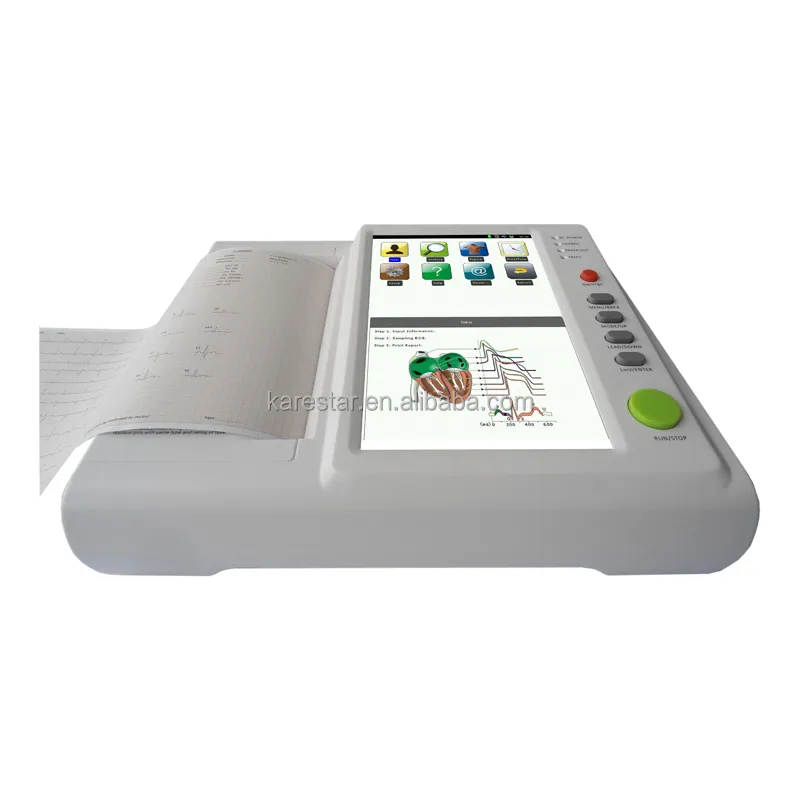

ECG Angle 1

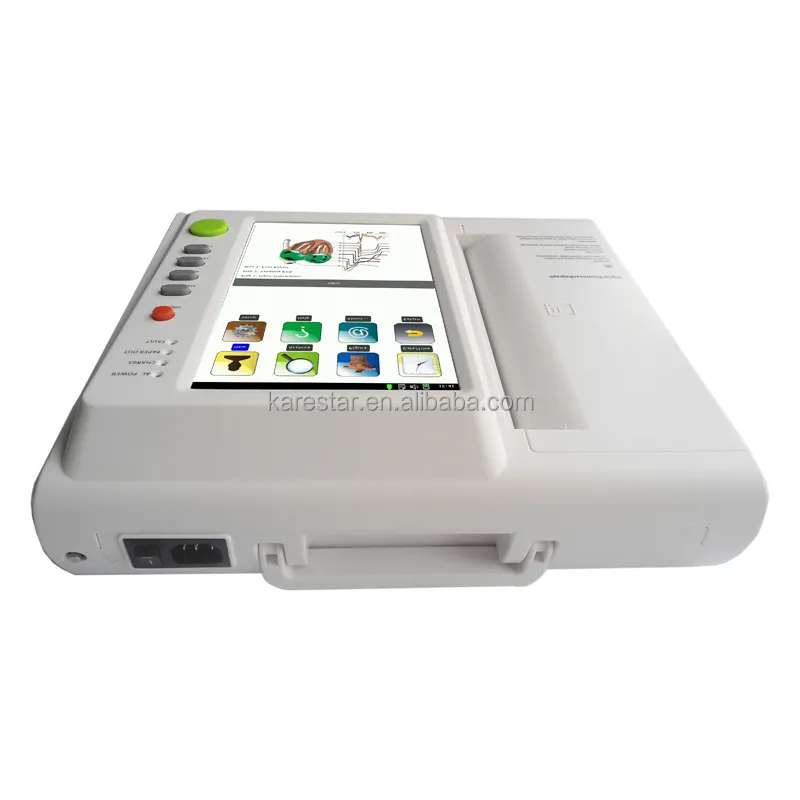

ECG Angle 2

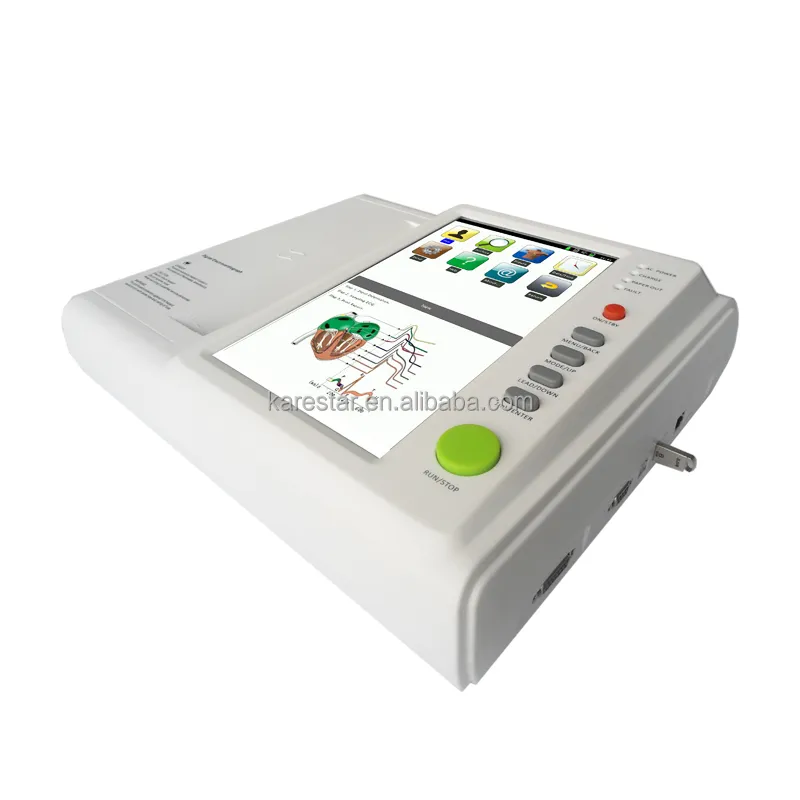

ECG Angle 3

Technical Specifications

CMRR	≥ 100dB, with AC Filter	Calibrating voltage	1mV± 3%
Input circuit	Floating	Voltage tolerance	± 500mV
Resolution	12bit/1000Hz	Frequent response	0.05Hz~150Hz
Noise level	≤ 15µ Vp-p	Paper speed	12.5, 25, 50mm/s
Input Impedance	> 50MΩ	Sensitivity	5, 10, 20mm/mV

Feature Highlights

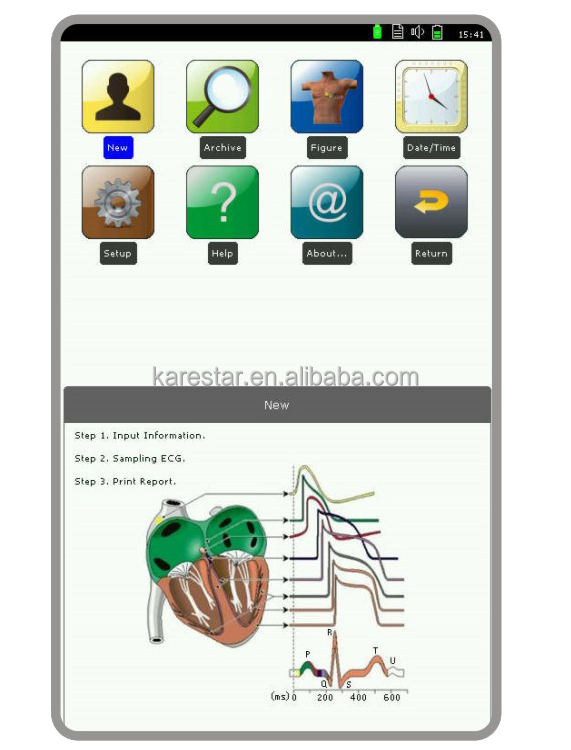

Touch Mode

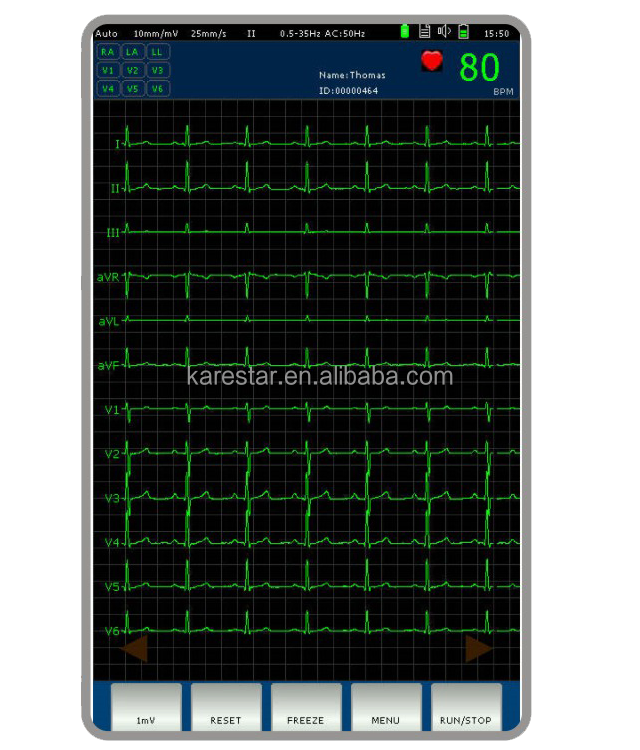

One Key Operation

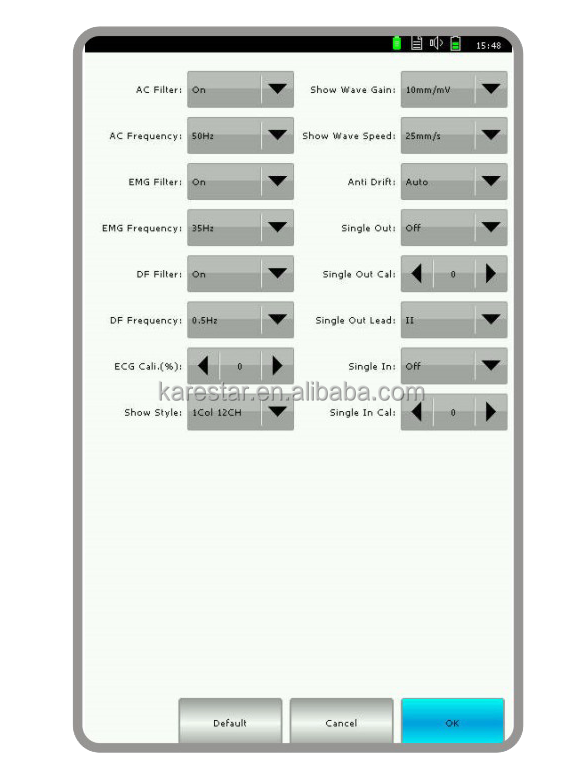

Convenient Setting

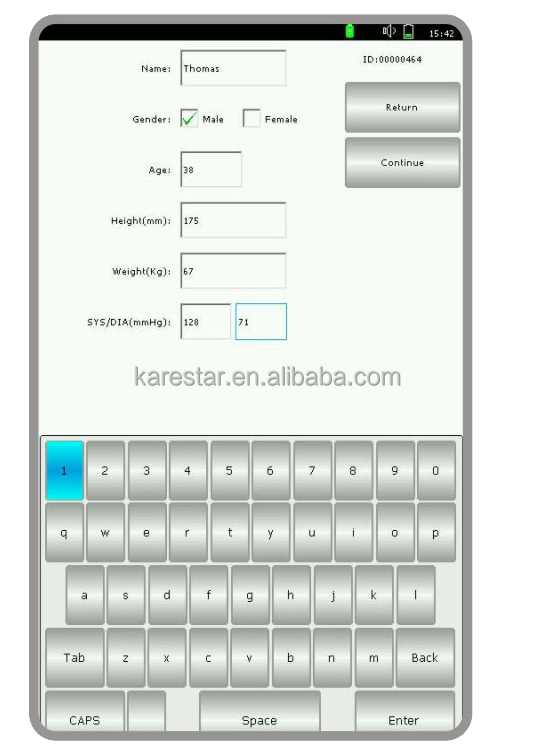

Quick Input

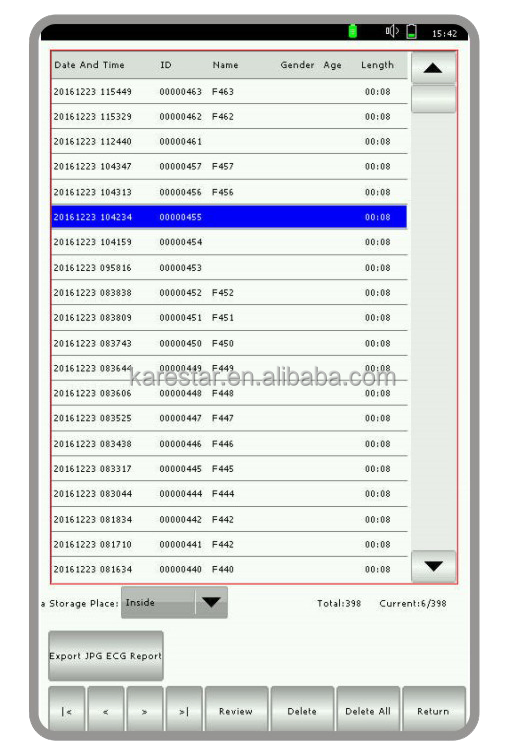

Unlimited Storage

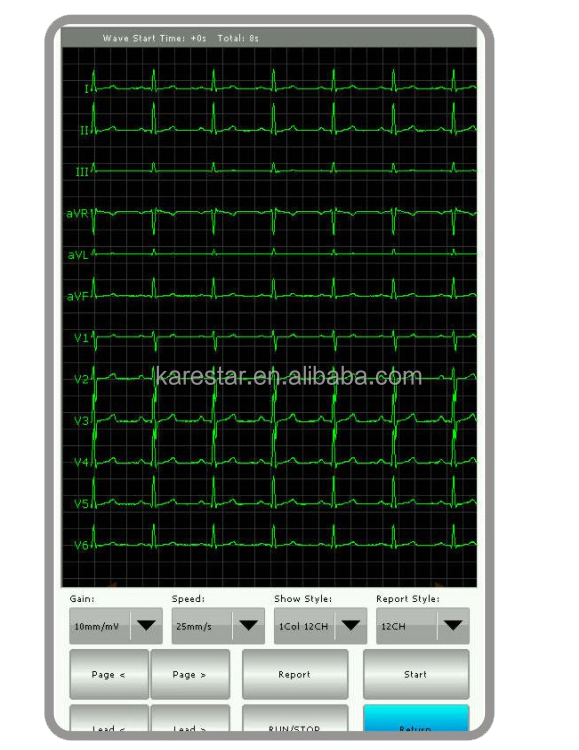

Simple Review

Other Information

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a factory with over 7 years of specialized manufacturing experience in medical devices.

What is the Minimum Order Quantity (MOQ)?

The MOQ is 1 Set. Samples can be provided for evaluation purposes.

How long is the delivery time?

Usually 3-30 days after the order is confirmed, depending on the specific items and quantity ordered.

Can you provide OEM or private labeling?

Yes, we offer complete OEM services, including private logos and labels, supported by our R&D team.

What are your terms of payment?

We accept various payment methods including T/T, Trade Assurance orders, L/C, Western Union, and PayPal.

How do you handle product faults or warranty claims?

Our products are produced under strict quality control. If a fault occurs within the warranty period, we provide new spare parts free of charge.
