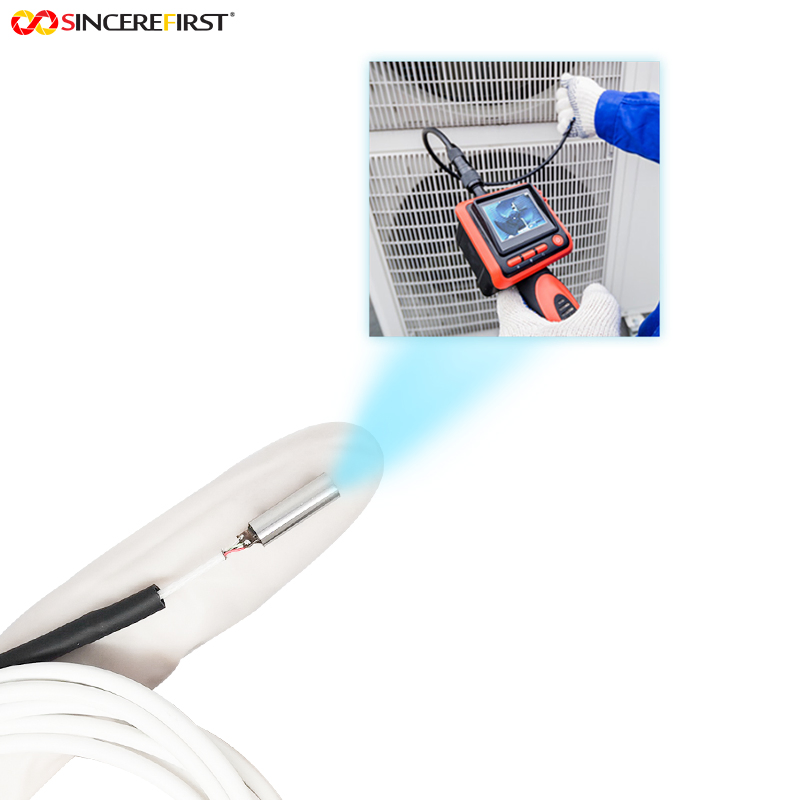

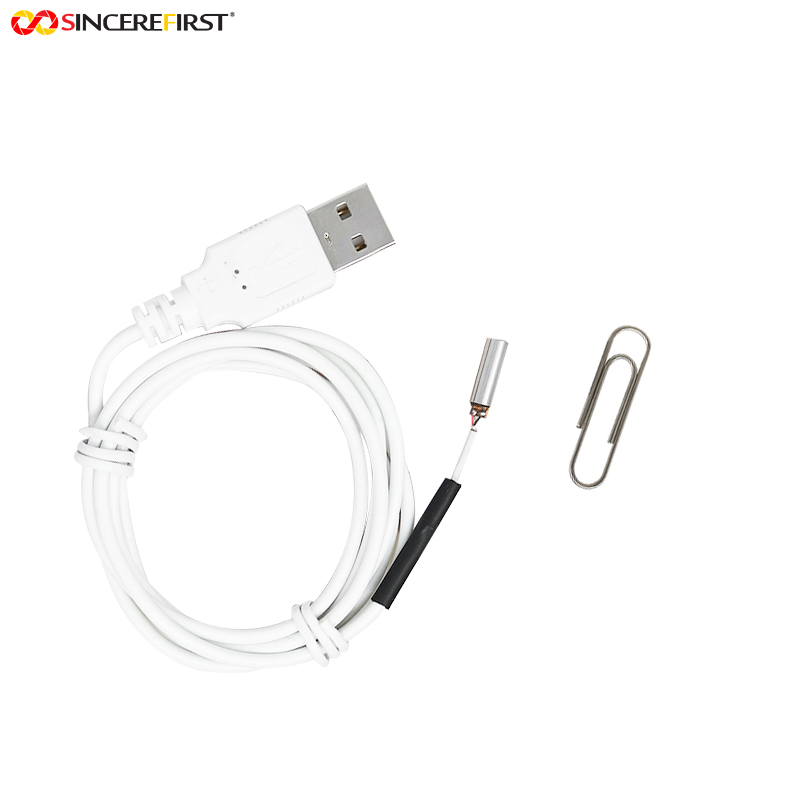

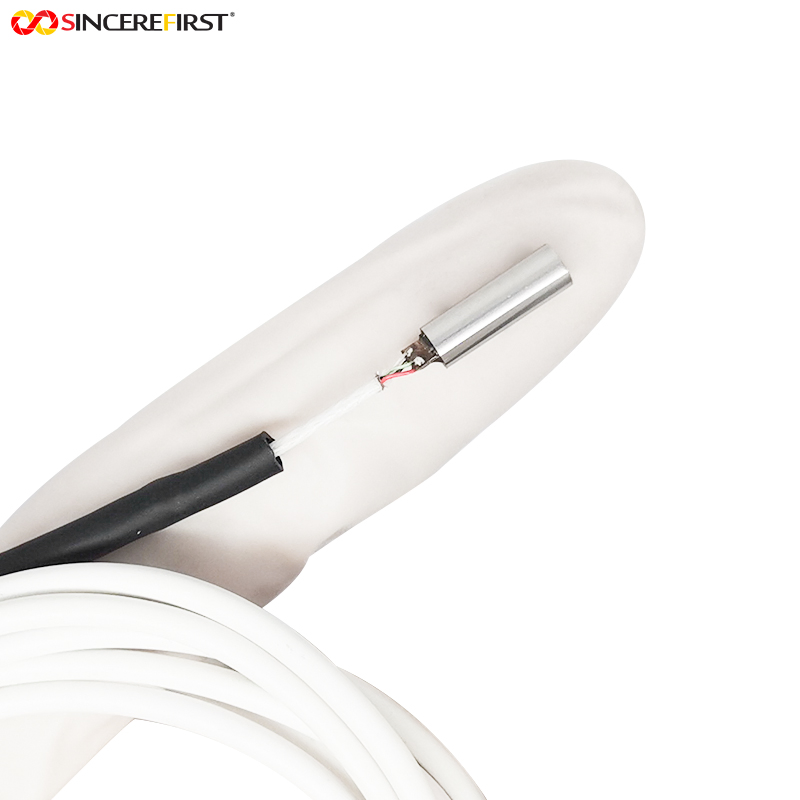

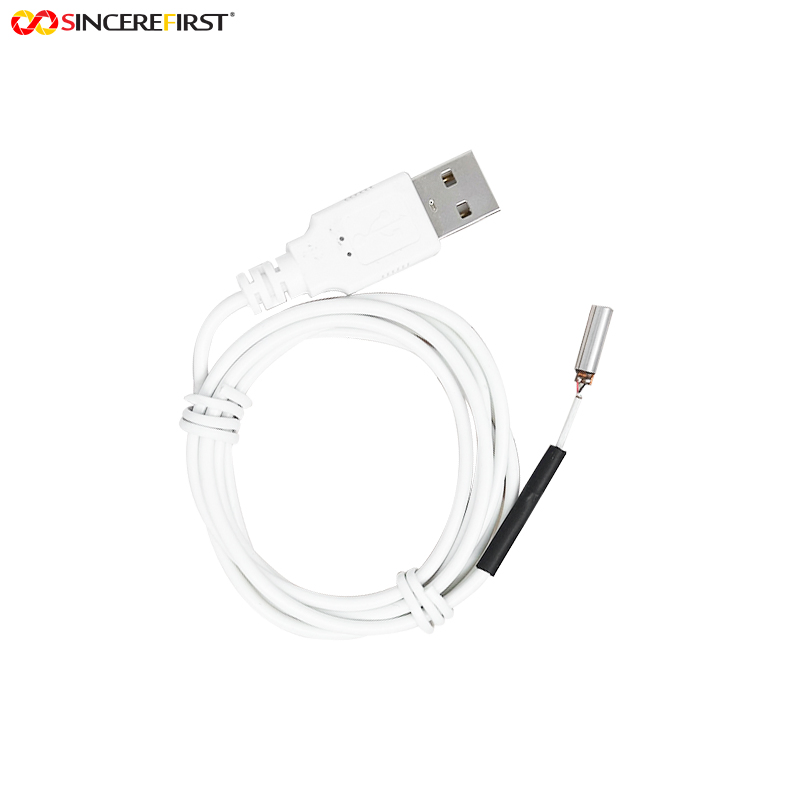

USB 2.0 1MP Endoscope Camera Module Ov9734 3.9mm for Gastrointestinal Endoscopy Training

Customization:	Available
Technology:	USB
Style:	Mini Camera

i

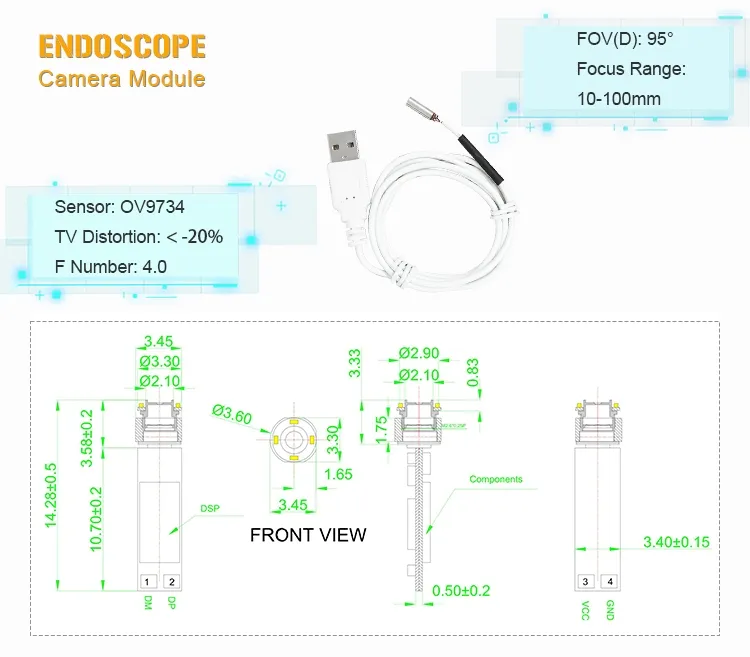

Basic Specifications

Model NO.	SF-C1019USB-D3.9-ALL-D95
Type	Endoscope Camera Module
Sensor	CMOS OV9734
Pixel	1MP (1280 x 720)
Diameter	3.9mm
Effective Distance	10mm-40mm

Output	USB 2.0 (Standard UVC)
Field of View	95°
LED	Integrated 0121 LED
Focal Length	1.25mm
Certification	CE, FCC, RoHS, ISO9001
Applications	Medical Beauty, Industrial Testing

★

Product Description

Overview: The OV9734 is a 1/3-inch CMOS image sensor with a 1.75-micron pixel size. It features an on-chip 10-bit ADC and supports up to 1080p resolution at 60 frames per second. This endoscope camera module provides high-quality imaging capability for medical and industrial applications in a compact form factor.

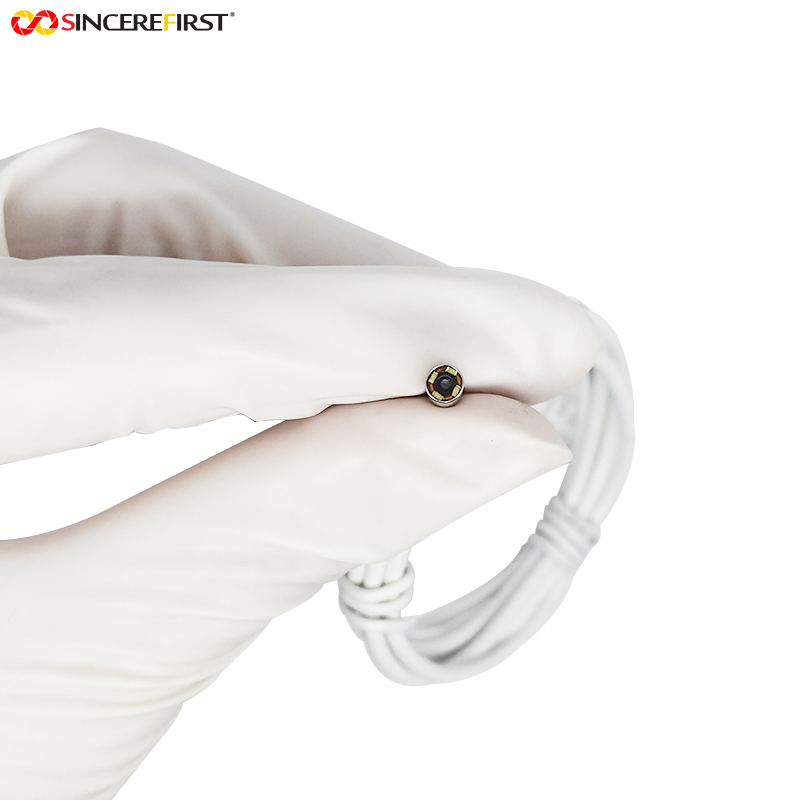

Small Size: 3.9mm diameter, ideal for minimally invasive medical applications.
High Resolution: 1280 x 720 pixels for clear and sharp imagery.
Low Light Sensitivity: Captures images in dark areas like the digestive tract.
Flexible Cable: Allows easy maneuverability in hard-to-reach areas.
Waterproof: Suitable for wet environments and clinical systems.

⚙

Capabilities & Advantages

We leverage decades of industry experience to deliver customized solutions for machine vision, medical inspection, iris recognition, and smart home systems. Our facilities include Class 100 dust-free COB automatic production workshops.

◎

Applications

🏢

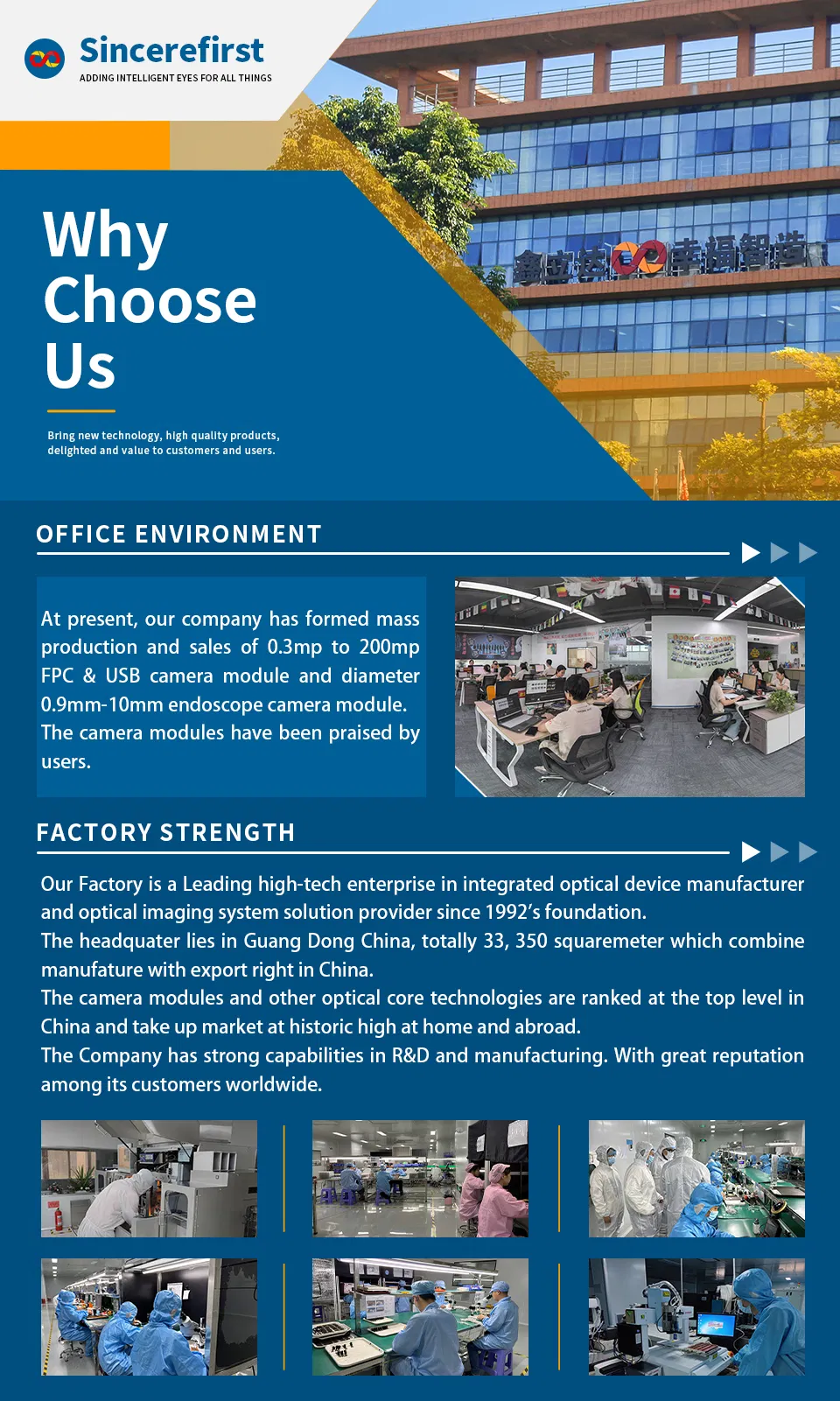

About the Manufacturer

As a leading high-tech enterprise, the manufacturer specializes in R&D, manufacturing, and sales of integrated optical devices. With over 30 years of experience in machine vision camera modules, the products are distributed to more than 200 countries.

Facilities include 33,350 square meters of factory space with a monthly production capacity of 3 million units, utilizing Active Alignment (AA) manufacturing processes and professional certifications like ISO, ROHS, REACH, CE, and FCC.

📋

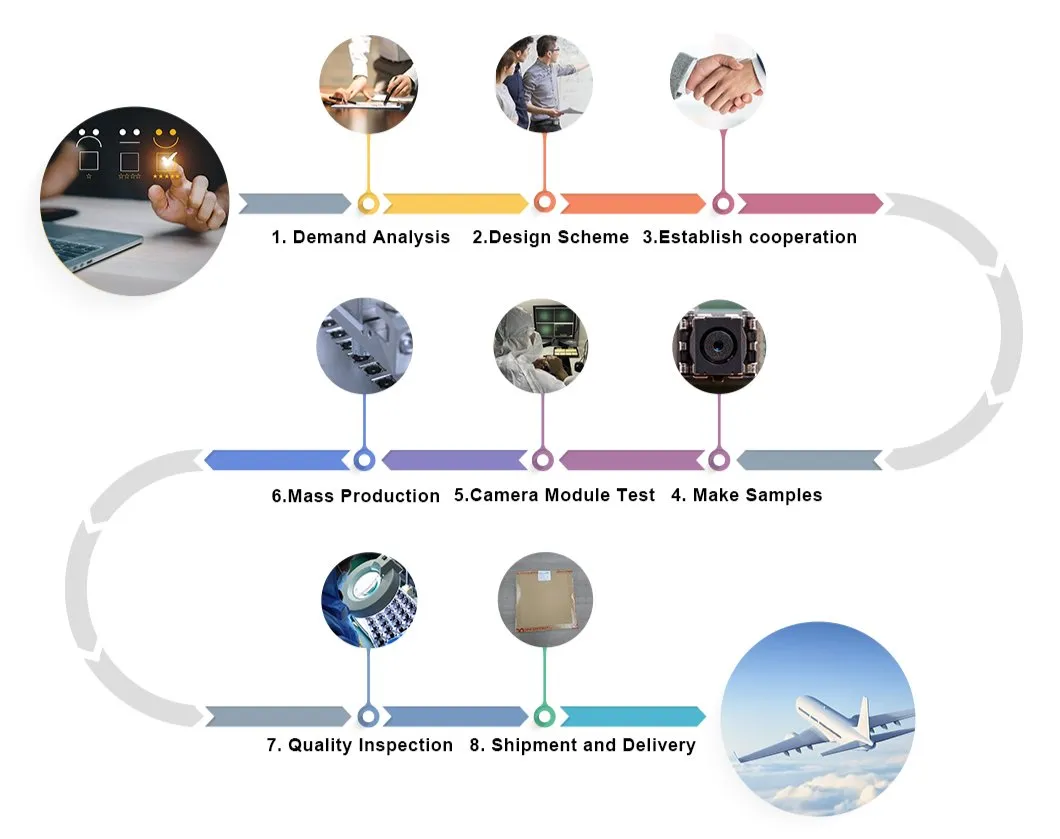

Order Process

Demand Analysis & Communication
Design Solution & Module Drawings
Sample Development & Proofing
Customer Testing & Feedback
Datasheet Confirmation
Mass Production & Quality Inspection
Shipment & Delivery

📦

Packaging & Shipping

?

Frequently Asked Questions

Q1: Are you a factory or a trade company?

We are a factory with our own production lines and Class 10 dust-free workshops, staffed by professionally trained production workers.

Q2: What can be customized on the camera module?

We can customize FPC length, module shape, head size, lens holder, imaging direction, pinout, connector, VCM, lens, and Firmware.

Q3: How long does it take to develop a new camera module?

Typically, the development process takes around 7–10 days from the start date.

Q4: What operating systems are supported?

Our camera modules support Windows, Mac-iOS, Android, and various self-developed software platforms.

Q5: Which development platforms are compatible?

We support Arduino, ESP32, Raspberry Pi, NVIDIA, Ambarella, Rockchip (RK), MediaTek (MTK), Qualcomm, and ATI.

Q6: What is the customization flow?

The process includes providing drawings/samples, detailed communication to determine needs, sample development, and rigorous testing on your specific application before mass production.
