New Arrival Touch Screen Veterinary Instruments Animals Monitoring System

1 / 5

New Arrival Touch Screen Veterinary Instruments Animals Monitoring System

Type:	Operation Apparatus
Syringe:	N
Blood Sampling Needle:	N

Send Inquiry

Product Description

Basic Information

Model NO.

CCV-M14P

Breathing Pattern

Warranty

1 Year

Display

14" Touch Screen

Standard

ECG, SpO2, NIBP, Resp, Temp, PR

Origin

China

Capacity

1000 units/Month

Product Description

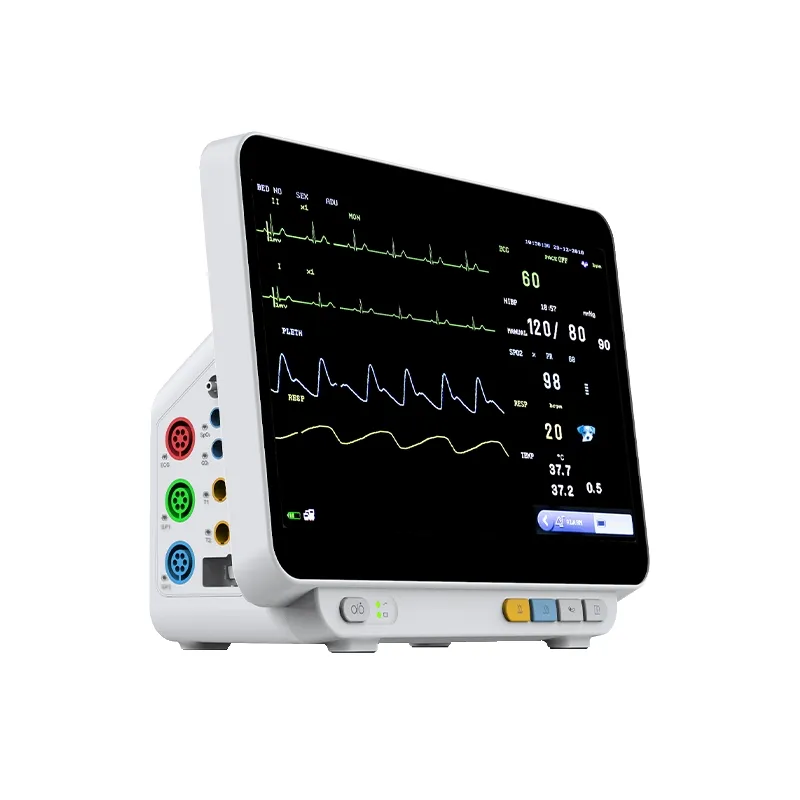

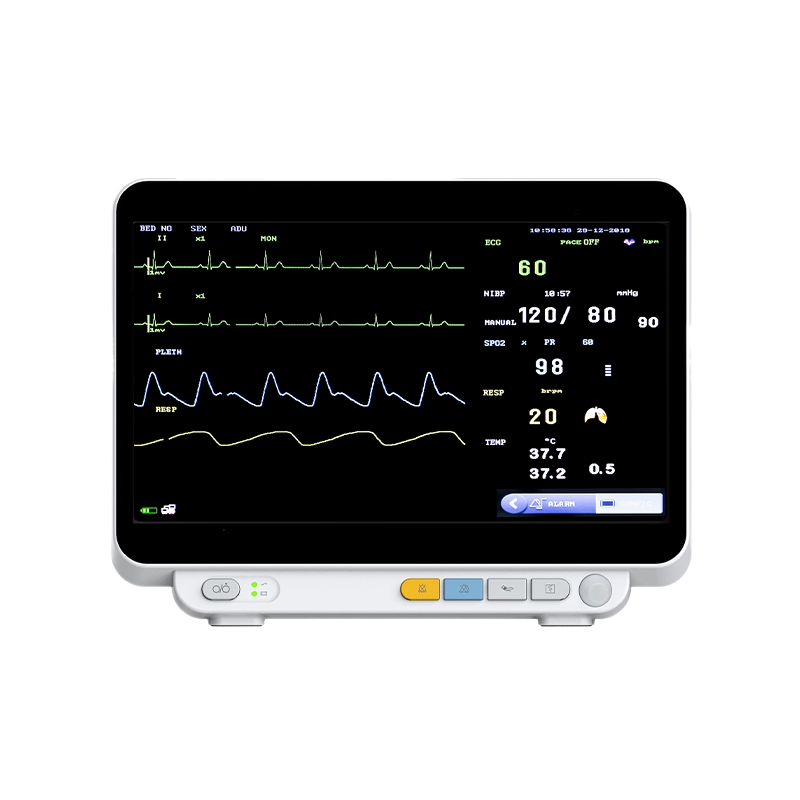

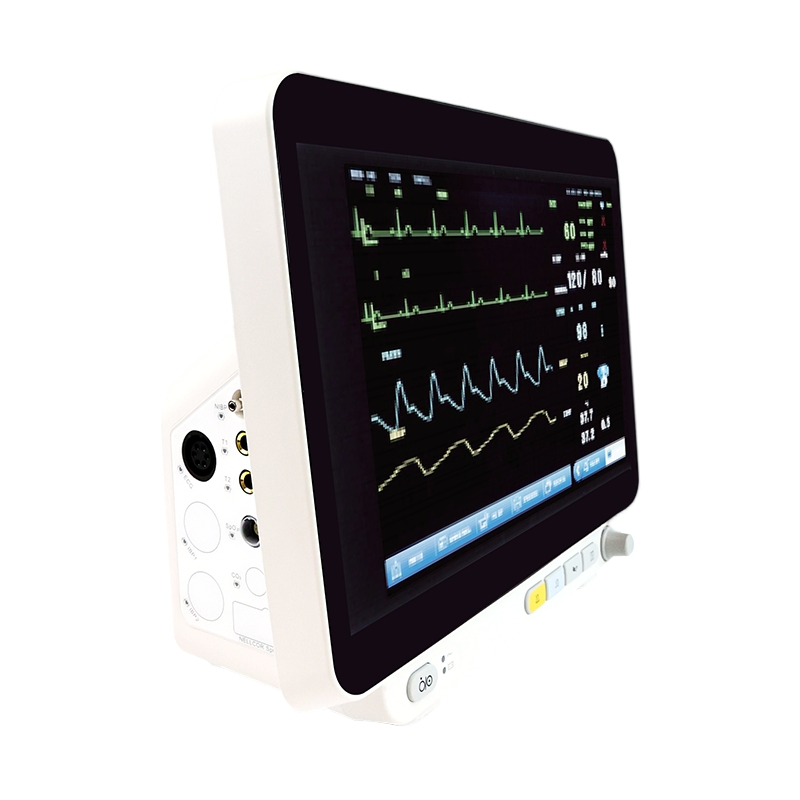

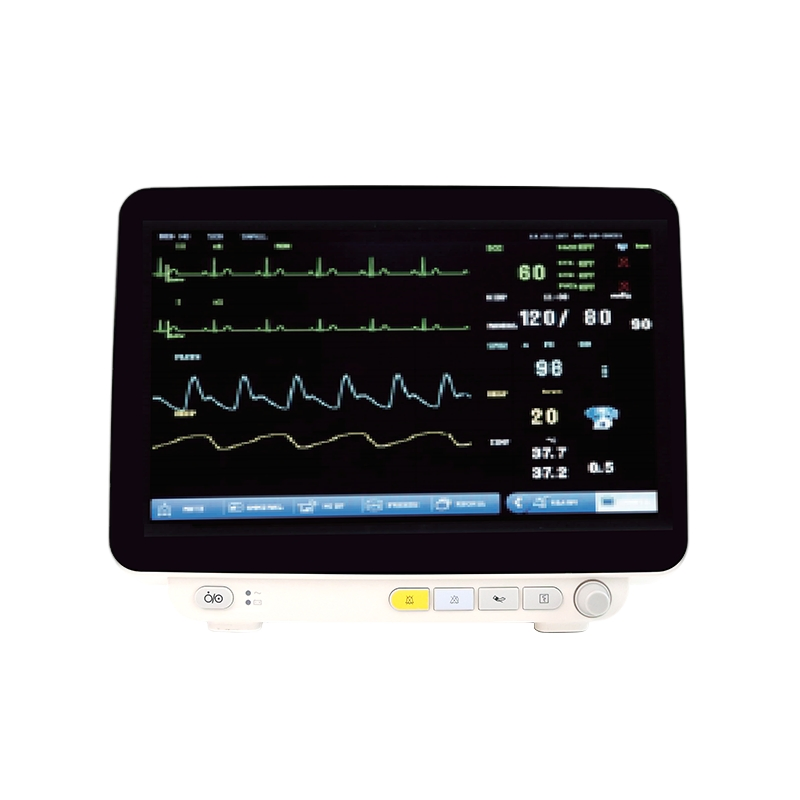

Medical Veterinary Multi-parameter Vital Signs Patient Monitor

The CCV-M14P is a high-performance animal monitoring system featuring a 14" wide color display. It allows for simultaneous observation of vital signs in distinct colors, facilitating easy monitoring during clinical procedures. With its adjustable alarms and user-friendly interface, it is designed for maximum efficiency in veterinary practices.

Veterinary Instruments Animals Monitoring System

◈ 14-inch color TFT touch screen with multi-language operation.
◈ Multiple interfaces: Standard, Respiratory Oxygenation, Trend Coexistence, and Large Character.
◈ Simulated blood oxygen technology: Anti-motion and anti-ambient light interference.
◈ Built-in rechargeable lithium battery for uninterrupted monitoring.
◈ 170° large viewing angle HD display.
◈ Advanced algorithms designed specifically for animal blood flow characteristics.

Technical Specifications

Parameter	Specification Details
Display	14'' Color TFT Touch screen
ECG	3/5-lead input, HR range 10~400 bpm, ARR & ST analysis
NIBP	Manual/Auto/Sequence modes; Specialized for Small/Medium/Big animals
SpO2	Range 0~100%, advanced anti-interference technology
Battery	2200mAh Rechargeable lithium, Operating time ≥ 240 mins
CO2 (Optional)	Mainstream/Sidestream measurement for ventilated animals

Comprehensive Veterinary Solutions

Imaging Room	X-ray Machines, Ultrasound (2D/3D/4D), Processors, Lead Protection Gear
Laboratory	Chemistry/Hematology Analyzers, Centrifuges, Elisa Readers, Urine Analyzers
Operation Room	Anesthesia Machines, Patient Monitors, Ventilators, Operation Tables, Surgical Lights

Frequently Asked Questions (FAQ)

Q: What animal sizes is the CCV-M14P monitor suitable for? A: The monitor includes specific NIBP algorithms and measurement ranges for Small, Medium, and Big animals, ensuring accurate readings for a variety of species.

Q: How long can the device operate on battery power? A: The built-in 2200mAh rechargeable lithium battery provides at least 240 minutes of continuous operation under normal use.

Q: Does the display support touch functionality? A: Yes, it features a 14-inch high-definition color TFT touch screen for intuitive operation.

Q: Can it monitor EtCO2? A: Yes, EtCO2 (Mainstream or Sidestream) is available as an optional configuration for both spontaneously breathing and mechanically ventilated animals.

Q: What are the standard parameters included? A: The standard package includes 3/5-lead ECG, Heart Rate (HR), Respiration (RESP), NIBP, SpO2, Pulse Rate (PR), and Temperature monitoring.

Q: Is the monitor visible from side angles in the OR? A: Yes, the screen provides a large 170-degree viewing angle, making it easy for staff to see vital signs from different positions in the operating room.
