Hot Selling 8-Inch Screen Portable Veterinary Cardiac Monitoring Systems

Hot Selling 8-Inch Screen Portable Veterinary Cardiac Monitoring Systems

Hot Selling 8-Inch Screen Portable Veterinary Cardiac Monitoring Systems

Hot Selling 8-Inch Screen Portable Veterinary Cardiac Monitoring Systems

Hot Selling 8-Inch Screen Portable Veterinary Cardiac Monitoring Systems

1 / 5

Hot Selling 8-Inch Screen Portable Veterinary Cardiac Monitoring Systems

Hot Selling 8-Inch Screen Portable Veterinary Cardiac Monitoring Systems

Hot Selling 8-Inch Screen Portable Veterinary Cardiac Monitoring Systems

Hot Selling 8-Inch Screen Portable Veterinary Cardiac Monitoring Systems

Hot Selling 8-Inch Screen Portable Veterinary Cardiac Monitoring Systems

Hot Selling 8-Inch Screen Portable Veterinary Cardiac Monitoring Systems

Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Patient Monitor
Certification:	ISO13485

Send Inquiry

Product Description

📋

Basic Information

Model NO.

CCV-PM80D

Warranty

1 Year

Display

12.1 Inches

Optional

Etco2

Origin

China

Capacity

1000 units/Month

🐾

Product Description

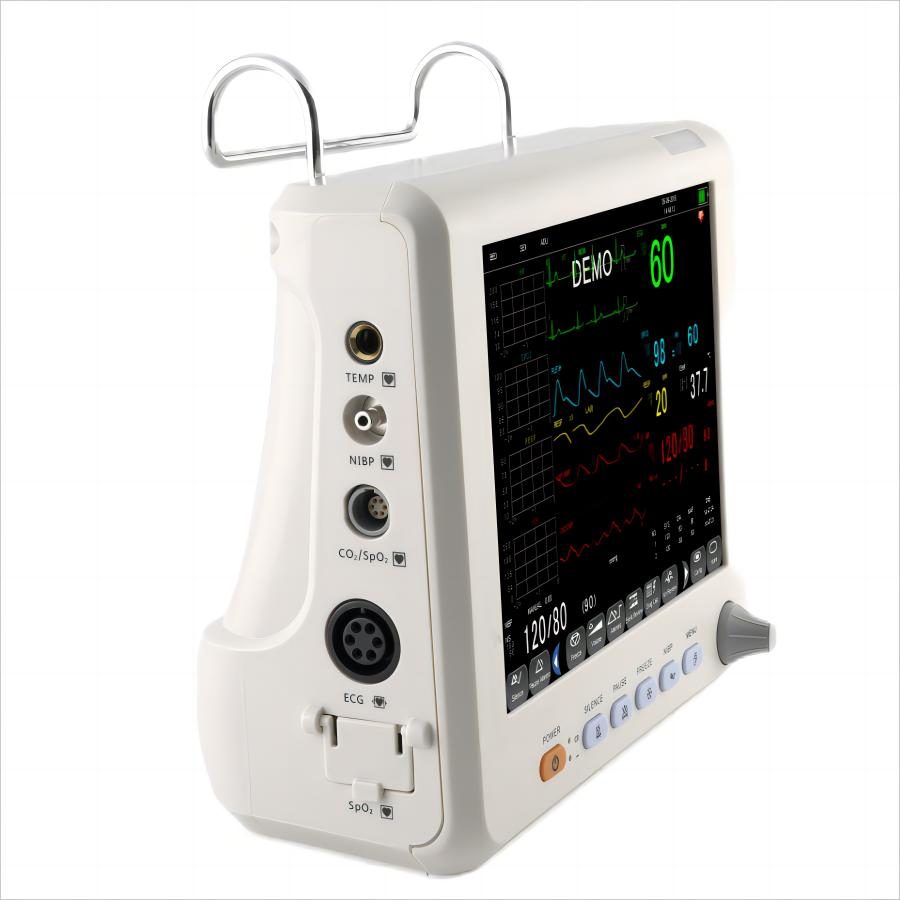

Hot Selling 8-inch Screen portable veterinary cardiac monitoring systems

Model: CCV-PM80D

Veterinary Cardiac Monitoring System

Key Features

Compact and flexible appearance, easy for carrying and suitable for indoor and outdoor monitoring.
8 inch high resolution color TFT display.
Adjustable audible and visual alarms for enhanced safety.
Built-in rechargeable lithium battery for uninterrupted patient monitoring.

⚙️

Technical Specifications

ECG Monitoring

Lead Mode: 5 Leads (I, II, III, AVR, AVL, AVF, V)
Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV
Heart Rate: 15-300 BPM (Adult); 15-350 BPM (Neonatal)
Resolution: 1 BPM | Accuracy: ±1%
ST measurement range: -2.0 ~ +2.0 mV
Sweep speed: 12.5 mm/s, 25mm/s, 50mm/s

SPO2 & NIBP

SPO2 Measuring Range: 0 ~ 100% (Accuracy: 70% ~ 100% ±2%)
Pulse Rate: 20-250 BPM
NIBP Method: Oscillometry (Manual, Auto, STAT modes)
NIBP Unit: mmHg, kPa
Adult Mode Range: SYS 40 ~ 280 mmHg / DIA 10 ~ 225 mmHg

RESP & TEMP

RESP Method: Impedance between RA-LL or RALA
RESP Range: Adult 10 ~ 120 BrPM / Neonatal 7 ~ 150 BrPM
TEMP Range: 0 ~ 50 °C (Accuracy: ±0.1°C)

Standard & Optional Parameters

Standard: ECG, RESP, TEMP, NIBP, SPO2, PR

Optional: Etco2

📦

Standard Configuration

No.	Item	Qty
1	Main Unit	1
2	5-lead ECG cable	1
3	Spo2 probe	1
4	NIBP cuff	5
5	NIBP extension tube	1
6	Temperature probe	1
7	Power Cable	1
8	User Manual	1
9	Fuse	2

🏥

One-Stop Medical Solutions

Department	Equipment Examples
X-Ray Room	X-ray machine, Processor, Film, Cassette, Lead protection clothing
Ultrasound	B/W 2D Ultrasound, 2/3/4D Color Ultrasound
Laboratory	Chemistry analyzer, Hematology analyzer, ELISA reader, Centrifuge, Urine analyzer
Operation Room	Patient monitor, ECG, Oxygen generator, Operating lamp/table, Anesthesia machine, Ventilator

Product Detail 1

Product Detail 2

Product Dimensions

❓

Frequently Asked Questions

What is the display size of the CCV-PM80D?

The CCV-PM80D features a high-resolution 8-inch color TFT display, ideal for clear visualization of cardiac parameters.

Is this monitor suitable for outdoor veterinary use?

Yes, its compact design and built-in rechargeable lithium battery make it highly portable and suitable for both indoor clinic and outdoor monitoring.

Which standard parameters does it measure?

The standard configuration includes ECG, RESP, TEMP, NIBP, SPO2, and PR (Pulse Rate).

Can I add Etco2 monitoring to this device?

Yes, Etco2 is available as an optional parameter that can be integrated into the system based on your needs.

How many NIBP cuffs are included in the package?

The standard package includes 5 NIBP cuffs to accommodate different sizes or animal types.

What is the warranty period for the monitor?

The product comes with a standard 1-year warranty for the main unit.
