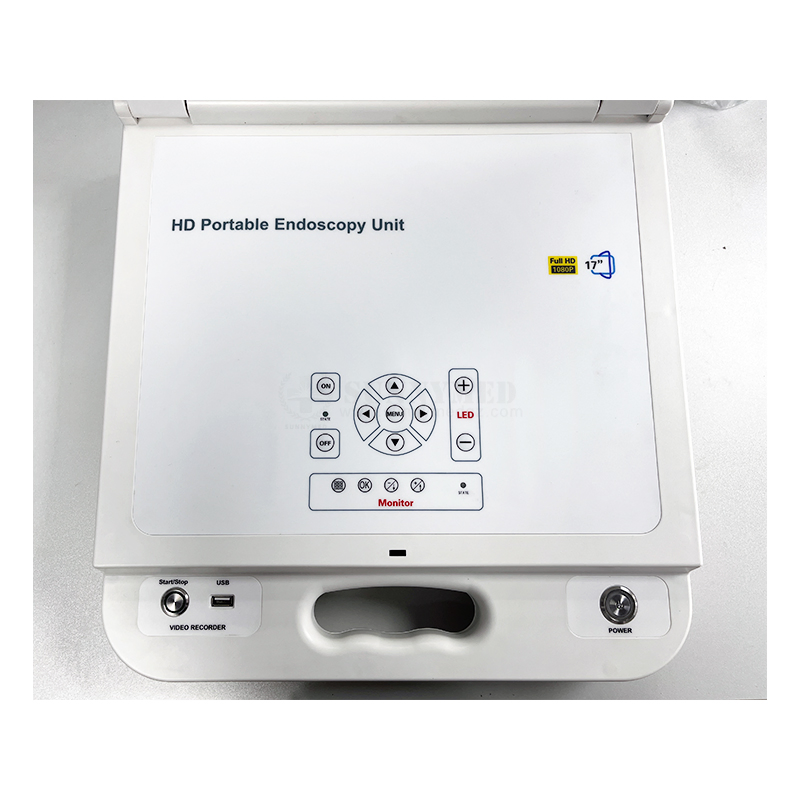

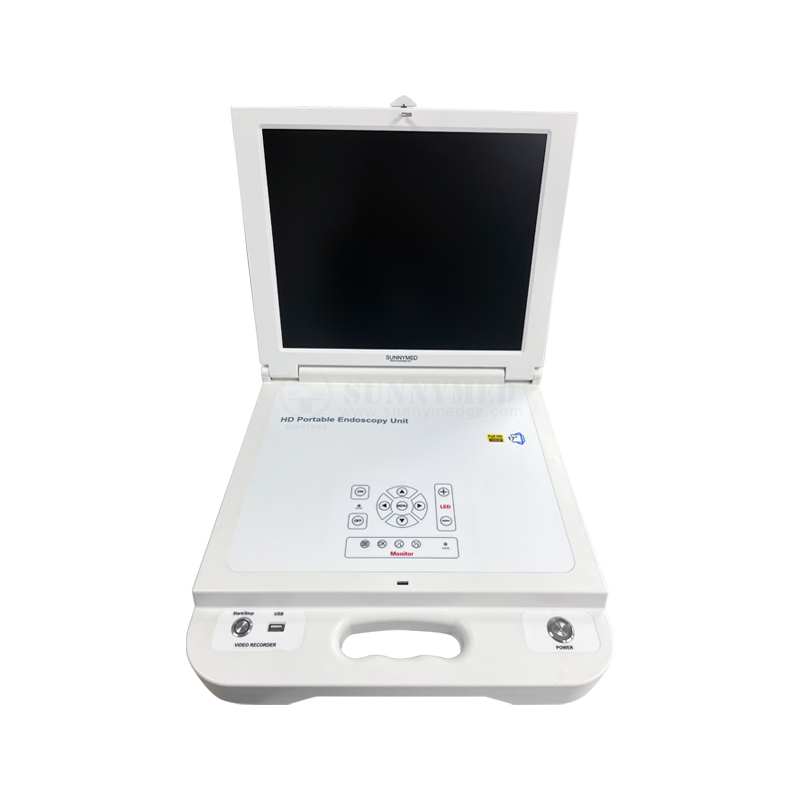

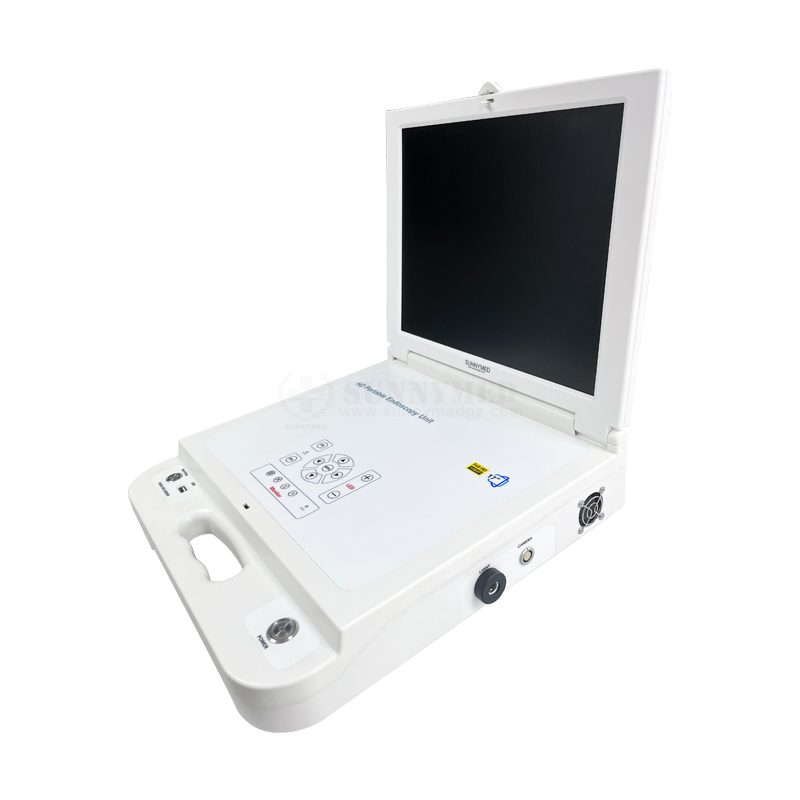

Sy-PS046A Portable Portable Laptop Endoscopy Camera All in One Endoscope Camera System for Vet Use with Recording Function

Customization: Available
Type: Veterianry Endoscope Camera System
Syringe: No Need

Product Description

📋

Basic Information

Model NO.
SY-PS046A
Blood Sampling
No Need
Breathing Pattern
Auto-Control
Control Method
Auto
Light Source
80W LED
Storage
-40℃~+55℃
Warranty
1 Year
LCD Screen
17 Inch HD
Continuous Hours
>4h
Specification
66*57*23cm 15.5KG
Origin
China
🔍

Product Description

Portable 17 inch HD display 4 in 1 endoscope system veterinary use available

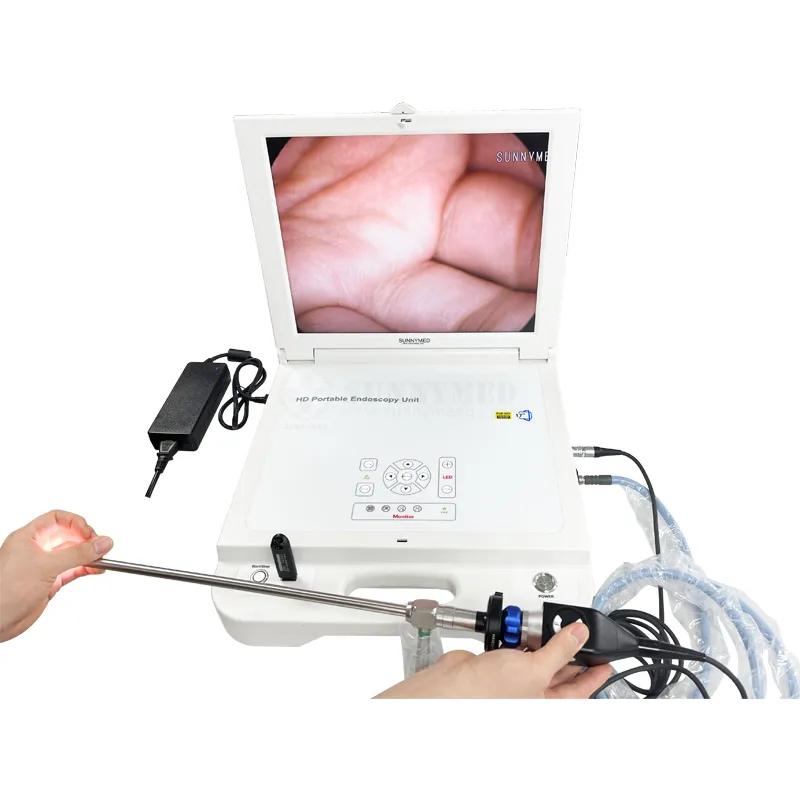

Endoscope System 1

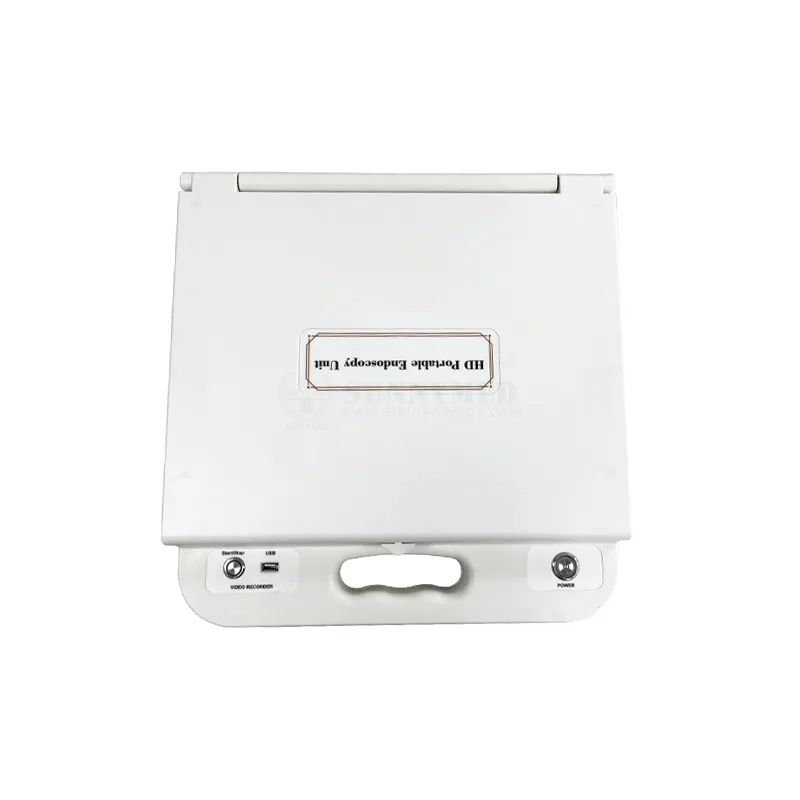

Endoscope System 2

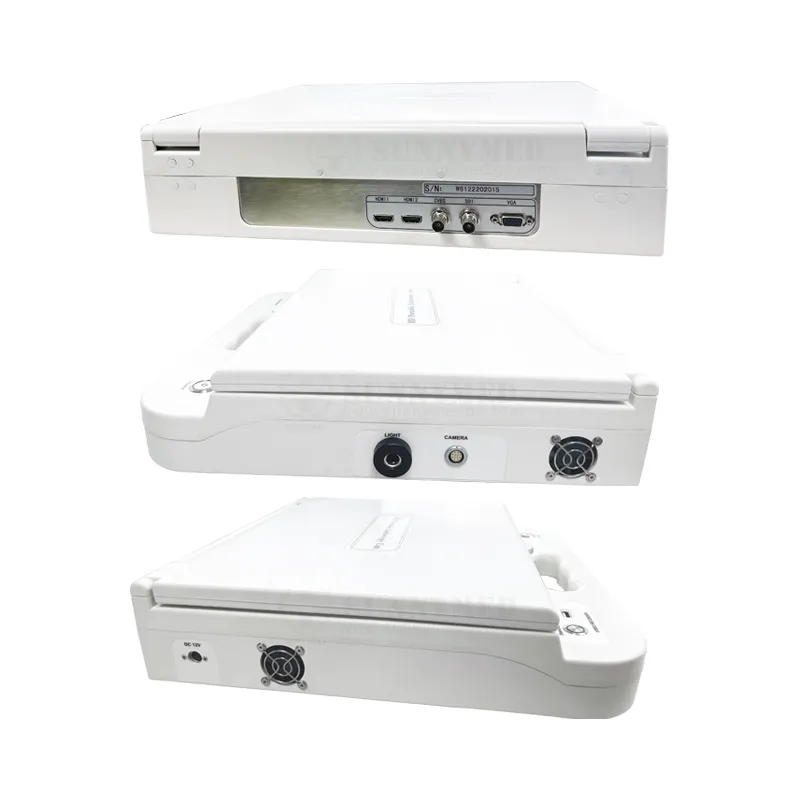

Endoscope System 3

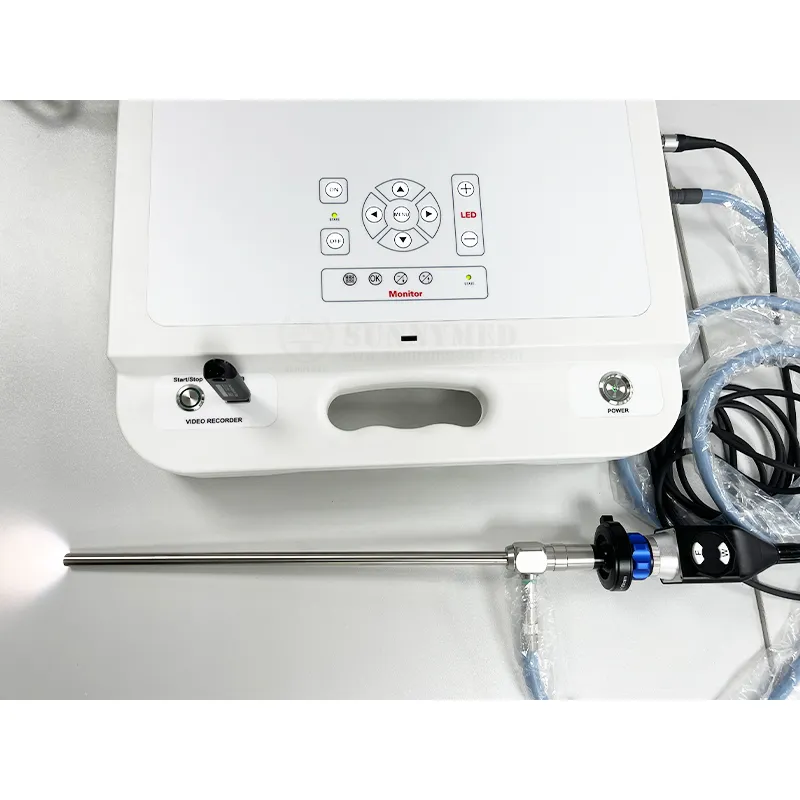

Endoscope System 4
Endoscope System 5

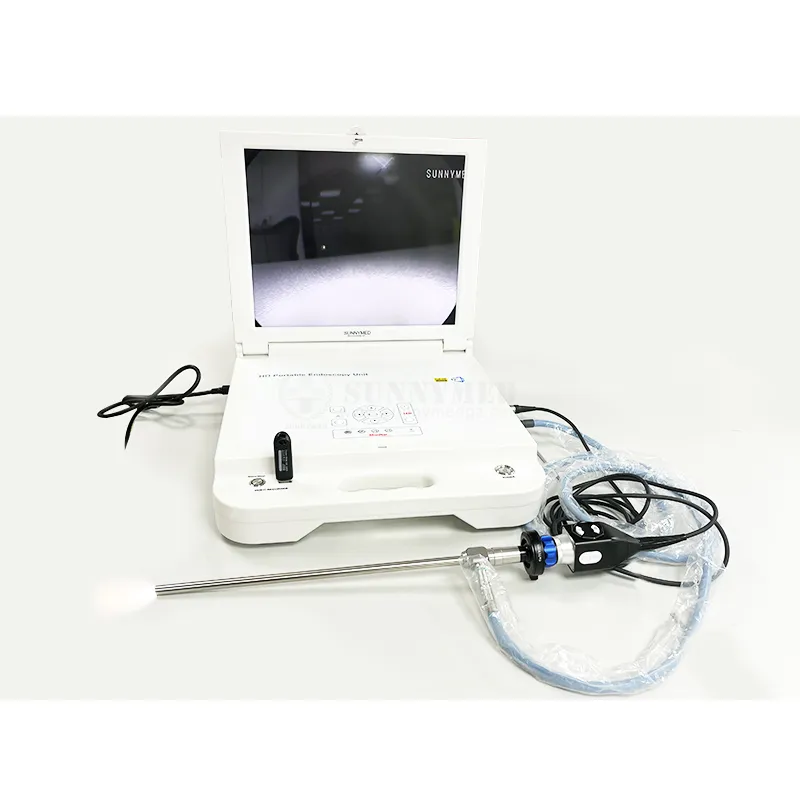

Endoscope System 6
Purchase Information

1. How to buy?
A. Contact our sales directly.
B. Place the order online.

Order Process

2. How to pay?
Methods: Trade assurance, Credit Card, Paypal, T/T(Bank Transfer), Western union, L/C.

3. Delivery Time:
Ready stock: within 24 hours
OEM: 2-7 working days
Safety delivery: special one-to-one inspection before delivery.

Quality Inspection

Why Choose This Model?

117 inch HD monitor
280W LED light source
3Can connect to 15/21/24 inch monitor
4Connecting Rigid and Flexible scope
5With HD video recorder
6Can capture pictures and videos
⚙️

Technical Parameters

Camera System 1. Image Sensor: 1/3 CCD
2. Extinction speed: <0.5s
3. Effective pixels: P:795(H)*596(V)
4. Scanning Frequency: 60Hz
5. Horizontal resolution: 700TVL
LED Light Source 1. Light source: LED light
2. Effective optical power: ≥100mW
3. Brightness/Lux: ≥490000lx
4. Color temperature: ≥6500K
5. Machine power: 35VA
HD Recorder 1. Recording format: MP4
2. Recording interface: USB disk and Removable hard disk
3. External mobile HDD: MAX 2T
📦

Standard Configuration

1Endoscope camera system 17 inch *1
2Light source cable *1
3Camera head*1
4CVBS & HDMI cable*1
5Aluminum box*1

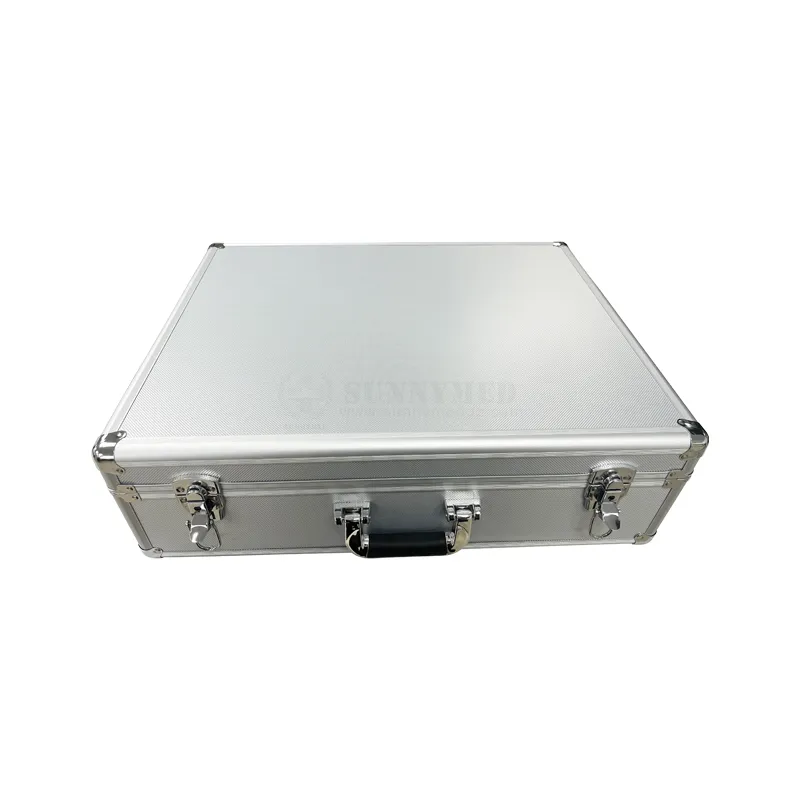

Product Packaging
🏆

Service & Support

Training Support: Video tutorials including installation, operation, repairing and maintenance. Real-time online video calls for training.

After-Sales: Warranty 12-60 months. Inquiries replied within 8 hours.

Service Process

Frequently Asked Questions

Is this endoscope system suitable for all types of animals?
Yes, the system is designed for veterinary use and can be connected to various rigid and flexible scopes for different animal sizes and procedures.
What is the main advantage of the 4-in-1 system?
It integrates the 17-inch HD monitor, LED light source, camera processor, and HD video recorder into one portable unit, saving space and improving efficiency.
Can I record and save surgery videos directly?
Yes, the system features a built-in HD recorder that saves files in MP4 format via a USB disk or an external hard drive (up to 2T).
How long does the LED light source last?
The 80W LED light source is highly durable with an effective optical power of ≥100mW and provides consistent high-brightness lighting for over 4 hours of continuous use.
Does the system support external monitors?
Yes, it is equipped with HDMI and CVBS interfaces, allowing you to connect it to external 15, 21, or 24-inch monitors for a larger view.
What kind of technical support do you provide after purchase?
We offer comprehensive video tutorials for installation and operation, as well as real-time online video training and an 8-hour response guarantee for after-sales inquiries.
