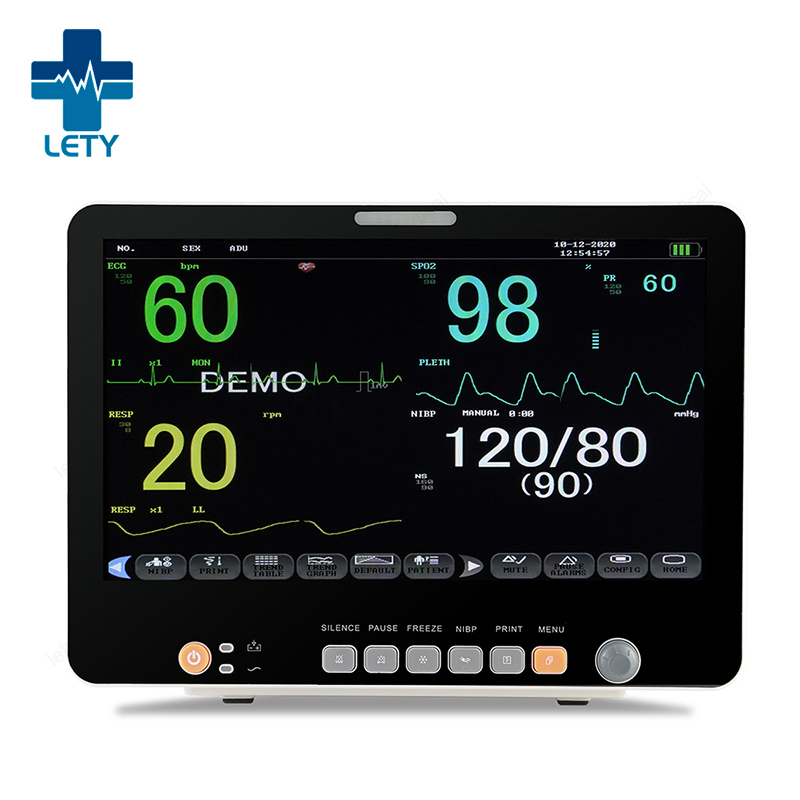

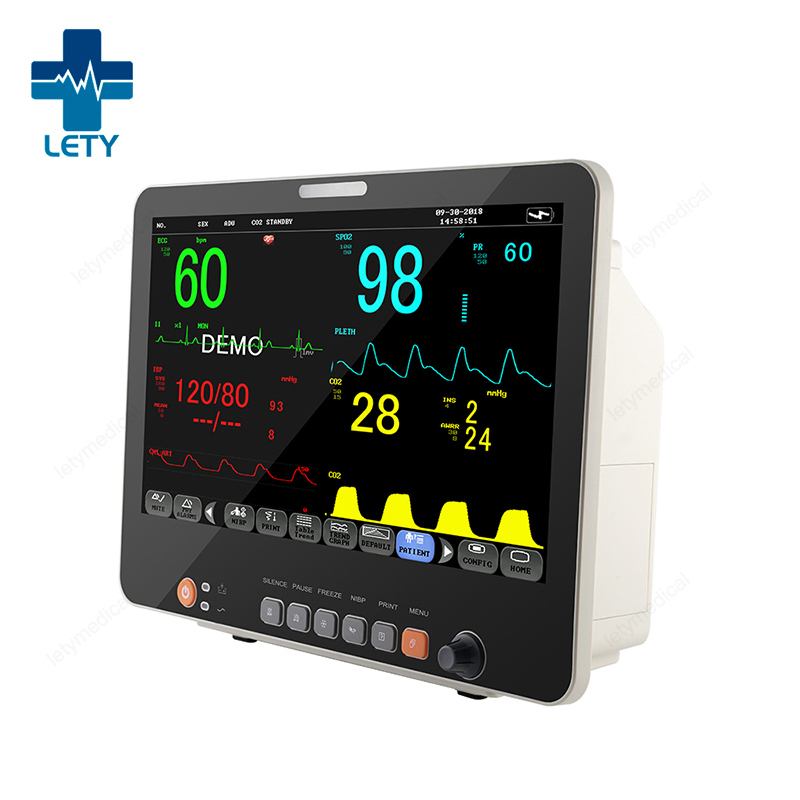

Multi-Parameter Patient Monitor 15.6 Large Screen Inch ICU Patient Monitor

1 / 5

Multi-Parameter Patient Monitor 15.6 Large Screen Inch ICU Patient Monitor

Customization:	Available
Classification:	15 Inch Patient Monitor
Type:	15 Inch Patient Monitor

Send Inquiry

Product Description

Basic Info.

Model NO.

LTM-15B

Certification

CE, ISO13485

Product

15.6 Inch Patient Monitor

Warranty

1 Years

Screen

15.6 Inch Screen

Transport Package

Standard Export Pack

Specification

1pcs/carton

Production Capacity

1000units/Month

Product Description

15.6 Inch Patient Monitor

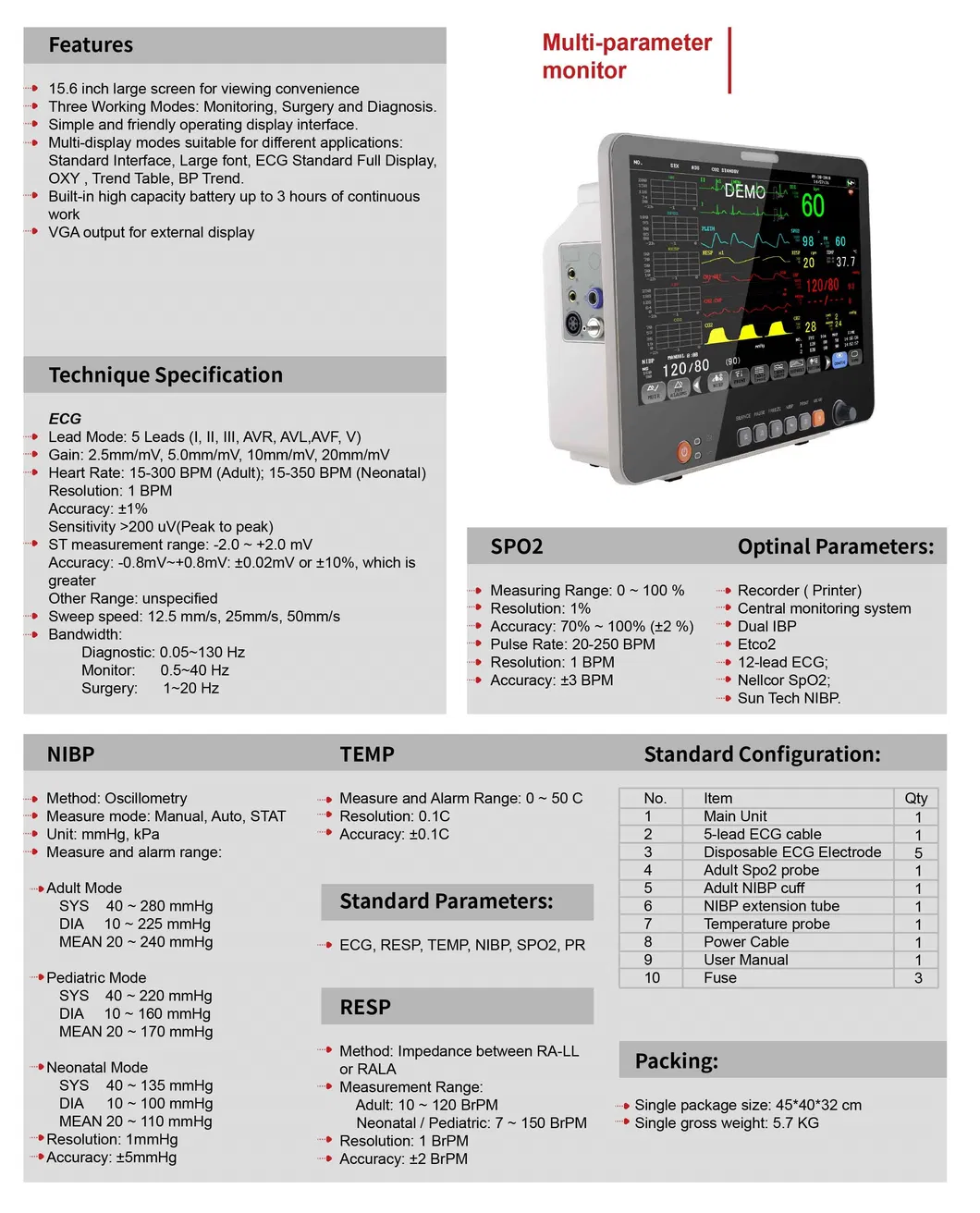

Features

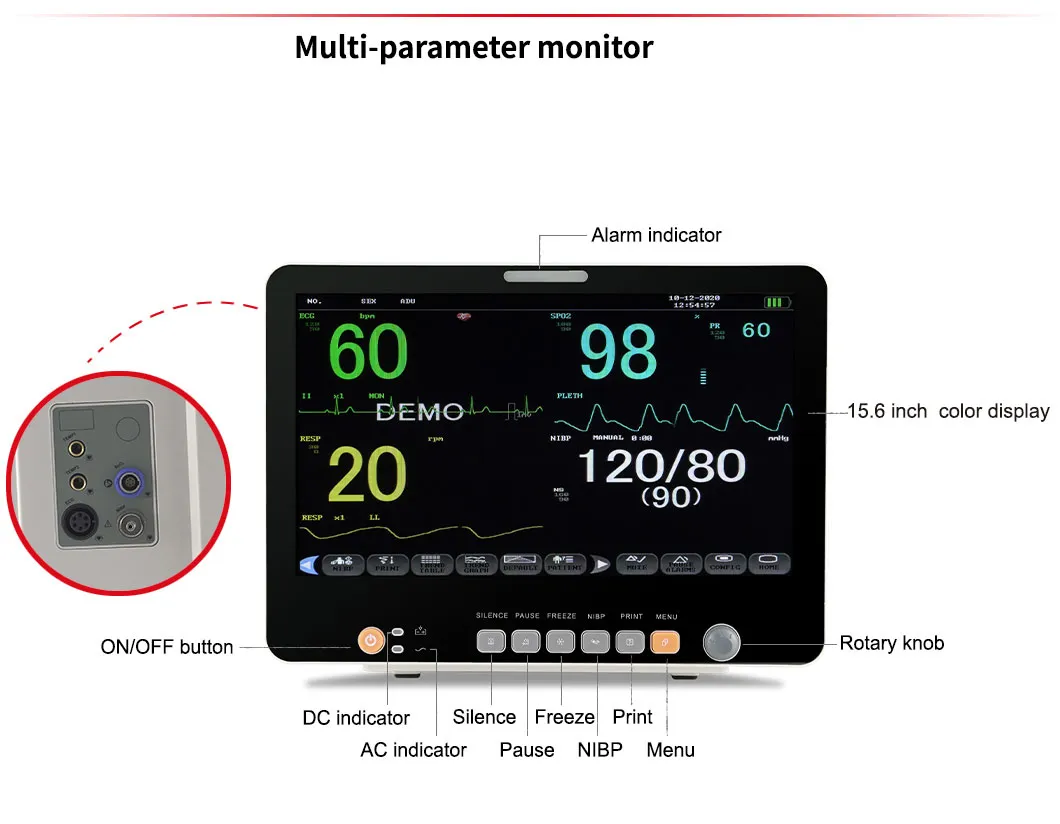

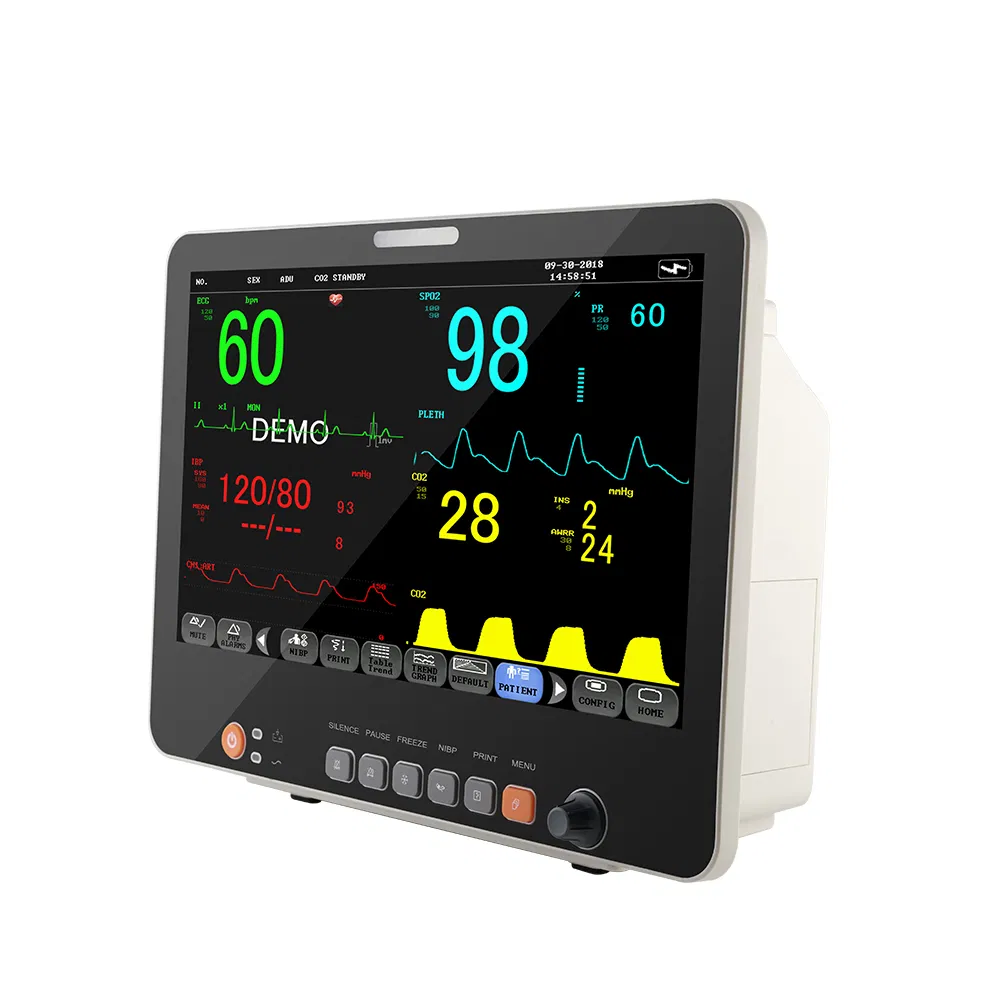

15.6 inch large screen for viewing convenience
Three Working Modes: Monitoring, Surgery and Diagnosis.
Simple and friendly operating display interface.
Multi-display modes: Standard Interface, Large font, ECG Standard Full Display, OXY, Trend Table, BP Trend.
Built-in high capacity battery up to 3 hours of continuous work

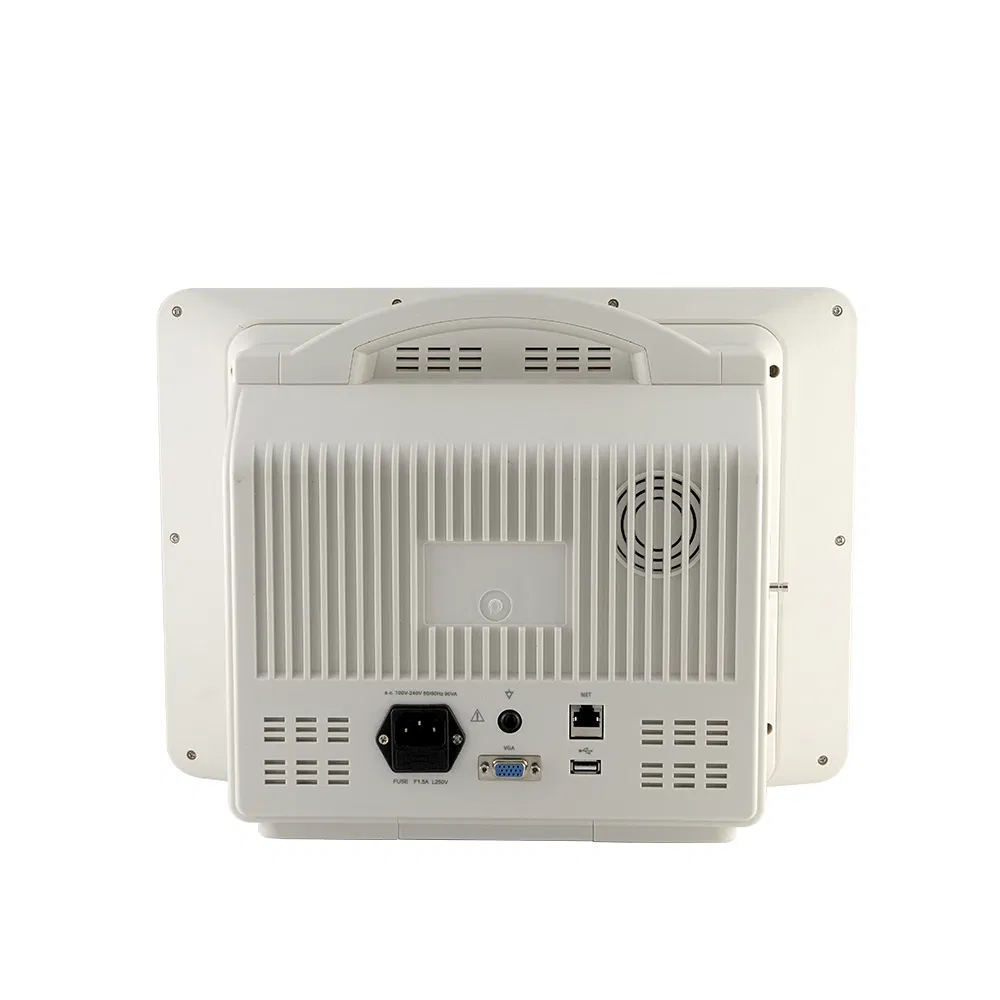

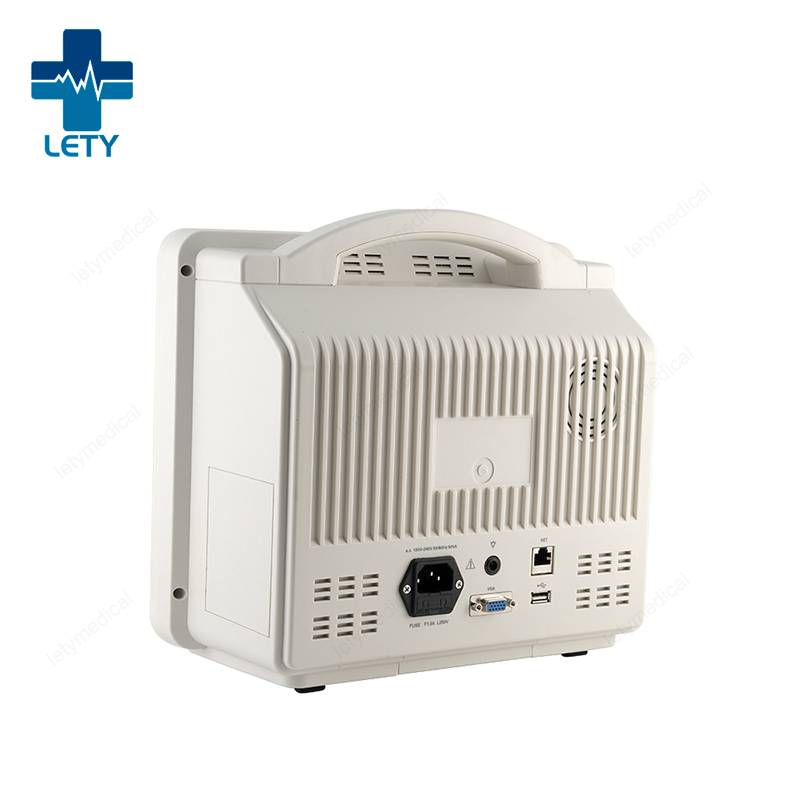

VGA output for external display

Technical Specification

ECG

Lead Mode: 5 Leads (I, II, III, AVR, AVL,AVF, V)
Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV
Heart Rate: 15-300 BPM (Adult); 15-350 BPM (Neonatal)
Resolution: 1 BPM | Accuracy: ±1% | Sensitivity >200 uV(Peak to peak)
ST measurement range: -2.0 ~ +2.0 mV
Sweep speed: 12.5 mm/s, 25mm/s, 50mm/s
Bandwidth: Diagnostic (0.05~130 Hz), Monitor (0.5~40 Hz), Surgery (1~20 Hz)

SPO2 & NIBP

SPO2: Range 0 ~ 100%, Resolution 1%, Accuracy 70% ~ 100% (±2%)
Pulse Rate: 20-250 BPM, Accuracy ±3 BPM

NIBP: Method: Oscillometry | Mode: Manual, Auto, STAT
Adult: SYS 40~280, DIA 10~225, MEAN 20~240 mmHg
Pediatric: SYS 40~220, DIA 10~160, MEAN 20~170 mmHg
Neonatal: SYS 40~135, DIA 10~100, MEAN 20~110 mmHg

RESP & TEMP

RESP: Impedance method (RA-LL or RALA)
Adult: 10 ~ 120 BrPM | Neonatal/Pediatric: 7 ~ 150 BrPM | Accuracy: ±2 BrPM

TEMP: Range 0 ~ 50 °C | Resolution 0.1°C | Accuracy: ±0.1°C

Parameters

Standard: ECG, RESP, TEMP, NIBP, SPO2, PR

Optional: Recorder (Printer), Central monitoring system, Dual IBP, Etco2, 12-lead ECG, Nellcor SpO2, SunTech NIBP.

Standard Configuration

No.	Item	Qty
1	Main Unit	1
2	5-lead ECG cable	1
3	Disposable ECG Electrode	5
4	Adult Spo2 probe	1
5	Adult NIBP cuff	1
6	NIBP extension tube	1
7	Temperature probe	1
8	Power Cable	1
9	User Manual	1
10	Fuse	3

Packing Details

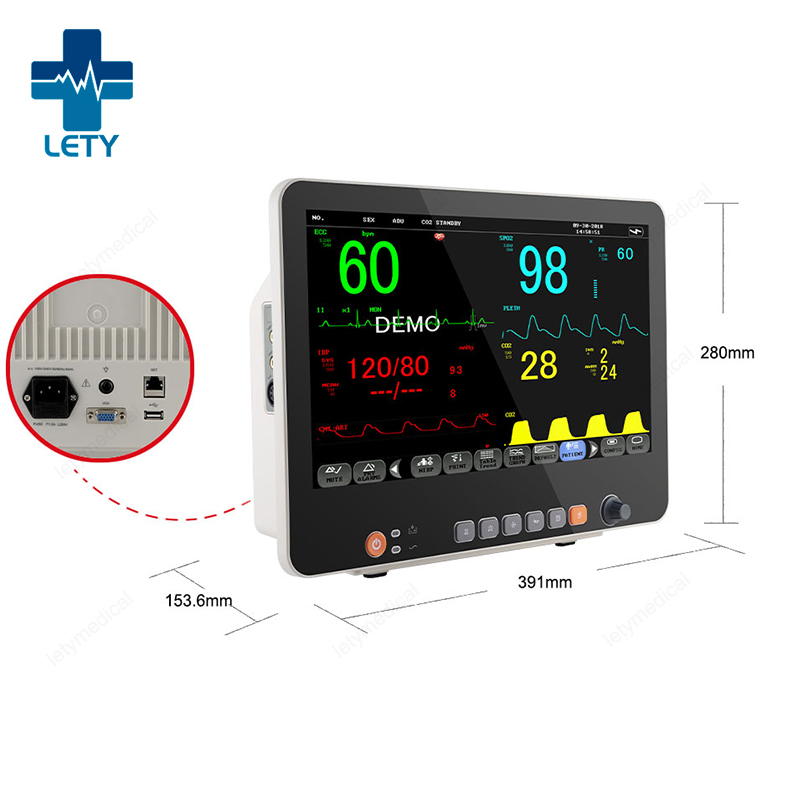

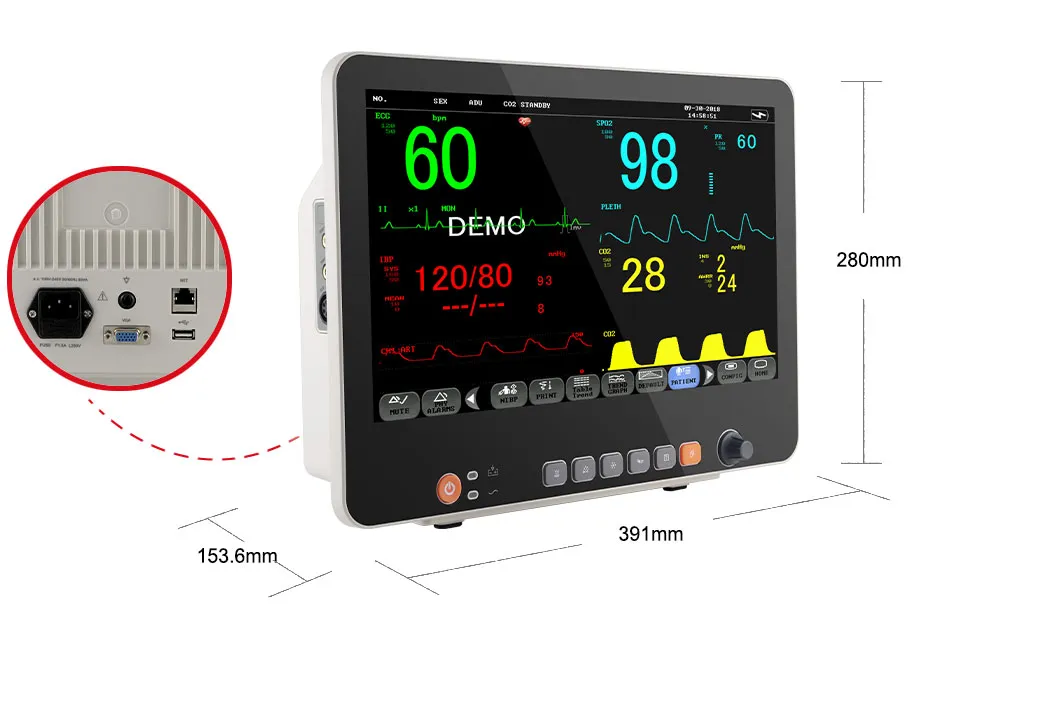

Single package size: 45*40*32 cm
Single gross weight: 5.7 KG

Frequently Asked Questions

Q1: What is the screen size and display quality of the LTM-15B? The monitor features a large 15.6-inch screen, providing clear and convenient viewing for various clinical applications.

Q2: How many working modes does this patient monitor support? It supports three dedicated working modes: Monitoring, Surgery, and Diagnosis, making it versatile for different hospital departments.

Q3: How long can the monitor operate on battery power? The built-in high-capacity battery supports up to 3 hours of continuous work, ensuring monitoring during transport or power outages.

Q4: What are the standard parameters included in the basic configuration? The standard configuration includes ECG, RESP, TEMP, NIBP, SPO2, and PR (Pulse Rate).

Q5: Can the monitor be connected to an external display? Yes, the device is equipped with a VGA output for connecting to an external monitor for larger viewing needs.

Q6: Is this monitor suitable for neonatal use? Yes, the technical specifications include specific measurement ranges and accuracy settings for Adult, Pediatric, and Neonatal modes for parameters like NIBP and ECG.
