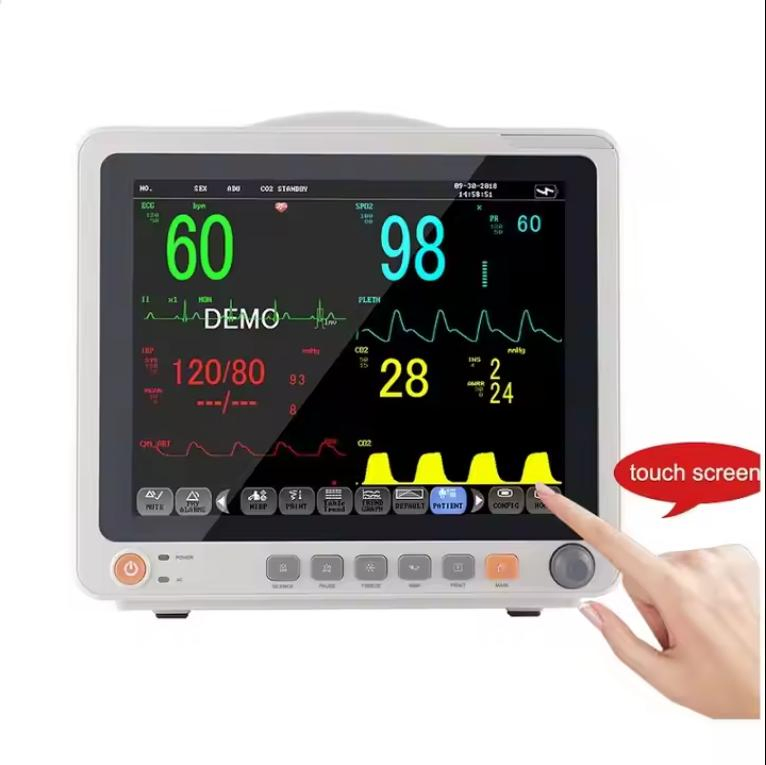

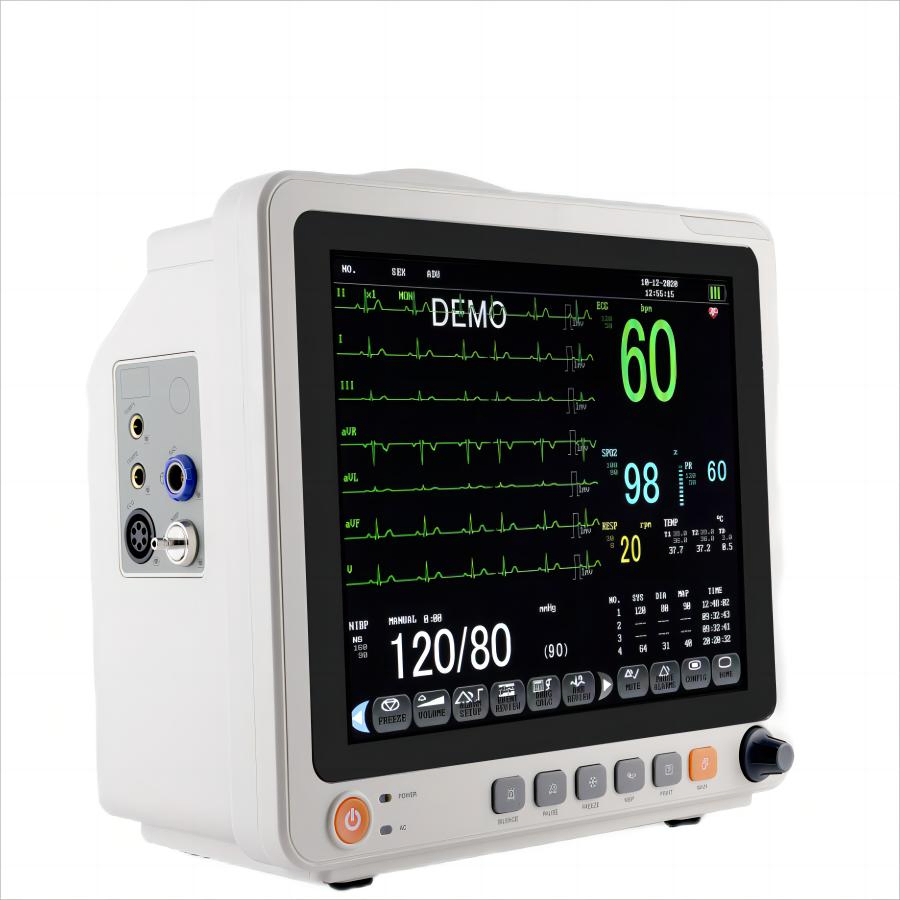

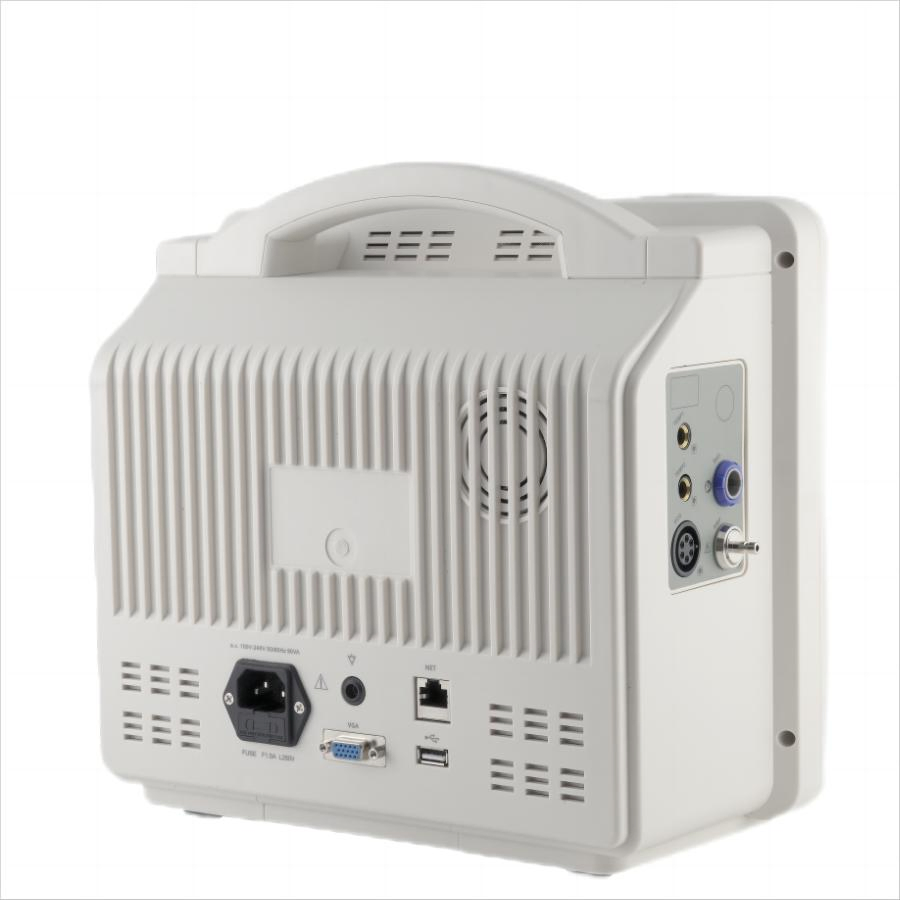

Hospital 12.1-Inch Touch Screen Multi-Parameter ICU Patient Monitoring Systems
Hospital 12.1-Inch Touch Screen Multi-Parameter ICU Patient Monitoring Systems
Hospital 12.1-Inch Touch Screen Multi-Parameter ICU Patient Monitoring Systems
Hospital 12.1-Inch Touch Screen Multi-Parameter ICU Patient Monitoring Systems
Hospital 12.1-Inch Touch Screen Multi-Parameter ICU Patient Monitoring Systems
1 / 5
Hospital 12.1-Inch Touch Screen Multi-Parameter ICU Patient Monitoring Systems
Hospital 12.1-Inch Touch Screen Multi-Parameter ICU Patient Monitoring Systems
Hospital 12.1-Inch Touch Screen Multi-Parameter ICU Patient Monitoring Systems
Hospital 12.1-Inch Touch Screen Multi-Parameter ICU Patient Monitoring Systems
Hospital 12.1-Inch Touch Screen Multi-Parameter ICU Patient Monitoring Systems

Hospital 12.1-Inch Touch Screen Multi-Parameter ICU Patient Monitoring Systems

Type: Patient Monitor
Material: Plastic
Feature: Reusable
Send Inquiry

Product Description

📊 Basic Product Information
Model NO.CCO-PM12B
CertificationISO13485
Warrant1 Year
Transport PackageStandard Export Package
OriginChina
Capacity500units/Month
Hospital 12.1-inch Touch Screen Multi-parameter ICU Patient Monitoring Systems

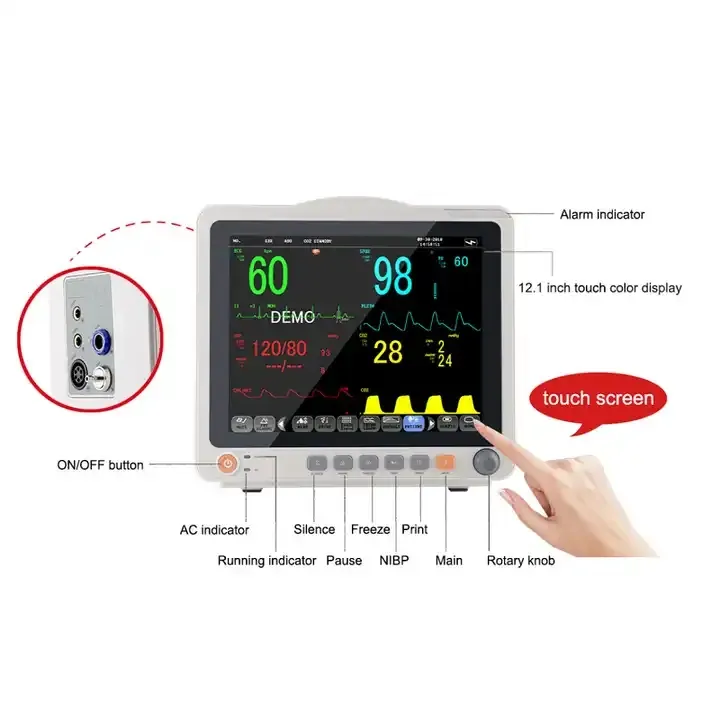

ICU Patient Monitoring System
✨ Key Features
  • Touch-screen for easy operation
  • 12.1 inch high resolution color TFT display
  • USB interfaces support easy software upgrade and data transfer
  • Compatible with Central Monitoring System (CMS)
  • Three Working Modes: Monitoring, Surgery and Diagnosis
  • Simple and friendly operating display interface
  • Multi-display modes: Standard Interface, Large font, ECG Standard Full Display, OXY, Trend Table, BP Trend
  • Built-in high capacity battery up to 3 hours of continuous work
  • VGA output for external display
⚙️ Technical Specifications
ECG
  • Lead Mode: 5 Leads (I, II, III, AVR, AVL, AVF, V)
  • Heart Rate: 15-300 BPM (Adult); 15-350 BPM (Neonatal)
  • Resolution: 1 BPM | Accuracy: ±1%
  • ST measurement range: -2.0 ~ +2.0 mV
  • Sweep speed: 12.5 mm/s, 25mm/s, 50mm/s
SPO2 & NIBP
  • SPO2 Range: 0 ~ 100% (Accuracy: ±2% for 70-100%)
  • Pulse Rate: 20-250 BPM
  • NIBP Method: Oscillometry
  • Modes: Manual, Auto, STAT
  • Unit: mmHg, kPa
RESP & TEMP

RESP Range: Adult: 10 ~ 120 BrPM | Neonatal/Pediatric: 7 ~ 150 BrPM

TEMP Range: 0 ~ 50 °C | Resolution: 0.1°C | Accuracy: ±0.1°C

Standard Parameters:
ECG, RESP, TEMP, NIBP, SPO2, PR
Optional Parameters:
Recorder, CMS, Dual IBP, Etco2, 12-lead ECG, Nellcor-SpO2, Sun Tech NIBP
📋 Standard Configuration List
No. Item Description Qty
1Main Unit1
25-lead ECG cable1
3Disposable ECG Electrode5
4Adult Spo2 probe1
5Adult NIBP cuff1
6NIBP extension tube1
7Temperature probe1
8Power Cable1
9User Manual1
10Fuse3

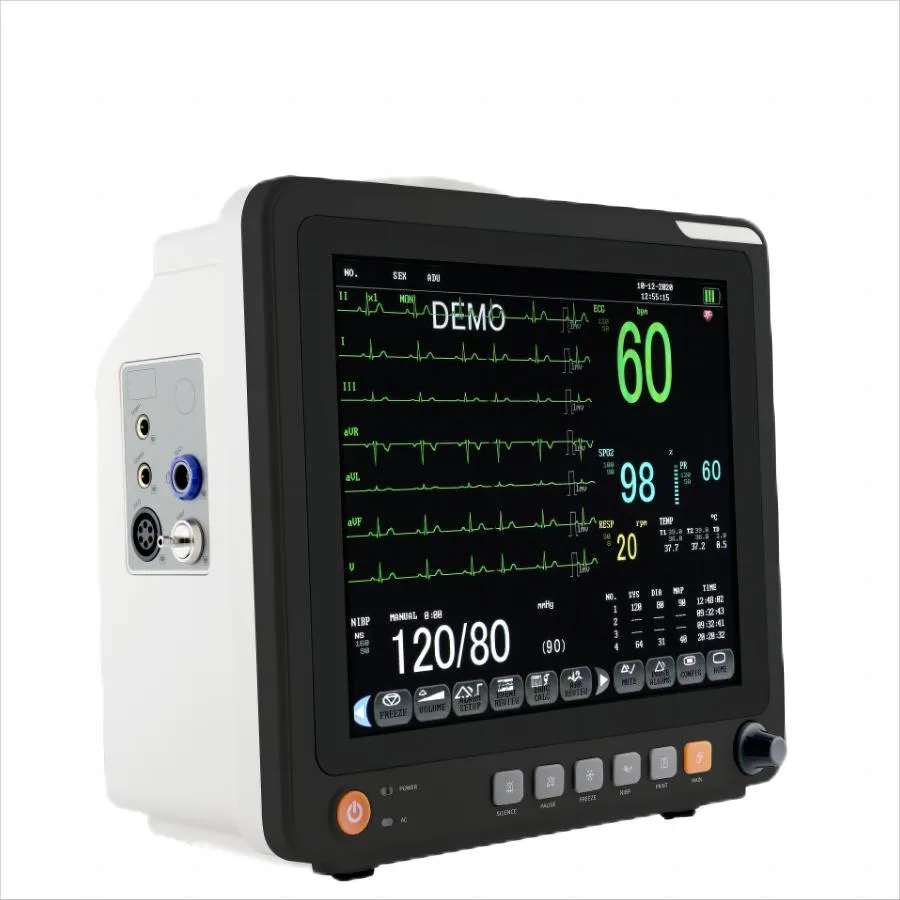

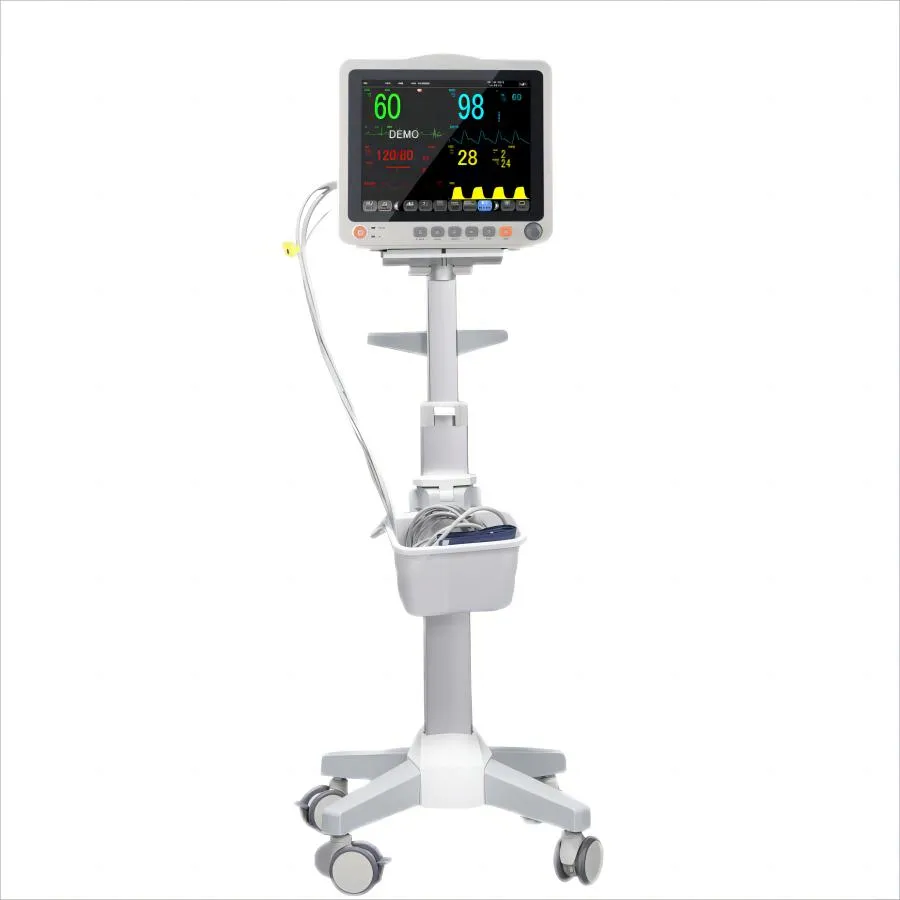

Monitor Detail 1 Monitor Detail 2 Monitor Detail 3
🏥 Hospital Medical Equipment Solutions
Department Equipment Available
X-Ray RoomX-Ray Machine, Processor, Film, Cassette, Lead Clothing
UltrasoundB/W 2D, 2D/3D/4D Color Ultrasound
LaboratoryChemistry Analyzer, Hematology Analyzer, ELISA Reader, Centrifuge
Operation RoomAnesthesia Machine, Ventilator, Operating Lamp, Table, Defibrillator
Product Application Product Features Detail System Interface
❓ Frequently Asked Questions (FAQ)
Q1: What are the primary parameters monitored by this system? A: The standard configuration includes ECG, RESP (Respiration), TEMP (Temperature), NIBP (Non-invasive Blood Pressure), SPO2 (Oxygen Saturation), and PR (Pulse Rate).
Q2: Can this monitor be used for different patient types? A: Yes, it features specific modes for Adult, Pediatric, and Neonatal patients, ensuring accurate measurement and alarm ranges for all ages.
Q3: How long does the battery last during portable use? A: The built-in high-capacity battery supports up to 3 hours of continuous operation, making it suitable for patient transport within the hospital.
Q4: Is the touch screen the only way to operate the device? A: While the 12.1-inch touch screen provides an intuitive interface for easy operation, the system also supports a friendly operating display interface designed for quick access.
Q5: Does this device support data export or software upgrades? A: Yes, it is equipped with USB interfaces that allow for easy software upgrades and efficient data transfer to other hospital systems.
Q6: Can this monitor connect to a central monitoring station? A: Yes, the system is fully compatible with Central Monitoring Systems (CMS) for centralized patient management in ICU or ward settings.
