A new standard for high-definition upper gastrointestinal tract endoscopes with further improved approachability and operability.

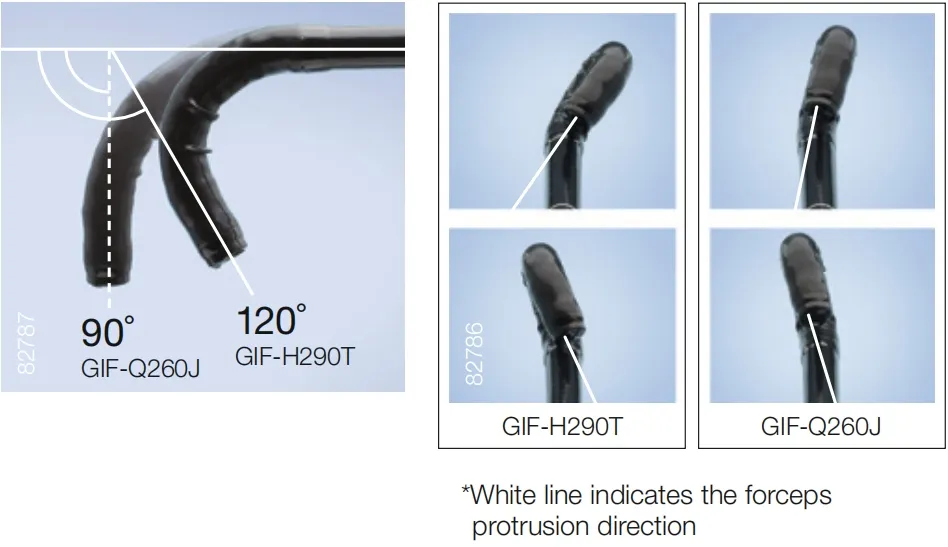

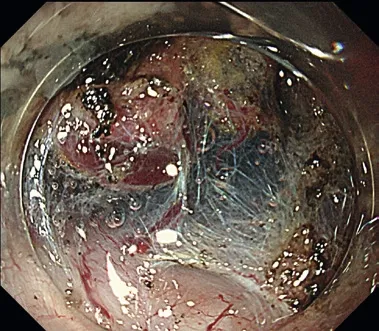

| 📍 Improved Approach The down angle of the GIF-H290T has been expanded to 120° from 90°. The extended bending range offers easier lesion approachability and better operability. | 💧 Rapid Hemostasis Features an improved auxiliary water channel position close to the instrument channel. Supports hemostasis without needing to adjust scope positioning. | 🖥️ HD Image Quality Equipped with a high-definition CCD, providing superior HD images that significantly lead to improved diagnostic and treatment accuracy. |
| Optical System | Field of View | 140° |
| Direction of View | 0° (Forward viewing) | |
| Depth of Field | 3-100 mm | |
| Insertion Section | Distal End Outer Diameter | 9.8 mm |
| Insertion Tube Diameter | 9.9 mm | |
| Working Length | 1030 mm | |
| Minimum Visible Distance | 3 mm | |
| Bending Section | Angulation Range | Up 210° / Down 120° / Right 100° / Left 100° |
| Total Length | 1350 mm | |
| System Compatibility | Video System Center CV-290; Xenon Light Source CLV-290SL, CLV-290 | |
