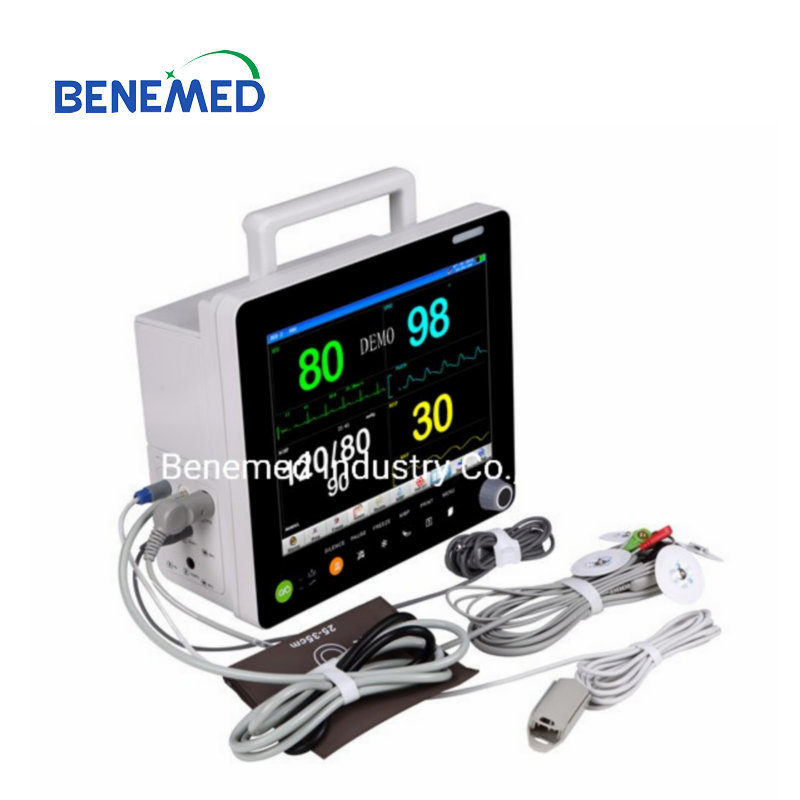

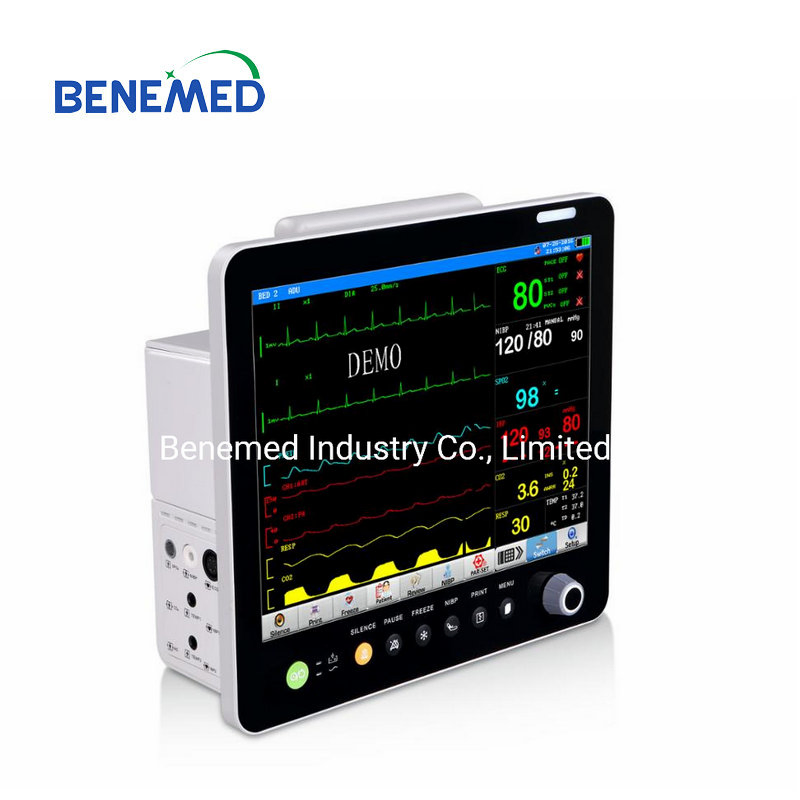

15 Inch ICU Multi Parameter Patient Monitor

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: Patient Monitor

Product Description

📋

Basic Specifications

Model NO.
iSee-15
Certification
CE, ISO13485
Group
Adult, Pediatric, Neonate
Display
15 Inch Color TFT-LCD
Parameters
ECG, NIBP, SpO2, Hr, Resp, Temp
Battery
Build-in Rechargeable
Net Weight
4.5kg
Dimensions
36*30*15cm
🩺

Product Overview

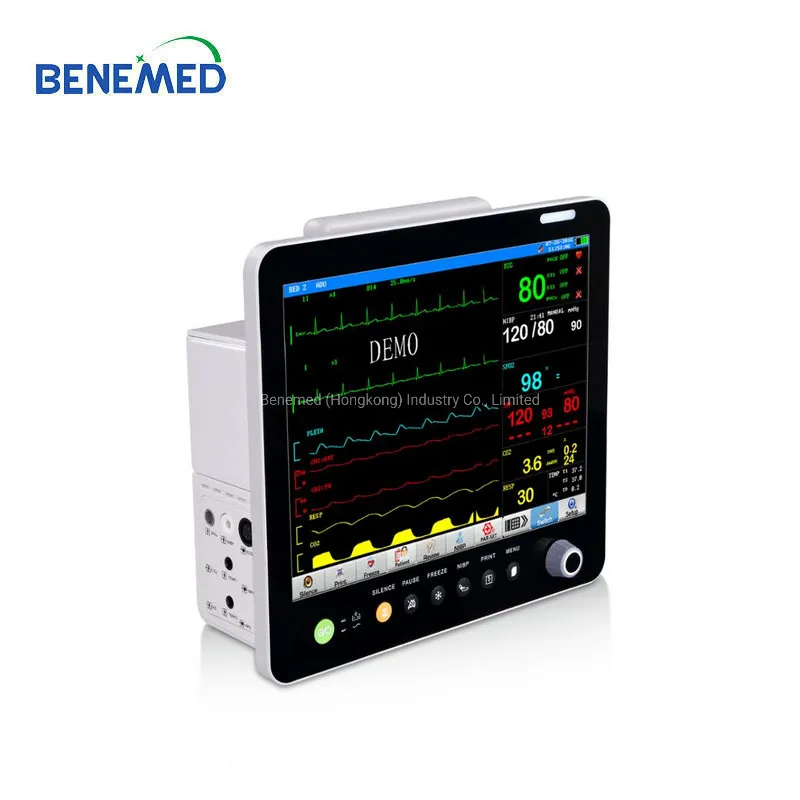

iSee-15 Multi Parameter Patient Monitor for Clinic and Hospital Use (15 Inch)

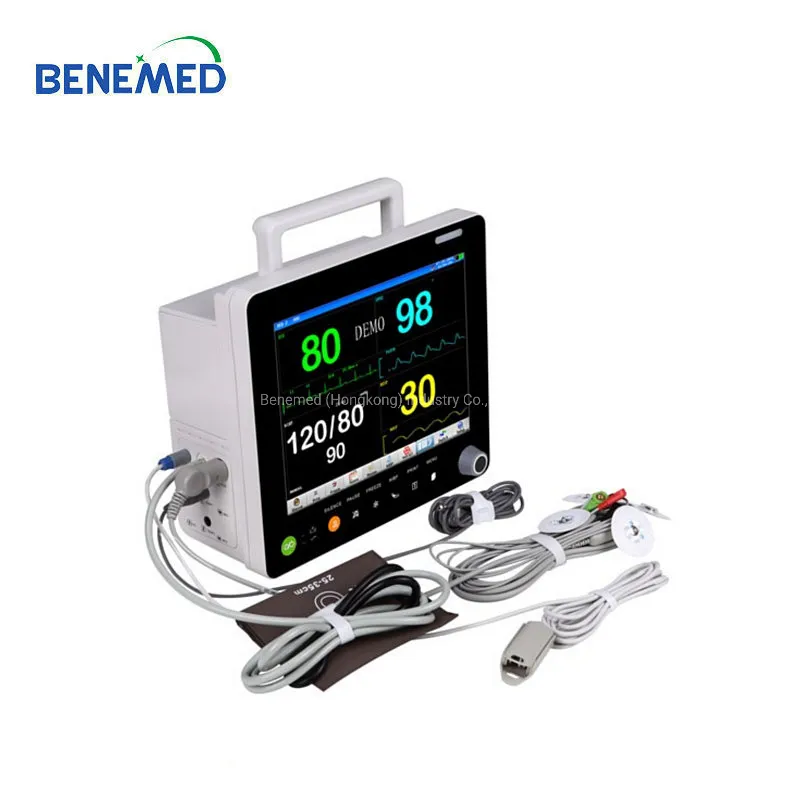

Multi Parameter Patient Monitor

Key Features

  • Comprehensive Monitoring: ECG, SPO2, NIBP, HR, TEMP, RESP.
  • Advanced Technology: Digital Oximetry with premium anti-interference from HF; low perfusion up to 0.2%.
  • Connectivity: Fully networkable with Central Monitoring Systems.
  • Data Storage: 720 hours of trend data analysis for long-term tracking.
  • Power Reliability: Built-in rechargeable battery with up to 6 hours operating time.

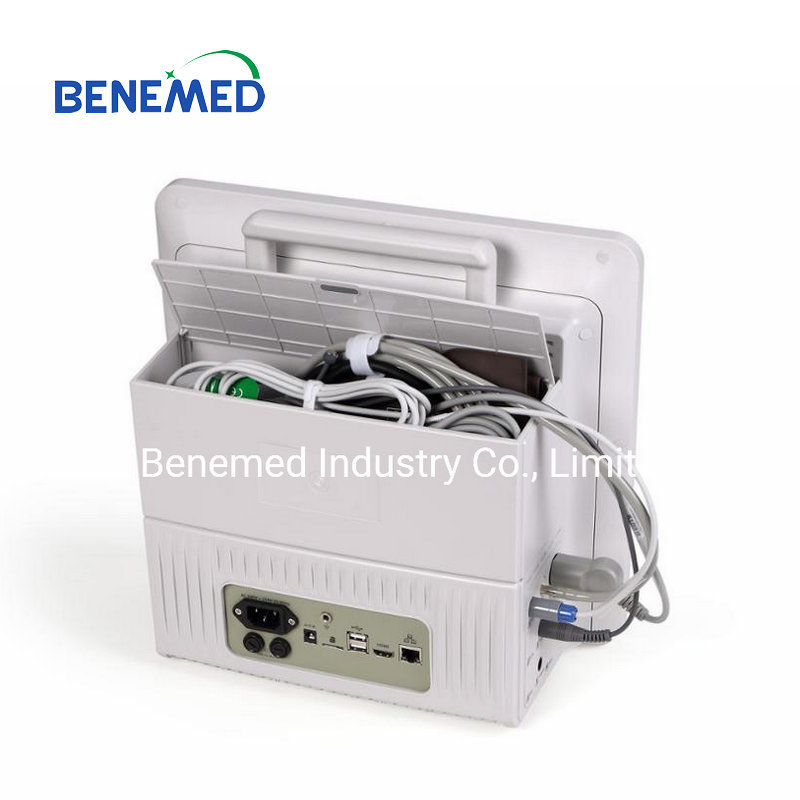

  • Storage Design: Standard configuration includes accessories receiver for easy management.
  • Customizable: Optional Touch screen, Wall-mounted bracket, Mobile stand, and Recorder.
📊

Technical Specifications

ECG & Heart Rate
Lead Mode5 Leads (R,L,F,N,C) or 3 Leads (R,L,L)
Gain Selectionx250, x500, x1000, x2000
HR RangeAdult: 15~300bpm / Neo/Ped: 15~350bpm
Accuracy±1% or ±1bpm
ST Segment Range-2.0 ~ +2.0mV
NIBP (Non-Invasive Blood Pressure)
MethodOscillometric (Manual/Auto/STAT)
Auto Mode Intervals1, 2, 3, 4, 5, 10, 15... to 480 Mins
AccuracyMax Mean error: 5mmHg
SpO2 (Oxygen Saturation)
Measuring Range0 ~ 100% (Resolution: 1%)
Accuracy70 ~ 100% (±2%)
System & Hardware
Display15 inch high-brightness color TFT-LCD
Power SupplyAC100V-250V, 50Hz/60Hz
Dimensions360mm × 330mm × 150mm
Weight4.5 kg
🖼️

Product Gallery

Technical Detail 1
Technical Detail 2

Frequently Asked Questions

What core parameters does the iSee-15 monitor?
The iSee-15 provides comprehensive monitoring for ECG, SpO2, NIBP, Heart Rate (HR), Temperature (TEMP), and Respiration (RESP).
Is this monitor suitable for pediatric or neonatal use?
Yes, the device is designed for use across different patient groups, including Adults, Pediatrics, and Neonates.
How long does the battery last during portable use?
The built-in rechargeable battery supports up to 6 hours of continuous operation, making it ideal for transport and areas with unstable power.
Does it support connection to a Central Monitoring System?
Yes, the iSee-15 is fully networkable and can be integrated with a Central Monitoring System for hospital-wide patient management.
Can I store and review historical patient data?
Absolutely. The system supports up to 720 hours of trend data analysis, allowing medical professionals to review long-term patient status.
What are the display specifications?
The monitor features a 15-inch high-brightness color TFT-LCD screen, ensuring clear visibility of waveforms and numeric data in clinical environments.
